NSN 5930-00-519-4241 265, 00-519-4241, 005194241
Product Details | PULL SWITCH
5930-00-519-4241 A switch which is actuated by a device, such as a pull rod or a chain which requires pulling for each action. Excludes LIGHT-SWITCH ASSEMBLY and SWITCH, SENSITIVE.
Part Alternates: 265, 5930-00-519-4241, 00-519-4241, 5930005194241, 005194241
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-519-4241 | 00405 ( SWITCH, PULL ) |
Drawings & Photos | NSN 5930-00-519-4241
Demand History | NSN 5930-00-519-4241
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 265 | 2013-11-317 | 10 | China |
| 265 | 2011-02-34 | 4 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-00-519-4241
Technical Data | NSN 5930-00-519-4241
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 2 POLE, DOUBLE THROW, THREE POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 230.0 AC AND 230.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 3.000 AMPERES RESISTIVE DC AND 3.000 AMPERES RESISTIVE AC |
| BODY DIAMETER | 1.563 INCHES NOMINAL |
| BODY HEIGHT | 0.688 INCHES NOMINAL |

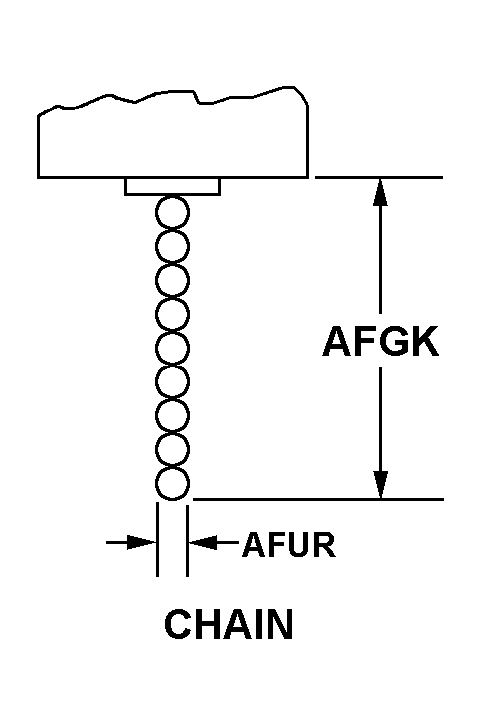

| ACTUATOR STYLE | 61 CHAIN |
| ACTUATOR LENGTH | 0.625 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 6 SCREW |
| MANUFACTURERS CODE | 39317 |
| DESIGN CONTROL REFERENCE | 265 |
Restrictions/Controls & Freight Information | NSN 5930-00-519-4241
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
