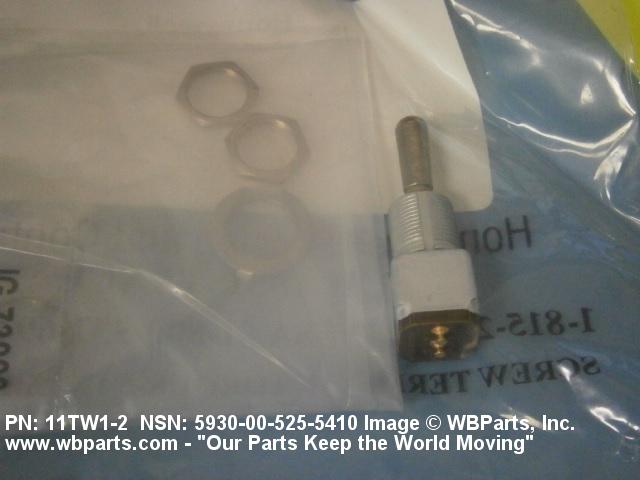

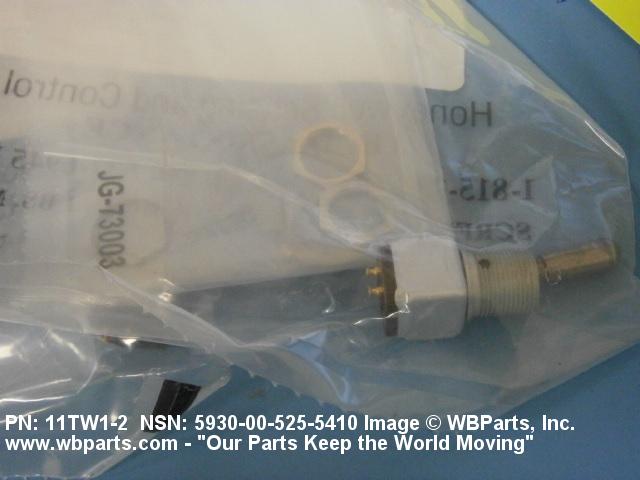

Product Details | TOGGLE SWITCH
5930-00-525-5410 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: MS2771822, MS27718-22, CE470875, MILDTL83731, MIL-DTL-83731, MILS83731, 11TW12, 11TW1-2, 5930-00-525-5410, 00-525-5410, 5930005255410, 005255410
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 AUG 1974 | 00-525-5410 | 00184 ( SWITCH, TOGGLE ) |
Drawings & Photos | NSN 5930-00-525-5410
Demand History | NSN 5930-00-525-5410
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 11TW12 | 2011-10-304 | 15 | Singapore |
| 5930-00-525-5410 | 2011-10-290 | 20 | Singapore |
| 11TW12 | 2010-06-174 | 2 | US |
Cross Reference | NSN 5930-00-525-5410
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11TW1-2 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| CE470875 | K1562 | LOCKHEED MARTIN UK INSYS LTD |
| MIL-DTL-83731 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILS83731 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS27718-22 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-525-5410
Related Products | NSN 5930-00-525-5410
Technical Data | NSN 5930-00-525-5410
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 5.000 AMPERES RESISTIVE DC AND 2.000 AMPERES INDUCTIVE DC AND 1.000 AMPERES LAMP DC AND 5.000 AMPERES RESISTIVE AC AND 2.000 AMPERES INDUCTIVE AC AND 1.000 AMPERES LAMP AC |
| BODY STYLE | 4P BUSHING MOUNT |
| BUSHING LENGTH | 0.470 INCHES MAXIMUM |
| BODY LENGTH | 0.575 INCHES MAXIMUM |
| BODY WIDTH | 0.535 INCHES MAXIMUM |
| BODY HEIGHT | 0.730 INCHES MAXIMUM |
| ACTUATOR STYLE | 25 ROUND |
| ACTUATOR DIAMETER | 0.240 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.660 INCHES MINIMUM AND 0.720 INCHES MAXIMUM |
| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MAINTAINED AND DOWN POSITION MAINTAINED |
| TERMINAL TYPE AND QUANTITY | 2 TURRET |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 0.468 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| TEST DATA DOCUMENT | 81349-MIL-DTL-83731 SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-DTL-83731 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS27718-22 |
