NSN 5930-00-543-1249 C6981ED1658, C6981ED165-8, CH6981ED1658
Product Details | PUSH SWITCH

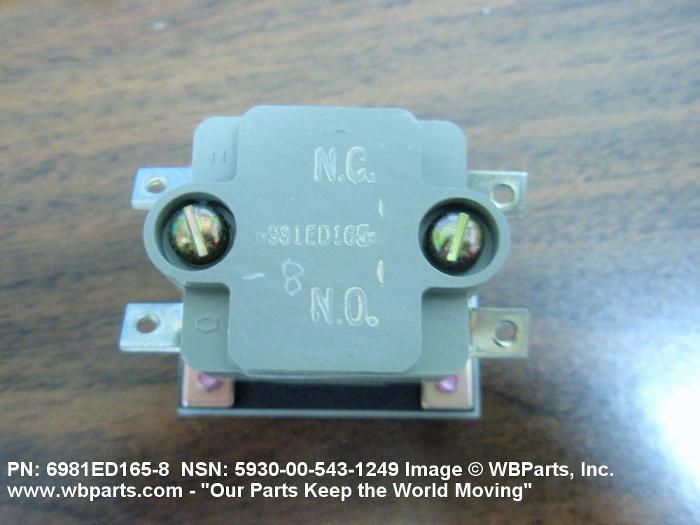

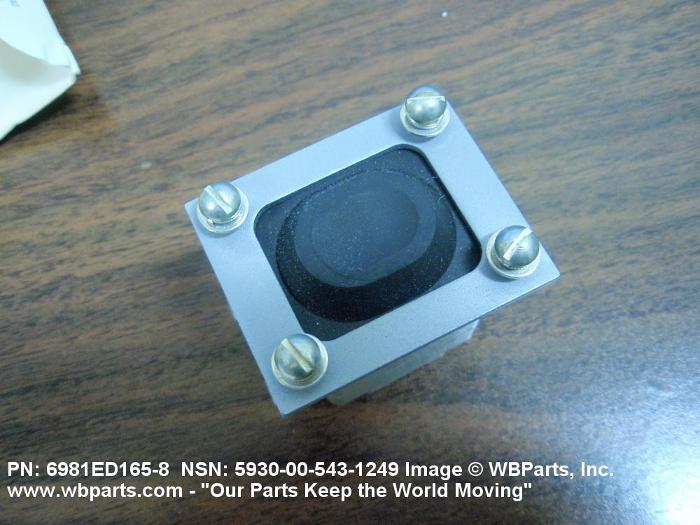

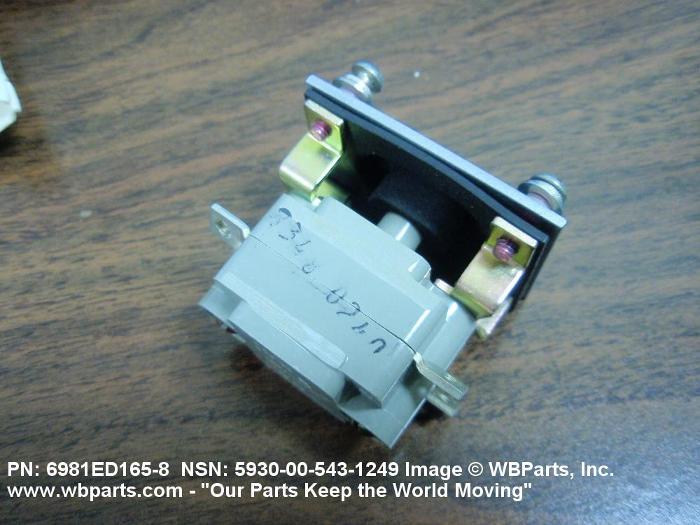

5930-00-543-1249 A switch that is externally actuated by a device such as a push rod or button, which requires pushing for each actuation. The action may be momentary, with mechanical return. The actuating device may or may not be an integral part of the switch. The item may include provisions for mounting indicating lamp(s) or light emitting diode(s) in the actuator. Includes items consisting of individually separable switches that are physically interlocked, that have a common actuator, or are electrically connected. Excludes LIGHT-SWITCH; LIGHT-SWITCH ASSEMBLY; SWITCH, BEAM SELECTING, HEADLIGHT; SWITCH, FOOT; SWITCH, INTERLOCK; SWITCH, PRESSURE; SWITCH, PUSH-PULL; SWITCH, SENSITIVE and SWITCH ASSEMBLY. For devices which start, stop, reverse, select and/or regulate the speed of a motor, see STARTER, MOTOR and CONTROLLER, MOTOR.
Part Alternates: C6981ED1658, C6981ED165-8, CH6981ED1658, C-H6981ED165-8, 26454, 4112280007, 4112280-007 , 6981ED1658, 6981ED165-8, 706382 PIECE 49, 706382PIECE49, 5930-00-543-1249, 00-543-1249, 5930005431249, 005431249
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-543-1249 | 00406 ( SWITCH, PUSH ) |
Drawings & Photos | NSN 5930-00-543-1249
Demand History | NSN 5930-00-543-1249
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6981ED165-8 | 2023-11-328 | 92 | DIBBS |
| 6981ED165-8 | 2023-11-316 | 92 | DIBBS |
| 6981ED165-8 | 2022-08-215 | 124 | DIBBS |
| 6981ED165-8 | 2022-05-132 | 13 | DIBBS |
| 6981ED165-8 | 2021-11-322 | 74 | DIBBS |
| 6981ED165-8 | 2020-11-309 | 26 | DIBBS |
| 6981ED165-8 | 2020-10-294 | 26 | DIBBS |
| 5930-00-543-1249 | 2020-01-27 | 6 | US |
| 5930-00-543-1249 | 2020-01-23 | 1 | US |
| 5930-00-543-1249 | 2018-06-155 | 2 | Pakistan |
| 5930-00-543-1249 | 2018-02-57 | 2 | United States |
| 5930-00-543-1249 | 2018-02-43 | 75 | DIBBS |
| 5930-00-543-1249 | 2018-02-32 | 75 | DIBBS |
| 5930-00-543-1249 | 2015-09-257 | 4 | US |
| 5930-00-543-1249 | 2014-04-120 | 123 | DIBBS |
| 5930-00-543-1249 | 2014-04-99 | 62 | DIBBS |
| 6981ED1658 | 2014-03-78 | 12 | United States |
| 5930-00-543-1249 | 2014-02-36 | 45 | DIBBS |
| 5930-00-543-1249 | 2012-02-33 | 21 | DIBBS |
| 5930-00-543-1249 | 2011-07-211 | 64 | DIBBS |
| 5930-00-543-1249 | 2011-07-189 | 23 | DIBBS |
| 6981ED1658 | 2011-05-124 | 1 | United States |
| 5930-00-543-1249 | 2011-02-41 | 70 | DIBBS |
| 5930-00-543-1249 | 2010-05-132 | 96 | DIBBS |
| 5930-00-543-1249 | 2009-08-218 | 36 | DIBBS |
| 5930-00-543-1249 | 2008-09-267 | 43 | DIBBS |
Cross Reference | NSN 5930-00-543-1249
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 26454 | 14418 | UNISYS CORP DEFENSE SYSTEMS |
| 6981ED165-8 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 706382 PIECE 49 | 58475 | WESTWOOD CORPORATION DBA NMP DIVISION |
| C-H6981ED165-8 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| C6981ED165-8 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
