NSN 5930-00-565-5154 IC/J-125, ICJ125, MILS16032
Product Details | THERMOSTATIC SWITCH
5930-00-565-5154 A switch that is actuated by changes in ambient temperature. Excludes CIRCUIT BREAKER; CONTROL, TEMPERATURE (as modified); FUSE (as modified); PROTECTOR, THERMAL-OVERLOAD, ELECTRICAL MOTOR; RELAY, THERMAL; and THERMOSTAT, FLOW CONTROL. See also CONTROL, TEMPERATURE (as modified) and REGULATOR, TEMPERATURE (as modified).
Part Alternates: IC/J-125, ICJ125, MILS16032, MIL-S-16032, 815-1197118 TYPE IC/J-125, 8151197118TYPEICJ125, 5930-00-565-5154, 00-565-5154, 5930005655154, 005655154
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-565-5154 | 00451 ( SWITCH, THERMOSTATIC ) |

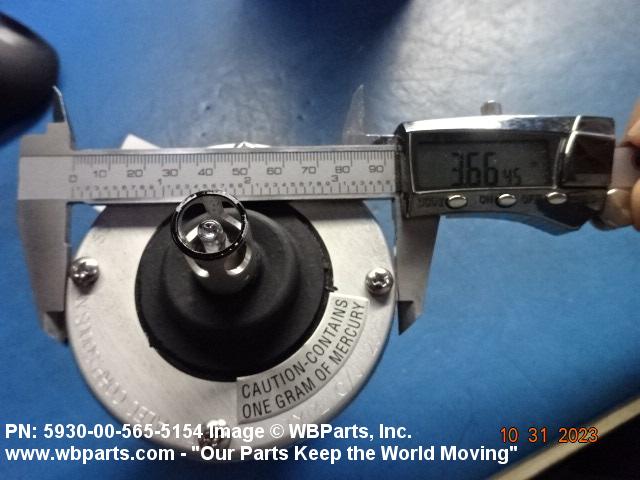

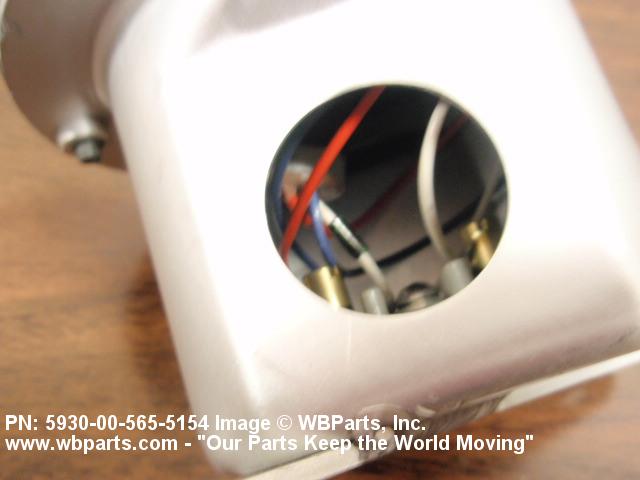

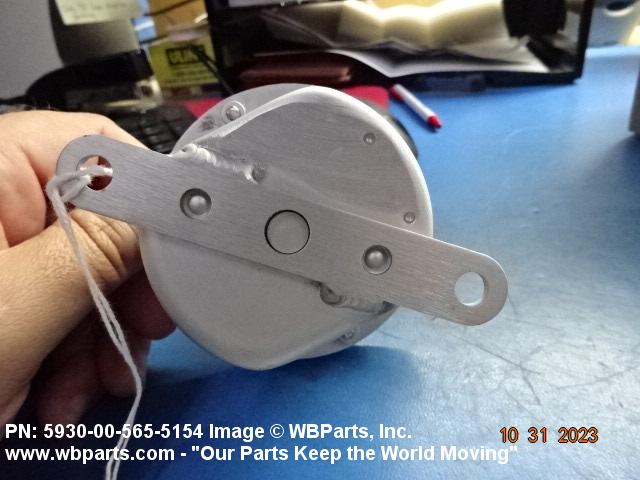

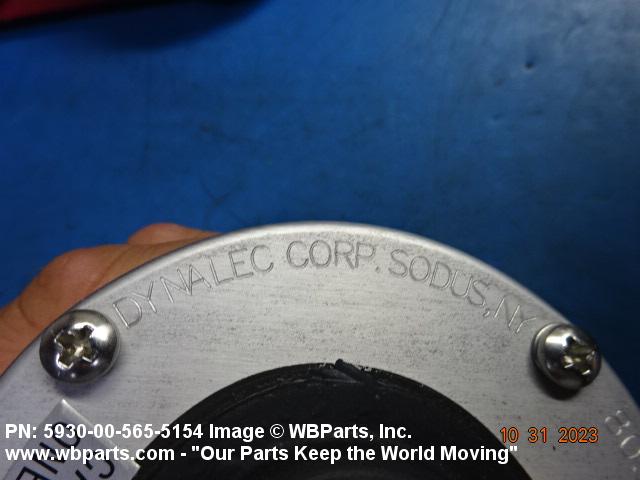

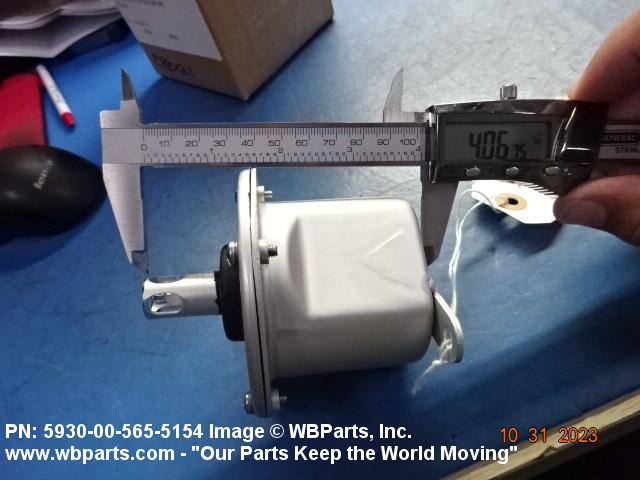

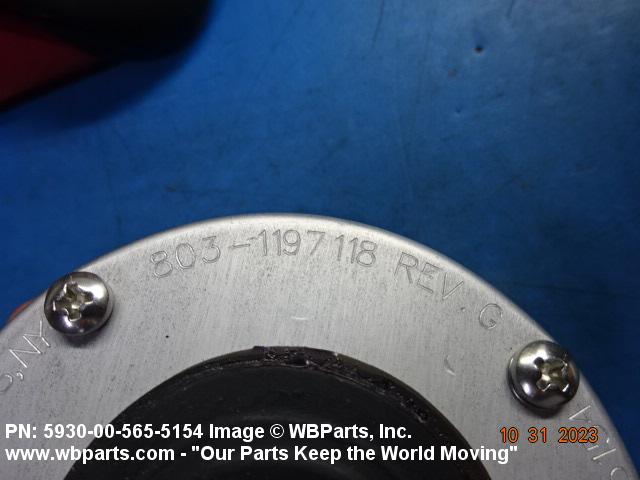

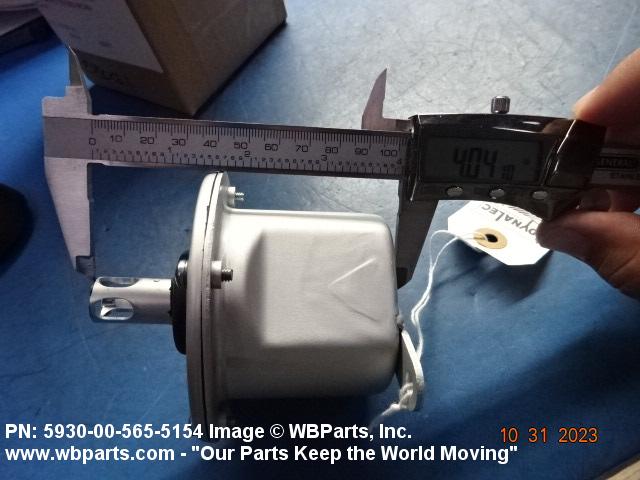

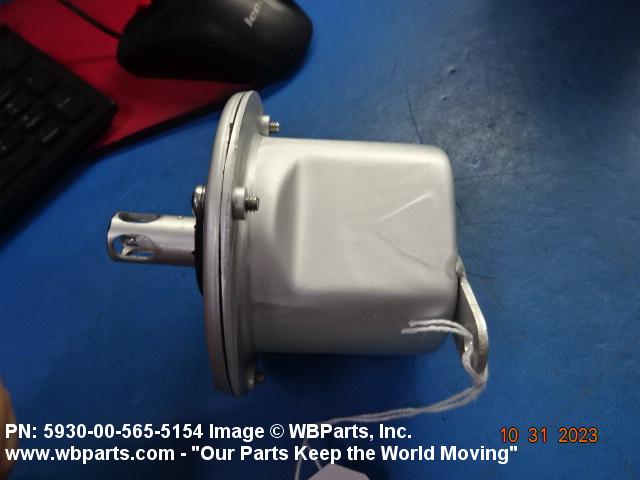

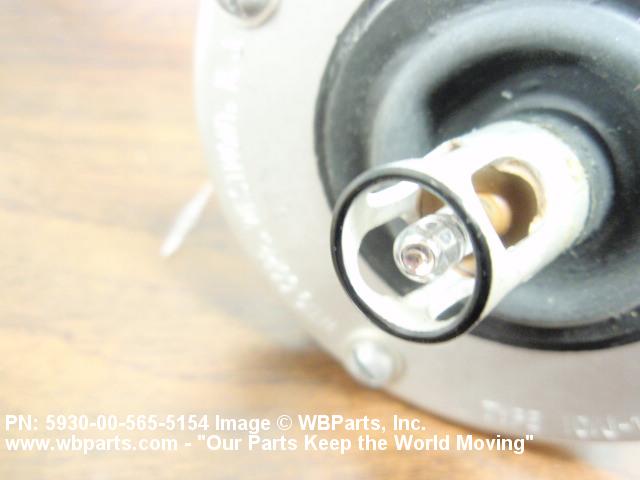

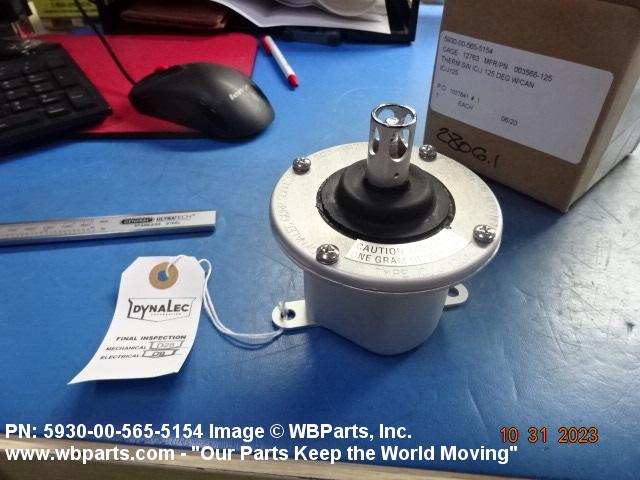

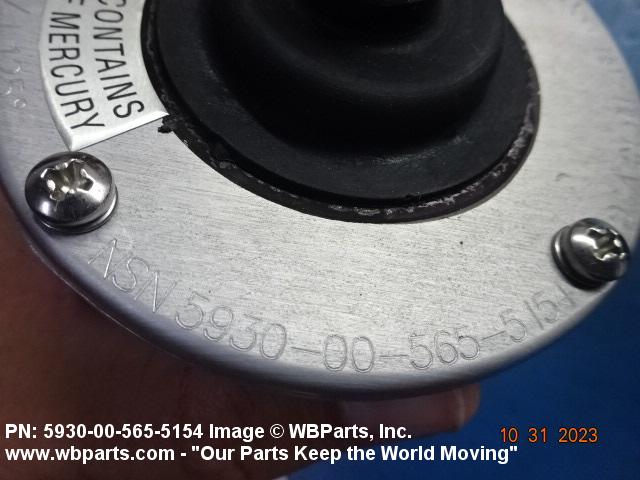

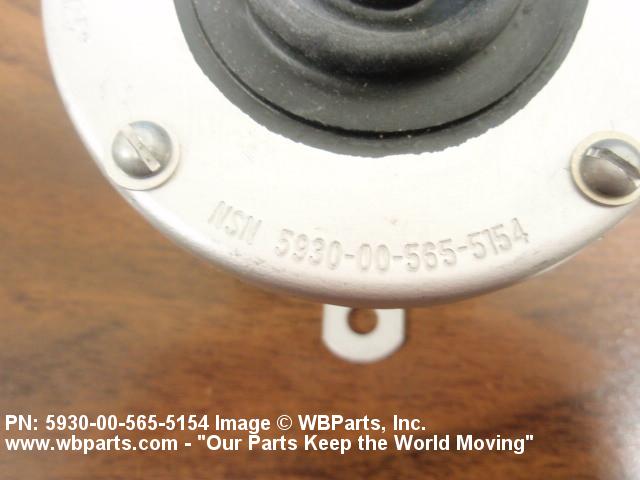

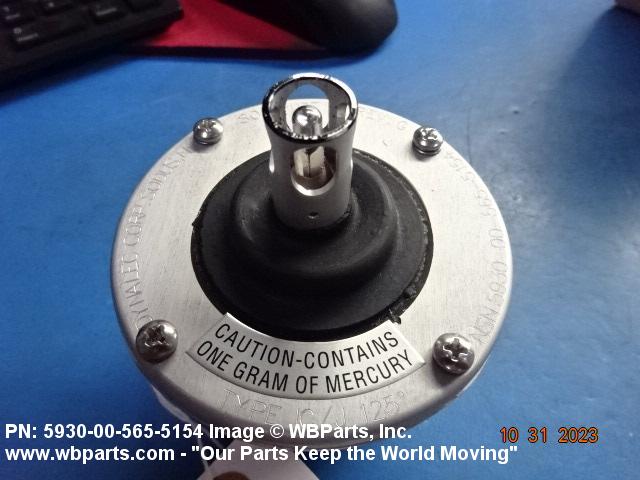

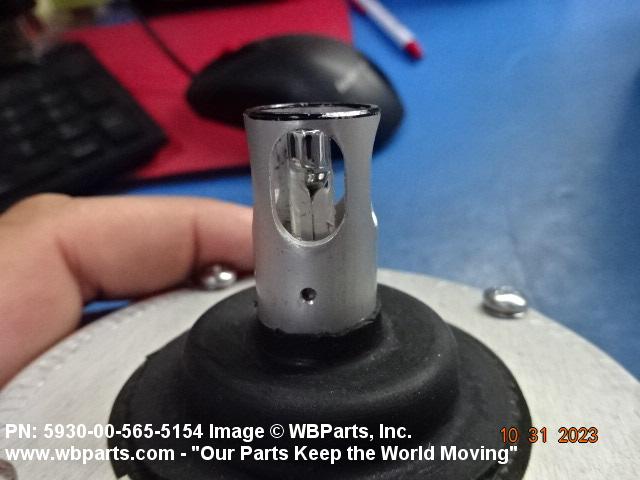

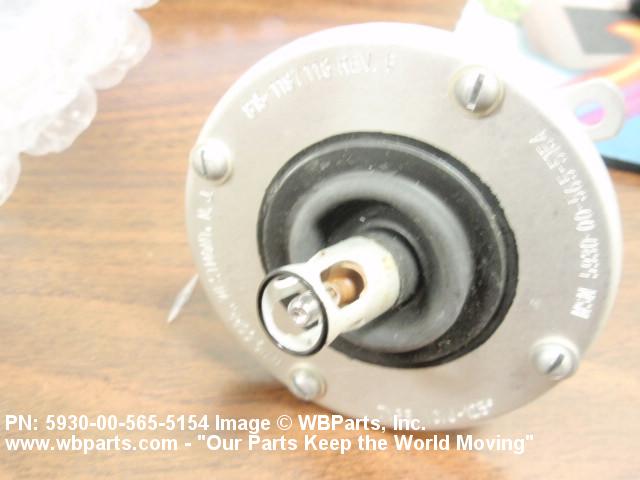

Drawings & Photos | NSN 5930-00-565-5154
Demand History | NSN 5930-00-565-5154
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-565-5154 | 2023-10-297 | 1 | United States |
| 5930-00-565-5154 | 2023-10-284 | 1 | United States |
| 5930-00-565-5154 | 2023-07-202 | 2 | United States |
| 5930-00-565-5154 | 2023-07-199 | 2 | United States |
| 5930-00-565-5154 | 2020-04-112 | 1 | United States |
| 5930-00-565-5154 | 2020-04-99 | 11 | United States |
| 5930-00-565-5154 | 2017-03-82 | 73 | DIBBS |
| 5930-00-565-5154 | 2016-06-153 | 141 | DIBBS |
| 5930-00-565-5154 | 2016-05-134 | 1 | DIBBS-RFPs |
| 5930-00-565-5154 | 2016-04-112 | 108 | DIBBS |
| 5930-00-565-5154 | 2015-01-08 | 232 | DIBBS |
| 5930-00-565-5154 | 2014-09-252 | 124 | DIBBS |
| 5930-00-565-5154 | 2014-05-142 | 17 | Taiwan |
| 5930-00-565-5154 | 2013-09-268 | 120 | DIBBS |
| 5930-00-565-5154 | 2013-04-108 | 100 | DIBBS |
| 5930-00-565-5154 | 2013-02-58 | 178 | DIBBS |
| 5930-00-565-5154 | 2012-12-339 | 210 | US |
| 5930-00-565-5154 | 2012-11-334 | 210 | DIBBS |
| 5930-00-565-5154 | 2012-10-277 | 276 | DIBBS |
| 5930-00-565-5154 | 2012-05-125 | 173 | DIBBS |
| 5930-00-565-5154 | 2011-12-354 | 115 | DIBBS |
| 5930-00-565-5154 | 2011-08-234 | 2 | US |
| 5930-00-565-5154 | 2011-07-210 | 165 | DIBBS |
| 5930-00-565-5154 | 2011-04-112 | 158 | DIBBS |
| ICJ125 | 2010-11-306 | 9 | Taiwan |
| MILS16032 | 2009-10-299 | 8 | US |
| 5930-00-565-5154 | 2009-04-105 | 96 | DIBBS |
| 5930-00-565-5154 | 2009-01-20 | 73 | DIBBS |
| 5930-00-565-5154 | 2009-01-06 | 73 | DIBBS |
| 5930-00-565-5154 | 2008-12-338 | 61 | DIBBS |
| 5930-00-565-5154 | 2008-11-316 | 28 | DIBBS |
| 5930-00-565-5154 | 2008-10-283 | 43 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-565-5154
Related Products | NSN 5930-00-565-5154
Technical Data | NSN 5930-00-565-5154
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 67 CYLINDRICAL W/FLANGE |
| OVERALL LENGTH | 3.125 INCHES NOMINAL |
| BODY DIAMETER | 1.500 INCHES NOMINAL |
| BODY LENGTH | 1.500 INCHES NOMINAL |
| OVERALL DIAMETER | 3.875 INCHES NOMINAL |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | DEACTUATION POINT NOT ADJUSTABLE AND ACTUATION POINT NOT ADJUSTABLE |
| CONTACT STIMULUS RATING | 125.00 ACTUATION POINT NOMINAL DEGREES FAHRENHEIT AND 123.00 DEACTUATION POINT NOMINAL DEGREES FAHRENHEIT |
| CONTACT VOLTAGE RATING IN VOLTS | 115.0 DC AT SEA LEVEL SINGLE VOLTAGE |
| CONTACT LOAD CURRENT RATING | 700.0 MILLIAMPERES RESISTIVE LOAD SINGLE VOLTAGE |
| OPERATING TEMP RATING | -55.0 DEG FAHRENHEIT MINIMUM AND 175.0 DEG FAHRENHEIT MAXIMUM |
| MEDIA FOR WHICH DESIGNED | GAS OR LIQUID |
| TEMP SENSING ELEMENT TYPE | CAPILLARY TUBE-BULB |
| CAPILLARY TUBE LENGTH | 2.250 INCHES NOMINAL |
| BULB LENGTH | 0.313 INCHES NOMINAL |
| BULB DIAMETER | 0.125 INCHES NOMINAL |
| TERMINAL TYPE | WIRE LEAD |
| MOUNTING METHOD | FLANGE AND UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.219 INCHES NOMINAL |
| MOUNTING FACILITY PATTERN | FOUR POSITION CIRCULAR |
| MOUNTING FACILITY CIRCLE RADIUS | 1.381 INCHES NOMINAL |
| TEST DATA DOCUMENT | 81349-MIL-S-16032 SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | IC/J-125 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-16032 |
Restrictions/Controls & Freight Information | NSN 5930-00-565-5154
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 069100 | FILTERS:CARTRIDGES/ELEMENTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-565-5154
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
