NSN 5930-00-581-1795 3042, 00-581-1795, 005811795
Product Details | KNIFE SWITCH
5930-00-581-1795 A switch using hinged blades for contacts which enter or embrace fixed contact clips. Includes switches which have a movable blade which swivels to permit contact with each of several fixed contact clips. See also SWITCH, BOX.
Part Alternates: 3042, 5930-00-581-1795, 00-581-1795, 5930005811795, 005811795
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-581-1795 | 00135 ( SWITCH, KNIFE ) |
Drawings & Photos | NSN 5930-00-581-1795
Demand History | NSN 5930-00-581-1795
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3042 | 2012-07-185 | 70 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-00-581-1795
Technical Data | NSN 5930-00-581-1795
| Characteristic | Specifications |
|---|---|
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 30.000 AMPERES RESISTIVE DC |

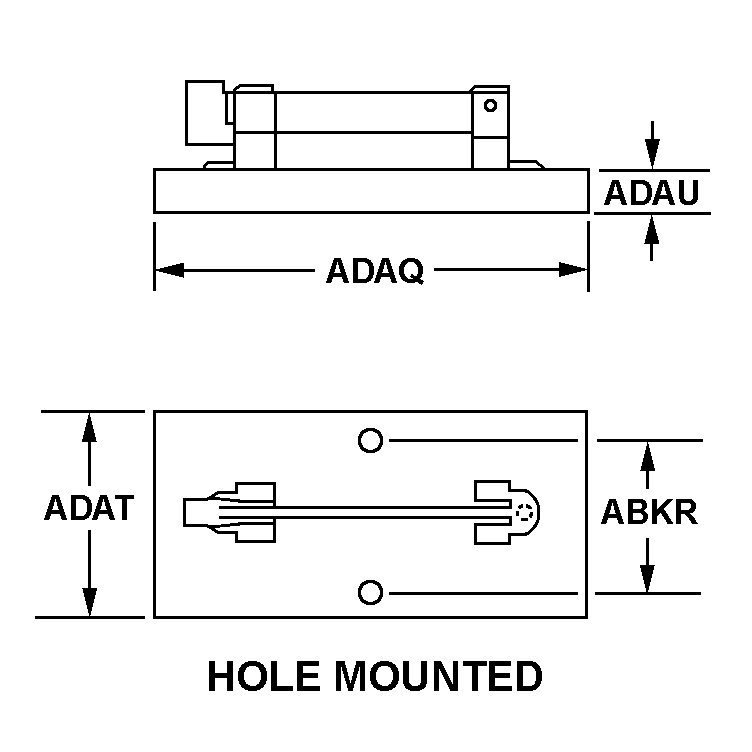

| BODY STYLE | 2F HOLE MOUNTED |
| BODY LENGTH | 12.438 INCHES NOMINAL |
| BODY WIDTH | 4.500 INCHES NOMINAL |
| SWITCH ACTUATOR QUANTITY | 1 |
| TERMINAL TYPE AND QUANTITY | 4 SCREW |
Restrictions/Controls & Freight Information | NSN 5930-00-581-1795
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
