NSN 5930-00-615-6561 W101P3, 1067017PC1, 195C358PC1
Product Details | PUSH SWITCH
5930-00-615-6561 A switch that is externally actuated by a device such as a push rod or button, which requires pushing for each actuation. The action may be momentary, with mechanical return. The actuating device may or may not be an integral part of the switch. The item may include provisions for mounting indicating lamp(s) or light emitting diode(s) in the actuator. Includes items consisting of individually separable switches that are physically interlocked, that have a common actuator, or are electrically connected. Excludes LIGHT-SWITCH; LIGHT-SWITCH ASSEMBLY; SWITCH, BEAM SELECTING, HEADLIGHT; SWITCH, FOOT; SWITCH, INTERLOCK; SWITCH, PRESSURE; SWITCH, PUSH-PULL; SWITCH, SENSITIVE and SWITCH ASSEMBLY. For devices which start, stop, reverse, select and/or regulate the speed of a motor, see STARTER, MOTOR and CONTROLLER, MOTOR.
Part Alternates: W101P3, 1067017PC1, 195C358PC1, 1994636, 5930-00-615-6561, 00-615-6561, 5930006156561, 006156561
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-615-6561 | 00406 ( SWITCH, PUSH ) |

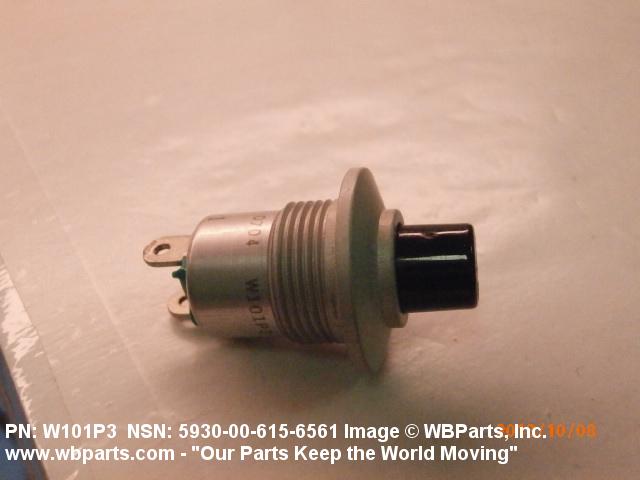

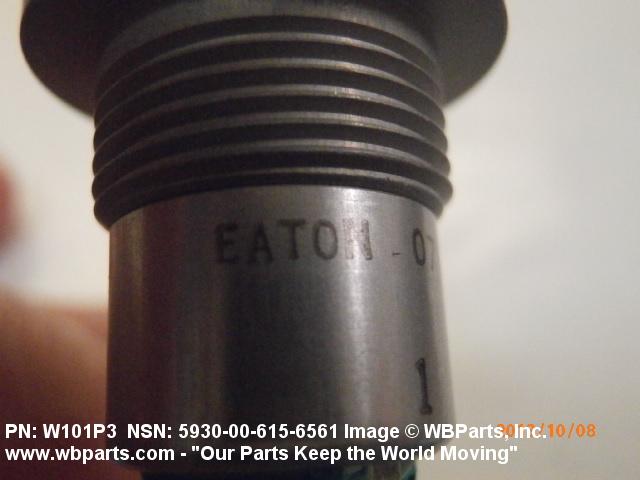

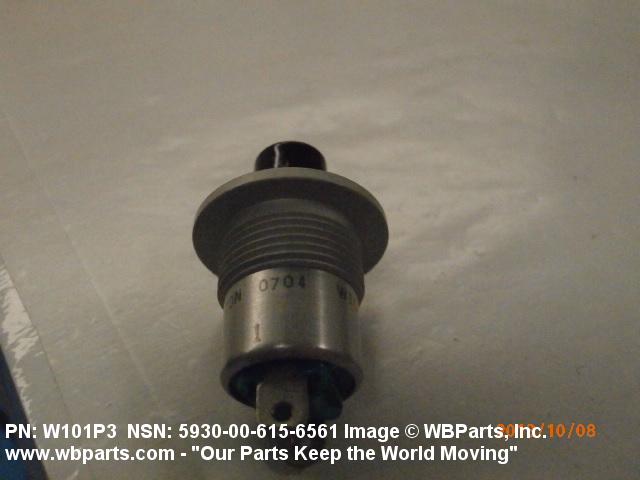

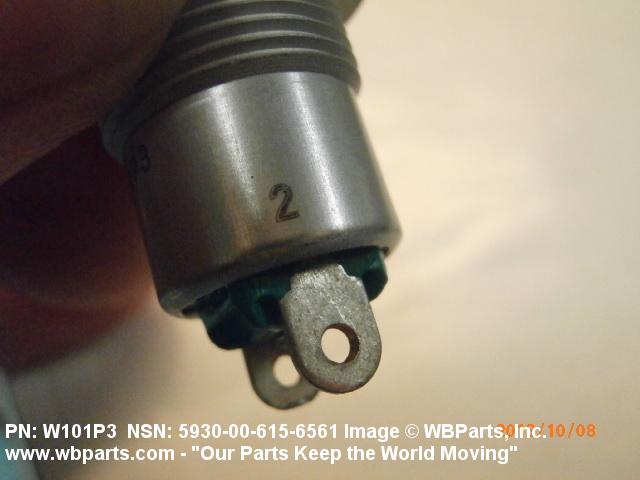

Drawings & Photos | NSN 5930-00-615-6561
Demand History | NSN 5930-00-615-6561
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-615-6561 | 2020-06-163 | 3 | US |
| 1067017PC1 | 2019-01-30 | 27 | US |
| 5930-00-615-6561 | 2019-01-28 | 40 | US |
| 5930-00-615-6561 | 2014-07-192 | 3 | US |
| 5930-00-615-6561 | 2013-09-267 | 2 | United States |
| 5930-00-615-6561 | 2013-02-52 | 3 | US |
Cross Reference | NSN 5930-00-615-6561
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-00-615-6561
Technical Data | NSN 5930-00-615-6561
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY OPEN, DOUBLE MAKE, MOMENTARY ACTION SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 10.000 AMPERES RESISTIVE DC AND 5.000 AMPERES INDUCTIVE DC AND 3.000 AMPERES LAMP DC |
| BODY STYLE | 1K BUSHING MOUNTED |

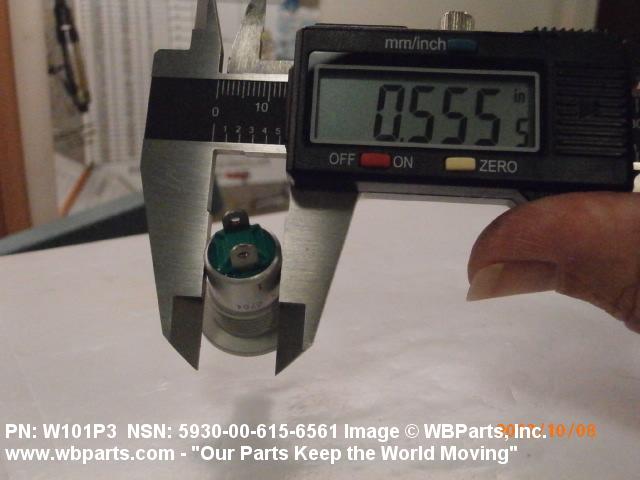

| BODY DIAMETER | 0.562 INCHES NOMINAL |

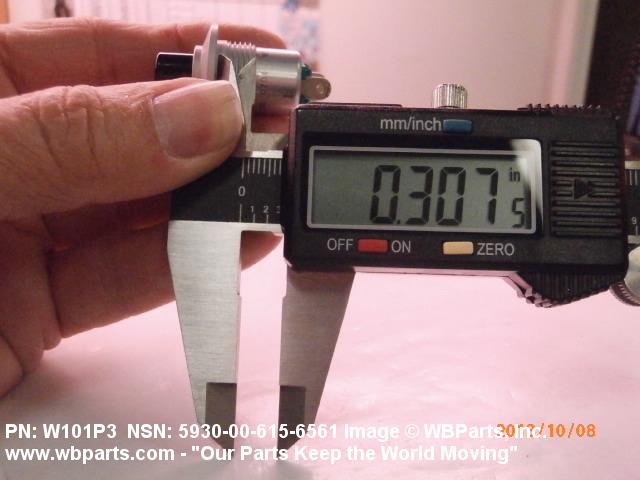

| BUSHING LENGTH | 0.312 INCHES NOMINAL |

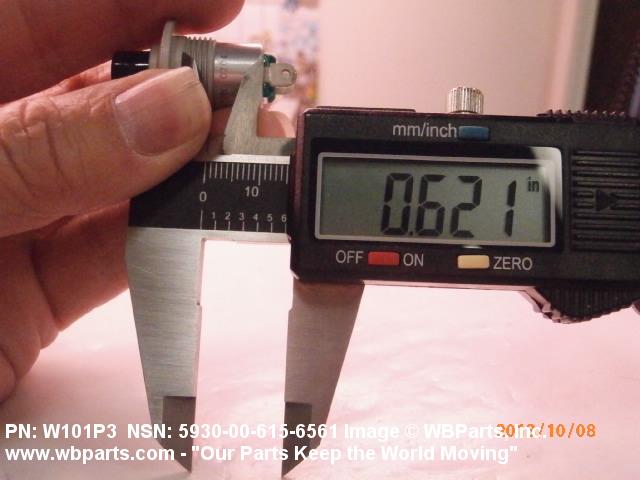

| BODY LENGTH | 0.626 INCHES NOMINAL |

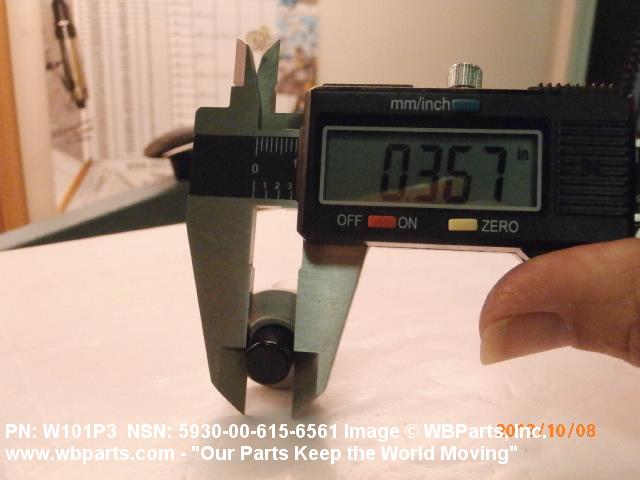

| ACTUATOR DIAMETER | 0.375 INCHES NOMINAL |

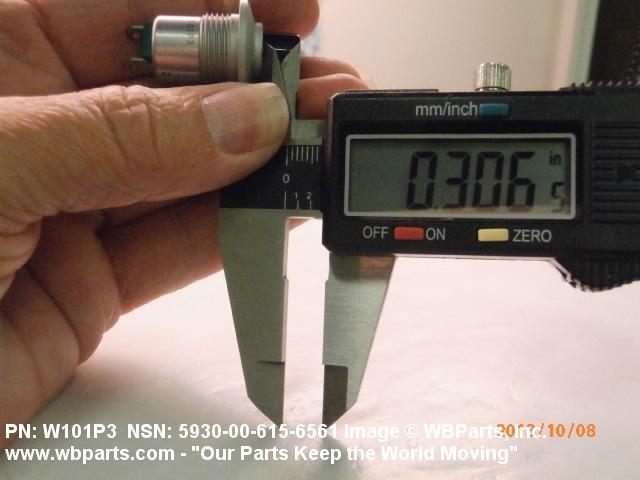

| ACTUATOR HEIGHT | 0.312 INCHES NOMINAL |
| ACTUATOR COLOR | BLACK SINGLE ACTUATOR |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG |
| INCLOSURE TYPE | FULLY INCLOSED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | MOISTURE PROOF |
| THREAD SERIES DESIGNATOR | UNEF |

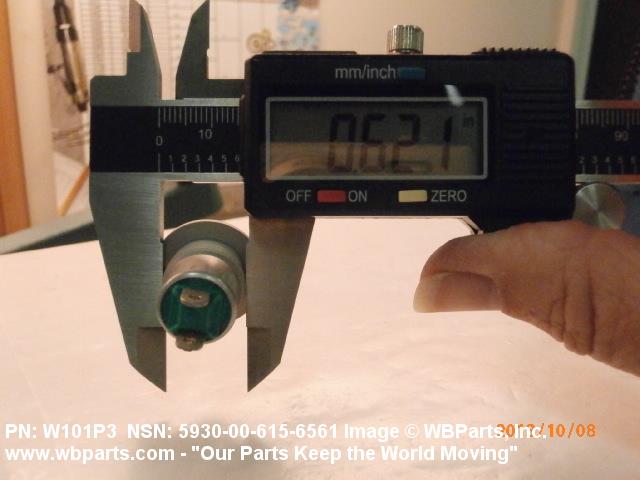

| NOMINAL THREAD SIZE | 0.625 INCHES |
| THREAD QUANTITY PER INCH | 24 |
Restrictions/Controls & Freight Information | NSN 5930-00-615-6561
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
