NSN 5930-00-617-2426 A7150, 832JRH, 1040495
Product Details | THERMOSTATIC SWITCH
5930-00-617-2426 A switch that is actuated by changes in ambient temperature. Excludes CIRCUIT BREAKER; CONTROL, TEMPERATURE (as modified); FUSE (as modified); PROTECTOR, THERMAL-OVERLOAD, ELECTRICAL MOTOR; RELAY, THERMAL; and THERMOSTAT, FLOW CONTROL. See also CONTROL, TEMPERATURE (as modified) and REGULATOR, TEMPERATURE (as modified).
Part Alternates: A7150, 832JRH, 1040495, 104-0495, 17150, 171500, 17150-0, 17150-0-100, 5930-00-617-2426, 00-617-2426, 5930006172426, 006172426, 171500100
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01-JAN-63 | 00-617-2426 | 00451 ( SWITCH, THERMOSTATIC ) |

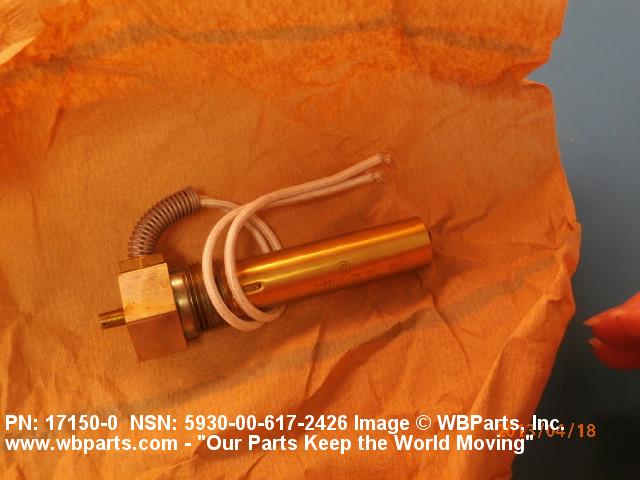

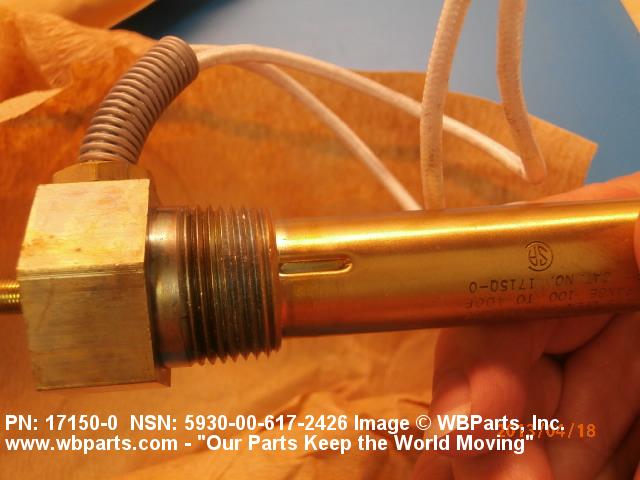

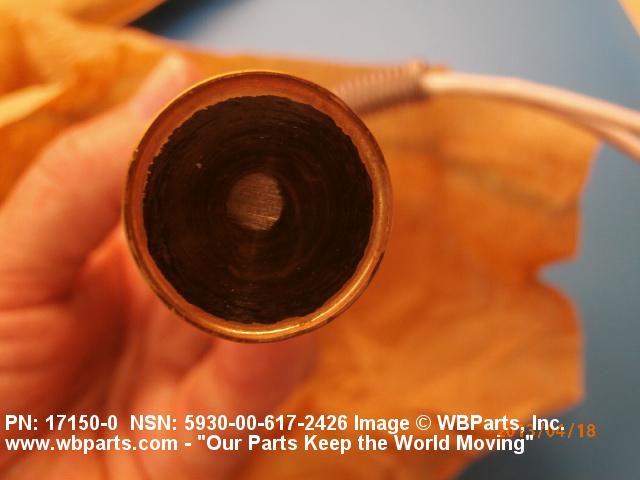

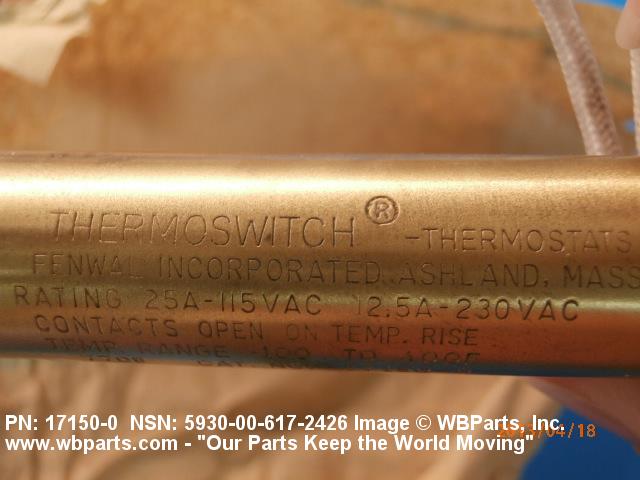

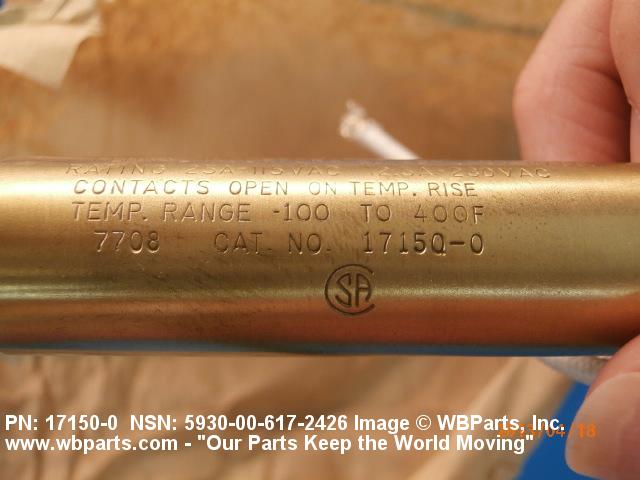

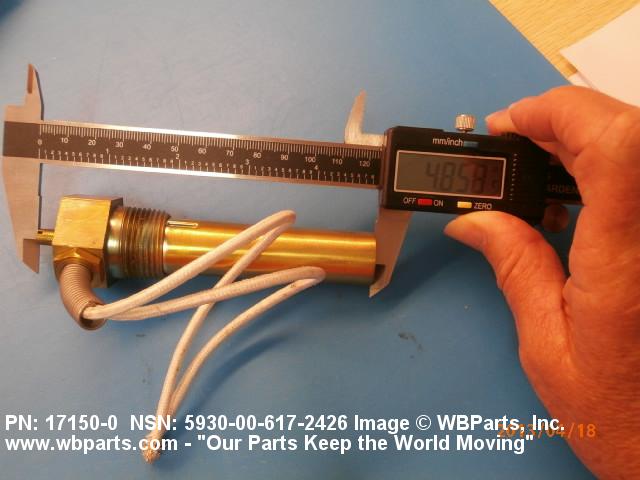

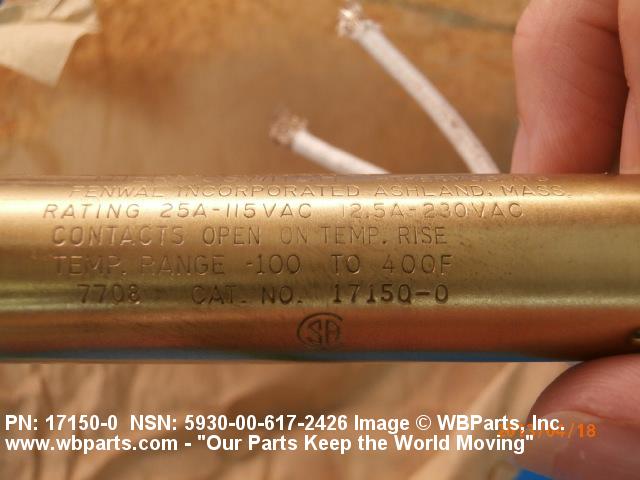

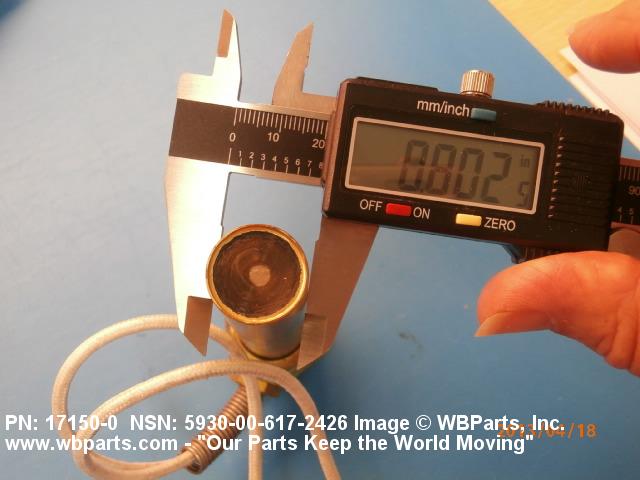

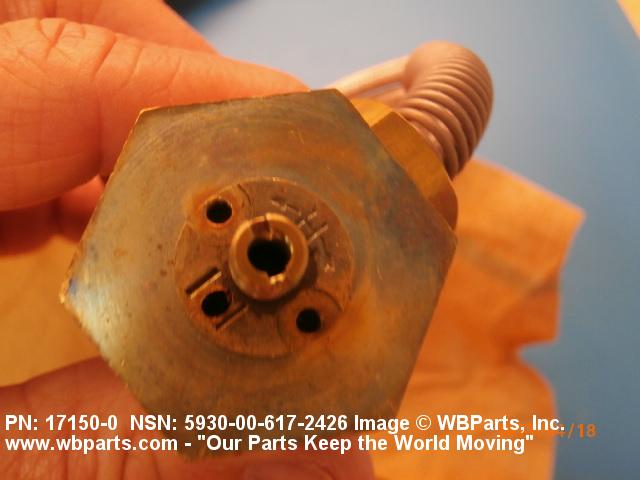

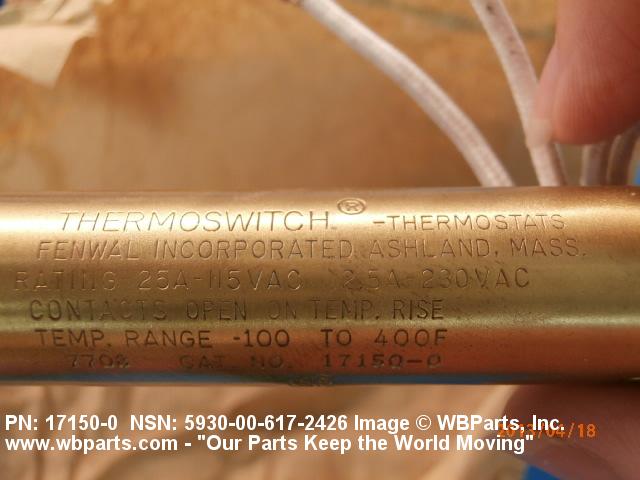

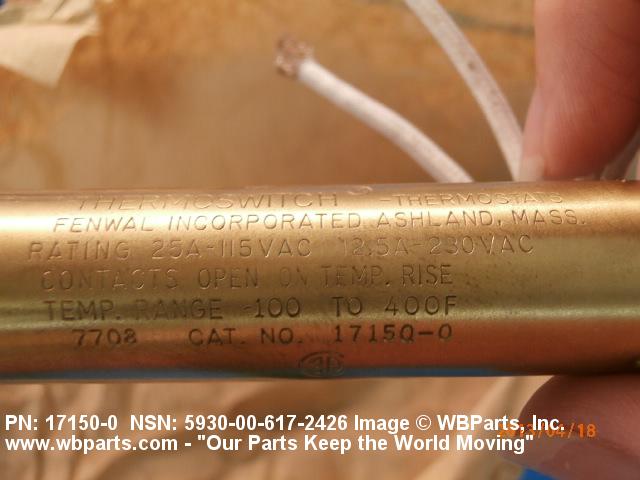

Drawings & Photos | NSN 5930-00-617-2426
Demand History | NSN 5930-00-617-2426
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-617-2426 | 2021-01-25 | 2 | US |
| 5930-00-617-2426 | 2021-01-25 | 3 | US |
| 5930-00-617-2426 | 2019-09-262 | 1 | US |
| 5930-00-617-2426 | 2013-04-105 | 1 | United States |
| 5930-00-617-2426 | 2012-02-40 | 2 | United States |
| 5930-00-617-2426 | 2011-12-358 | 1 | DIBBS |
Cross Reference | NSN 5930-00-617-2426
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 104-0495 | 05083 | BACHARACH, INC. |
| 17150 | 73168 | KIDDE TECHNOLOGIES INC DBA FENWAL SAFETY SYSTEMS |
| 17150-0 | 0KDP7 | KIDDE-FENWAL INC DBA CHEMTRON KIDDE FIRE SYSTEMS |
| 17150-0-100 | 73168 | KIDDE TECHNOLOGIES INC DBA FENWAL SAFETY SYSTEMS |
| 832JRH | 73168 | KIDDE TECHNOLOGIES INC DBA FENWAL SAFETY SYSTEMS |
| A7150 | 74924 | INDUSTRIAL ENGINEERING AND EQUIPMENT COMPANY, INCORPORATED |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-00-617-2426
Technical Data | NSN 5930-00-617-2426
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 52 CYLINDRICAL |
| OVERALL LENGTH | 4.968 INCHES NOMINAL |

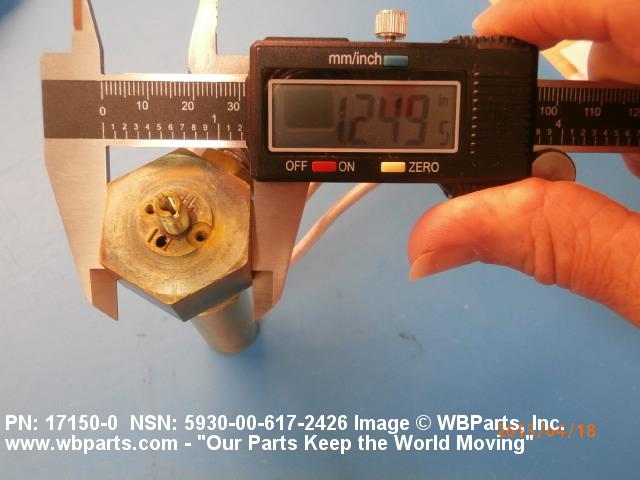

| WIDTH ACROSS FLATS | 1.250 INCHES NOMINAL |
| BODY DIAMETER | 0.812 INCHES NOMINAL |

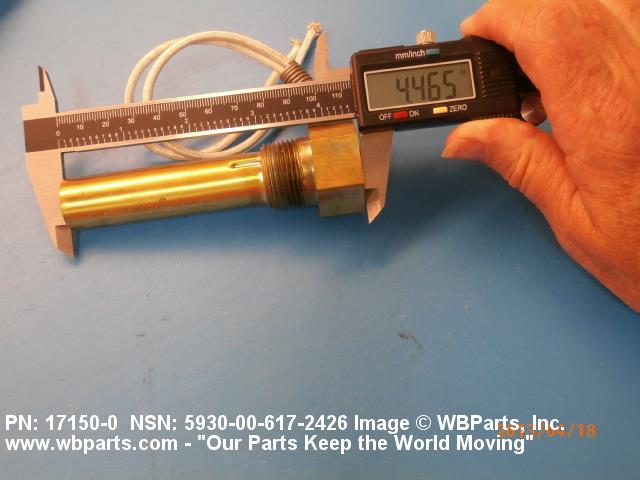

| BODY LENGTH | 4.469 INCHES NOMINAL |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY CLOSED, MOMENTARY ACTION |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | DEACTUATION POINT ADJUSTABLE AND ACTUATION POINT ADJUSTABLE |

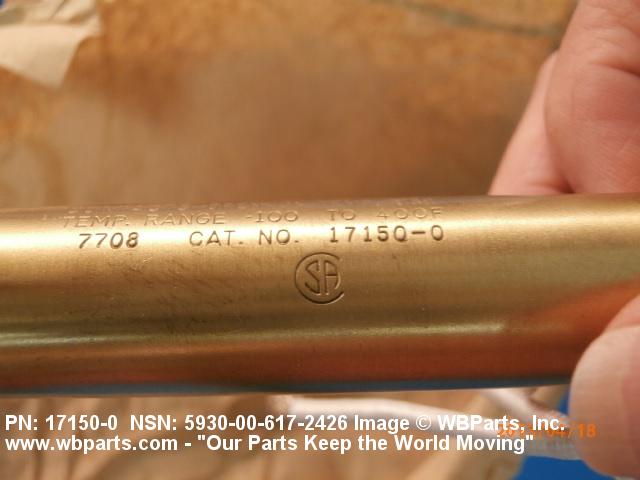

| CONTACT ADJUSTMENT RANGE | -100.00 TO 400.00 ACTUATION POINT DEGREES FAHRENHEIT AND 101.00 TO 401.00 DEACTUATION POINT DEGREES FAHRENHEIT |
| CONTACT ADJUSTMENT TYPE | EXTERNAL DEACTUATION POINT SCREW AND EXTERNAL ACTUATION POINT SCREW |
| CONTACT VOLTAGE RATING IN VOLTS | 115.0 AC AT SEA LEVEL SINGLE VOLTAGE |
| FREQUENCY IN HERTZ | 60.0 SINGLE VOLTAGE |
| CONTACT LOAD CURRENT RATING | 25.0 AMPERES RESISTIVE LOAD SINGLE VOLTAGE |
| OPERATING TEMP RATING | -100.0 DEG FAHRENHEIT MINIMUM AND 100.0 DEG FAHRENHEIT MAXIMUM |
| MEDIA FOR WHICH DESIGNED | GAS OR LIQUID |
| TEMP SENSING ELEMENT TYPE | INTERNAL SENSOR |
| TERMINAL TYPE | WIRE LEAD |
| MOUNTING METHOD | IMMERSION WELL |
| SPECIAL FEATURES | 10 IN. LG WIRE LEADS,1.312 IN. LG WIRE LEAD GUARD |
Restrictions/Controls & Freight Information | NSN 5930-00-617-2426
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
