NSN 5930-00-622-3086 MCT210D, MTA206D, MTA-206D
Product Details | TOGGLE SWITCH
5930-00-622-3086 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: MCT210D, MTA206D, MTA-206D, MTA206N, MTA-206N, 115113, 3225384PC2, 36053255, 3605-32-55, 440005, 44-0005, 8600918, 860091-8, 8A2011C, 5930-00-622-3086, 00-622-3086, 5930006223086, 006223086
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 FEB 1975 | 00-622-3086 | 00184 ( SWITCH, TOGGLE ) |

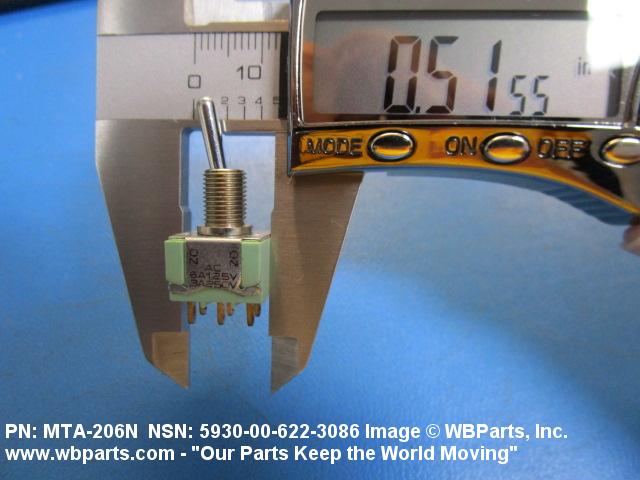

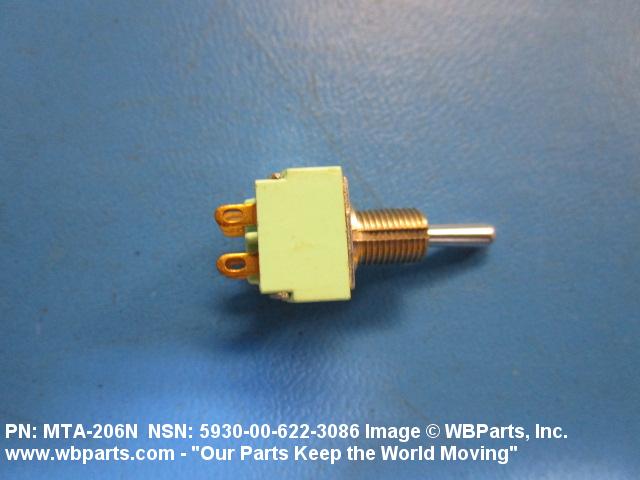

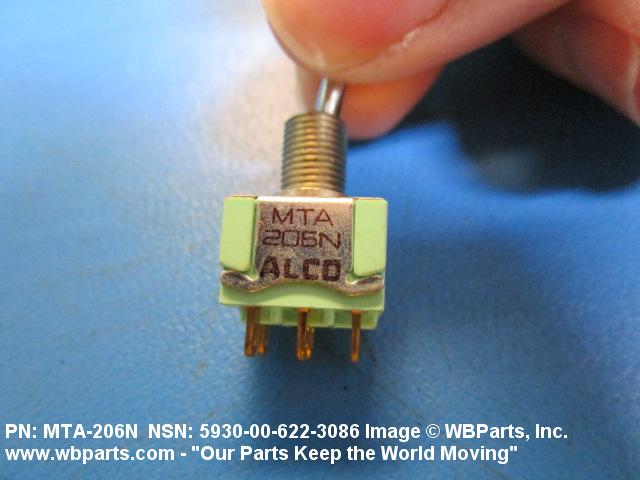

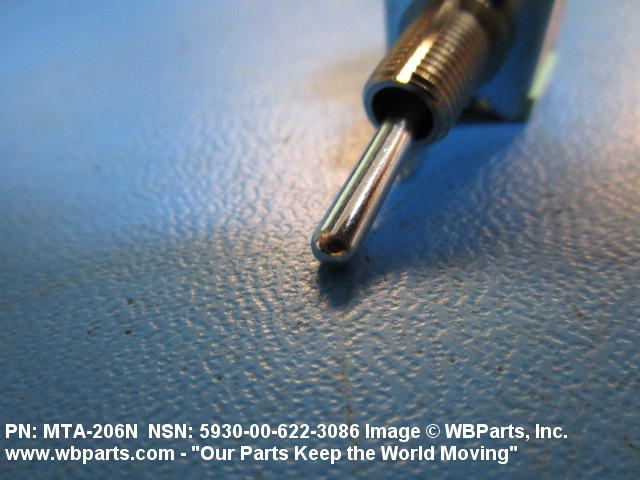

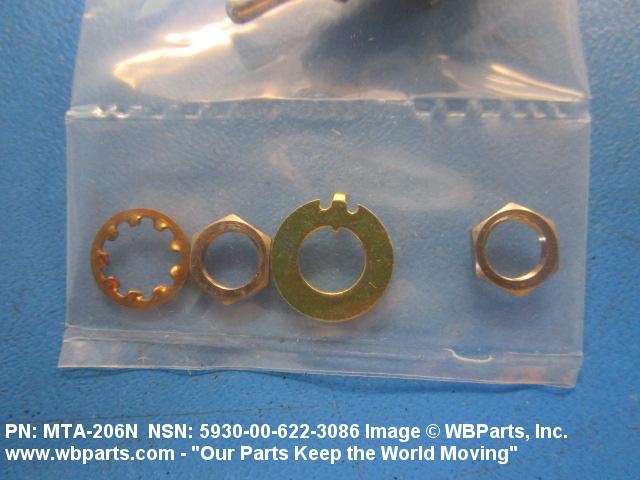

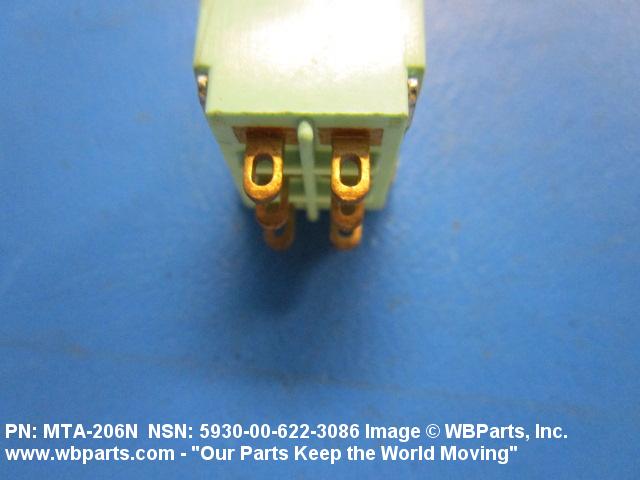

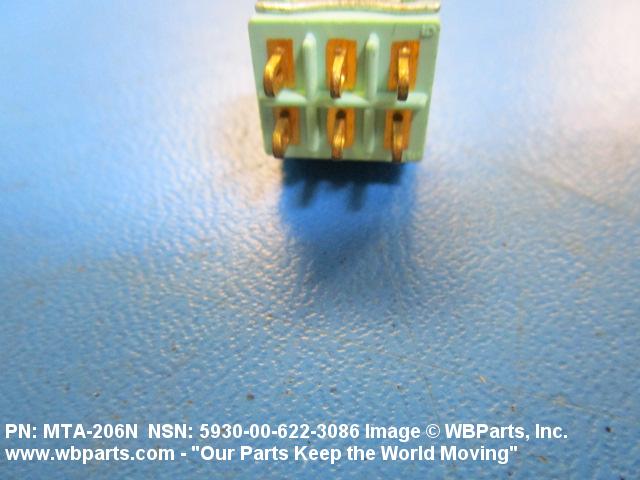

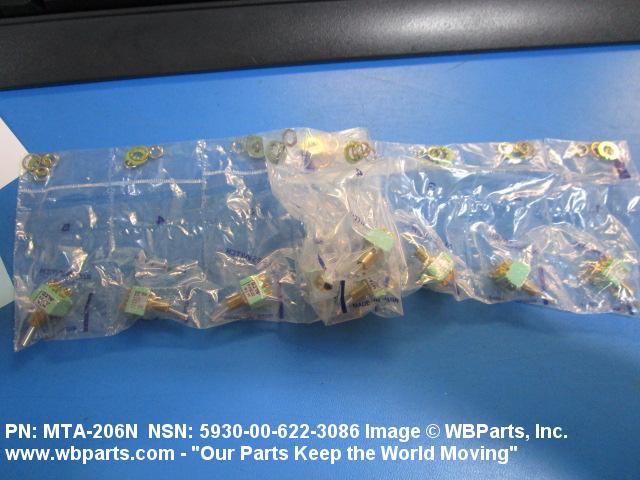

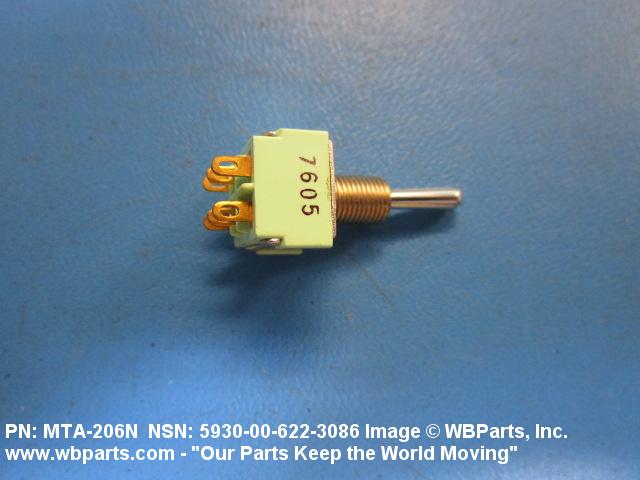

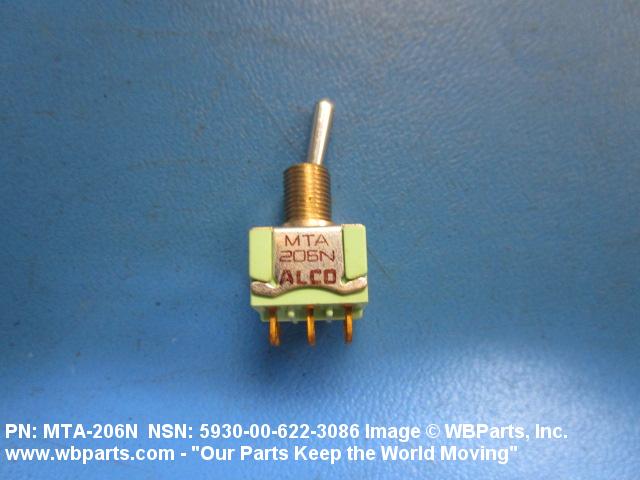

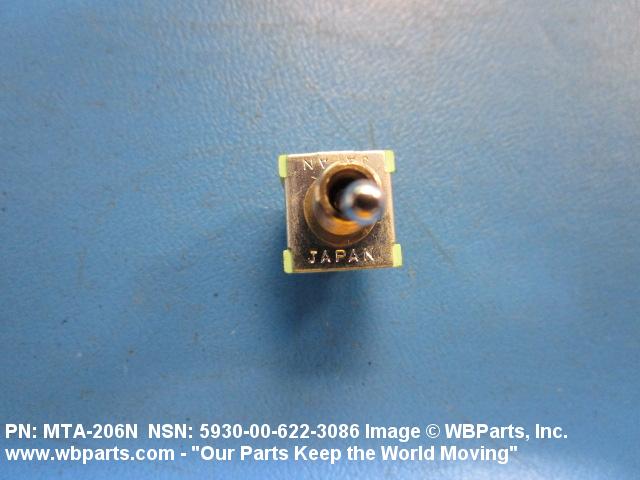

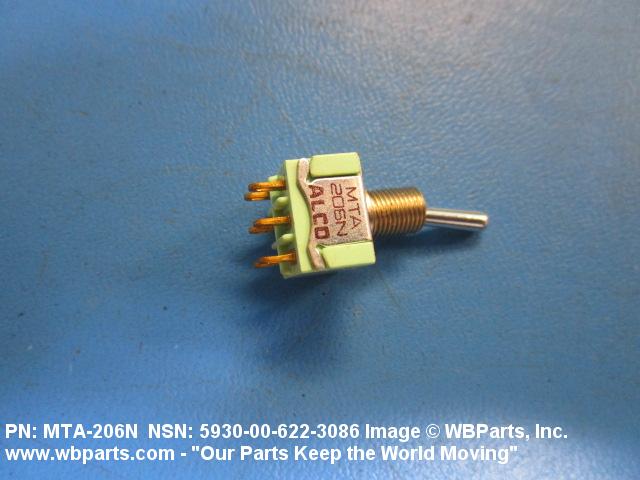

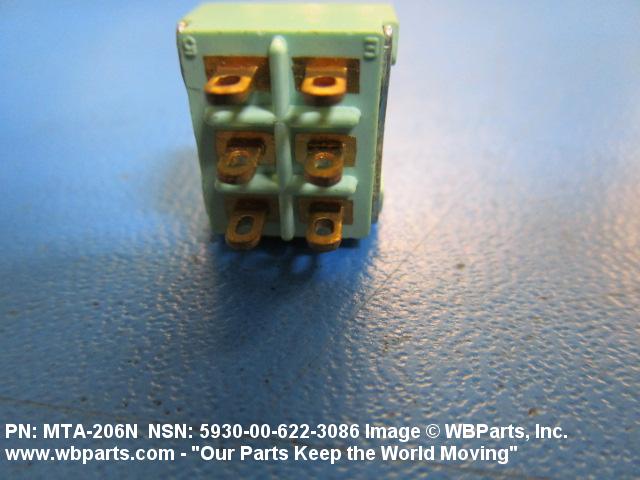

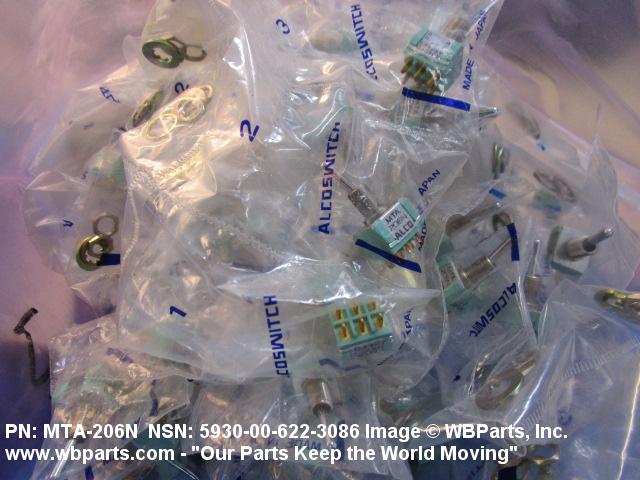

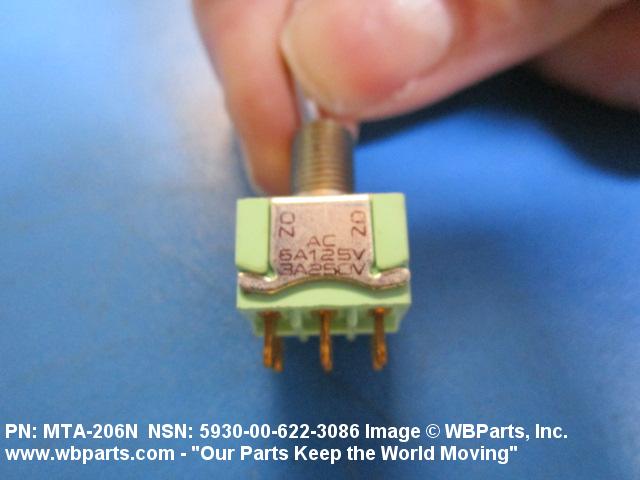

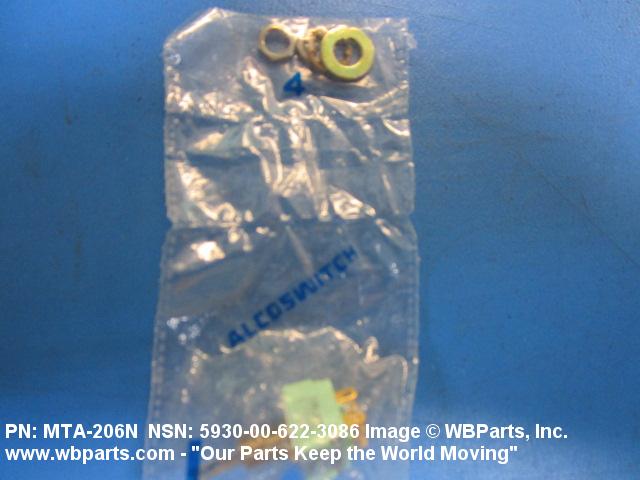

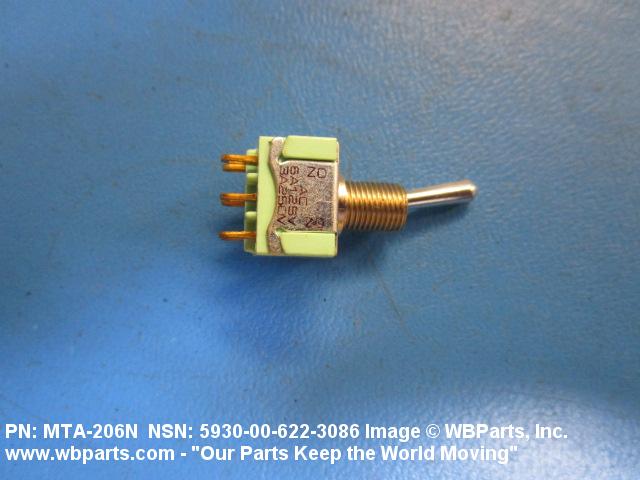

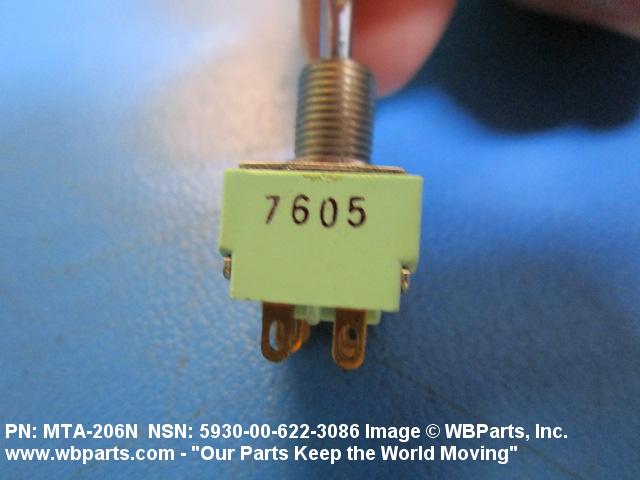

Drawings & Photos | NSN 5930-00-622-3086
Demand History | NSN 5930-00-622-3086
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MTA206N | 2021-08-224 | 84 | United States |
| MTA206D | 2014-04-119 | 2 | US |
| 5930-00-622-3086 | 2010-12-336 | 10 | United States |
Cross Reference | NSN 5930-00-622-3086
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 115113 | 89536 | FLUKE CORPORATION |
| 3225384PC2 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 3605-32-55 | 13859 | KING NUTRONICS CORPORATION |
| 44-0005 | 95750 | AERONAUTICAL INSTRUMENT AND RADIO COMPANY, THE |
| 860091-8 | 55788 | CATEL TELECOMMUNICATIONS INC SUB OF DATA-DESIGN LABORATORIES |
| 8A2011C | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| MCT210D | 95146 | ALCO ELECTRONIC PRODUCTS INC |
| MTA-206D | 95146 | ALCO ELECTRONIC PRODUCTS INC |
| MTA-206N | 95146 | ALCO ELECTRONIC PRODUCTS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-00-622-3086
Technical Data | NSN 5930-00-622-3086
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 2 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 3.000 AMPERES RESISTIVE AC |
| BODY STYLE | 7P BUSHING MOUNT |
| BUSHING LENGTH | 0.315 INCHES NOMINAL |
| BODY LENGTH | 0.512 INCHES NOMINAL |
| BODY WIDTH | 0.505 INCHES NOMINAL |
| BODY HEIGHT | 0.354 INCHES NOMINAL |
| ACTUATOR STYLE | 25 ROUND |
| ACTUATOR DIAMETER | 0.120 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.413 INCHES NOMINAL |
| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MAINTAINED AND DOWN POSITION MAINTAINED |
| TERMINAL TYPE AND QUANTITY | 6 TAB, SOLDER LUG |
| INCLOSURE TYPE | FULLY INCLOSED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | DUSTPROOF |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| III CASE MATERIAL | PLASTIC |
| III OVERALL LENGTH | 0.512 INCHES NOMINAL |
| III OVERALL WIDTH | 0.505 INCHES NOMINAL |
| III OVERALL HEIGHT | 1.278 INCHES NOMINAL |
| III PRECIOUS MATERIAL | GOLD AND SILVER |
| III PRECIOUS MATERIAL AND LOCATION | CONTACTS SILVER AND CONTACT AND TERMINAL SURFACES GOLD |
Restrictions/Controls & Freight Information | NSN 5930-00-622-3086
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-622-3086
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
