NSN 5930-00-636-0495 AN302711, AN3027-11, 8826K12
Product Details | TOGGLE SWITCH
5930-00-636-0495 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: AN302711, AN3027-11, 8826K12, 8826K14, 10300406, 5930-00-636-0495, 00-636-0495, 5930006360495, 006360495
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-636-0495 | 00184 ( SWITCH, TOGGLE ) |

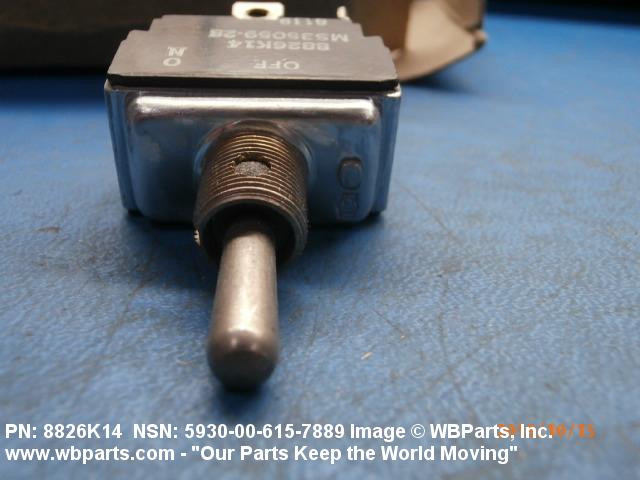

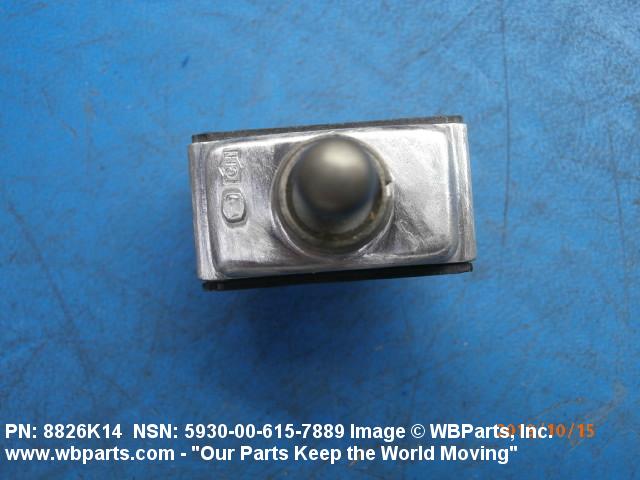

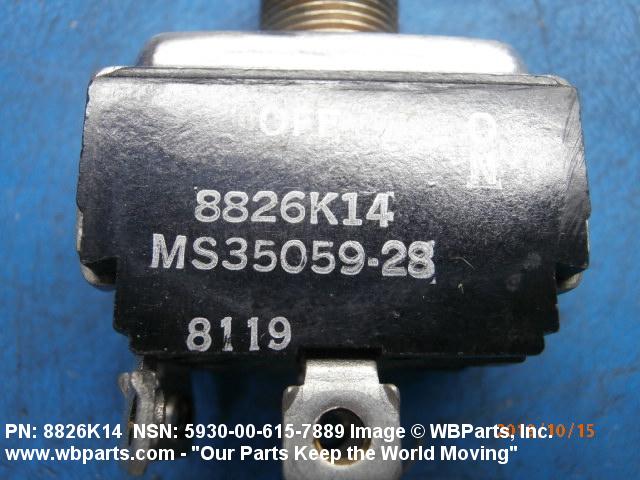

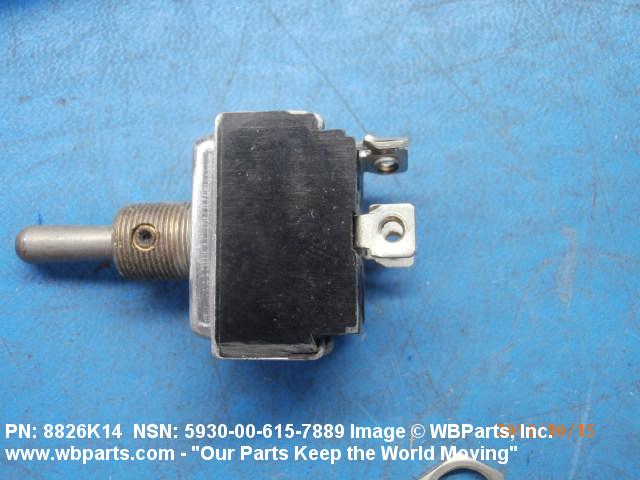

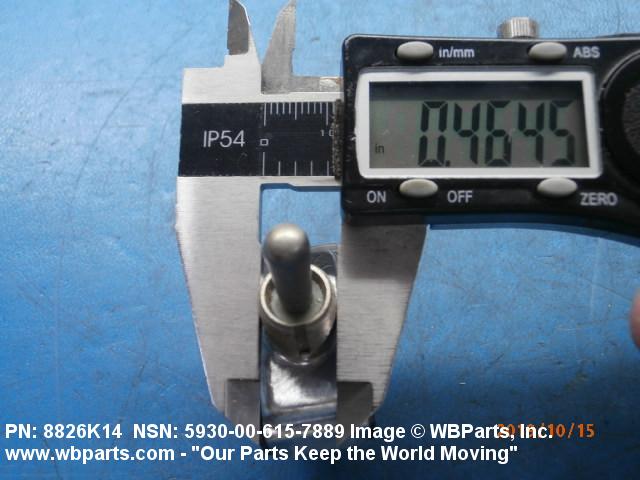

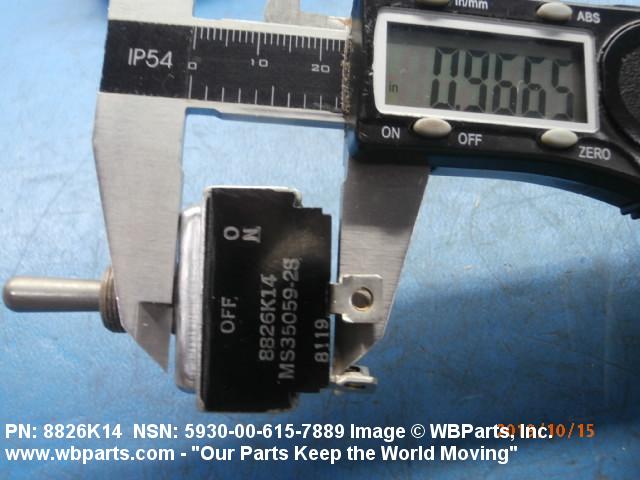

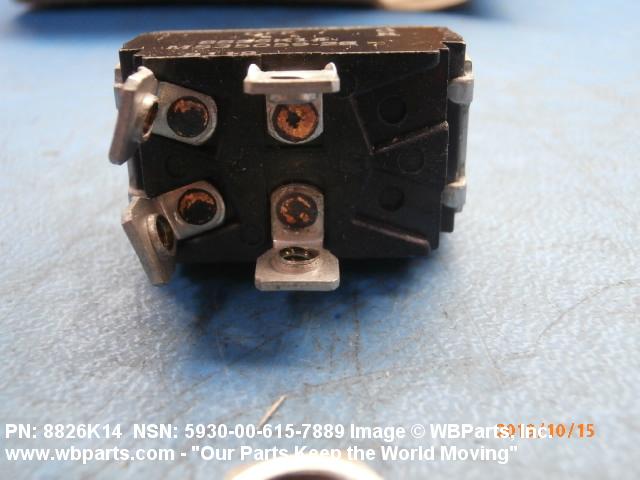

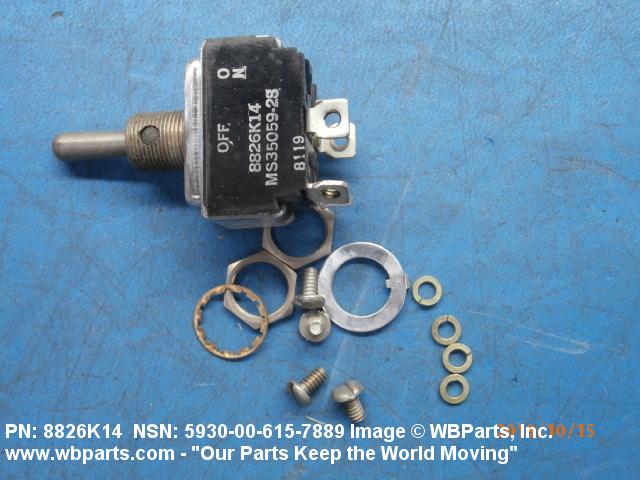

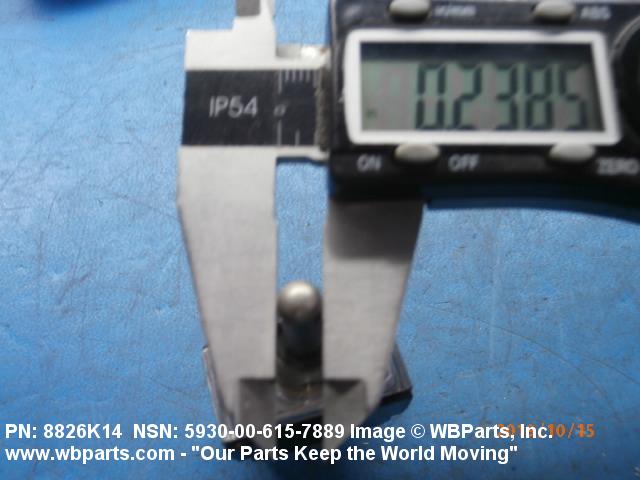

Drawings & Photos | NSN 5930-00-636-0495
Demand History | NSN 5930-00-636-0495
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 8826K14 | 2017-02-41 | 100 | South Korea |
Cross Reference | NSN 5930-00-636-0495
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10300406 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 8826K12 | 15605 | EATON CORP OPNS & TECHNICAL CENTER |
| 8826K12 | 81640 | EATON CORPORATION DBA FLUID POWER DIV |
| 8826K14 | 15605 | EATON CORP OPNS & TECHNICAL CENTER |
| 8826K14 | 81640 | EATON CORPORATION DBA FLUID POWER DIV |
| AN3027-11 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN3027-11 | 99237 | AIRFORCE-NAVY AERONAUTICAL DESIGN STANDARD |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-00-636-0495
Technical Data | NSN 5930-00-636-0495
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 2 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 20.000 AMPERES RESISTIVE DC AND 10.000 AMPERES RESISTIVE AC |
| BODY STYLE | 4P BUSHING MOUNT |

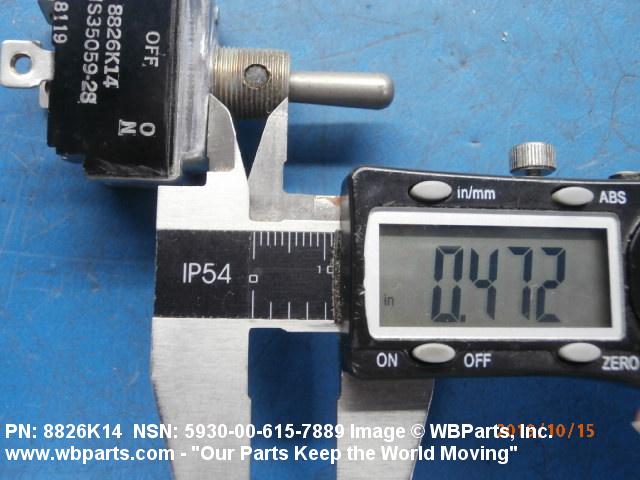

| BUSHING LENGTH | 0.469 INCHES NOMINAL |

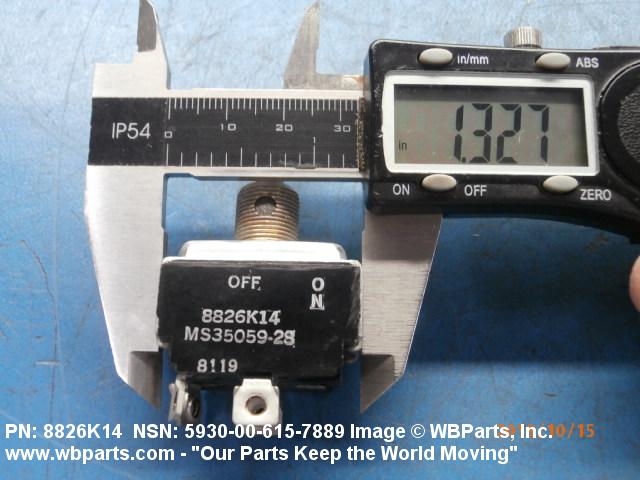

| BODY LENGTH | 1.312 INCHES NOMINAL |

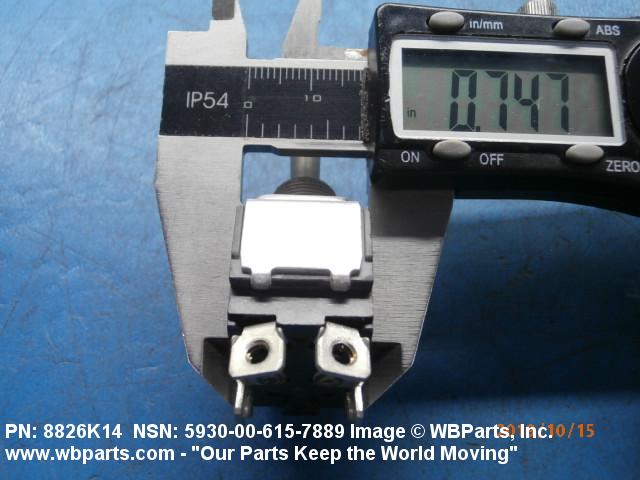

| BODY WIDTH | 0.750 INCHES NOMINAL |
| BODY HEIGHT | 1.125 INCHES NOMINAL |
| ACTUATOR STYLE | 25 ROUND |

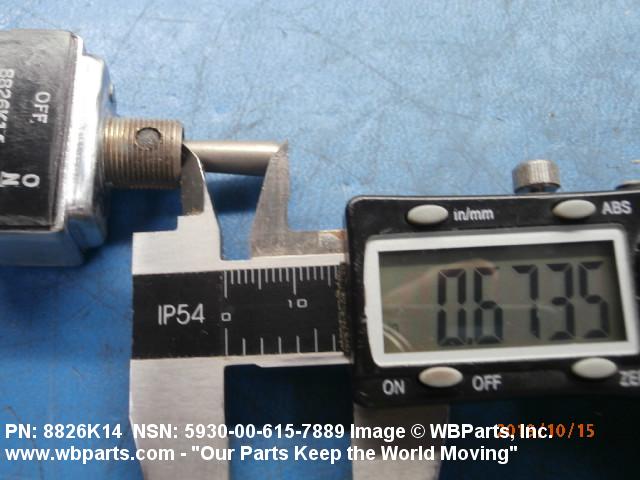

| ACTUATOR HEIGHT | 0.688 INCHES NOMINAL |
| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MOMENTARY AND DOWN POSITION MOMENTARY |
| TERMINAL TYPE AND QUANTITY | 4 SCREW |
| INCLOSURE TYPE | FULLY INCLOSED |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 0.343 INCHES |

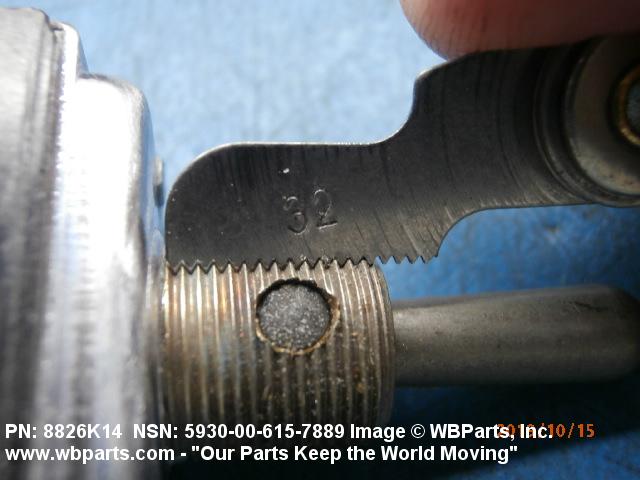

| THREAD QUANTITY PER INCH | 32 |
Restrictions/Controls & Freight Information | NSN 5930-00-636-0495
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5930-00-636-0495
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
