NSN 5930-00-636-2821 MS35059/2464, MS3505924, MS35059-24
Product Details | TOGGLE SWITCH
5930-00-636-2821 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: MS35059/2464, MS3505924, MS35059-24, MS350592464, CH8822K21, MILDTL83731, MIL-DTL-83731, MILS83731, MIL-S-83731, PL106D005PC64, 32104024, 321-04-024, 512TS121, 512TS1-21, 7245717, 72457-17 , 804797, 851289, 854078, 8791256, 8822K21, 5930-00-636-2821, 00-636-2821, 5930006362821, 006362821
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-636-2821 | 00184 ( SWITCH, TOGGLE ) |

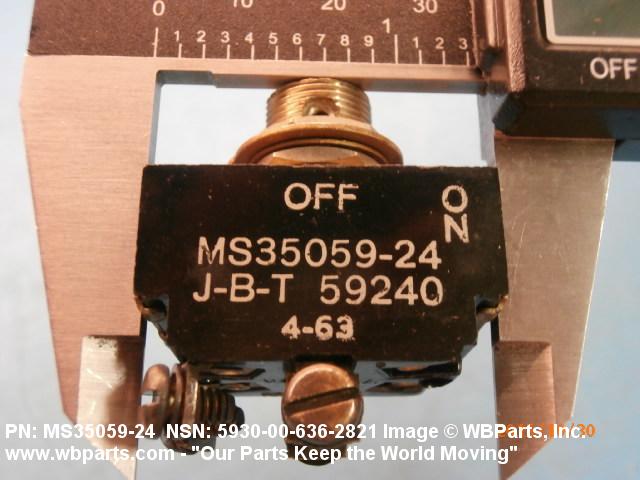

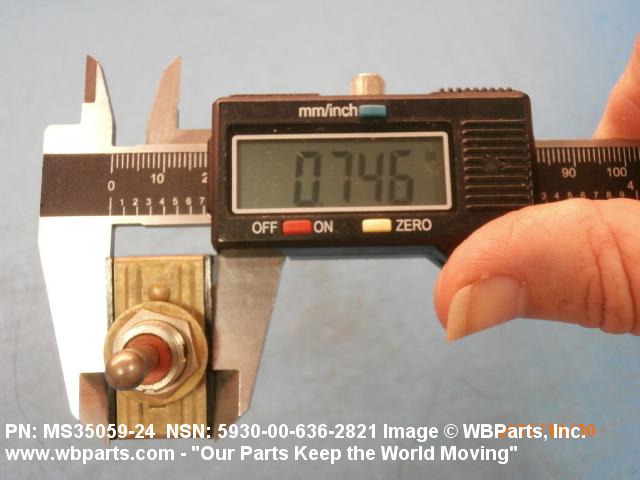

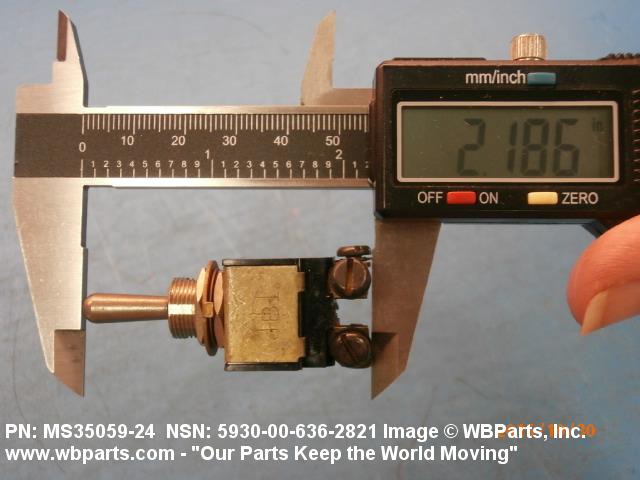

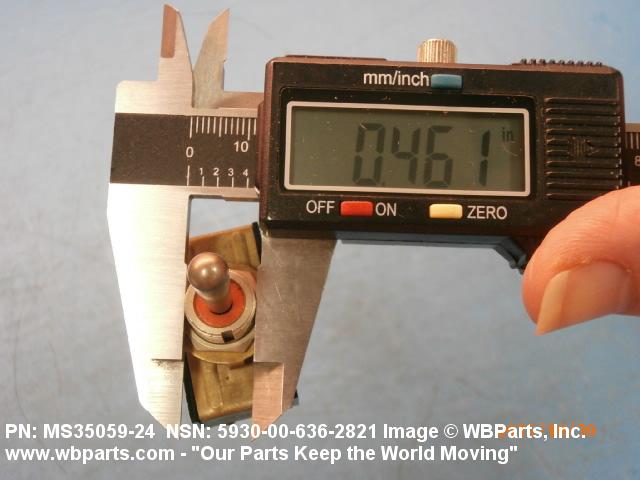

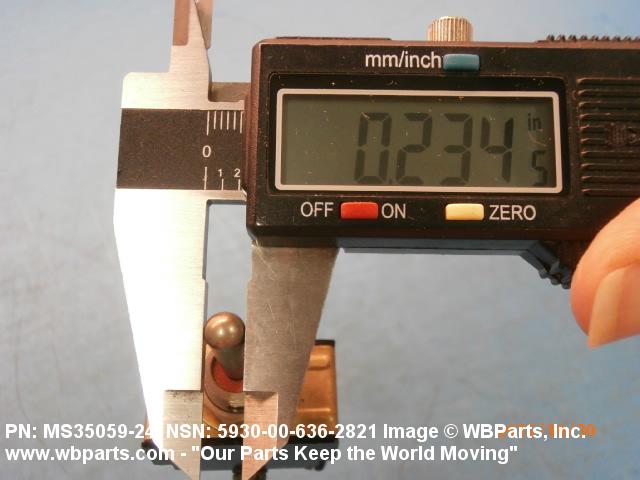

Drawings & Photos | NSN 5930-00-636-2821
Demand History | NSN 5930-00-636-2821
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-636-2821 | 2025-09-261 | 86 | DIBBS |
| 5930-00-636-2821 | 2025-07-189 | 50 | DIBBS |
| 5930-00-636-2821 | 2025-03-79 | 27 | DIBBS |
| 5930-00-636-2821 | 2024-12-347 | 27 | DIBBS |
| 5930-00-636-2821 | 2024-09-261 | 51 | DIBBS |
| 5930-00-636-2821 | 2023-09-270 | 25 | DIBBS |
| 5930-00-636-2821 | 2022-10-293 | 30 | DIBBS |
| 5930-00-636-2821 | 2022-09-257 | 30 | DIBBS |
| 5930-00-636-2821 | 2021-09-271 | 36 | DIBBS |
| 5930-00-636-2821 | 2020-10-287 | 56 | DIBBS |
| 5930-00-636-2821 | 2019-11-310 | 56 | FX |
| 5930-00-636-2821 | 2019-11-310 | 56 | FX |
| 5930-00-636-2821 | 2019-09-255 | 109 | DIBBS |
| 804797 | 2017-07-212 | 120 | United Arab Emirates |
| 5930-00-636-2821 | 2017-02-41 | 145 | DIBBS |
| 5930-00-636-2821 | 2010-08-230 | 277 | DIBBS |
| 5930-00-636-2821 | 2010-04-95 | 277 | DIBBS |
| 5930-00-636-2821 | 2008-01-11 | 239 | DIBBS |
| MS3505924 | 2007-07-183 | 5 | US |
| 5930-00-636-2821 | 2007-02-53 | 199 | DIBBS |
Cross Reference | NSN 5930-00-636-2821
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 321-04-024 | 58475 | WESTWOOD CORPORATION DBA NMP DIVISION |
| 512TS1-21 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 804797 | 19203 | PICATINNY ARSENAL |
| 851289 | 19203 | PICATINNY ARSENAL |
| 854078 | 19203 | PICATINNY ARSENAL |
| 8791256 | 19203 | PICATINNY ARSENAL |
| 8822K21 | 15605 | EATON CORP OPNS & TECHNICAL CENTER |
| 8822K21 | 81640 | EATON CORPORATION DBA FLUID POWER DIV |
| CH8822K21 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| MIL-DTL-83731 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-S-83731 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS35059-24 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| MS35059-24 | 58475 | WESTWOOD CORPORATION DBA NMP DIVISION |
| MS35059-24 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS35059/2464 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| PL106D005PC64 | 56425 | INTERNATIONAL SWITCHBOARD CORP DIV OF EQUUS POWER SYSTEMS CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-636-2821
Related Products | NSN 5930-00-636-2821
Technical Data | NSN 5930-00-636-2821
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 2 POLE, SINGLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 28.0 DC AND 115.0 AC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 20.000 AMPERES RESISTIVE DC AND 15.000 AMPERES INDUCTIVE DC AND 20.000 AMPERES RESISTIVE AC AND 15.000 AMPERES INDUCTIVE AC |
| BODY STYLE | 4P BUSHING MOUNT |
| BUSHING LENGTH | 0.470 INCHES NOMINAL |

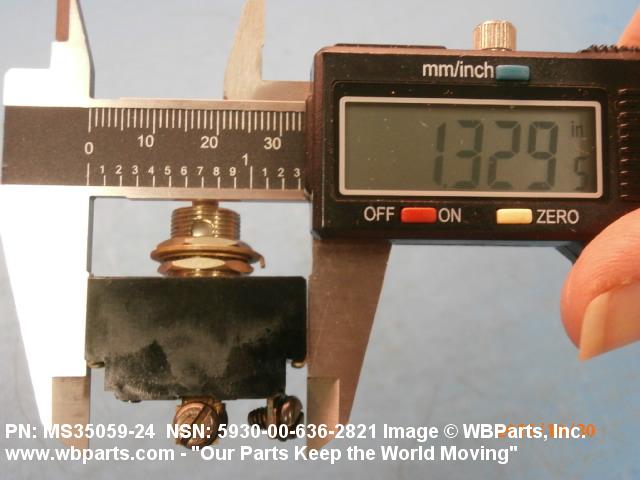

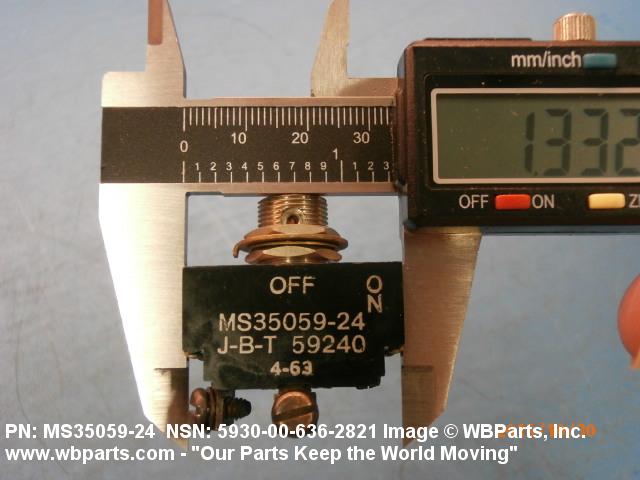

| BODY LENGTH | 1.346 INCHES MAXIMUM |
| BODY WIDTH | 0.641 INCHES MAXIMUM |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 1.250 INCHES MAXIMUM |
| OVERALL LENGTH | 1.346 INCHES MAXIMUM |
| OVERALL WIDTH | 1.025 INCHES MAXIMUM |
| OVERALL HEIGHT | 2.410 INCHES NOMINAL |
| ACTUATOR STYLE | 25 ROUND |
| ACTUATOR DIAMETER | 0.240 INCHES NOMINAL |

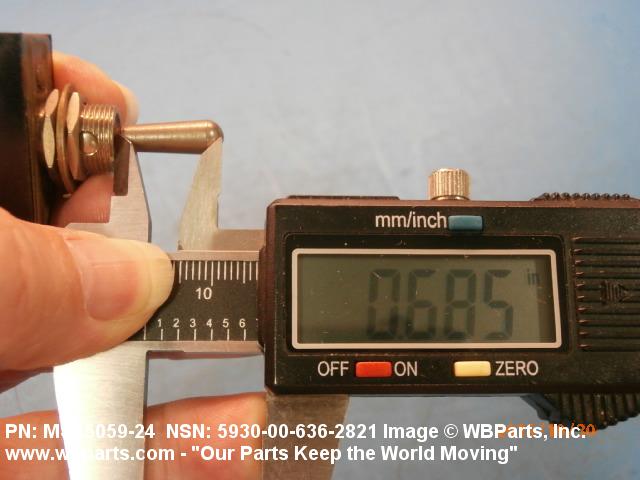

| ACTUATOR HEIGHT | 0.690 INCHES NOMINAL |
| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MAINTAINED AND CENTER POSITION MAINTAINED |
| TERMINAL TYPE AND QUANTITY | 4 TAB W/SCREW |
| INCLOSURE TYPE | FULLY INCLOSED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | SUBMERSIBLE |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNS |

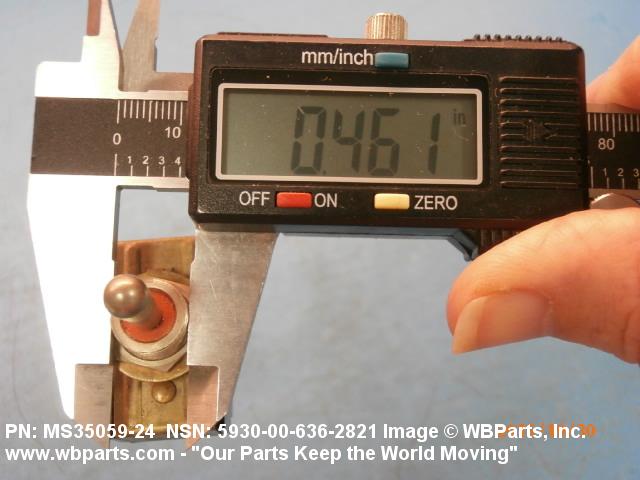

| NOMINAL THREAD SIZE | 0.468 INCHES |
| THREAD CLASS | 2A |

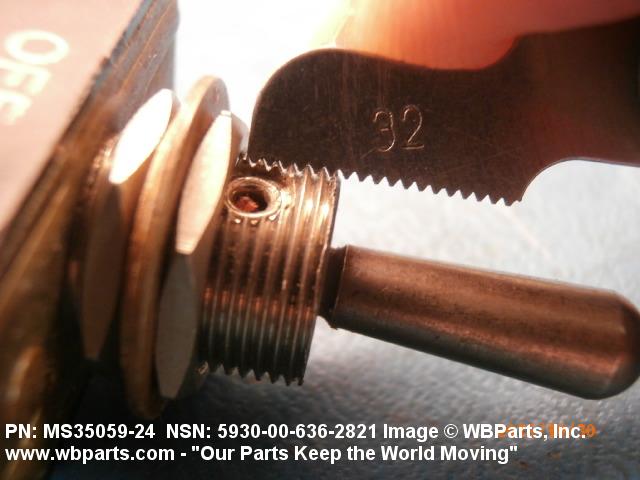

| THREAD QUANTITY PER INCH | 32 |
| FEATURES PROVIDED | ACTUATOR SEAL |
| TEST DATA DOCUMENT | 81349-MIL-DTL-83731 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 96906-MS35059 GOVERNMENT STANDARD |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-DTL-83731 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS35059-24 |
Restrictions/Controls & Freight Information | NSN 5930-00-636-2821
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103300 | INSULATING MATERIAL NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-636-2821
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
