NSN 5930-00-669-7872 E160598592, E160-59-8592, 1506983
Product Details | PRESSURE SWITCH
5930-00-669-7872 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.
Part Alternates: E160598592, E160-59-8592, 1506983, 1506983TYPEPS2, 1507289, 2096008, 302451095248, 302-4510952-48, 5930-00-669-7872, 00-669-7872, 5930006697872, 006697872
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-669-7872 | 00206 ( SWITCH, PRESSURE ) |

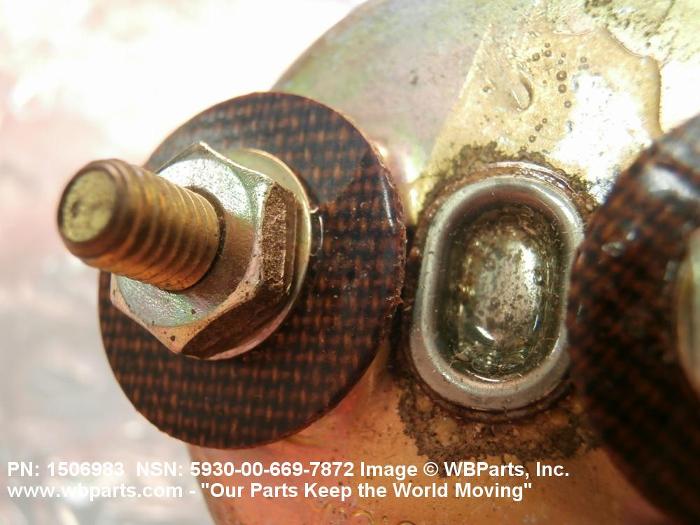

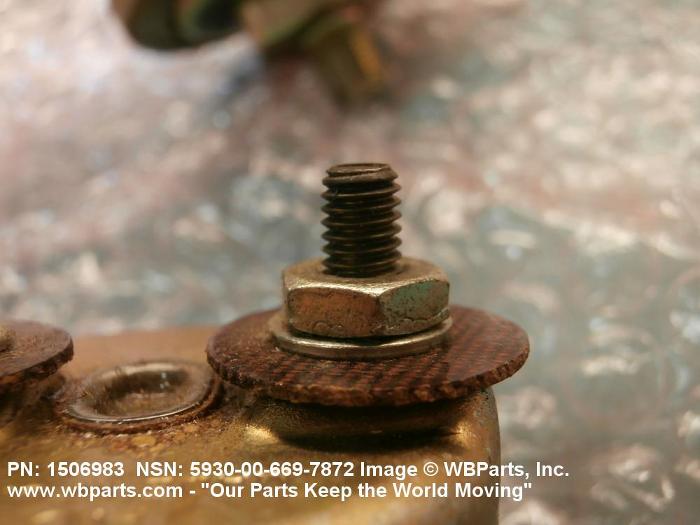

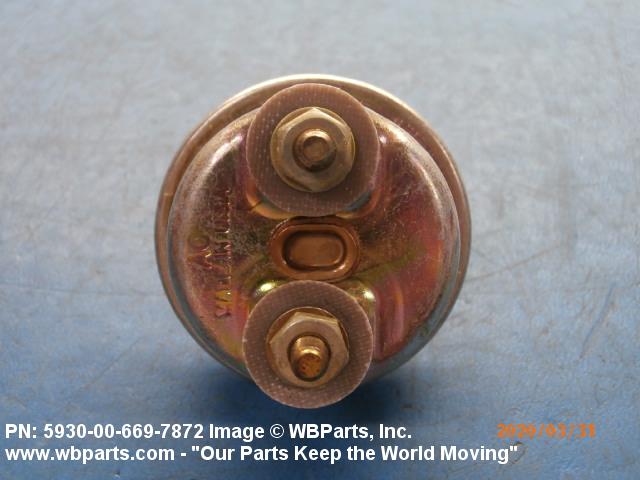

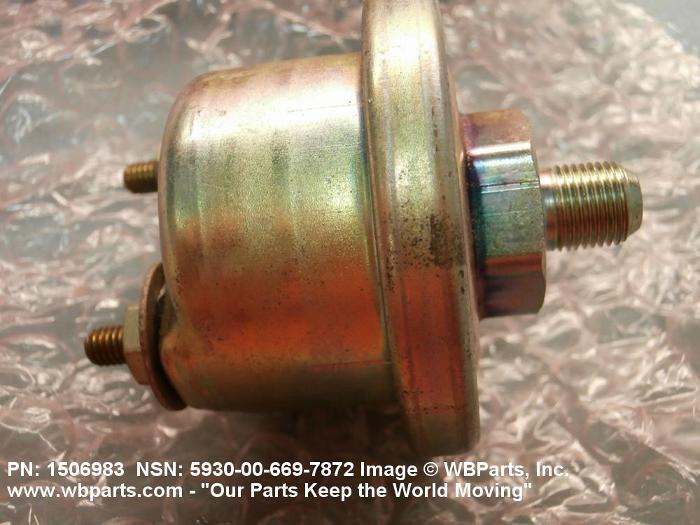

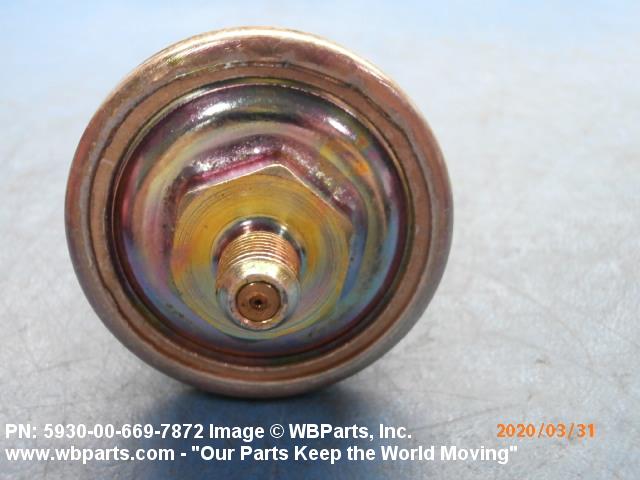

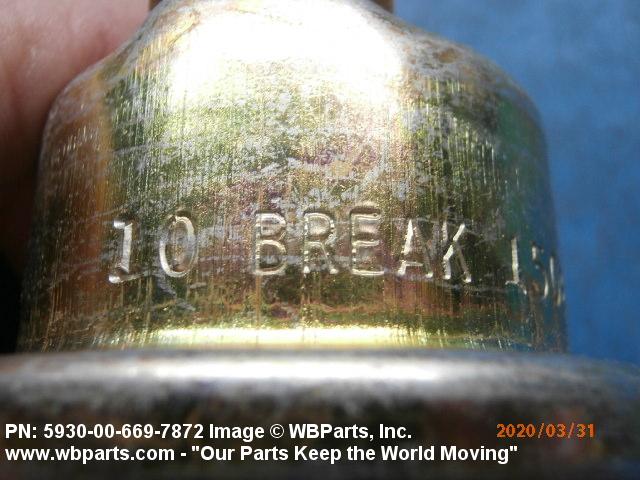

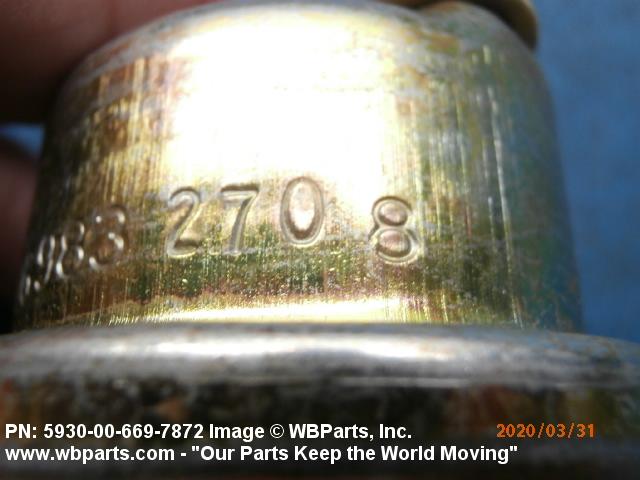

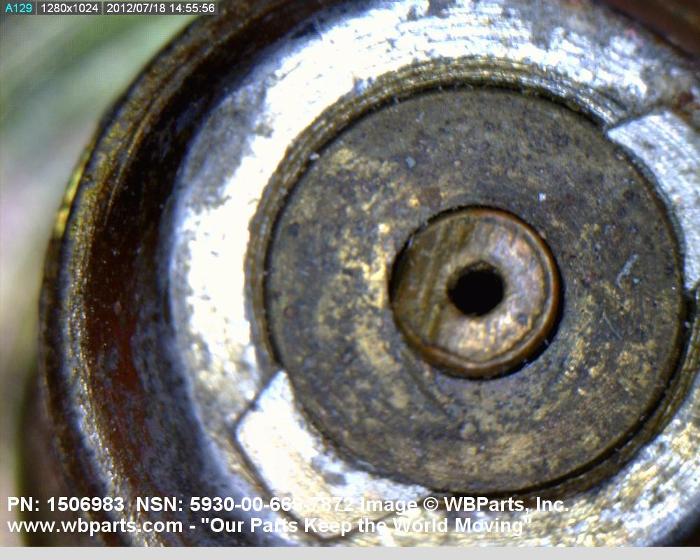

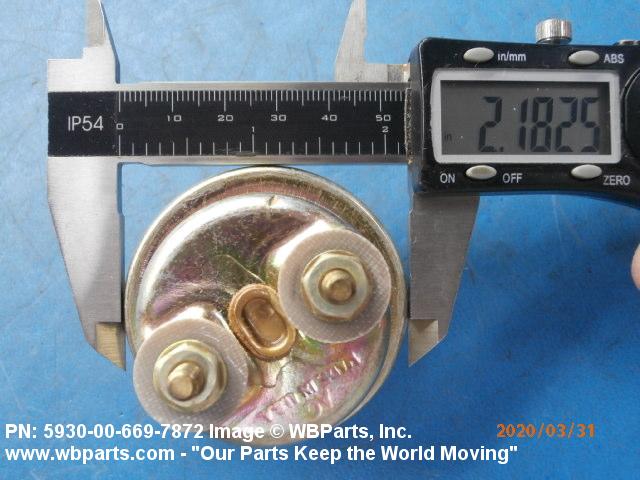

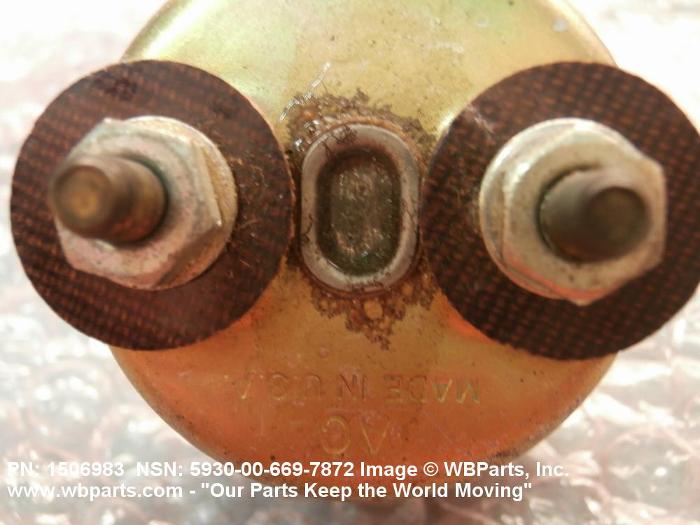

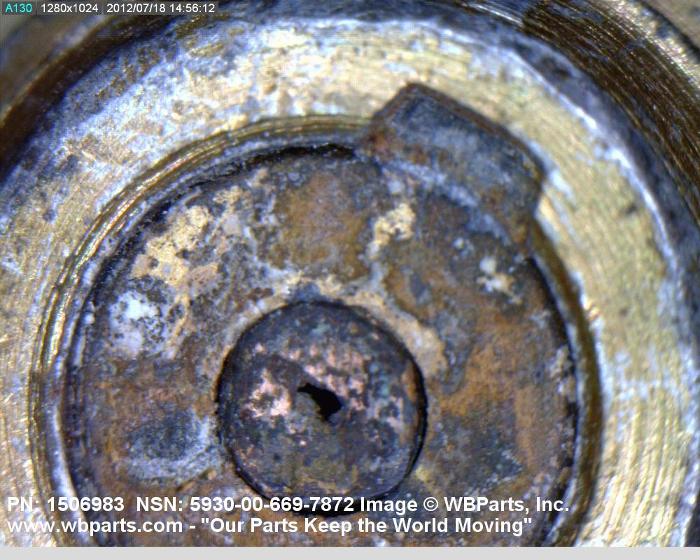

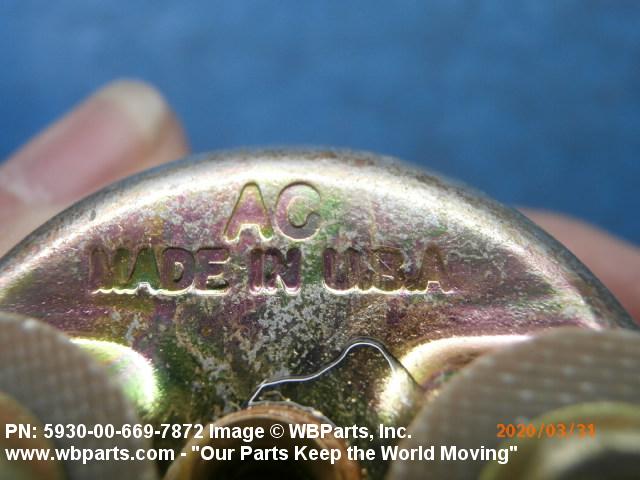

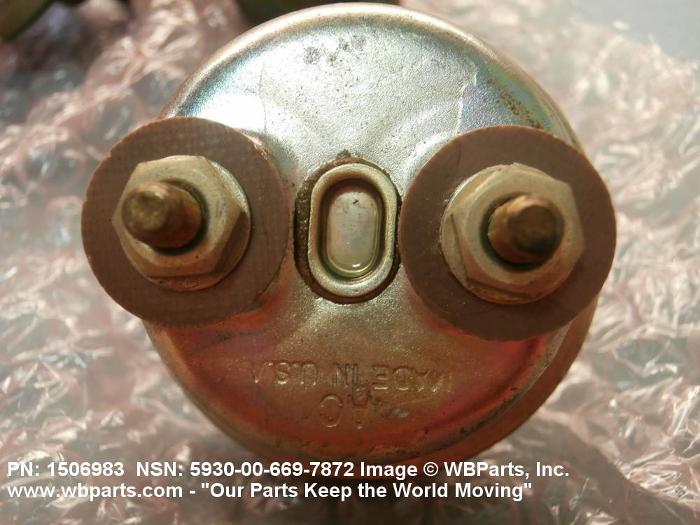

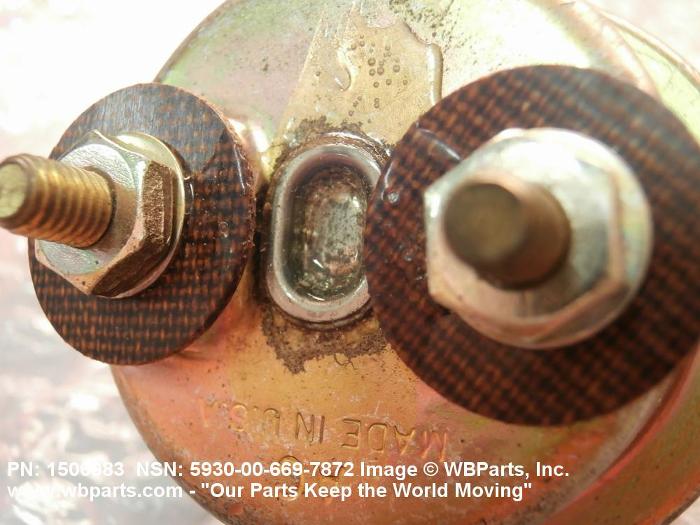

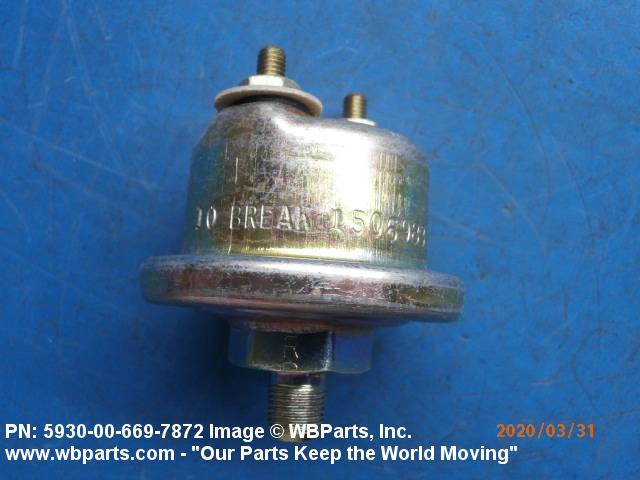

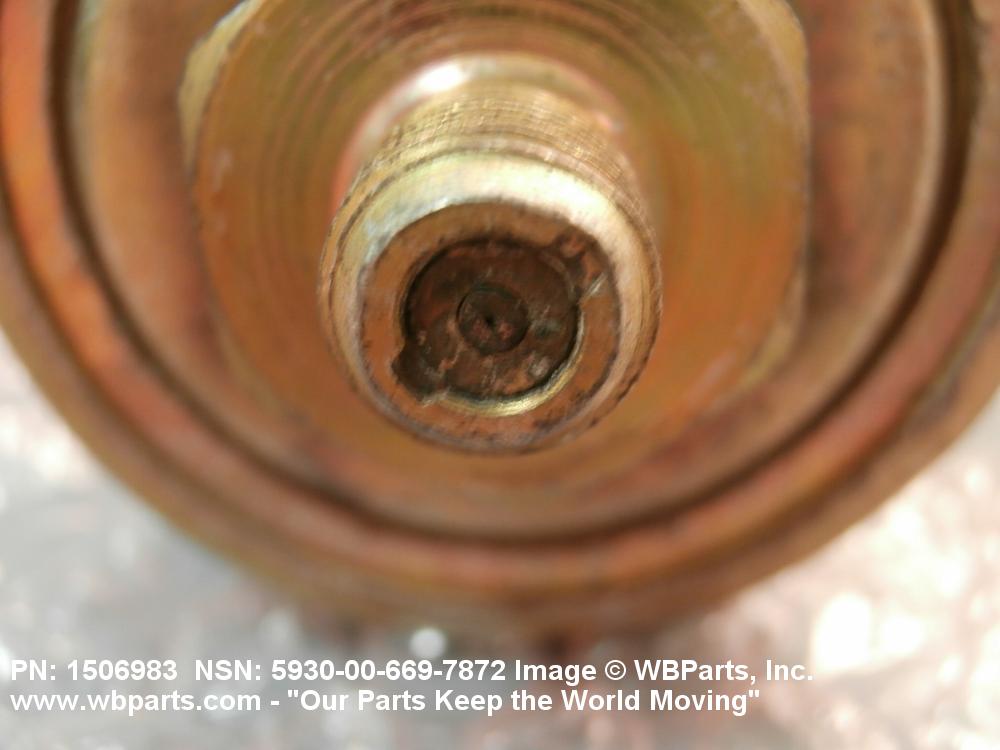

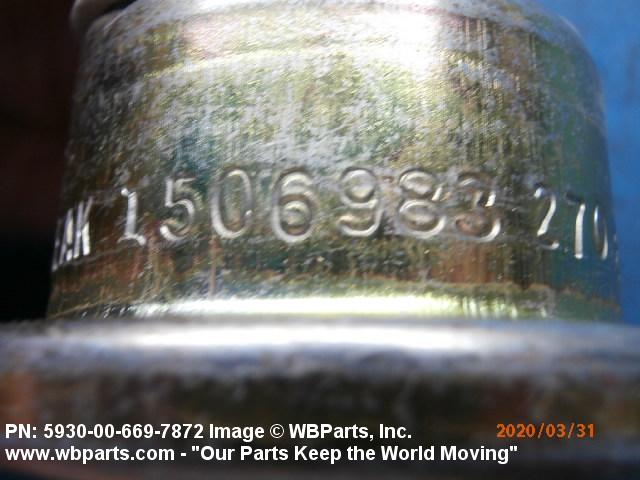

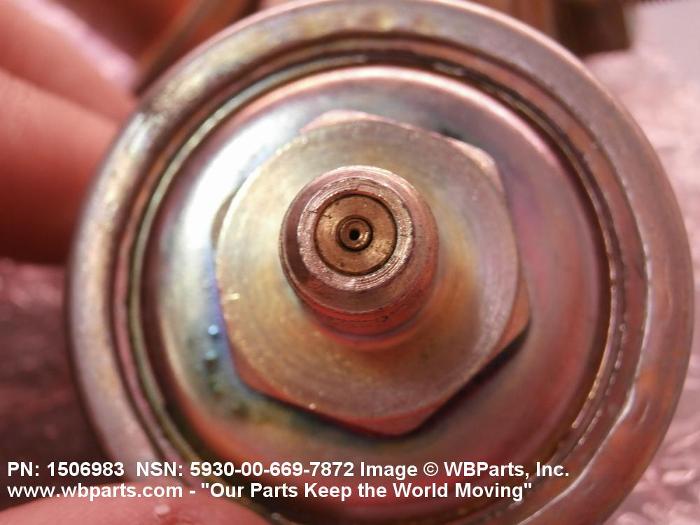

Drawings & Photos | NSN 5930-00-669-7872
Demand History | NSN 5930-00-669-7872
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-669-7872 | 2022-08-241 | 1 | US |
| 1506983 | 2020-03-84 | 1 | United States |
| 5930-00-669-7872 | 2018-03-67 | 1 | US |
| 5930-00-669-7872 | 2014-10-291 | 1 | US |
| 1506983 | 2012-07-193 | 3 | us |
| 5930-00-669-7872 | 2011-11-318 | 2 | CA |
| 5930-00-669-7872 | 2011-09-262 | 1 | US |
Cross Reference | NSN 5930-00-669-7872
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1506983 | 24617 | GENERAL MOTORS CORP |
| 1506983 | 70040 | GENERAL MOTORS CORP AC ROCHESTER DIV |
| 1506983 | 72582 | MTU AMERICA INC. |
| 1506983 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| 1506983TYPEPS2 | 70040 | GENERAL MOTORS CORP AC ROCHESTER DIV |
| 1506983TYPEPS2 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| 1507289 | 16764 | GENERAL MOTORS CORP DELCO REMY DIV |
| 1507289 | 1LW55 | REMY, INC. |
| 1507289 | 24617 | GENERAL MOTORS CORP |
| 1507289 | 70040 | GENERAL MOTORS CORP AC ROCHESTER DIV |
| 1507289 | 72582 | MTU AMERICA INC. |
| 1507289 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| 1507289 | 99974 | DELCO ELECTRONICS CORP DELCO SYSTEMS OPNS |
| 2096008 | 24617 | GENERAL MOTORS CORP |
| 2096008 | 72582 | MTU AMERICA INC. |
| 2096008 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| 302-4510952-48 | 51563 | ROHR, INC DBA GOODRICH AEROSTRUCTURES GROUP |
| E160-59-8592 | 81996 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-669-7872
Related Products | NSN 5930-00-669-7872
Technical Data | NSN 5930-00-669-7872
| Characteristic | Specifications |
|---|---|
| PRESSURE SWITCH TYPE | GAGE |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY CLOSED, MOMENTARY ACTION |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | DEACTUATION POINT NOT ADJUSTABLE AND ACTUATION POINT NOT ADJUSTABLE |
| CONTACT STIMULUS RATING | 10.00 ACTUATION POINT NOMINAL POUNDS PER SQUARE INCH AND 9.80 DEACTUATION POINT NOMINAL POUNDS PER SQUARE INCH AND 0.20 DIFFERENTIAL POINT NOMINAL POUND |
| CONTACT VOLTAGE RATING IN VOLTS | 32.0 DC AT SEA LEVEL SINGLE VOLTAGE |
| CONTACT LOAD CURRENT RATING | 1.0 AMPERES LAMP LOAD SINGLE VOLTAGE |
| MEDIA FOR WHICH DESIGNED | LIQUID |
| TERMINAL TYPE | SOLDER STUD |
| MOUNTING METHOD | INLET CONNECTION |
| THREAD SERIES DESIGNATOR | NPT SINGLE PRESSURE CONNECTION |
| NOMINAL THREAD SIZE | 0.125 INCHES SINGLE PRESSURE CONNECTION |
| THREAD QUANTITY PER INCH | 27 SINGLE PRESSURE CONNECTION |
Restrictions/Controls & Freight Information | NSN 5930-00-669-7872
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-669-7872
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
