NSN 5930-00-687-1097 MS2510222, MS25102-22, AN30222
Product Details | TOGGLE SWITCH
5930-00-687-1097 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: MS2510222, MS25102-22, AN30222, AN3022-2, AN30224B, AN3022-4B, ST45A, ST55M, JANS23, 804269, 8201K14, 8905K526, 5930-00-687-1097, 00-687-1097, 5930006871097, 006871097
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-687-1097 | 00184 ( SWITCH, TOGGLE ) |

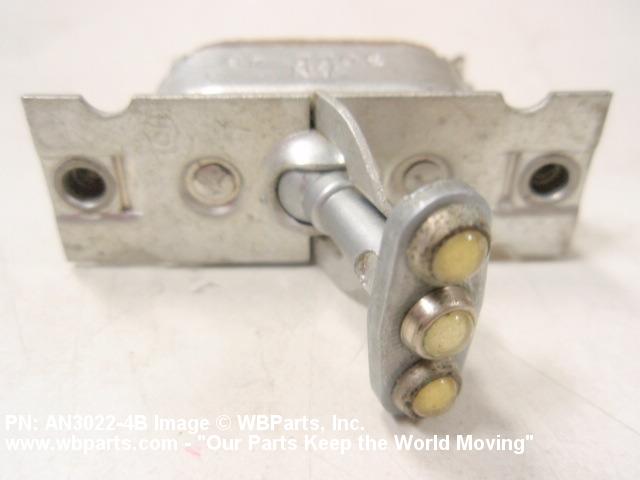

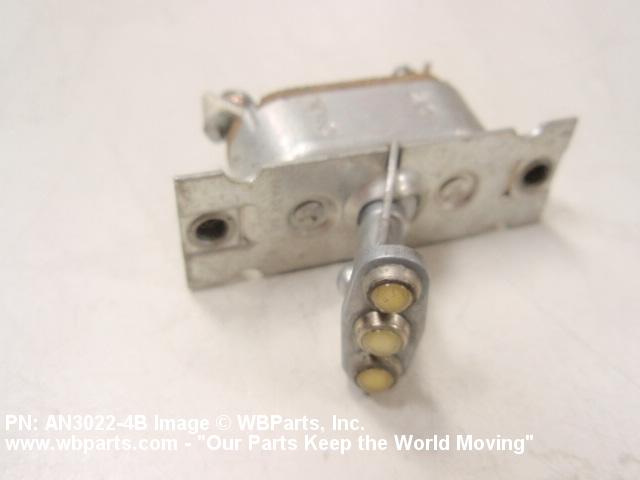

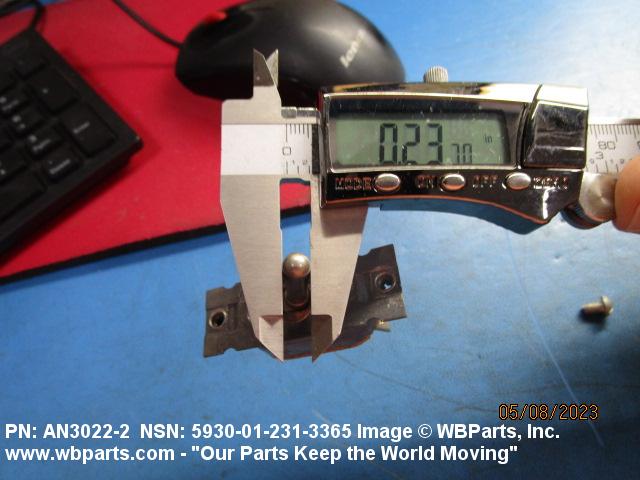

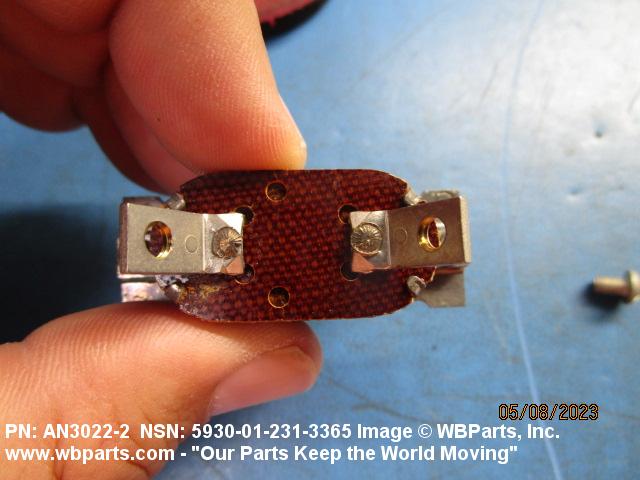

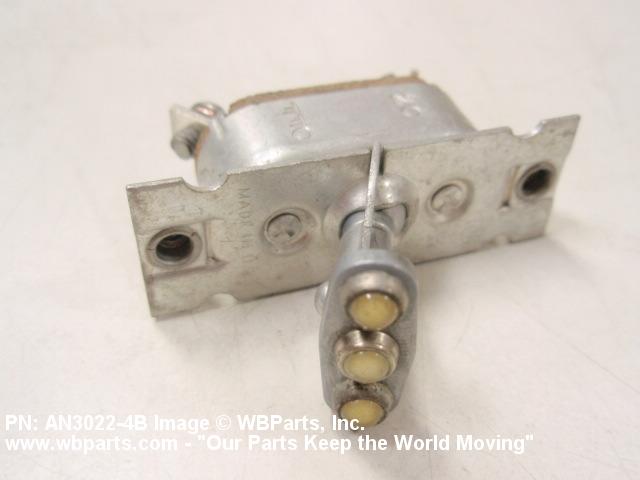

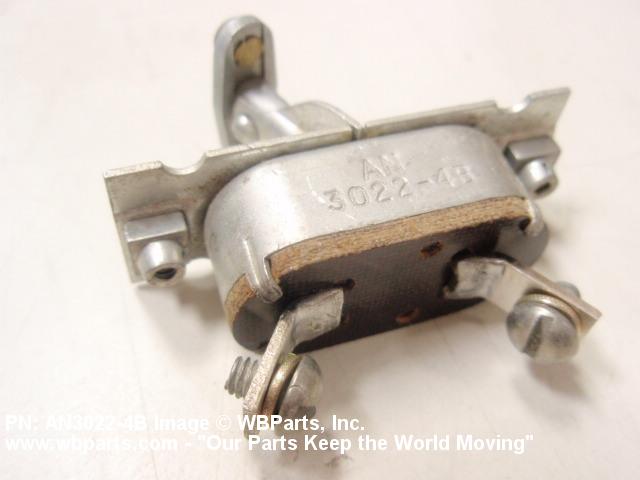

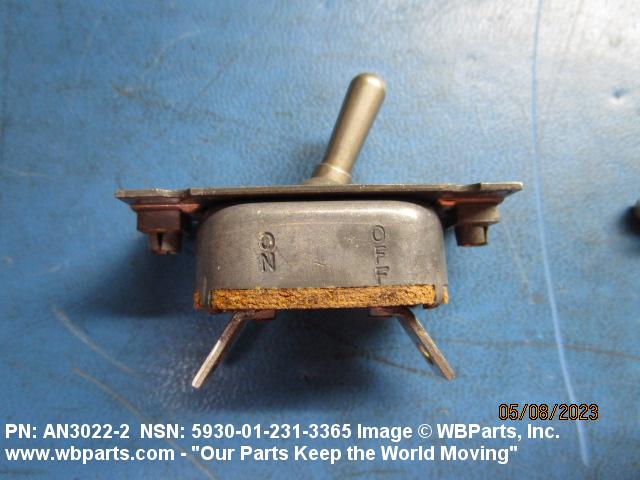

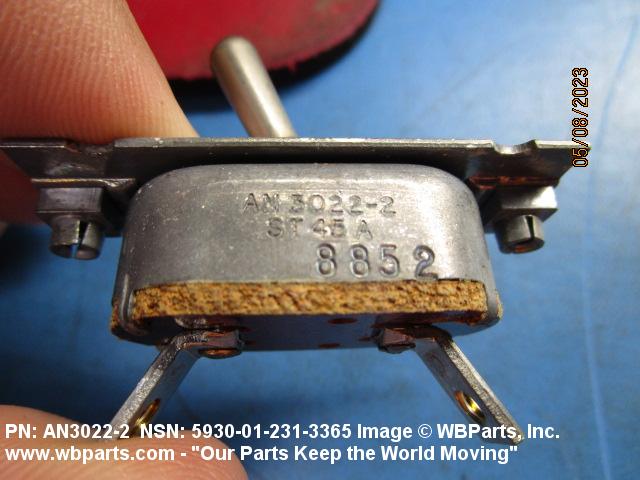

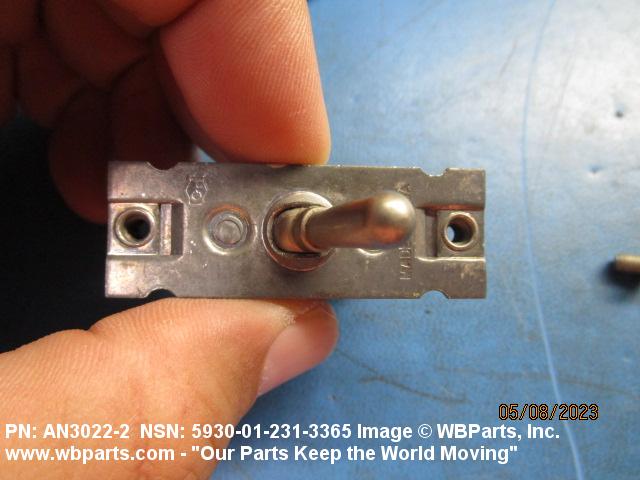

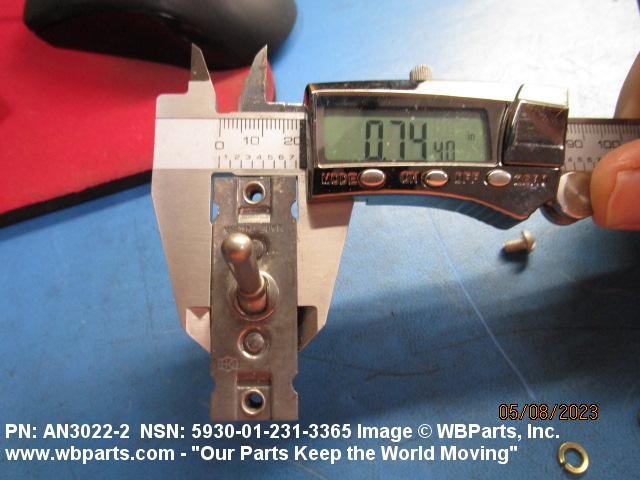

Drawings & Photos | NSN 5930-00-687-1097
Demand History | NSN 5930-00-687-1097
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN30224B | 2025-04-99 | 5 | US |
| 5930-00-687-1097 | 2023-06-157 | 1 | AU |
| 5930-00-687-1097 | 2021-08-233 | 1 | AU |
| 5930-00-687-1097 | 2019-01-21 | 6 | US |
| MS25102-22 | 2018-08-226 | 2 | Thailand |
| AN30222 | 2018-06-155 | 2 | US |
| 5930-00-687-1097 | 2018-05-130 | 2 | Thailand |
| AN30222 | 2018-05-130 | 2 | Thailand |
| AN30222 | 2018-05-128 | 2 | TH |
| AN30222 | 2017-05-149 | 2 | TH |
| 5930-00-687-1097 | 2017-05-128 | 2 | Thailand |
| AN30222 | 2016-01-17 | 6 | Malaysia |
| 5930-00-687-1097 | 2016-01-13 | 3 | Malaysia |
| 5930-00-687-1097 | 2016-01-07 | 3 | Malaysia |
| AN30224B | 2015-12-346 | 2 | FR |
| AN30222 | 2014-03-87 | 1 | United States |
| MS2510222 | 2014-03-76 | 1 | United States |
| AN30222 | 2014-03-72 | 1 | United States |
| 5930-00-687-1097 | 2013-05-150 | 1 | United States |
| AN30222 | 2011-05-136 | 4 | United States |
| MS2510222 | 2011-01-26 | 8 | United States |
| AN30222 | 2011-01-25 | 3 | United States |
| AN30224B | 2010-06-152 | 2 | United States |
| 5930-00-687-1097 | 2010-05-134 | 5 | United States |
Cross Reference | NSN 5930-00-687-1097
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 804269 | 19203 | PICATINNY ARSENAL |
| 8201K14 | 81640 | EATON CORPORATION DBA FLUID POWER DIV |
| 8905K526 | 15605 | EATON CORP OPNS & TECHNICAL CENTER |
| AN3022-2 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN3022-4B | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| JANS23 | 81350 | JOINT ARMY-NAVY SPECIFICATIONS PROMULGATED BY MILITARY DEPARTMENTS |
| MS25102-22 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| ST45A | 81350 | JOINT ARMY-NAVY SPECIFICATIONS PROMULGATED BY MILITARY DEPARTMENTS |
| ST55M | 81350 | JOINT ARMY-NAVY SPECIFICATIONS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-687-1097
Related Products | NSN 5930-00-687-1097
Technical Data | NSN 5930-00-687-1097
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 220.0 AC AND 250.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 500.000 MILLIAMPERES RESISTIVE DC AND 7.500 AMPERES RESISTIVE AC |
| BODY STYLE | 10P HOLE MOUNT |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.797 INCHES MINIMUM AND 1.827 INCHES MAXIMUM |
| BODY WIDTH | 0.766 INCHES MAXIMUM |
| OVERALL LENGTH | 2.130 INCHES MAXIMUM |
| OVERALL WIDTH | 0.766 INCHES MAXIMUM |
| OVERALL HEIGHT | 2.001 INCHES MAXIMUM |
| ACTUATOR STYLE | 27 ROUND |
| ACTUATOR DIAMETER | 0.235 INCHES MINIMUM AND 0.245 INCHES MAXIMUM |
| ACTUATOR HEIGHT | 0.859 INCHES MINIMUM AND 0.891 INCHES MAXIMUM |
| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MAINTAINED AND DOWN POSITION MAINTAINED |
| TERMINAL TYPE AND QUANTITY | 2 SCREW |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | UNTHREADED HOLE |
Restrictions/Controls & Freight Information | NSN 5930-00-687-1097
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Hazardous Control Code: | A2 | Radioactive, License Exempt RADIOACTIVE, EXEMPT |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 493 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | D | Hazardous material (not required hand to hand receipt) including all regulated items other than special weapons and their components. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | AY | |
| Type of Cargo | A | Radioactive substances, UN class 7 (radioactive label) |
Management | NSN 5930-00-687-1097
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
