NSN 5930-00-755-3126 MS390616, MS39061-6, MILDTL13735
Product Details | TOGGLE SWITCH
5930-00-755-3126 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: MS390616, MS39061-6, MILDTL13735, MIL-DTL-13735, 5930PL0862475, 5930-00-755-3126, 00-755-3126, 5930007553126, 007553126
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-755-3126 | 00184 ( SWITCH, TOGGLE ) |

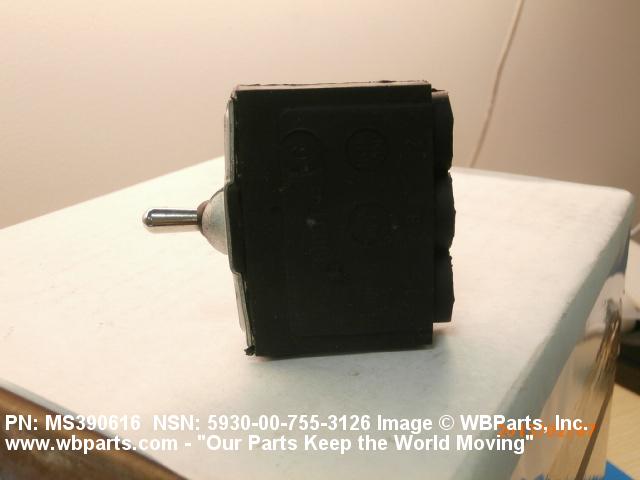

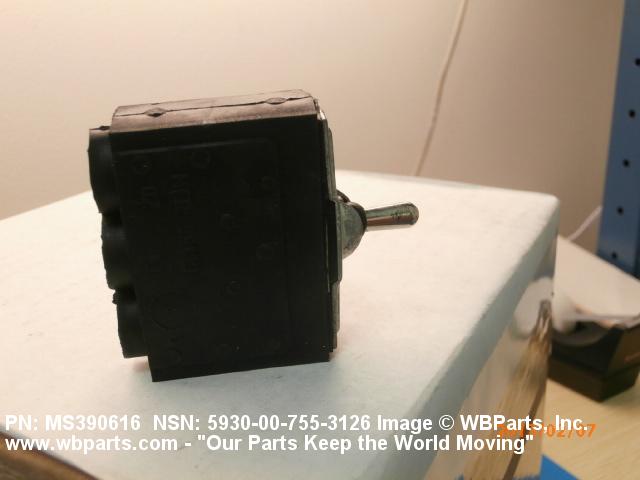

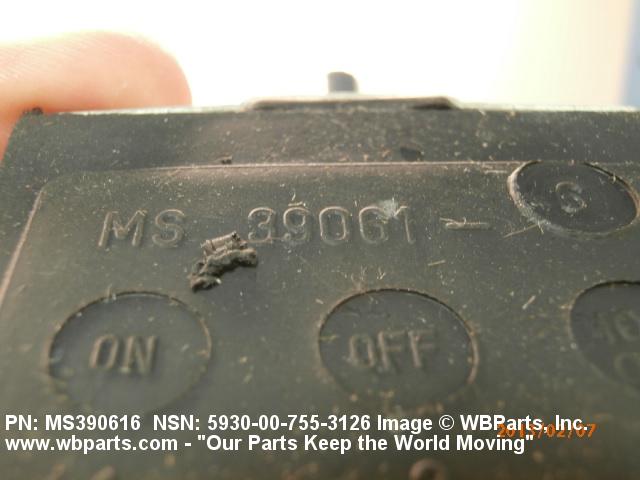

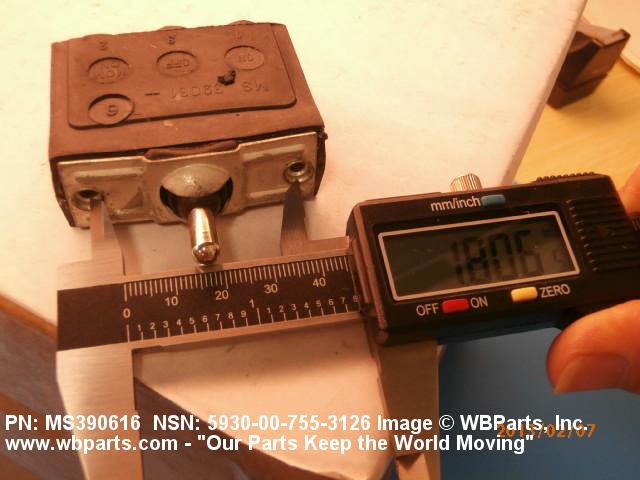

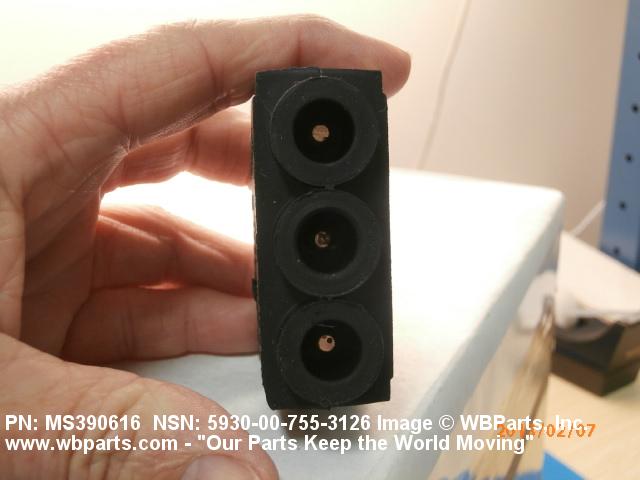

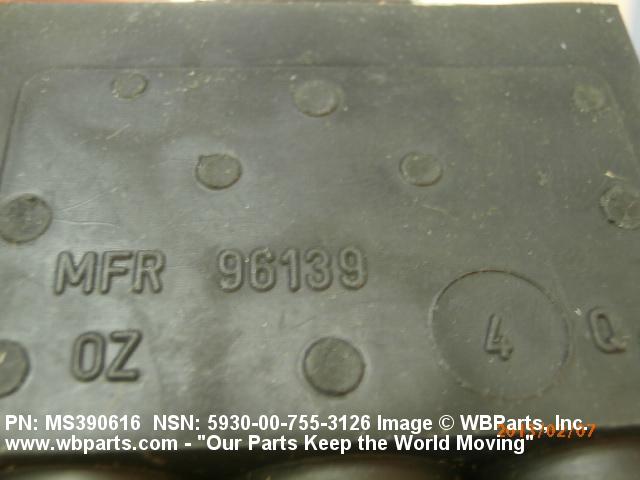

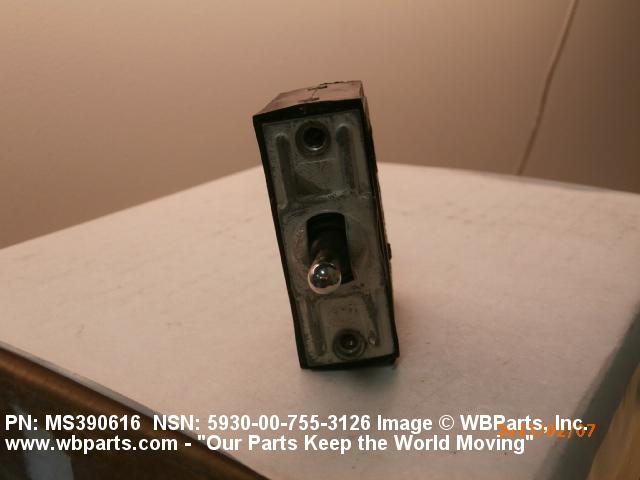

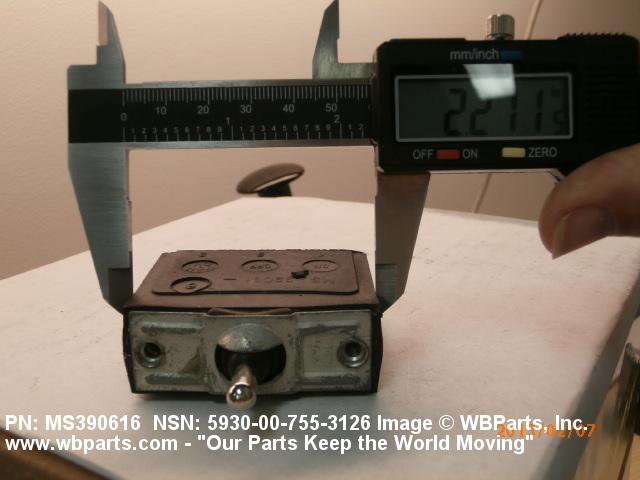

Drawings & Photos | NSN 5930-00-755-3126
Demand History | NSN 5930-00-755-3126
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-755-3126 | 2025-07-199 | 1 | PK |
| 5930-00-755-3126 | 2025-03-76 | 15 | United States |
| MS390616 | 2024-09-247 | 10 | US |
| MS390616 | 2024-09-247 | 15 | US |
| MS390616 | 2024-09-247 | 20 | US |
| 5930-00-755-3126 | 2018-05-151 | 146 | DIBBS |
| 5930-00-755-3126 | 2016-10-284 | 100 | Turkey |
| 5930-00-755-3126 | 2016-08-221 | 12 | Israel |
| 5930-00-755-3126 | 2016-04-119 | 104 | DIBBS |
| MS390616 | 2016-04-116 | 12 | IQ |
| 5930-00-755-3126 | 2013-12-342 | 73 | DIBBS |
| 5930-00-755-3126 | 2013-09-252 | 3 | MANUAL |
| MS39061-6 | 2013-09-252 | 3 | Pakistan |
| 5930-00-755-3126 | 2013-05-124 | 2 | Pakistan |
| 5930-00-755-3126 | 2013-04-91 | 2 | MANUAL |
| MS390616 | 2013-01-28 | 30 | United States |
| MS390616 | 2013-01-21 | 10 | South Korea |
| 5930-00-755-3126 | 2012-11-333 | 25 | PK |
Cross Reference | NSN 5930-00-755-3126
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-755-3126
Related Products | NSN 5930-00-755-3126
Technical Data | NSN 5930-00-755-3126
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY, TWO POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 24.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 25.000 AMPERES RESISTIVE DC AND 15.000 AMPERES INDUCTIVE DC AND 6.000 AMPERES LAMP DC |
| BODY STYLE | 13P HOLE MOUNT |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.796 INCHES MINIMUM AND 1.828 INCHES MAXIMUM |
| BODY LENGTH | 2.219 INCHES MINIMUM AND 2.281 INCHES MAXIMUM |
| BODY WIDTH | 0.938 INCHES MINIMUM AND 1.000 INCHES MAXIMUM |
| BODY HEIGHT | 1.344 INCHES MINIMUM AND 1.406 INCHES MAXIMUM |
| ACTUATOR STYLE | 25 ROUND |
| ACTUATOR DIAMETER | 0.180 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.750 INCHES NOMINAL |
| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MAINTAINED AND DOWN POSITION MOMENTARY AND CENTER POSITION MAINTAINED |
| TERMINAL TYPE AND QUANTITY | 3 CONNECTOR, RECEPTACLE |
| INCLOSURE TYPE | FULLY INCLOSED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | DUSTPROOF |
| MOUNTING METHOD | THREADED HOLE |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 32 |
| FEATURES PROVIDED | ACTUATOR SEAL |
| TEST DATA DOCUMENT | 81349-MIL-S-13735 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 96906-MS39061 GOVERNMENT STANDARD |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-DTL-13735 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS39061-6 |
