NSN 5930-00-771-8119 A3051S, SP1C4P, SP1C-4P

Product Details | PRESSURE SWITCH

5930-00-771-8119 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.

Part Alternates: A3051S, SP1C4P, SP1C-4P , SP-1C-4R/P60 , SP-1C-4R/P60/85814 , SP1C4RP60, SP1C4RP6085814, PS6001, PS-6001 , 10874979 , 10874979-1 , 5930PL0898083 , 5930-00-771-8119, 00-771-8119, 5930007718119, 007718119, 108749791

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1962	00-771-8119	00206 ( SWITCH, PRESSURE )

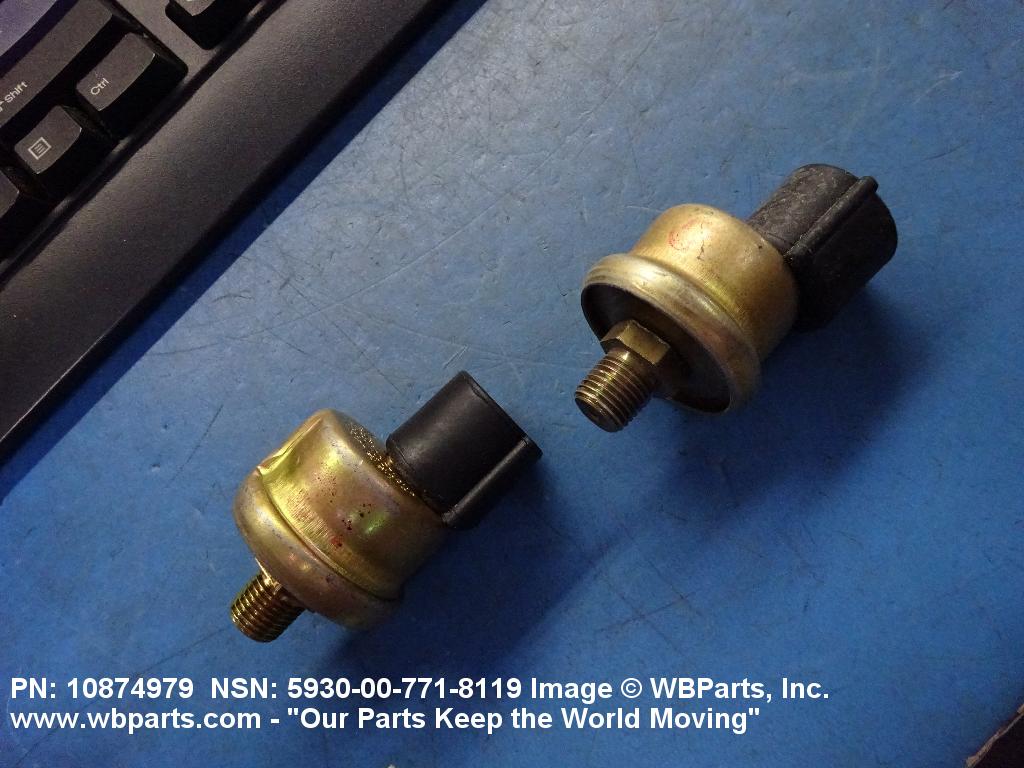

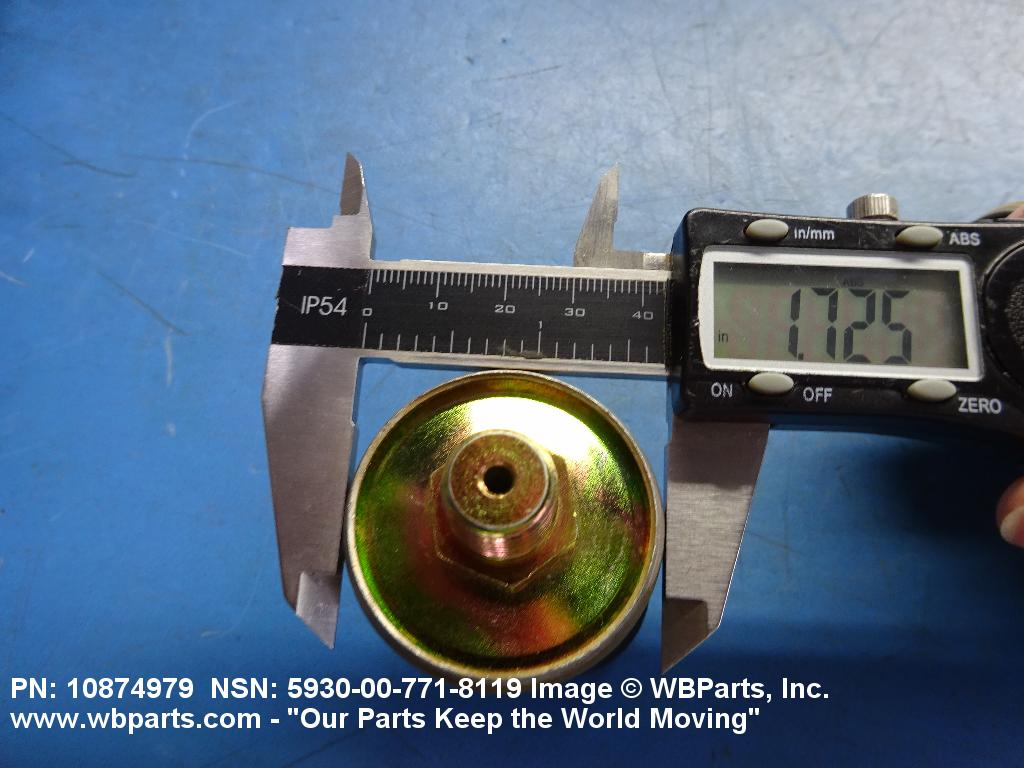

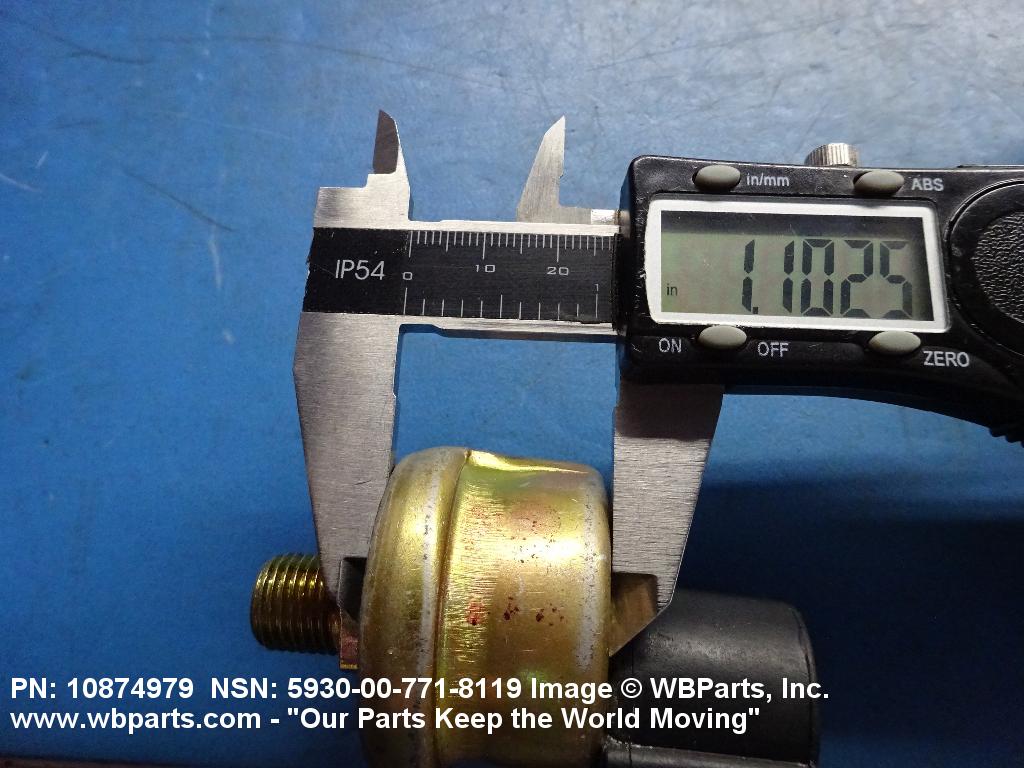

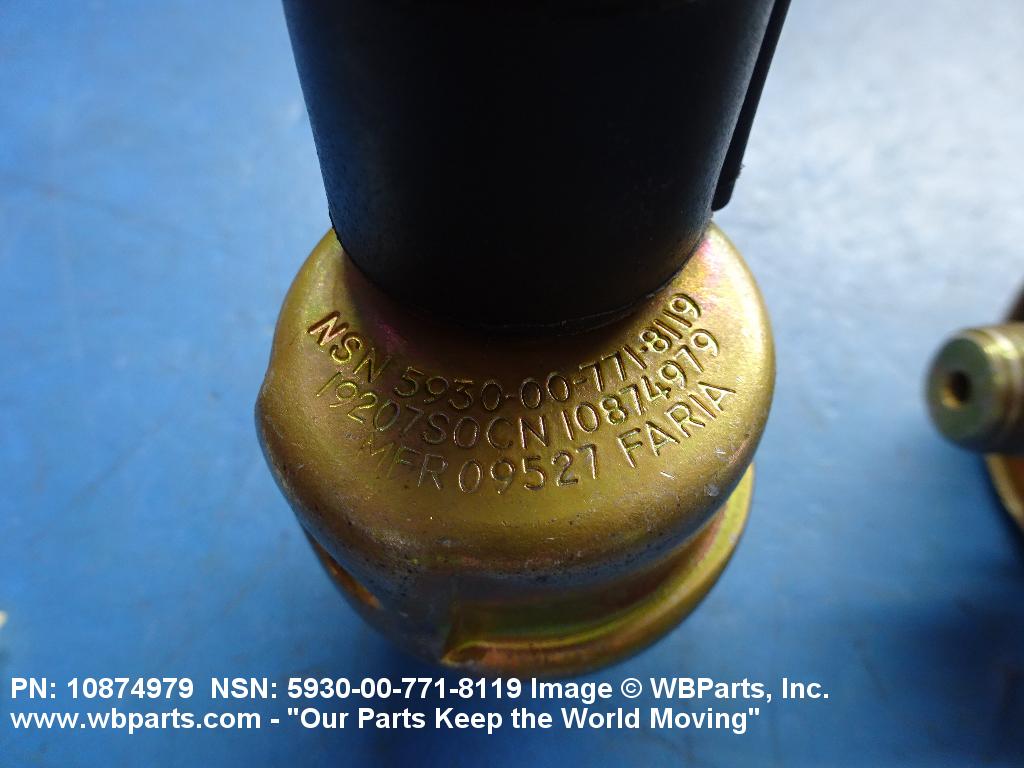

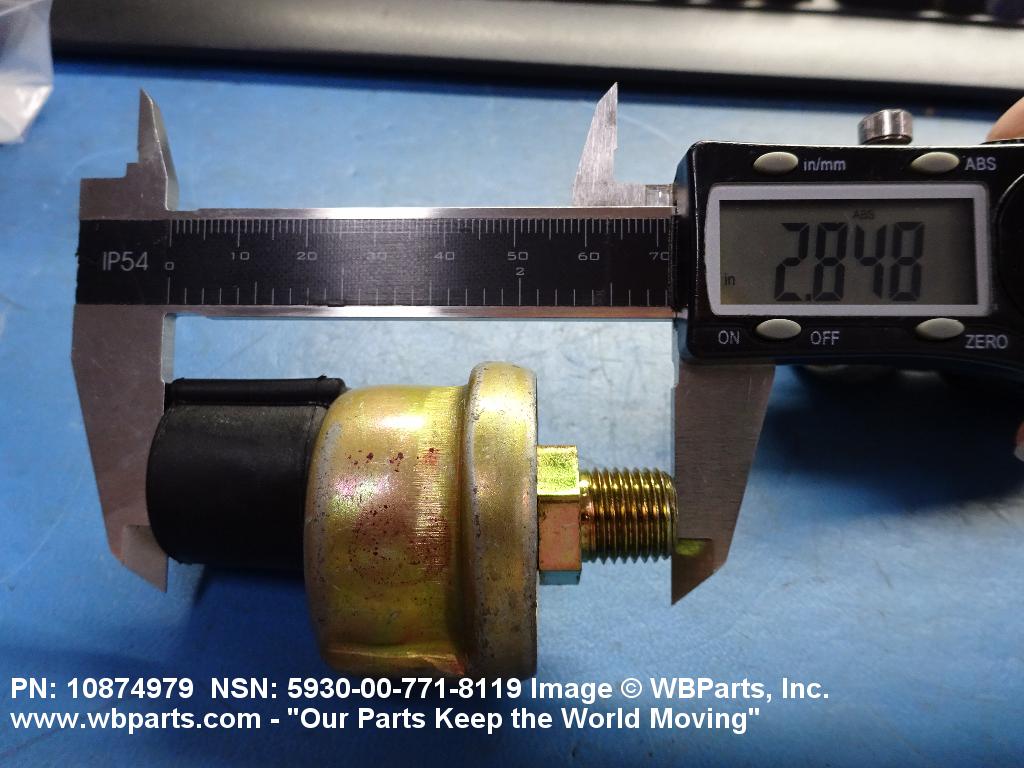

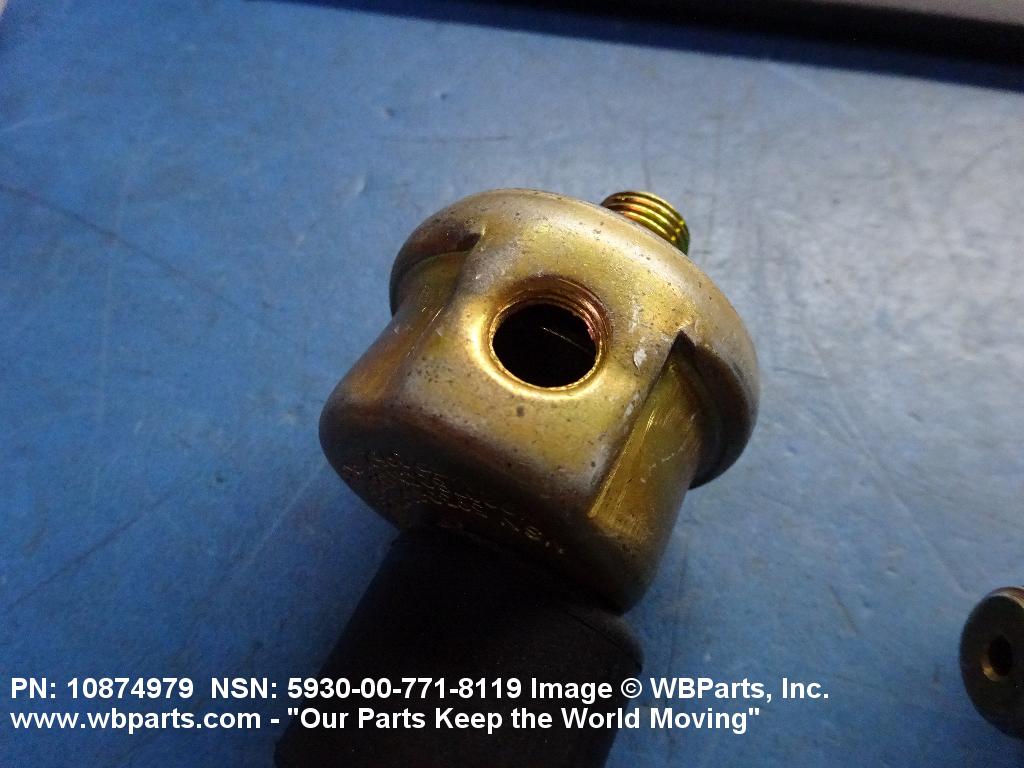

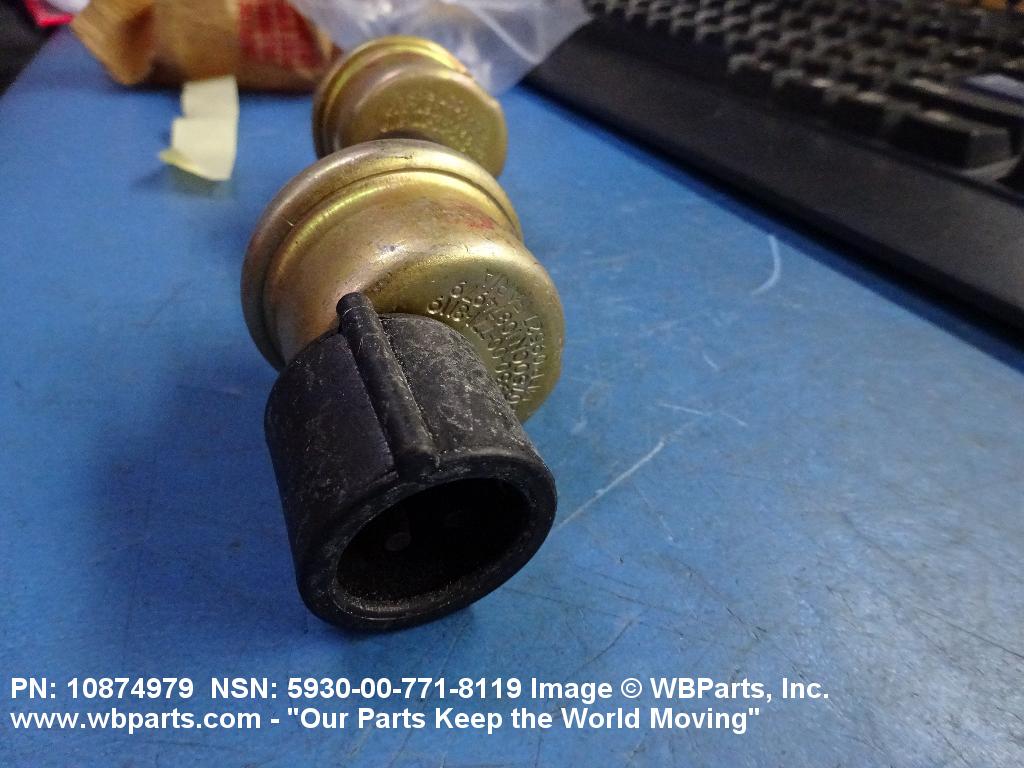

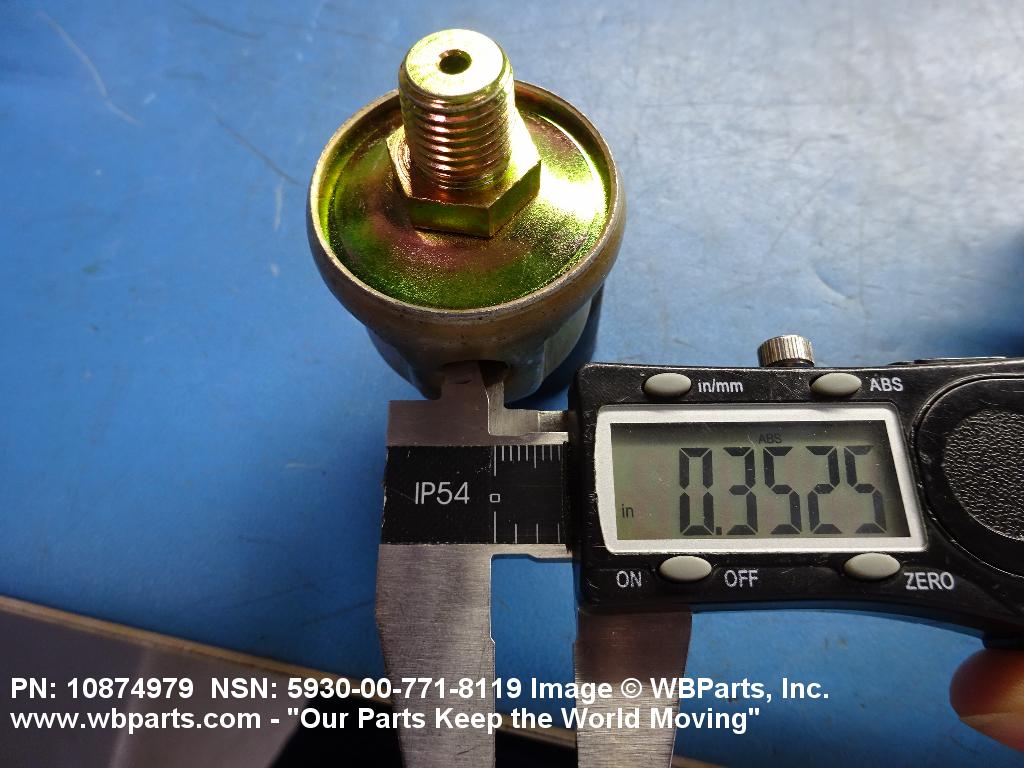

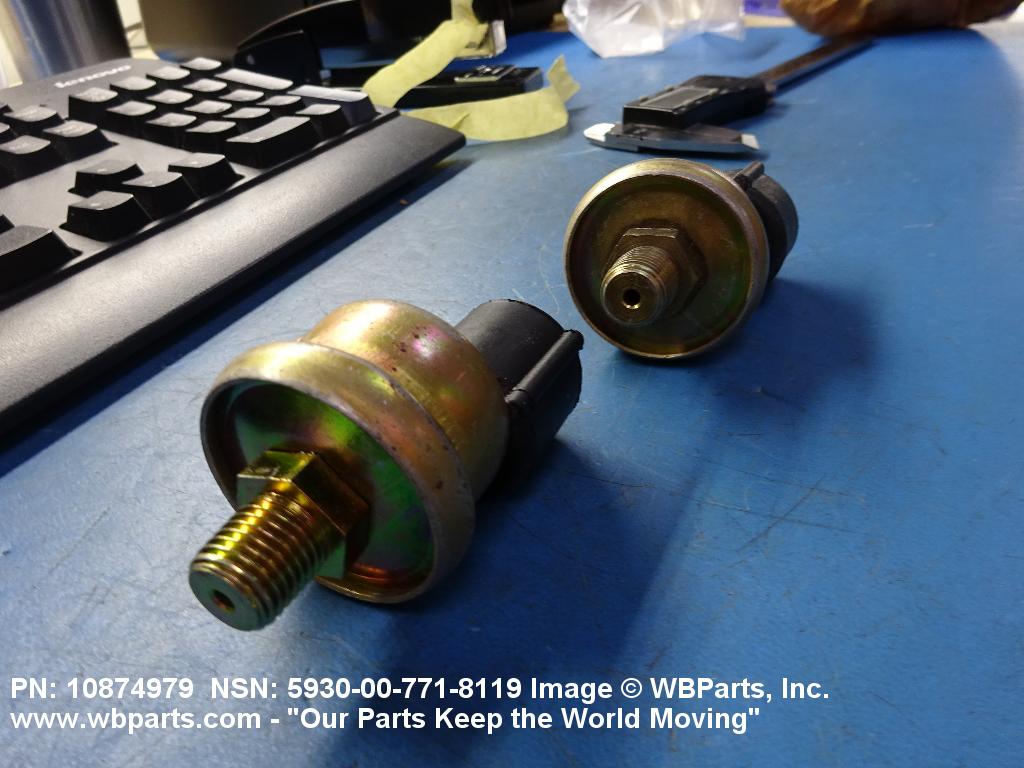

Drawings & Photos | NSN 5930-00-771-8119

Part Number	Request Date	QTY	Origin
5930-00-771-8119	2026-03-62	2	US
5930-00-771-8119	2026-02-48	1	Chile
10874979	2026-02-43	1	Chile
5930-00-771-8119	2026-01-19	5	MY
5930-00-771-8119	2026-01-08	697	DIBBS
5930-00-771-8119	2025-12-351	16	MY
5930-00-771-8119	2025-12-348	10	MY
5930-00-771-8119	2025-10-297	1	OM
5930-00-771-8119	2025-08-219	363	DIBBS
5930-00-771-8119	2025-04-97	15	OM
5930-00-771-8119	2025-03-83	15	Oman
10874979	2024-08-228	10	United Arab Emirates
5930-00-771-8119	2024-08-221	3	Chile
5930-00-771-8119	2024-03-61	50	JO
5930-00-771-8119	2024-02-57	50	JO
10874979	2023-11-333	2	UA
10874979	2023-03-73	2	Chile
5930-00-771-8119	2023-03-73	1	Chile
10874979	2023-03-61	1	US
5930-00-771-8119	2022-11-310	5	Malaysia
5930-00-771-8119	2022-10-301	8	MANUAL
5930-00-771-8119	2022-10-286	3	Chile
5930-00-771-8119	2022-10-280	8	Malaysia
5930-00-771-8119	2022-10-279	4	Malaysia
5930-00-771-8119	2022-10-278	3	Chile
5930-00-771-8119	2022-03-72	1	US
5930-00-771-8119	2021-08-214	25	AF
10874979	2020-01-14	20	United States
10874979	2020-01-14	20	United States
5930-00-771-8119	2019-09-261	2	Thailand
10874979	2019-08-220	1905	DIBBS
SP-1C-4R/P60/85814	2019-08-220	1905	DIBBS
10874979	2019-07-206	1369	DIBBS
SP-1C-4R/P60/85814	2019-07-206	1369	DIBBS
5930-00-771-8119	2019-04-116	3	Canada
5930-00-771-8119	2019-03-63	200	US
5930-00-771-8119	2019-03-63	150	TR
5930-00-771-8119	2018-12-344	4100	DIBBS
5930-00-771-8119	2018-10-289	1289	US
5930-00-771-8119	2018-10-284	1289	DIBBS
5930-00-771-8119	2018-08-235	5028	DIBBS
5930-00-771-8119	2018-08-214	1474	DIBBS
5930-00-771-8119	2018-07-191	3092	DIBBS
5930-00-771-8119	2018-07-183	823	DIBBS
5930-00-771-8119	2018-05-144	2500	DIBBS
5930-00-771-8119	2018-05-133	662	DIBBS
5930-00-771-8119	2017-12-362	6	US
5930-00-771-8119	2017-07-198	1041	DIBBS
5930-00-771-8119	2017-06-180	1041	DIBBS
5930-00-771-8119	2017-06-178	1	US
5930-00-771-8119	2017-05-149	1139	DIBBS
5930-00-771-8119	2017-05-124	1022	DIBBS
5930-00-771-8119	2017-05-121	50	United States
5930-00-771-8119	2017-03-80	10	us
10874979	2017-02-32	9	United States
5930-00-771-8119	2016-06-169	25	United States
5930-00-771-8119	2016-06-159	50	United States
5930-00-771-8119	2016-04-106	50	us
5930-00-771-8119	2016-03-91	1403	DIBBS
5930-00-771-8119	2016-03-80	1403	DIBBS
5930-00-771-8119	2016-01-19	25	Pakistan
5930-00-771-8119	2015-07-210	2486	DIBBS
5930-00-771-8119	2015-03-64	3	Pakistan
5930-00-771-8119	2014-12-359	1283	DIBBS
5930-00-771-8119	2014-12-349	3	Pakistan
5930-00-771-8119	2014-10-274	3	Pakistan
5930-00-771-8119	2014-06-170	2084	DIBBS
5930-00-771-8119	2014-06-159	2084	DIBBS
5930-00-771-8119	2013-10-279	1660	DIBBS
5930-00-771-8119	2013-09-252	962	DIBBS
5930-00-771-8119	2013-07-212	1542	DIBBS
5930-00-771-8119	2013-05-128	1070	DIBBS
5930-00-771-8119	2013-03-80	429	DIBBS
5930-00-771-8119	2013-03-80	748	DIBBS
5930-00-771-8119	2013-02-52	429	DIBBS
5930-00-771-8119	2013-01-28	24	US
5930-00-771-8119	2013-01-21	20	Chile
5930-00-771-8119	2012-05-137	1	Chile
5930-00-771-8119	2012-04-116	416	DIBBS
5930-00-771-8119	2012-04-104	5	MANUAL
5930-00-771-8119	2012-02-47	748	DIBBS
5930-00-771-8119	2011-09-251	1427	DIBBS
108749791	2011-08-227	270	United States
5930-00-771-8119	2011-08-227	813	DIBBS
5930-00-771-8119	2011-08-227	1800	DIBBS
10874979	2011-06-155	5	PK
10874979	2011-06-155	5	PK
5930-00-771-8119	2011-06-155	5	MANUAL
5930-00-771-8119	2011-06-155	5	MANUAL
5930-00-771-8119	2011-06-152	667	DIBBS
5930-00-771-8119	2011-05-147	1800	DIBBS
5930-00-771-8119	2011-01-26	2	Singapore
5930-00-771-8119	2010-07-190	2450	Turkey
5930-00-771-8119	2010-05-141	664	DIBBS
5930-00-771-8119	2010-05-141	2188	DIBBS
5930-00-771-8119	2009-07-189	30	Belgium
5930-00-771-8119	2008-03-79	730	DIBBS
5930-00-771-8119	2008-01-08	659	DIBBS
10874979	2007-11-309	30	Turkey
5930-00-771-8119	2007-10-295	30	Turkey
5930-00-771-8119	2007-10-295	400	DIBBS
5930-00-771-8119	2007-10-291	488	DIBBS
5930-00-771-8119	2007-06-171	75	DIBBS
5930-00-771-8119	2007-05-143	503	DIBBS
5930-00-771-8119	2007-05-138	12	DIBBS
5930-00-771-8119	2007-04-114	263	DIBBS
5930-00-771-8119	2007-03-89	1057	DIBBS

Cross Reference | NSN 5930-00-771-8119

Part Number	Cage Code	Manufacturer
10874979	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
10874979-1	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
5930PL0898083	9009H	INSPEKTORAT WSPARCIA SIL ZBROJNYCH
A3051S	71500	ACF INDUSTRIES INC CARTER CARBURETOR DIV
PS-6001	09527	THOMAS G. FARIA CORPORATION DBA FARIA MARINE INSTRUMENTS
SP-1C-4R/P60	85814	NASON COMPANY, THE INC
SP-1C-4R/P60/85814	85814	NASON COMPANY, THE INC
SP1C-4P	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
SP1C-4P	85814	NASON COMPANY, THE INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5930-00-771-8119

Compare

Related Products | NSN 5930-00-771-8119

5930-00-771-8120, 5930-00-771-8121, 5930-00-771-8332, 5930-00-771-8333, 5930-00-771-8355

Technical Data | NSN 5930-00-771-8119

Characteristic	Specifications
STYLE DESIGNATOR	37 CYLINDRICAL
OVERALL LENGTH	3.438 INCHES NOMINAL
BODY DIAMETER	1.625 INCHES NOMINAL
BODY LENGTH	1.688 INCHES NOMINAL
OVERALL DIAMETER	2.031 INCHES NOMINAL
PRESSURE SWITCH TYPE	GAGE
NONPILE-UP CONTACT ARRANGEMENT	1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY
CONTACT ACTION STIMULUS	INCREASE
CONTACT ADJUSTABILITY	DEACTUATION POINT NOT ADJUSTABLE AND ACTUATION POINT NOT ADJUSTABLE
CONTACT STIMULUS RATING	3.00 DIFFERENTIAL POINT NOMINAL POUNDS PER SQUARE INCH
CONTACT VOLTAGE RATING IN VOLTS	28.0 DC AT SEA LEVEL SINGLE VOLTAGE
CONTACT LOAD CURRENT RATING	5.0 AMPERES RESISTIVE LOAD FIRST VOLTAGE 2.5 AMPERES INDUCTIVE LOAD SECOND VOLTAGE
MEDIA FOR WHICH DESIGNED	LIQUID
PROOF PRESSURE	150.00 POUNDS PER SQUARE INCH
PRESSURE CONNECTOR TYPE	PLAIN, THREADED EXTERNAL SINGLE CONNECTION
OUTSIDE DIAMETER	0.250 INCHES NOMINAL SINGLE CONNECTION
TERMINAL TYPE	SNAP-ON, MALE
MOUNTING METHOD	INLET CONNECTION AND THREADED HOLE
THREAD SERIES DESIGNATOR	NPTF SINGLE PRESSURE CONNECTION
NOMINAL THREAD SIZE	0.250 INCHES SINGLE PRESSURE CONNECTION
THREAD QUANTITY PER INCH	18 SINGLE PRESSURE CONNECTION
THREAD LENGTH	0.875 INCHES NOMINAL SINGLE PRESSURE CONNECTION
III HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION	DUSTPROOF

Restrictions/Controls & Freight Information | NSN 5930-00-771-8119

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	658	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5930-00-771-8119

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
