NSN 5930-00-801-3773 01018002021, 01-018002-021 , 1800221
Product Details | THERMOSTATIC SWITCH
5930-00-801-3773 A switch that is actuated by changes in ambient temperature. Excludes CIRCUIT BREAKER; CONTROL, TEMPERATURE (as modified); FUSE (as modified); PROTECTOR, THERMAL-OVERLOAD, ELECTRICAL MOTOR; RELAY, THERMAL; and THERMOSTAT, FLOW CONTROL. See also CONTROL, TEMPERATURE (as modified) and REGULATOR, TEMPERATURE (as modified).
Part Alternates: 01018002021, 01-018002-021 , 1800221, 18002-21, 7218564REVA, 721856-4REVA, 5930-00-801-3773, 00-801-3773, 5930008013773, 008013773
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-801-3773 | 00451 ( SWITCH, THERMOSTATIC ) |

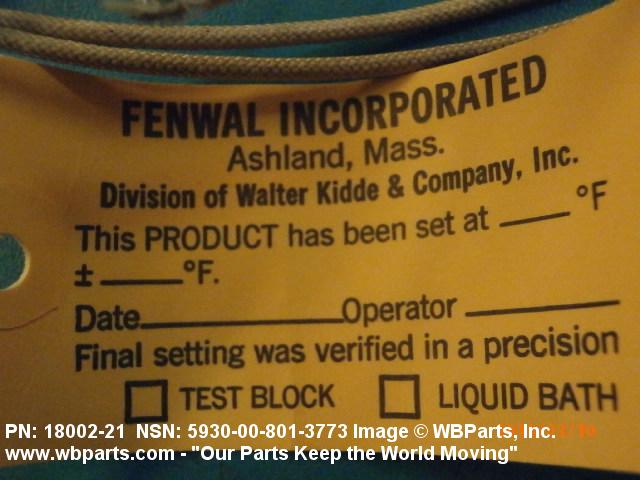

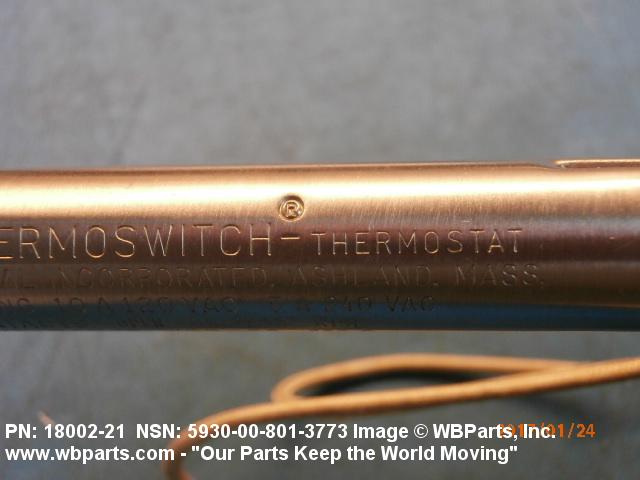

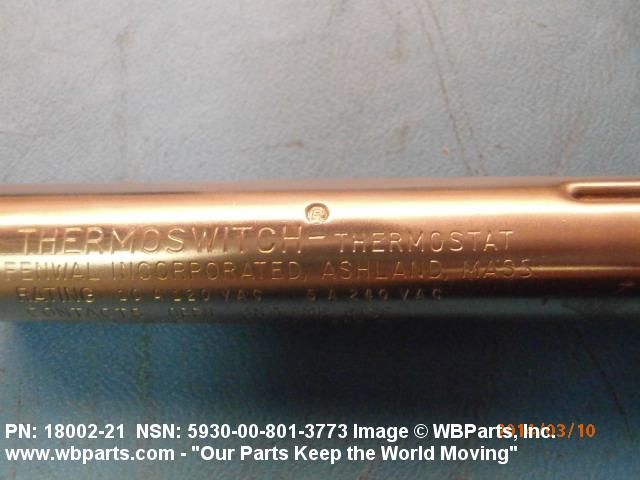

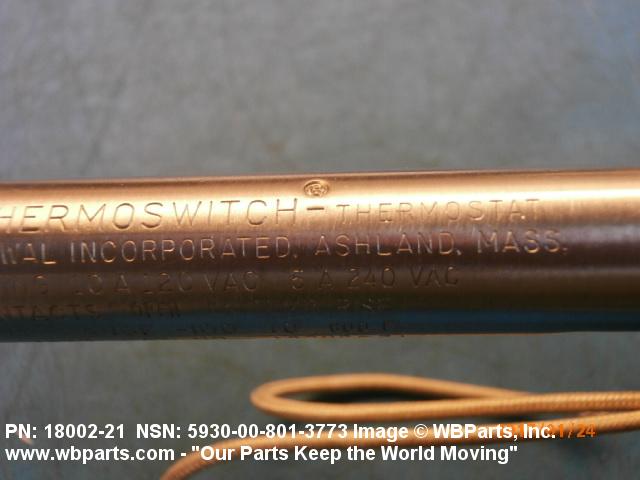

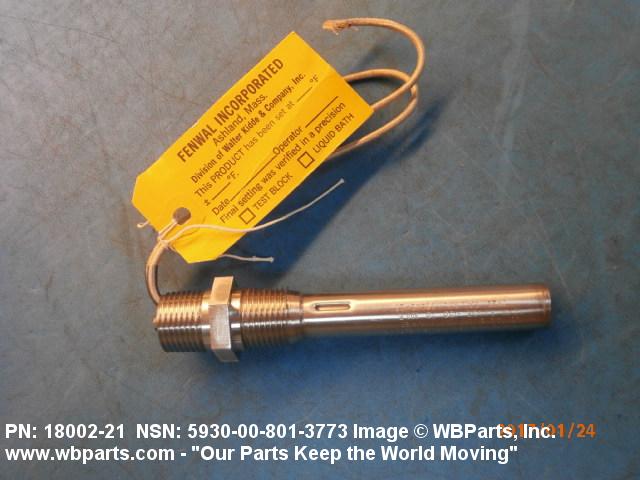

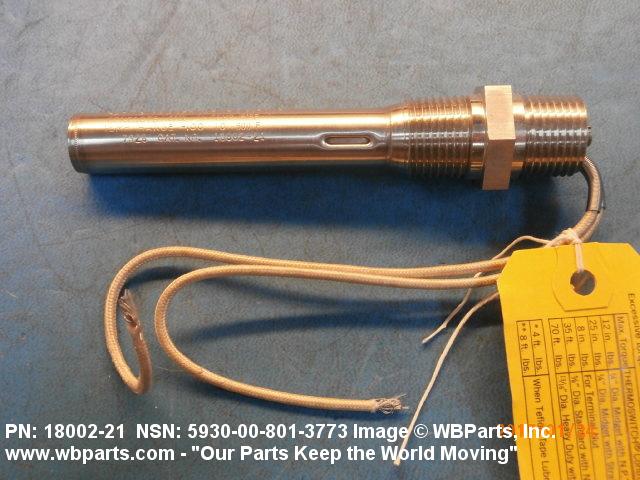

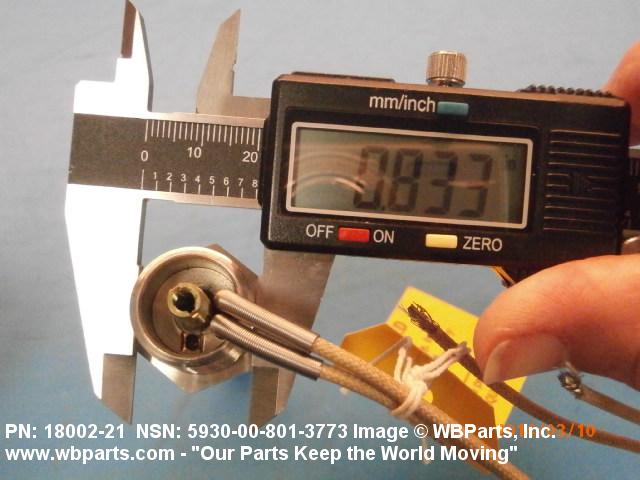

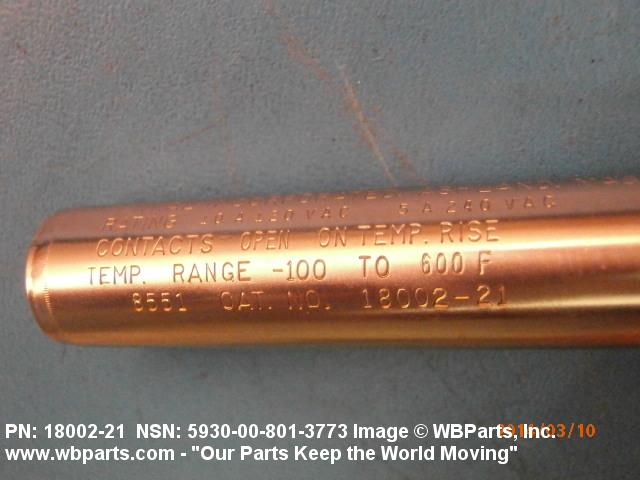

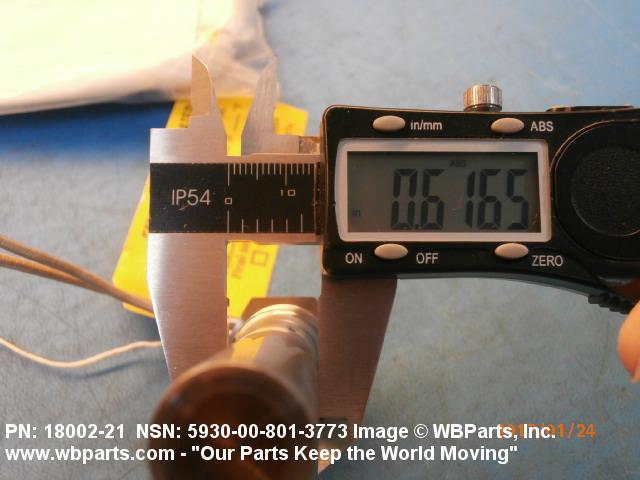

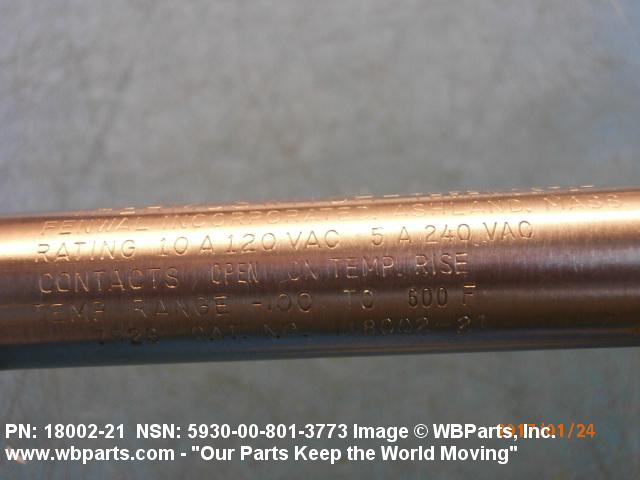

Drawings & Photos | NSN 5930-00-801-3773
Demand History | NSN 5930-00-801-3773
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 01-018002-021-0T | 2025-07-205 | 15 | DIBBS |
| 01-018002-021-0T | 2024-03-67 | 2 | DIBBS |
| 01-018002-021-0T | 2023-10-283 | 2 | DIBBS |
| 01-018002-021-0T | 2023-09-271 | 2 | DIBBS |
| 01-018002-021-0T | 2023-03-82 | 2 | DIBBS |
| 01-018002-021-0T | 2022-12-338 | 4 | DIBBS |
| 01-018002-021-0T | 2022-12-338 | 3 | DIBBS |
| 01-018002-021-0T | 2022-11-317 | 3 | DIBBS |
| 01-018002-021-0T | 2022-03-79 | 3 | DIBBS |
| 01-018002-021-0T | 2022-01-30 | 4 | DIBBS |
| 01-018002-021 | 2020-11-307 | 9 | DIBBS |
| 721856-4REVA | 2020-11-307 | 9 | DIBBS |
| 01-018002-021 | 2020-10-294 | 9 | DIBBS |
| 721856-4REVA | 2020-10-294 | 9 | DIBBS |
| 01-018002-021 | 2020-01-21 | 16 | DIBBS |
| 721856-4REVA | 2020-01-21 | 16 | DIBBS |
| 01-018002-021 | 2020-01-09 | 16 | DIBBS |
| 721856-4REVA | 2020-01-09 | 16 | DIBBS |
| 5930-00-801-3773 | 2018-12-336 | 1 | DIBBS |
| 5930-00-801-3773 | 2018-10-277 | 15 | DIBBS |
| 1800221 | 2017-10-299 | 3 | United Arab Emirates |
| 1800221 | 2016-11-322 | 3 | United Arab Emirates |
| 1800221 | 2014-08-237 | 3 | United Arab Emirates |
| 1800221 | 2014-01-23 | 2 | United Arab Emirates |
| 1800221 | 2013-08-231 | 3 | United Arab Emirates |
| 5930-00-801-3773 | 2013-04-98 | 18 | DIBBS |
| 1800221 | 2011-10-297 | 2 | United Arab Emirates |
| 5930-00-801-3773 | 2011-08-235 | 2 | DIBBS |
| 5930-00-801-3773 | 2011-04-109 | 2 | DIBBS |
| 5930-00-801-3773 | 2010-10-277 | 3 | DIBBS |
| 5930-00-801-3773 | 2010-09-246 | 1 | DIBBS |
| 1800221 | 2010-04-112 | 3 | United Arab Emirates |
| 5930-00-801-3773 | 2010-04-98 | 2 | United Arab Emirates |
| 1800221 | 2010-03-63 | 2 | United Arab Emirates |
| 5930-00-801-3773 | 2008-10-288 | 2 | DIBBS |
| 5930-00-801-3773 | 2008-08-242 | 2 | DIBBS |
| 5930-00-801-3773 | 2006-05-146 | 2 | DIBBS |
Cross Reference | NSN 5930-00-801-3773
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 01-018002-021 | 0KDP7 | KIDDE-FENWAL INC DBA CHEMTRON KIDDE FIRE SYSTEMS |
| 18002-21 | 0KDP7 | KIDDE-FENWAL INC DBA CHEMTRON KIDDE FIRE SYSTEMS |
| 18002-21 | 73168 | KIDDE TECHNOLOGIES INC DBA FENWAL SAFETY SYSTEMS |
| 721856-4REVA | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 721856-4REVA | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-801-3773
Related Products | NSN 5930-00-801-3773
Technical Data | NSN 5930-00-801-3773
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 55 CYLINDRICAL |

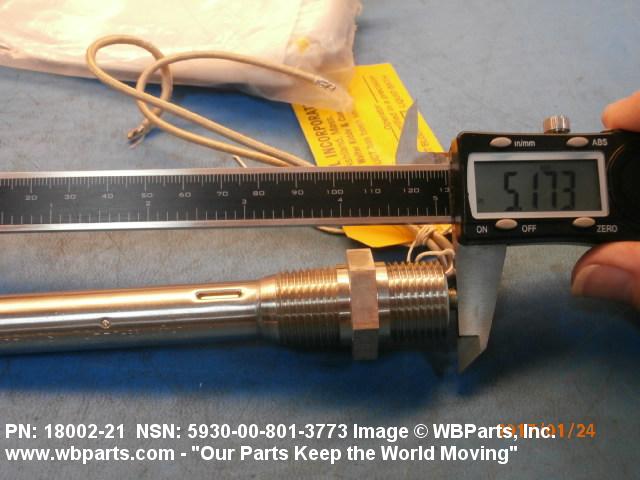

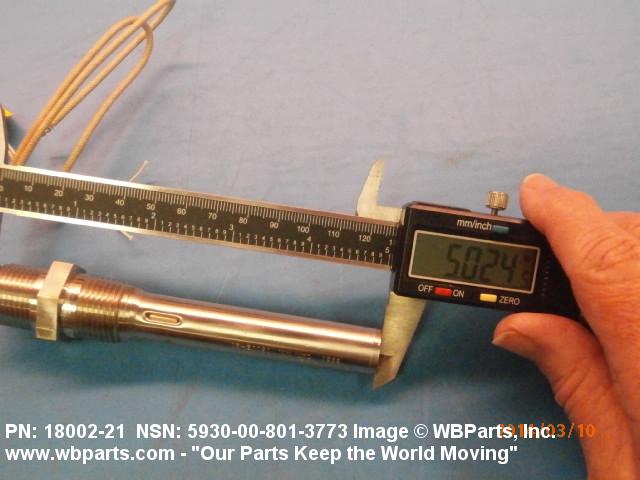

| OVERALL LENGTH | 4.969 INCHES MINIMUM AND 5.343 INCHES MAXIMUM |

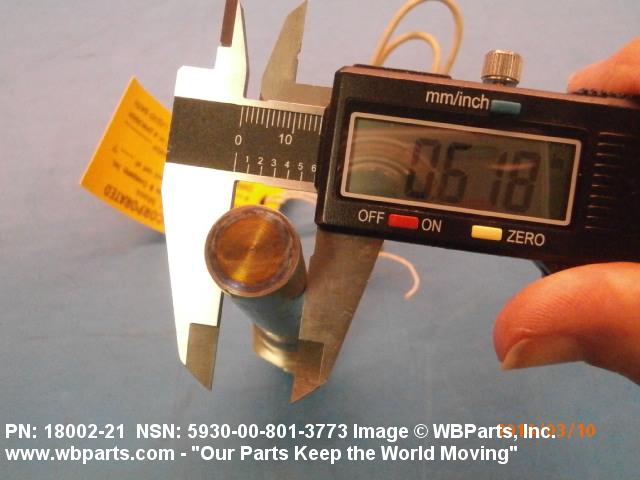

| BODY DIAMETER | 0.618 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |

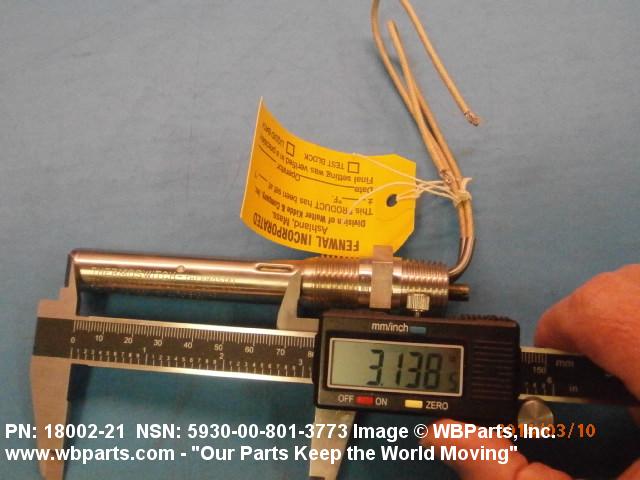

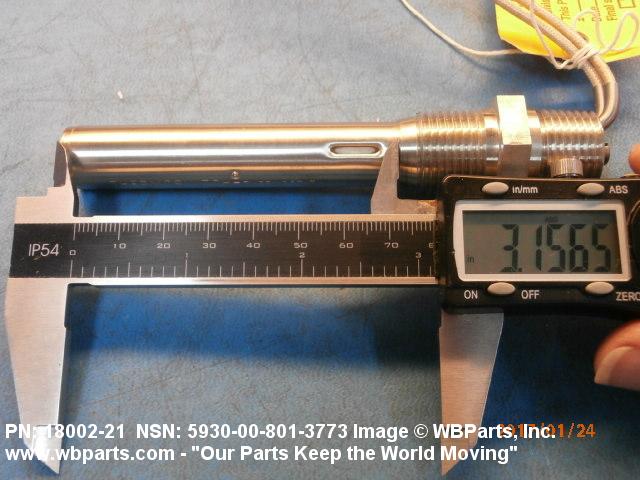

| BODY LENGTH | 3.312 INCHES MINIMUM AND 3.374 INCHES MAXIMUM |

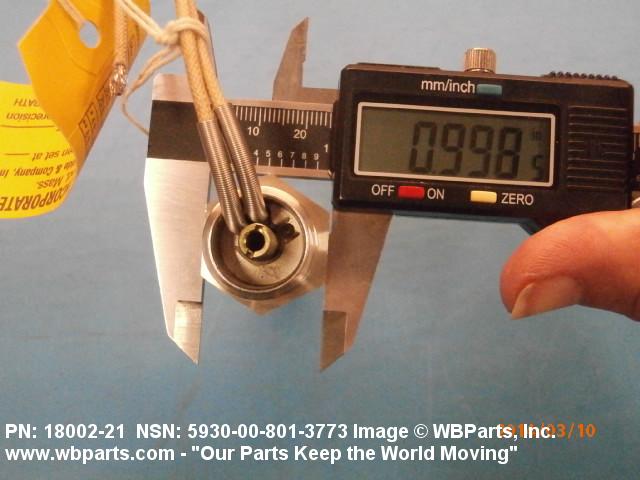

| OVERALL DIAMETER | 1.000 INCHES NOMINAL |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY CLOSED, MOMENTARY ACTION |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | DEACTUATION POINT ADJUSTABLE AND ACTUATION POINT ADJUSTABLE |

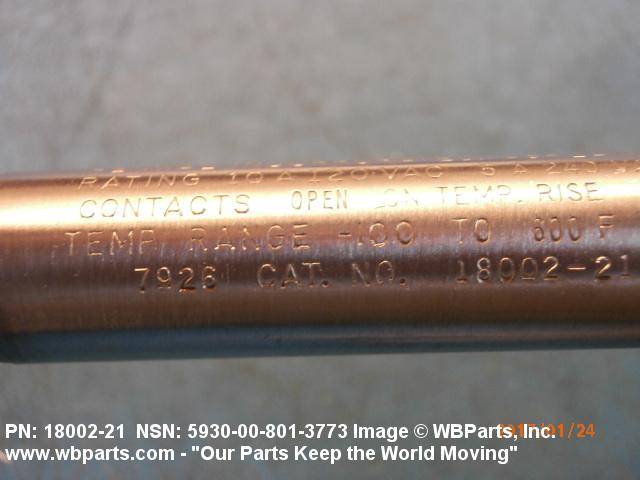

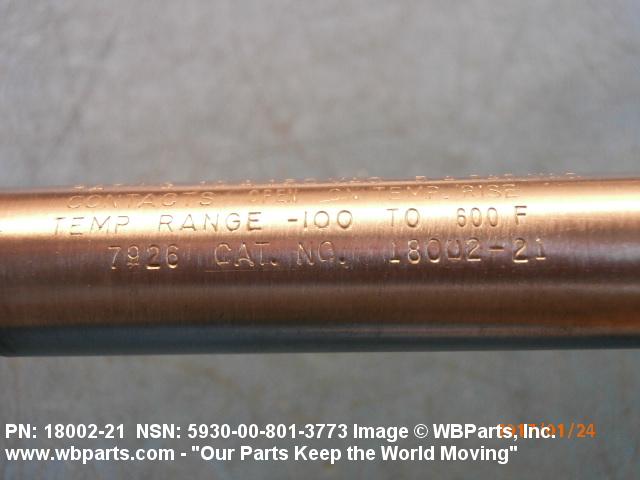

| CONTACT ADJUSTMENT RANGE | -100.00 TO 600.00 ACTUATION POINT DEGREES FAHRENHEIT AND -100.00 TO 600.00 DEACTUATION POINT DEGREES FAHRENHEIT |
| CONTACT ADJUSTMENT TYPE | EXTERNAL DEACTUATION POINT SCREW AND EXTERNAL ACTUATION POINT SCREW |

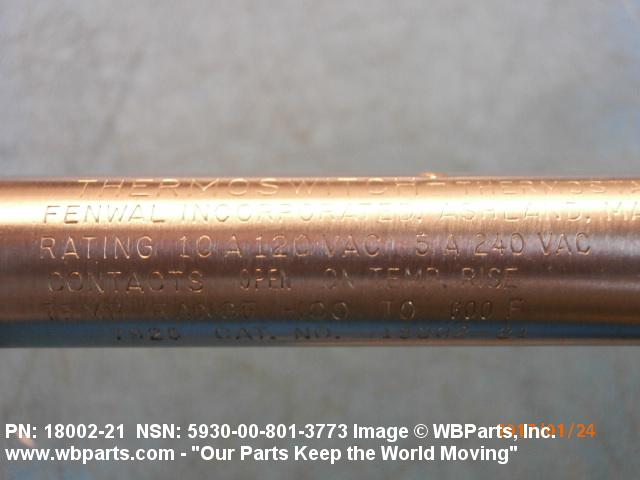

| CONTACT VOLTAGE RATING IN VOLTS | 230.0 AC AT SEA LEVEL FIRST VOLTAGE 115.0 AC AT SEA LEVEL SECOND VOLTAGE 115.0 DC AT SEA LEVEL THIRD VOLTAGE 28.0 DC AT SEA LEVEL FOURTH VOLTAGE |
| CONTACT LOAD CURRENT RATING | 5.0 AMPERES RESISTIVE LOAD FIRST VOLTAGE 10.0 AMPERES RESISTIVE LOAD SECOND VOLTAGE 2.0 AMPERES RESISTIVE LOAD THIRD VOLTAGE 2.0 AMPERES RESISTIVE LOAD FOURTH VOLTAGE |
| OPERATING TEMP RATING | -100.0 DEG FAHRENHEIT MINIMUM AND 700.0 DEG FAHRENHEIT MAXIMUM |
| MEDIA FOR WHICH DESIGNED | GAS OR LIQUID |
| TEMP SENSING ELEMENT TYPE | IMMERSION WELL |
| TERMINAL TYPE | WIRE LEAD |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | NPT SINGLE THREADED BUSHING |
| NOMINAL THREAD SIZE | 0.500 INCHES SINGLE THREADED BUSHING |
| THREAD QUANTITY PER INCH | 14 SINGLE THREADED BUSHING |

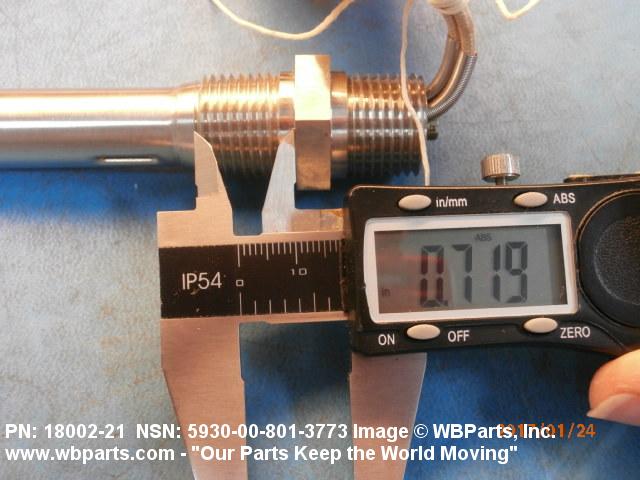

| THREAD LENGTH | 0.719 INCHES NOMINAL SINGLE THREADED BUSHING |
| III END ITEM IDENTIFICATION | AN/FYQ-8 |
Restrictions/Controls & Freight Information | NSN 5930-00-801-3773
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
