NSN 5930-00-814-9176 260-2709-00, 30YY2068, 30YY2088
Product Details | PUSH SWITCH
5930-00-814-9176 A switch that is externally actuated by a device such as a push rod or button, which requires pushing for each actuation. The action may be momentary, with mechanical return. The actuating device may or may not be an integral part of the switch. The item may include provisions for mounting indicating lamp(s) or light emitting diode(s) in the actuator. Includes items consisting of individually separable switches that are physically interlocked, that have a common actuator, or are electrically connected. Excludes LIGHT-SWITCH; LIGHT-SWITCH ASSEMBLY; SWITCH, BEAM SELECTING, HEADLIGHT; SWITCH, FOOT; SWITCH, INTERLOCK; SWITCH, PRESSURE; SWITCH, PUSH-PULL; SWITCH, SENSITIVE and SWITCH ASSEMBLY. For devices which start, stop, reverse, select and/or regulate the speed of a motor, see STARTER, MOTOR and CONTROLLER, MOTOR.
Part Alternates: 260-2709-00, 30YY2068, 30YY2088, 5940, 5930-00-814-9176, 00-814-9176, 5930008149176, 260270900, 008149176
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 03 APR 1968 | 00-814-9176 | 00406 ( SWITCH, PUSH ) |

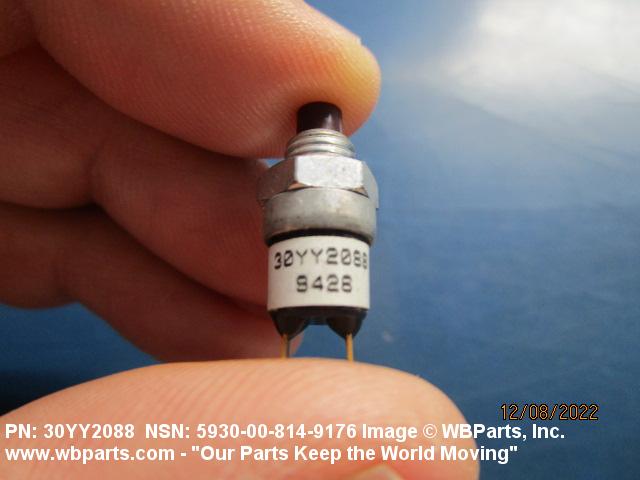

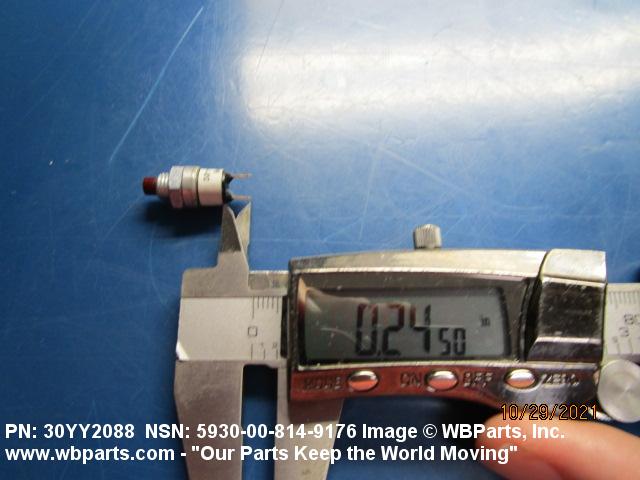

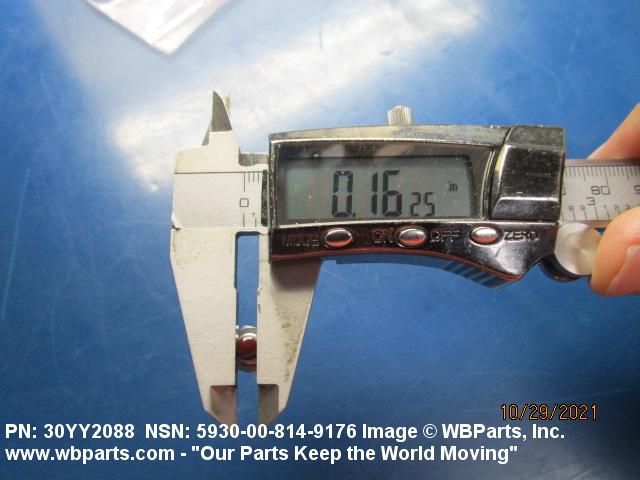

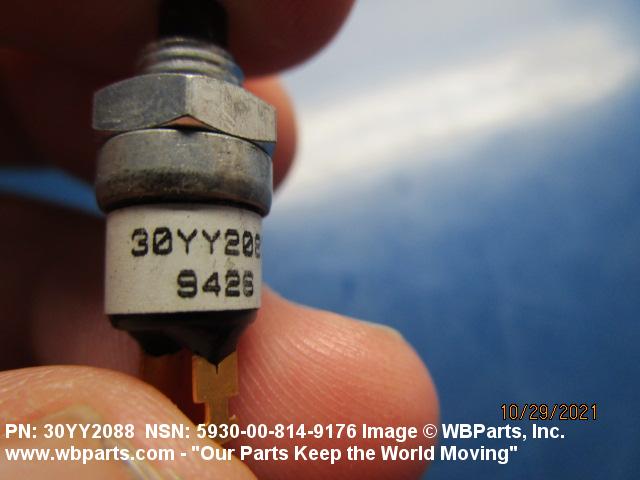

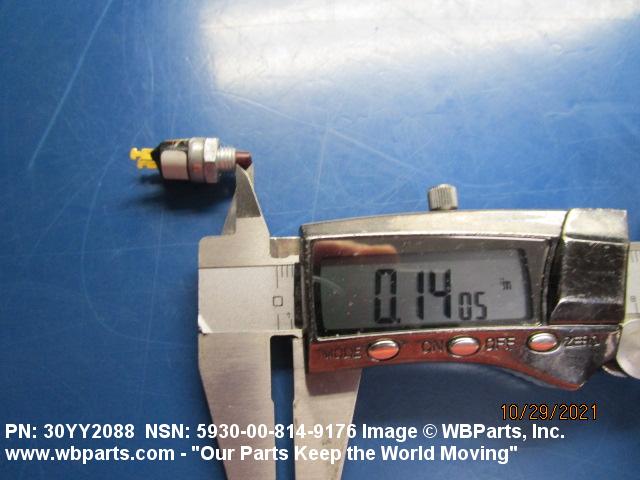

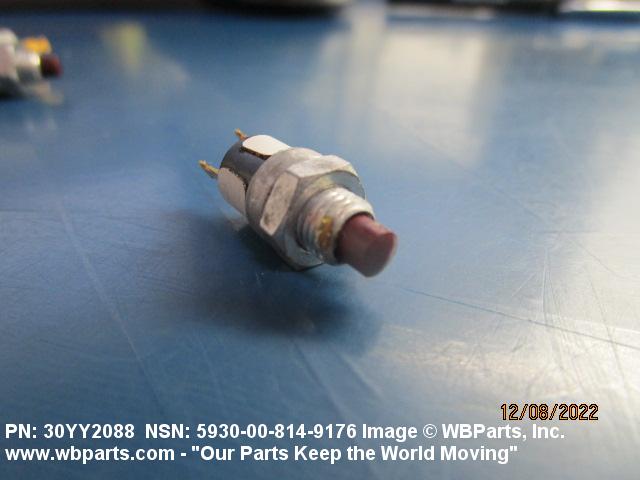

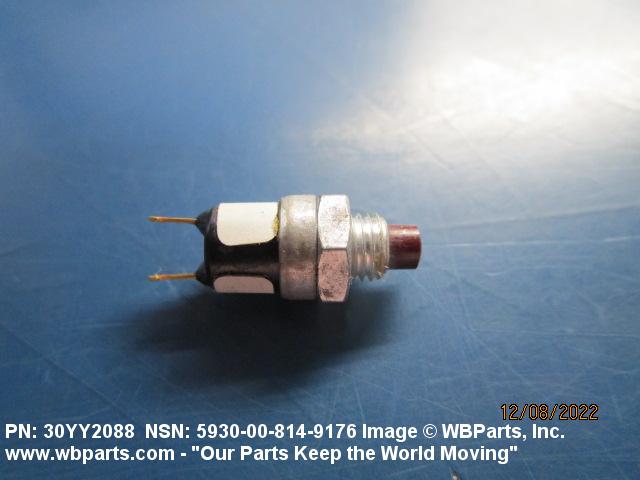

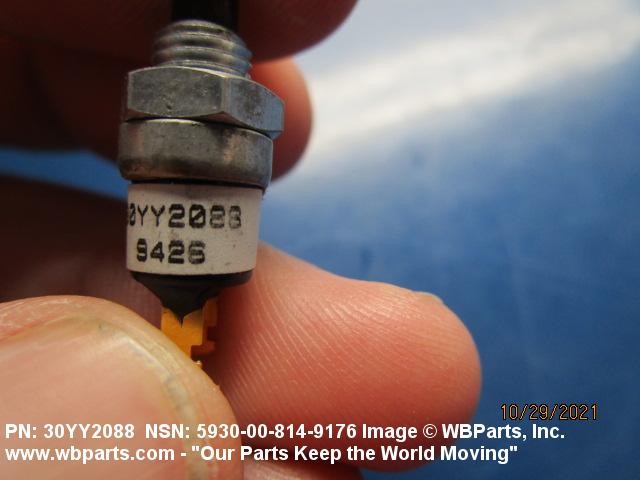

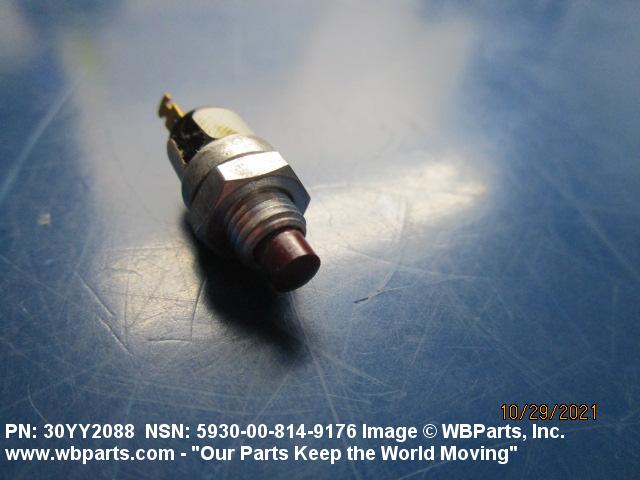

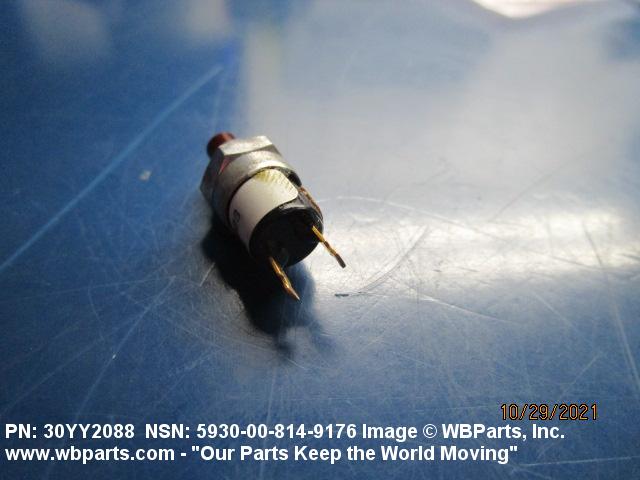

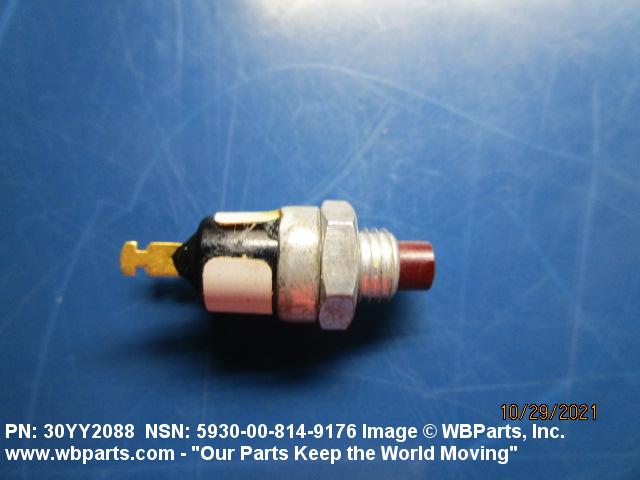

Drawings & Photos | NSN 5930-00-814-9176
Demand History | NSN 5930-00-814-9176
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-814-9176 | 2022-12-335 | 20 | United States |
| 5930-00-814-9176 | 2021-10-286 | 1 | United States |
| 5930-00-814-9176 | 2021-08-225 | 5 | US |
| 260-2709-00 | 2020-11-311 | 46 | DIBBS |
| 30YY2088 | 2020-11-311 | 46 | DIBBS |
| 260-2709-00 | 2020-10-300 | 46 | DIBBS |
| 30YY2088 | 2020-10-300 | 46 | DIBBS |
| 260-2709-00 | 2020-10-289 | 46 | DIBBS |
| 30YY2088 | 2020-10-289 | 46 | DIBBS |
| 260-2709-00 | 2020-09-252 | 46 | DIBBS |
| 30YY2088 | 2020-09-252 | 46 | DIBBS |
| 260-2709-00 | 2020-08-240 | 46 | DIBBS |
| 30YY2088 | 2020-08-240 | 46 | DIBBS |
| 30YY2088 | 2016-04-117 | 5 | United States |
| 5930-00-814-9176 | 2013-04-100 | 87 | DIBBS |
| 5930-00-814-9176 | 2012-08-243 | 112 | DIBBS |
| 5930-00-814-9176 | 2012-06-181 | 98 | DIBBS |
| 5930-00-814-9176 | 2012-02-40 | 22 | DIBBS |
| 5930-00-814-9176 | 2011-07-193 | 168 | DIBBS |
| 5930-00-814-9176 | 2009-09-244 | 185 | DIBBS |
| 5930-00-814-9176 | 2007-09-253 | 178 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-814-9176
Related Products | NSN 5930-00-814-9176
Technical Data | NSN 5930-00-814-9176
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 1.000 AMPERES RESISTIVE DC AND 1.000 AMPERES INDUCTIVE DC AND 1.000 AMPERES RESISTIVE AC |
| BODY STYLE | 5K BUSHING MOUNTED |

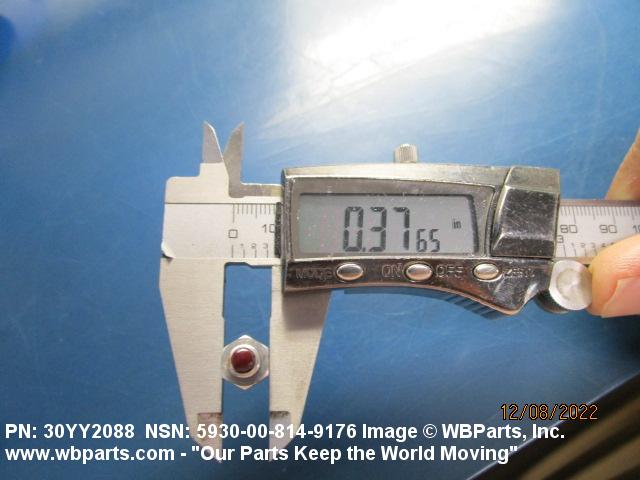

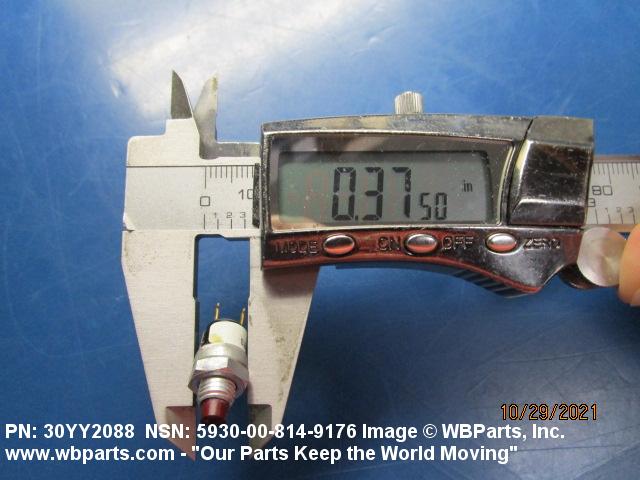

| BODY DIAMETER | 0.365 INCHES MINIMUM AND 0.380 INCHES MAXIMUM |
