NSN 5930-00-826-3818 13122A, 1312-2A, 63A101B69
Product Details | PRESSURE SWITCH
5930-00-826-3818 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.
Part Alternates: 13122A, 1312-2A, 63A101B69, 5930-00-826-3818, 00-826-3818, 5930008263818, 008263818
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 AUG 1967 | 00-826-3818 | 00206 ( SWITCH, PRESSURE ) |
Drawings & Photos | NSN 5930-00-826-3818
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-826-3818
Related Products | NSN 5930-00-826-3818
Technical Data | NSN 5930-00-826-3818
| Characteristic | Specifications |
|---|---|

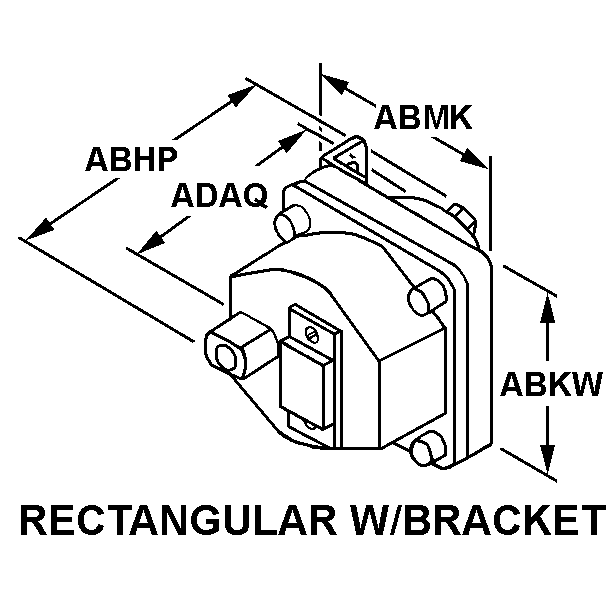

| STYLE DESIGNATOR | 21 RECTANGULAR W/BRACKET |
| OVERALL LENGTH | 4.343 INCHES NOMINAL |
| OVERALL HEIGHT | 3.500 INCHES NOMINAL |
| OVERALL WIDTH | 4.562 INCHES NOMINAL |
| BODY LENGTH | 2.187 INCHES NOMINAL |
| PRESSURE SWITCH TYPE | GAGE |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | ACTUATION POINT ADJUSTABLE AND DEACTUATION POINT ADJUSTABLE |
| CONTACT ADJUSTMENT RANGE | 3.30 TO 80.00 ACTUATION POINT POUNDS PER SQUARE INCH GAGE AND 0.50 TO 77.20 DEACTUATION POINT POUNDS PER SQUARE INCH GAGE |
| CONTACT ADJUSTMENT TYPE | INTERNAL ACTUATION POINT SCREW AND INTERNAL DEACTUATION POINT SCREW |
| CONTACT VOLTAGE RATING IN VOLTS | 125.0 AC AT SEA LEVEL FIRST VOLTAGE 250.0 AC AT SEA LEVEL SECOND VOLTAGE 480.0 AC AT SEA LEVEL THIRD VOLTAGE |
| FREQUENCY IN HERTZ | 60.0 FIRST VOLTAGE 60.0 SECOND VOLTAGE 60.0 THIRD VOLTAGE |
| CONTACT LOAD CURRENT RATING | 10.0 AMPERES INDUCTIVE LOAD FIRST VOLTAGE 10.0 AMPERES INDUCTIVE LOAD SECOND VOLTAGE 3.0 AMPERES INDUCTIVE LOAD THIRD VOLTAGE |
| MEDIA FOR WHICH DESIGNED | GAS OR LIQUID |
| PROOF PRESSURE | 160.00 POUNDS PER SQUARE INCH GAGE |
| PRESSURE CONNECTOR TYPE | PLAIN, THREADED INTERNAL SINGLE CONNECTION |
| INSIDE DIAMETER | 0.250 INCHES NOMINAL SINGLE CONNECTION |
| TERMINAL TYPE | SCREW |
| MOUNTING METHOD | BRACKET AND UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.203 INCHES NOMINAL |
| MOUNTING FACILITY PATTERN | TWO POSITION IN-LINE |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 2.250 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | NPT SINGLE PRESSURE CONNECTION |
| NOMINAL THREAD SIZE | 0.250 INCHES SINGLE PRESSURE CONNECTION |
| THREAD QUANTITY PER INCH | 18 SINGLE PRESSURE CONNECTION |
| FEATURES PROVIDED | ELECTRICAL ACCESS PORT |
