NSN 5930-00-849-2465 15178, 96G16, 9978370
Product Details | PRESSURE SWITCH
5930-00-849-2465 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.
Part Alternates: 15178, 96G16, 9978370, 5930-00-849-2465, 00-849-2465, 5930008492465, 008492465
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-849-2465 | 00206 ( SWITCH, PRESSURE ) |

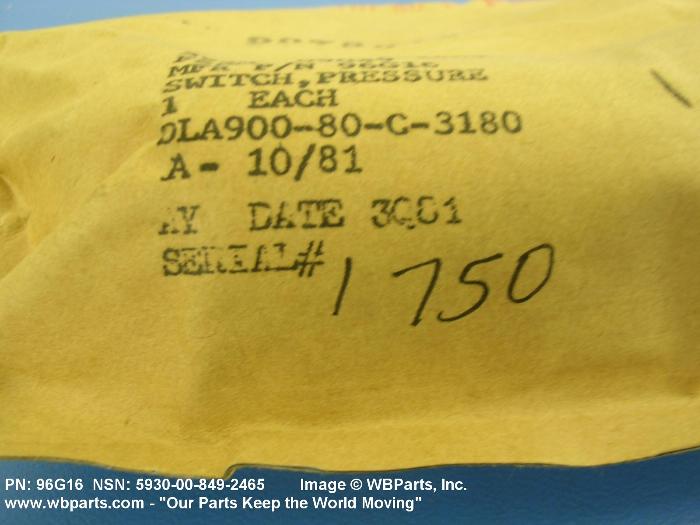

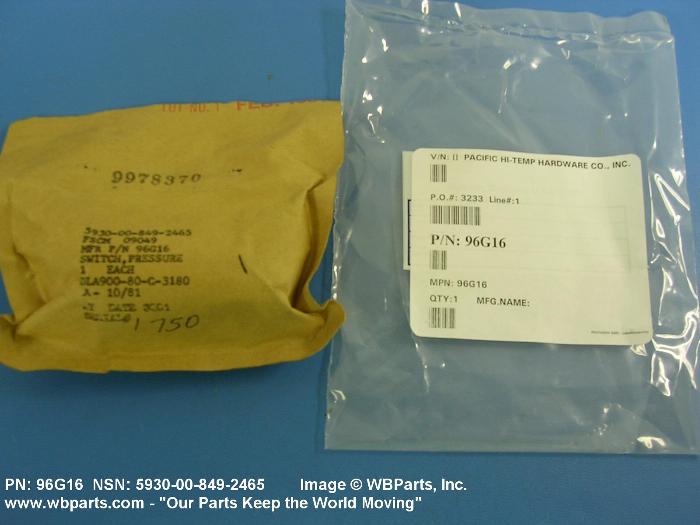

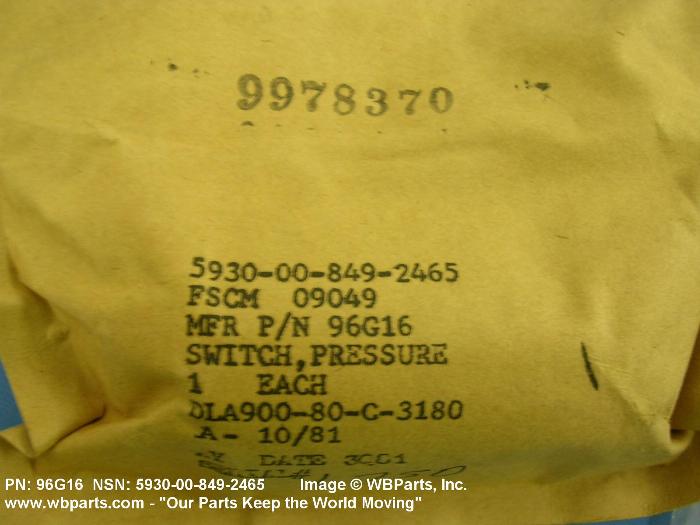

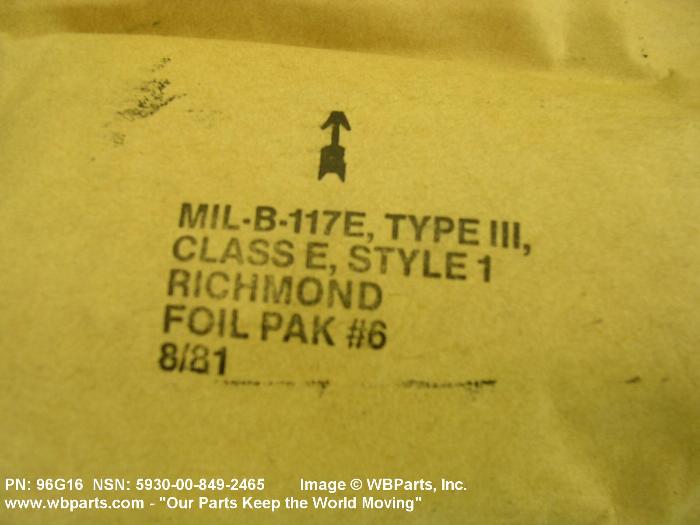

Drawings & Photos | NSN 5930-00-849-2465
Demand History | NSN 5930-00-849-2465
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9978370 | 2010-01-12 | 3 | US |
| 96G16 | 2008-03-73 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-00-849-2465
Technical Data | NSN 5930-00-849-2465
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 45 CYLINDRICAL |
| OVERALL LENGTH | 3.125 INCHES MAXIMUM |
| BODY DIAMETER | 1.250 INCHES NOMINAL |
| OVERALL DIAMETER | 1.500 INCHES NOMINAL |
| PRESSURE SWITCH TYPE | GAGE |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | DEACTUATION POINT NOT ADJUSTABLE AND ACTUATION POINT NOT ADJUSTABLE |
| CONTACT STIMULUS RATING | 1575.00 ACTUATION POINT NOMINAL POUNDS PER SQUARE INCH AND 1325.00 DEACTUATION POINT NOMINAL POUNDS PER SQUARE INCH AND 250.00 DIFFERENTIAL POINT NOMINAL POUNDS PER SQUARE INCH |
| CONTACT VOLTAGE RATING IN VOLTS | 115.0 AC AT SEA LEVEL SINGLE VOLTAGE |
| CONTACT LOAD CURRENT RATING | 5.0 AMPERES RESISTIVE LOAD AND 2.0 AMPERES INDUCTIVE LOAD SINGLE VOLTAGE |
| MEDIA FOR WHICH DESIGNED | LIQUID |
| PROOF PRESSURE | 4500.00 POUNDS PER SQUARE INCH |
| PRESSURE CONNECTOR TYPE | PLAIN, THREADED INTERNAL SINGLE CONNECTION |
| INSIDE DIAMETER | 0.438 INCHES NOMINAL SINGLE CONNECTION |
| TERMINAL TYPE | CONNECTOR, RECEPTACLE |
| MOUNTING METHOD | INLET CONNECTION |
| THREAD SERIES DESIGNATOR | UNF SINGLE PRESSURE CONNECTION |
| NOMINAL THREAD SIZE | 0.438 INCHES SINGLE PRESSURE CONNECTION |
| THREAD CLASS | 3B SINGLE PRESSURE CONNECTION |
| THREAD QUANTITY PER INCH | 20 SINGLE PRESSURE CONNECTION |
| THREAD LENGTH | 0.562 INCHES NOMINAL SINGLE PRESSURE CONNECTION |
| FEATURES PROVIDED | ELECTRICAL BOX CONNECTOR |
| III SENSING ELEMENT BURST PRESSURE | 7500.00 POUNDS PER SQUARE INCH |
Restrictions/Controls & Freight Information | NSN 5930-00-849-2465
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
