Product Details | TOGGLE SWITCH

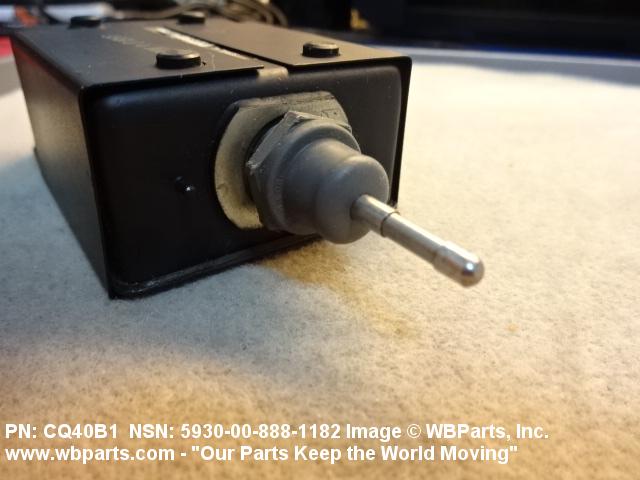

5930-00-888-1182 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: CQ40B1, 8810308, 17736901, 1773690-1, 5930-00-888-1182, 00-888-1182, 5930008881182, 008881182
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-888-1182 | 00184 ( SWITCH, TOGGLE ) |

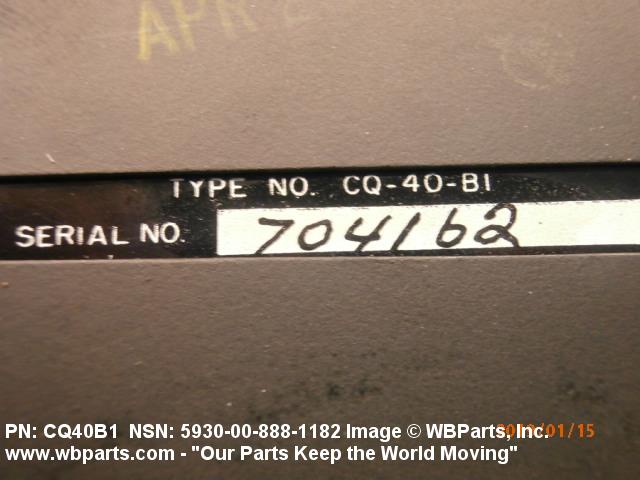

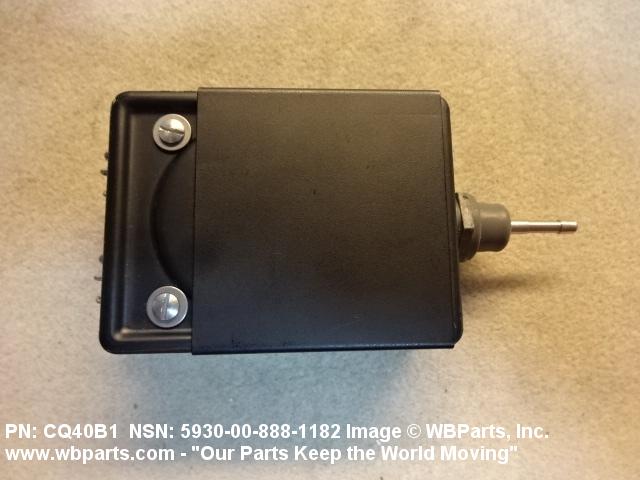

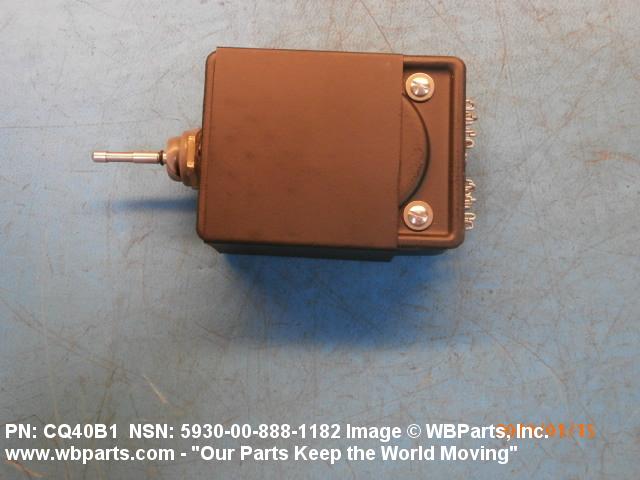

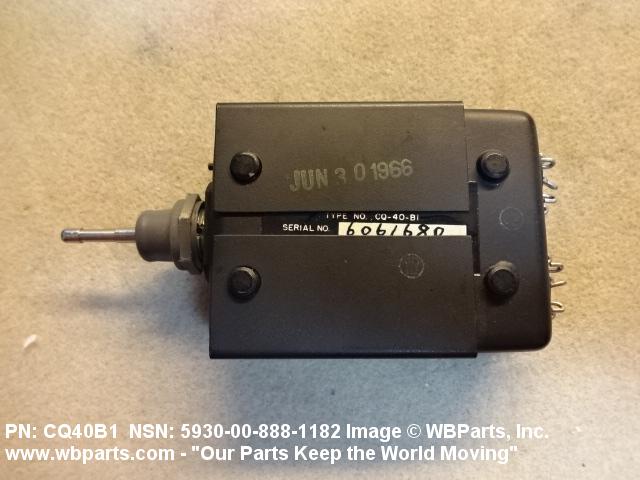

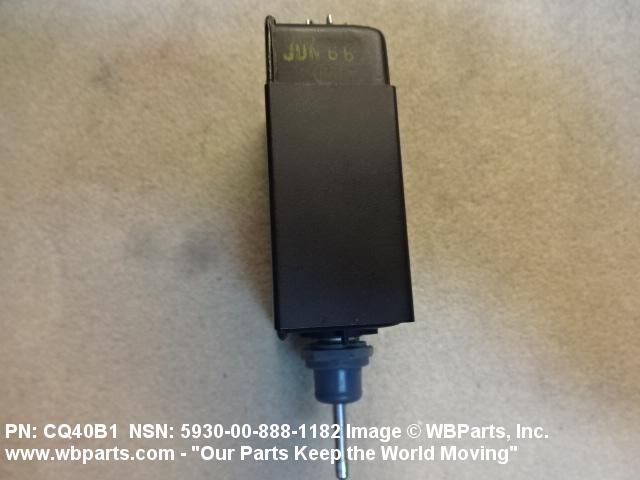

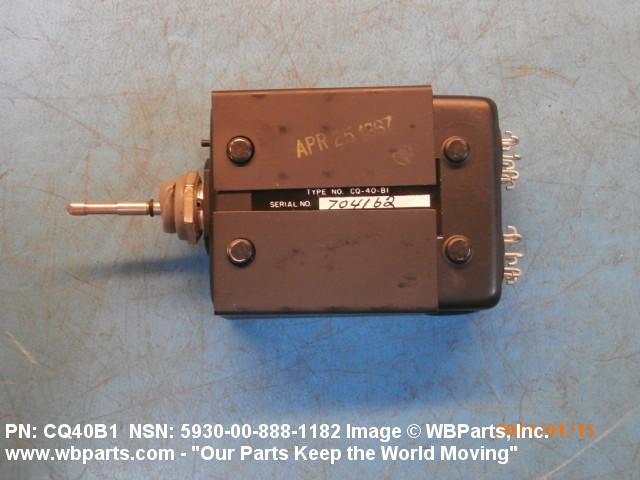

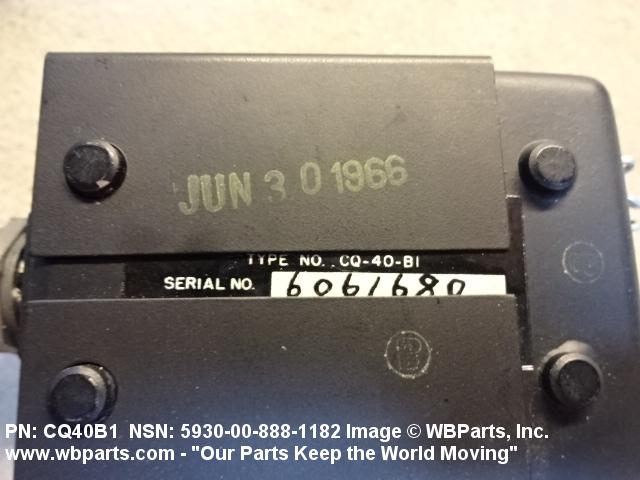

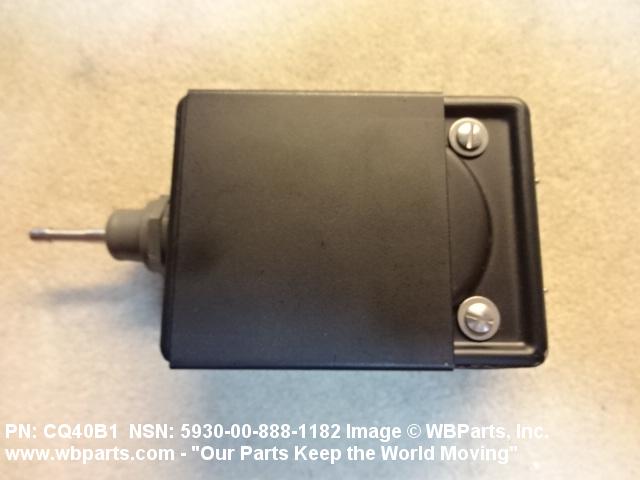

Drawings & Photos | NSN 5930-00-888-1182
Demand History | NSN 5930-00-888-1182
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CQ40B1 | 2019-08-240 | 1 | United States |
| 5930-00-888-1182 | 2018-11-323 | 2 | Germany |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-888-1182
Related Products | NSN 5930-00-888-1182
Technical Data | NSN 5930-00-888-1182

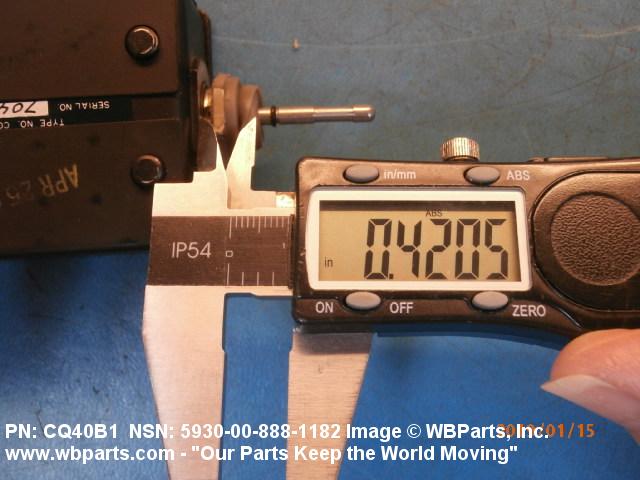

| Characteristic | Specifications |
|---|---|
| MAXIMUM VOLTAGE RATING IN VOLTS | 27.5 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 2.000 AMPERES RESISTIVE DC AND 1.500 AMPERES INDUCTIVE DC |
| BODY STYLE | 4P BUSHING MOUNT |
| BUSHING LENGTH | 0.469 INCHES NOMINAL |

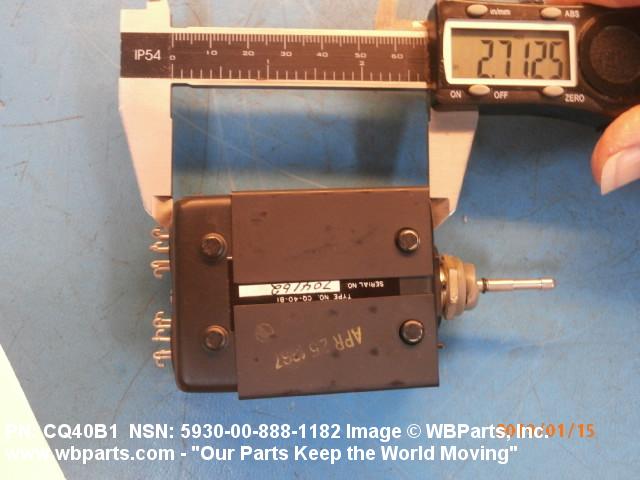

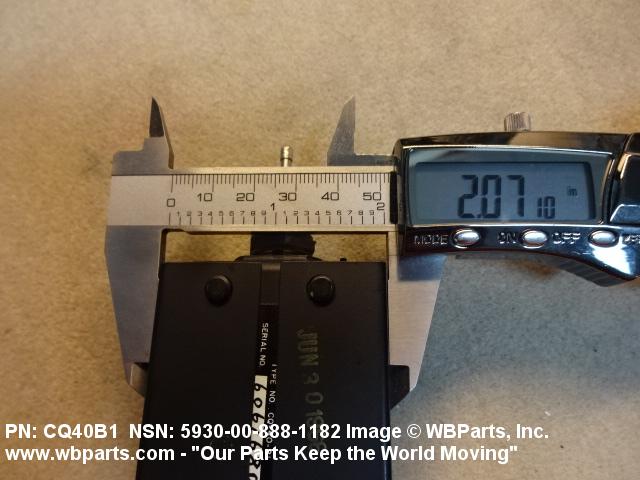

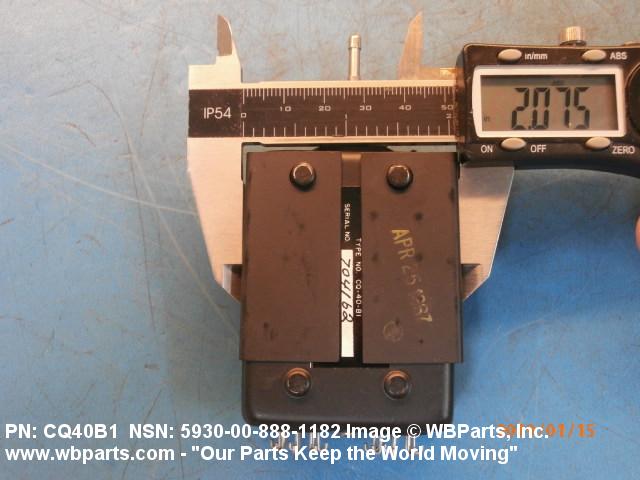

| BODY LENGTH | 2.109 INCHES NOMINAL |

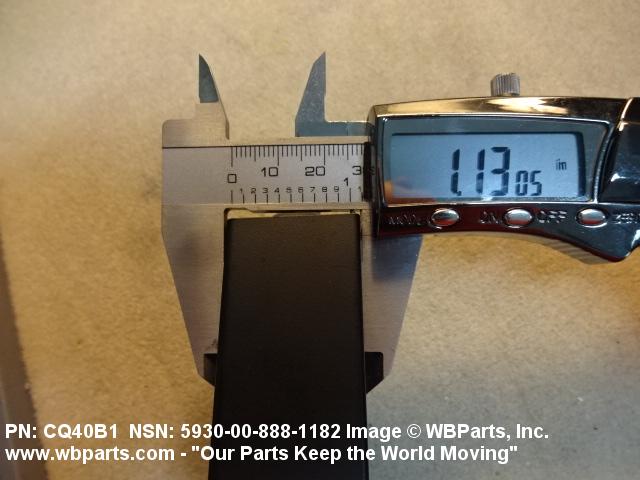

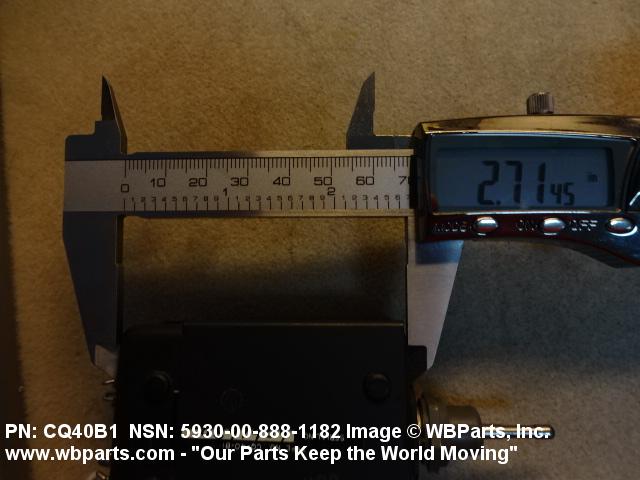

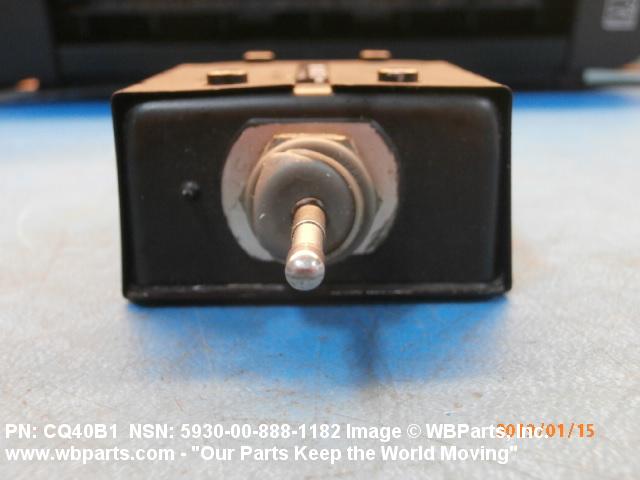

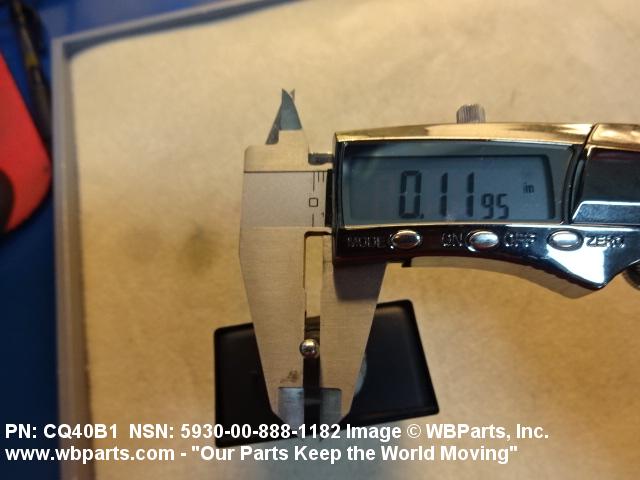

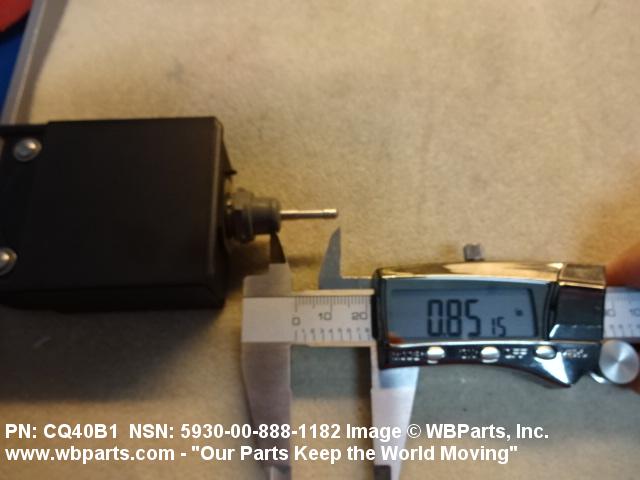

| BODY WIDTH | 1.094 INCHES NOMINAL |
| BODY HEIGHT | 2.688 INCHES NOMINAL |
| ACTUATOR STYLE | 27 ROUND |
| ACTUATOR DIAMETER | 0.100 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.859 INCHES NOMINAL |
| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MAINTAINED AND DOWN POSITION MAINTAINED AND CENTER POSITION MAINTAINED |

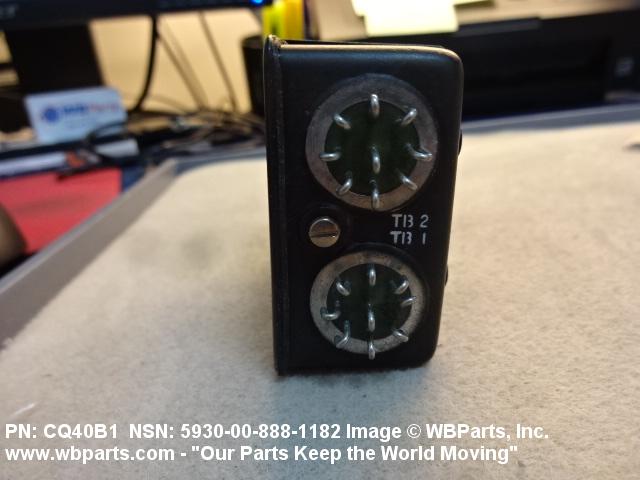

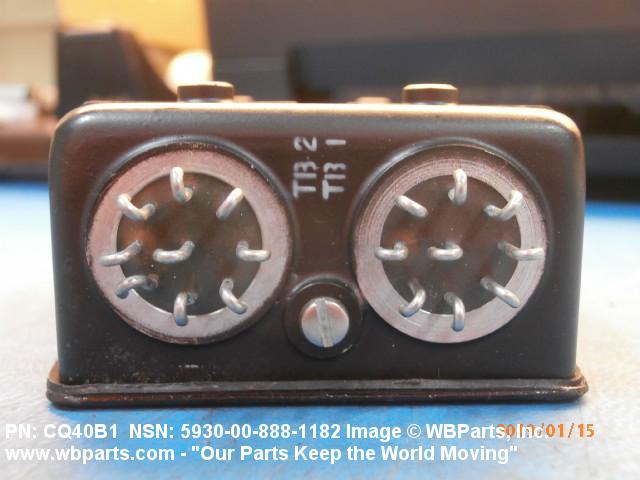

| TERMINAL TYPE AND QUANTITY | 1 SOCKET, INTEGRATED WIRE TERMINATION |
| INCLOSURE TYPE | FULLY INCLOSED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | DUSTPROOF |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 0.469 INCHES |
| THREAD CLASS | 3A |
| THREAD QUANTITY PER INCH | 32 |
| FEATURES PROVIDED | ACTUATOR SEAL AND HOLDING SOLENOID |
| III CASE MATERIAL | METAL |
