Product Details | SWITCH ASSEMBLY
5930-00-890-5765 Two or more complete switches mounted on each other or having a common mounting the major function of which is to hold the switches. Each switch, as a separable item, must be capable of functioning in accordance with its own name. Excludes items consisting of individually separable switches which are physically interlocked (e.g., one button returns when the other is pushed), which have a common actuator, or are electrically connected. See also SWITCH, PUSH.
Part Alternates: 17S1092, 30S0067, 30S006-7, 74E11N2401, 74E11N240-1, 5930-00-890-5765, 00-890-5765, 5930008905765, 008905765
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 08 APR 1968 | 00-890-5765 | 00711 ( SWITCH ASSEMBLY ) |

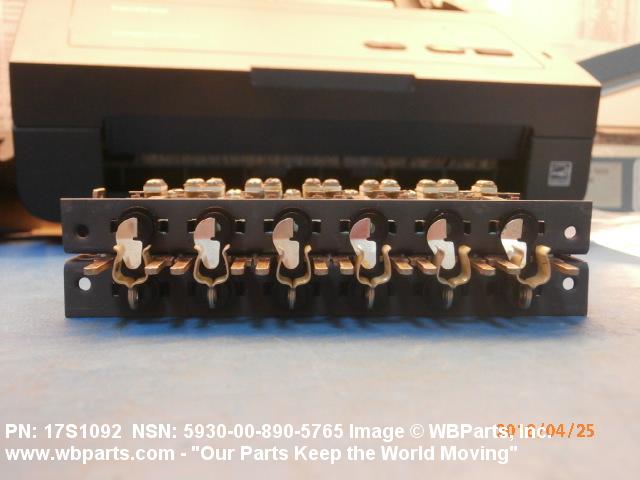

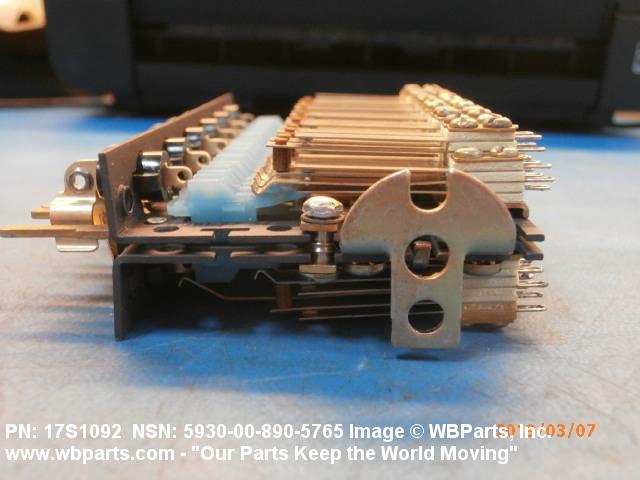

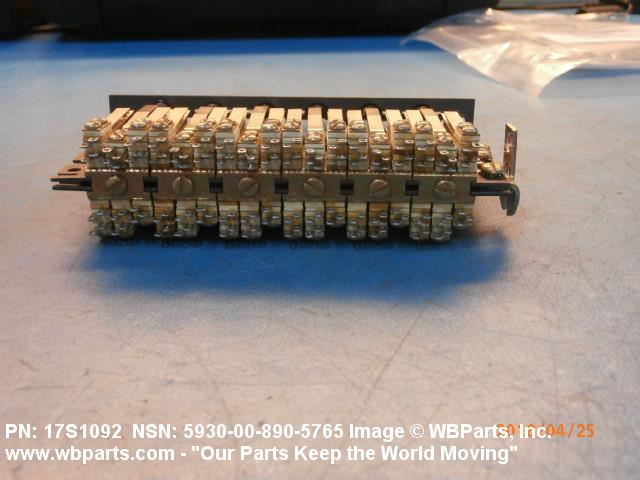

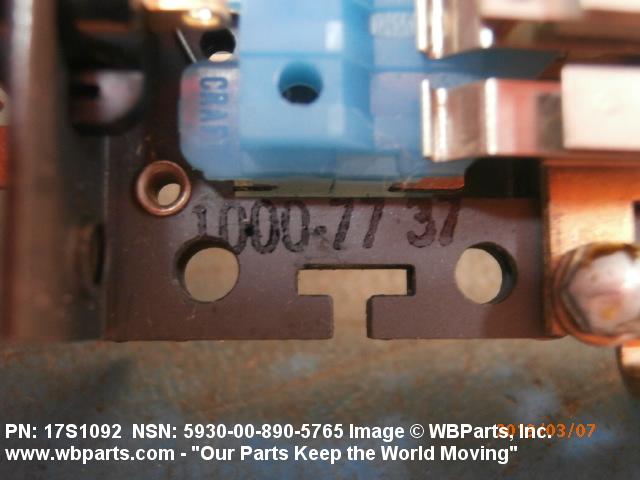

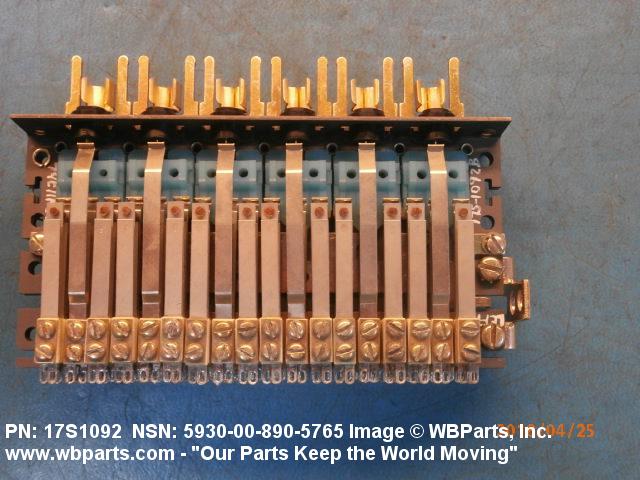

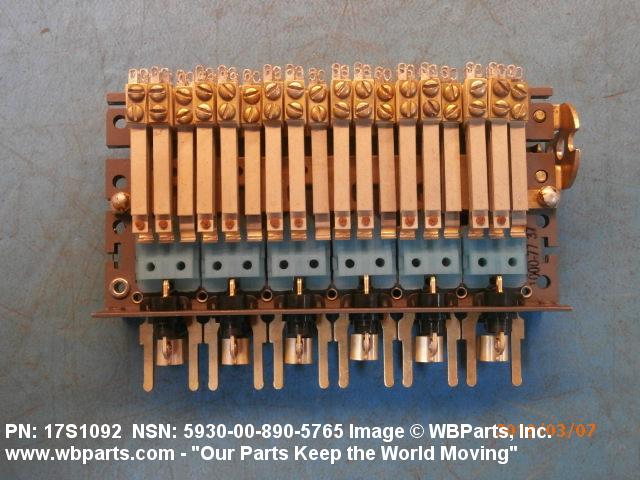

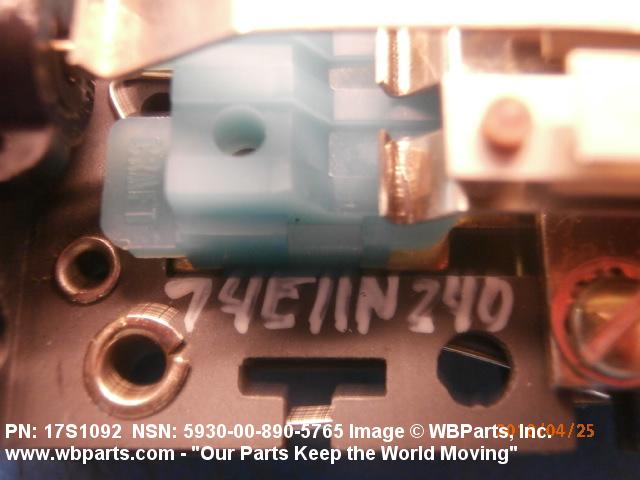

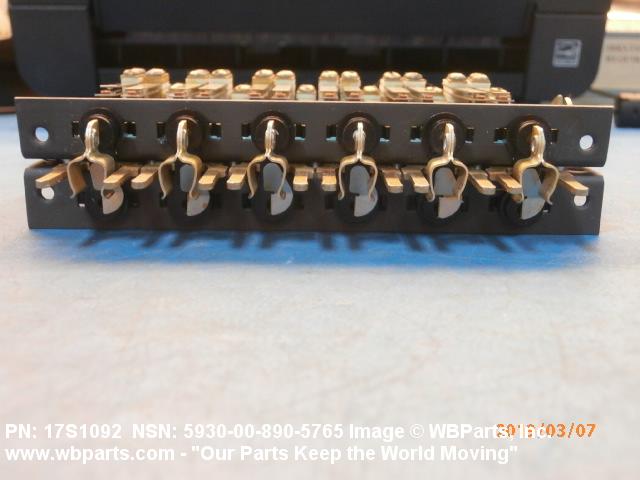

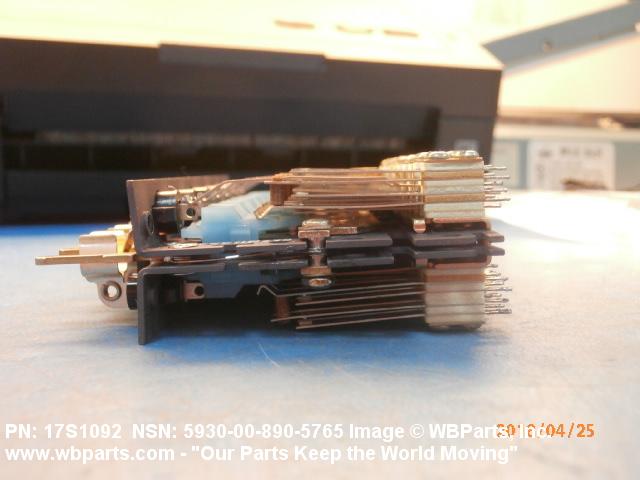

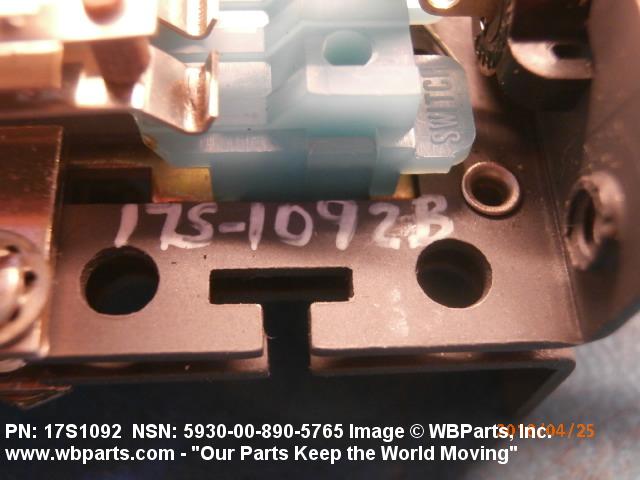

Drawings & Photos | NSN 5930-00-890-5765
Demand History | NSN 5930-00-890-5765
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5930-00-890-5765
5930-00-890-5767, 5930-00-890-5793, 5930-00-890-5794, 5930-00-890-5811, 5930-00-890-5816
Technical Data | NSN 5930-00-890-5765
| Characteristic | Specifications |
|---|---|
| INDIVIDUAL SWITCH QUANTITY | 6 |
| SWITCH TYPE | PUSH |
| CONTROLLING AGENCY | SWITCHCRAFT INC |
| IDENTIFYING NUMBER | 37000 TYPE NO. |
| INCLOSURE TYPE | UNINCLOSED |

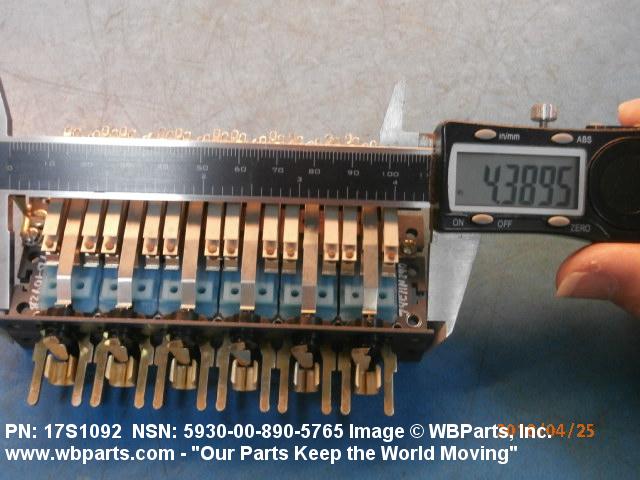

| OVERALL LENGTH | 4.375 INCHES NOMINAL |

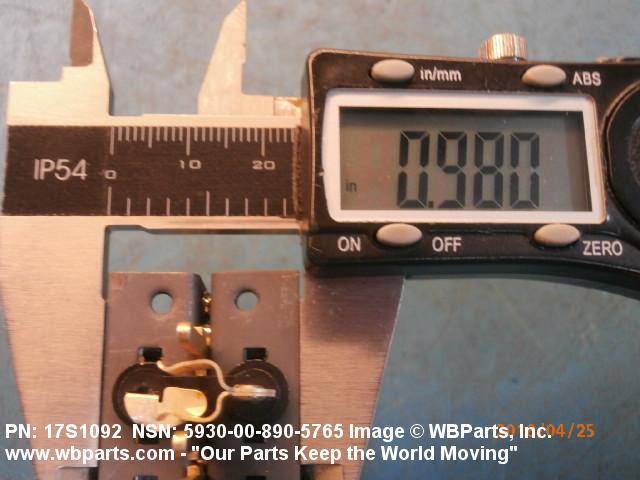

| OVERALL WIDTH | 1.000 INCHES NOMINAL |

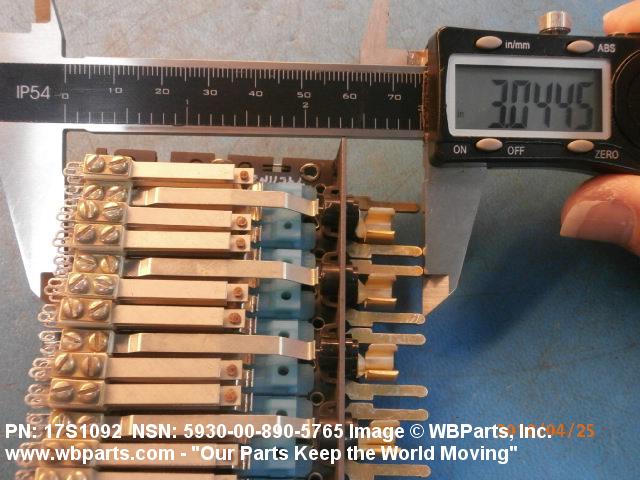

| OVERALL HEIGHT | 3.500 INCHES NOMINAL |
| MOUNTING METHOD | BRACKET AND HOLE |
| MOUNTING CONFIGURATION | MTD IN PARALLEL ON BRACKETT WITH FOUR 0.147 IN. DIA MTG HOLES ON 4.062 IN. BY 0.438 IN. MTG CENTERS |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | LEAF SPRINGS SILVER |
Restrictions/Controls & Freight Information | NSN 5930-00-890-5765
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-890-5765
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
