NSN 5930-00-892-1638 IC/RL-1-U, ICRL1U, MILS16032
Product Details | LIQUID LEVEL SWITCH
5930-00-892-1638 A switch which is actuated by a float or sensing device(s) to control liquid level and/or actuate visual or audible warning systems. It may include a relay controlled by the switch element. Excludes TRANSMITTER,LIQUID QUANTITY.20429100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers59300008Switches66800078Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
Part Alternates: IC/RL-1-U, ICRL1U, MILS16032, MIL-S-16032, 5930-00-892-1638, 00-892-1638, 5930008921638, 008921638
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-892-1638 | 37187 ( SWITCH, LIQUID LEVEL ) |

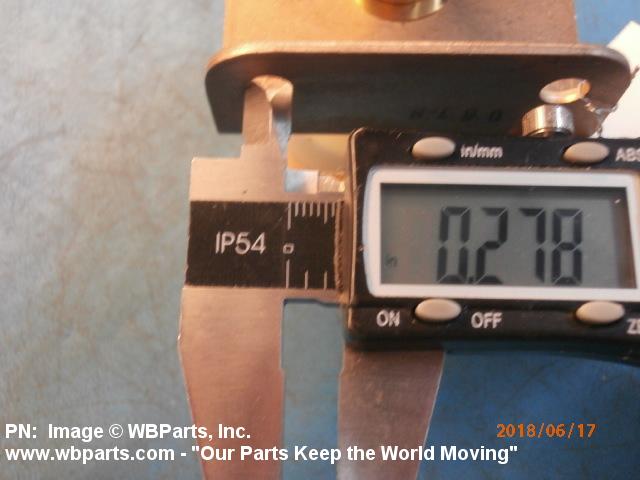

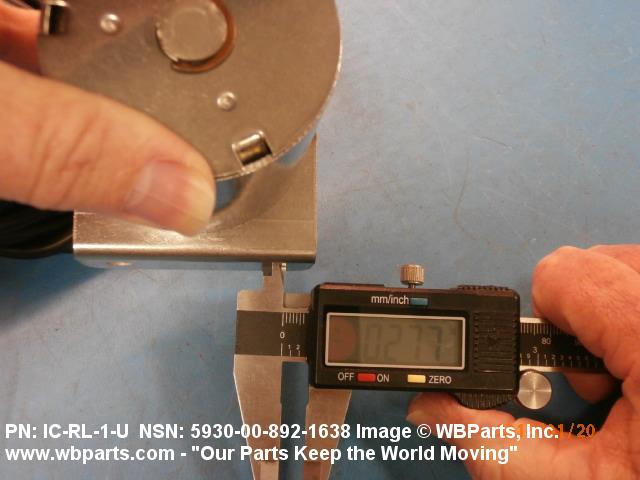

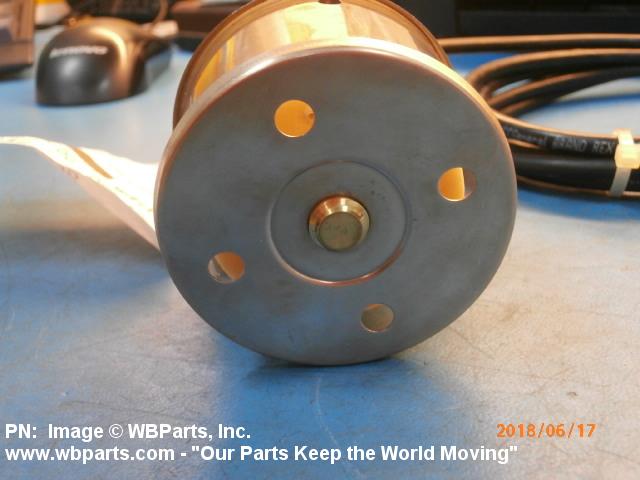

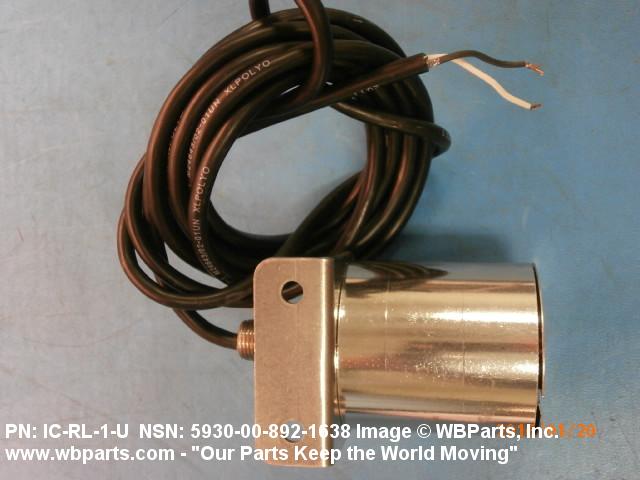

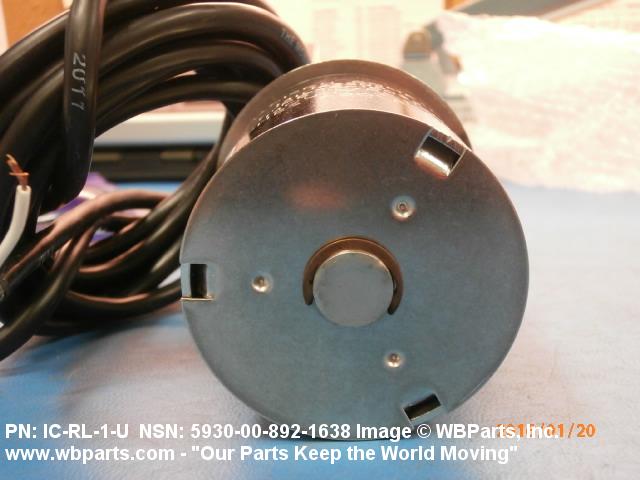

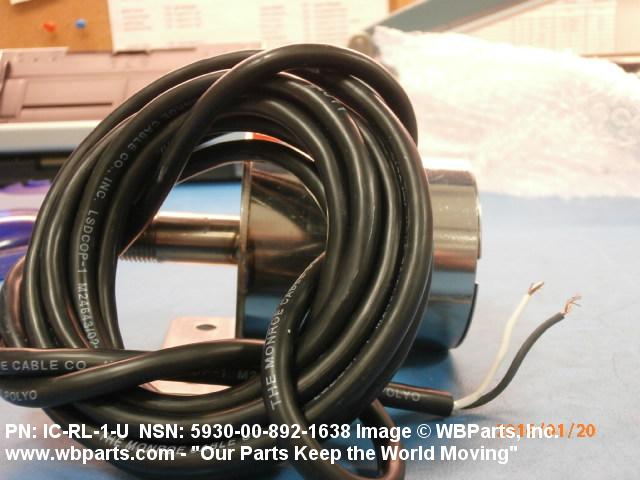

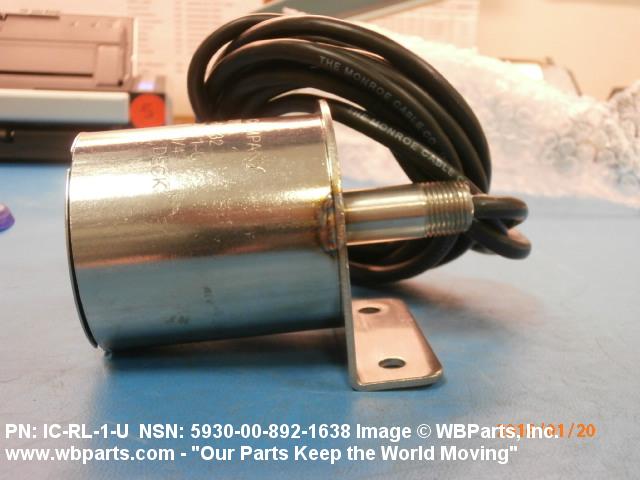

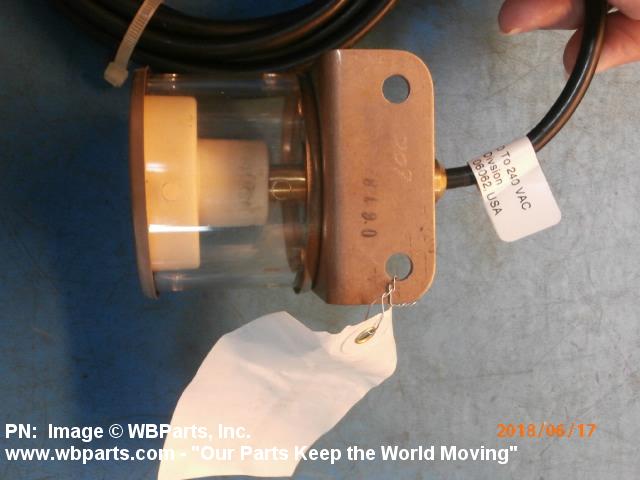

Drawings & Photos | NSN 5930-00-892-1638
Demand History | NSN 5930-00-892-1638
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-892-1638 | 2025-11-315 | 641 | DIBBS |
| 5930-00-892-1638 | 2025-10-303 | 641 | DIBBS |
| 5930-00-892-1638 | 2025-09-246 | 9 | ES |
| ICRL1U | 2025-07-212 | 1 | United States |
| 5930-00-892-1638 | 2025-07-211 | 610 | DIBBS |
| 5930-00-892-1638 | 2025-04-120 | 1 | US |
| 5930-00-892-1638 | 2025-04-119 | 2 | US |
| 5930-00-892-1638 | 2024-10-295 | 2 | United States |
| 5930-00-892-1638 | 2024-09-247 | 250 | DIBBS |
| 5930-00-892-1638 | 2024-08-234 | 250 | DIBBS |
| 5930-00-892-1638 | 2024-04-109 | 26 | DIBBS |
| 5930-00-892-1638 | 2024-03-82 | 414 | DIBBS |
| 5930-00-892-1638 | 2024-03-71 | 414 | DIBBS |
| 5930-00-892-1638 | 2024-02-60 | 414 | DIBBS |
| 5930-00-892-1638 | 2024-01-18 | 143 | DIBBS |
| 5930-00-892-1638 | 2023-06-152 | 509 | DIBBS |
| 5930-00-892-1638 | 2023-05-141 | 509 | DIBBS |
| 5930-00-892-1638 | 2023-05-139 | 521 | DIBBS |
| 5930-00-892-1638 | 2023-05-128 | 509 | DIBBS |
| 5930-00-892-1638 | 2023-05-128 | 521 | DIBBS |
| 5930-00-892-1638 | 2023-04-117 | 521 | DIBBS |
| 5930-00-892-1638 | 2023-03-69 | 97 | DIBBS |
| 5930-00-892-1638 | 2023-02-58 | 97 | DIBBS |
| 5930-00-892-1638 | 2023-02-55 | 1 | United States |
| 5930-00-892-1638 | 2023-02-47 | 97 | DIBBS |
| 5930-00-892-1638 | 2023-02-33 | 241 | DIBBS |
| 5930-00-892-1638 | 2022-11-334 | 1 | US |
| 5930-00-892-1638 | 2022-03-63 | 273 | DIBBS |
| 5930-00-892-1638 | 2022-02-54 | 273 | DIBBS |
| 5930-00-892-1638 | 2022-02-53 | 273 | DIBBS |
| 5930-00-892-1638 | 2021-04-105 | 1 | United States |
| 5930-00-892-1638 | 2021-04-97 | 25 | US |
| 5930-00-892-1638 | 2020-10-302 | 1 | US |
| 5930-00-892-1638 | 2020-10-301 | 1 | DIBBS-RFPs |
| 5930-00-892-1638 | 2020-03-83 | 698 | DIBBS |
| 5930-00-892-1638 | 2020-03-79 | 272 | DIBBS |
| 5930-00-892-1638 | 2020-03-67 | 698 | DIBBS |
| 5930-00-892-1638 | 2020-02-34 | 20 | United States |
| 5930-00-892-1638 | 2019-08-213 | 352 | DIBBS |
| 5930-00-892-1638 | 2019-05-148 | 211 | DIBBS |
| 5930-00-892-1638 | 2019-05-136 | 211 | DIBBS |
| 5930-00-892-1638 | 2019-01-07 | 55 | DIBBS |
| 5930-00-892-1638 | 2018-12-361 | 55 | DIBBS |
| 5930-00-892-1638 | 2018-12-340 | 182 | DIBBS |
| 5930-00-892-1638 | 2018-11-329 | 182 | DIBBS |
| 5930-00-892-1638 | 2018-09-246 | 276 | DIBBS |
| 5930-00-892-1638 | 2018-08-228 | 184 | DIBBS |
| 5930-00-892-1638 | 2018-05-144 | 3 | Taiwan |
| 5930-00-892-1638 | 2018-04-105 | 146 | DIBBS |
| 5930-00-892-1638 | 2017-06-157 | 11 | United States |
| 5930-00-892-1638 | 2016-07-200 | 348 | DIBBS |
| 5930-00-892-1638 | 2016-07-189 | 348 | DIBBS |
| 5930-00-892-1638 | 2016-04-102 | 356 | DIBBS |
| 5930-00-892-1638 | 2016-03-91 | 356 | DIBBS |
| 5930-00-892-1638 | 2016-01-22 | 1 | US |
| 5930-00-892-1638 | 2016-01-12 | 1 | United States |
| 5930-00-892-1638 | 2015-11-317 | 159 | DIBBS |
| 5930-00-892-1638 | 2015-11-305 | 159 | DIBBS |
| 5930-00-892-1638 | 2015-09-266 | 175 | DIBBS |
| 5930-00-892-1638 | 2015-08-235 | 211 | DIBBS |
| 5930-00-892-1638 | 2015-05-149 | 2 | NL |
| 5930-00-892-1638 | 2014-11-326 | 228 | DIBBS |
| 5930-00-892-1638 | 2014-06-170 | 310 | DIBBS |
| 5930-00-892-1638 | 2014-01-29 | 8 | US |
| 5930-00-892-1638 | 2014-01-23 | 309 | DIBBS |
| 5930-00-892-1638 | 2013-12-351 | 339 | DIBBS |
| 5930-00-892-1638 | 2013-12-350 | 266 | DIBBS |
| ICRL1U | 2013-09-269 | 6 | United States |
| 5930-00-892-1638 | 2013-07-207 | 1 | US |
| 5930-00-892-1638 | 2012-10-291 | 209 | DIBBS |
| 5930-00-892-1638 | 2012-09-257 | 228 | DIBBS |
| 5930-00-892-1638 | 2012-09-257 | 300 | DIBBS |
| 5930-00-892-1638 | 2012-08-241 | 300 | DIBBS |
| 5930-00-892-1638 | 2012-08-226 | 228 | DIBBS |
| 5930-00-892-1638 | 2012-06-181 | 107 | DIBBS |
| 5930-00-892-1638 | 2012-02-40 | 590 | DIBBS |
| 5930-00-892-1638 | 2012-02-38 | 1 | AU |
| 5930-00-892-1638 | 2011-12-339 | 147 | DIBBS |
| 5930-00-892-1638 | 2011-08-213 | 124 | DIBBS |
| 5930-00-892-1638 | 2011-07-189 | 254 | DIBBS |
| 5930-00-892-1638 | 2011-06-176 | 4 | Turkey |
| 5930-00-892-1638 | 2011-06-168 | 6 | United States |
| 5930-00-892-1638 | 2011-01-11 | 248 | DIBBS |
| 5930-00-892-1638 | 2010-11-319 | 141 | DIBBS |
| 5930-00-892-1638 | 2010-10-293 | 12 | United States |
| 5930-00-892-1638 | 2010-08-235 | 1 | US |
| 5930-00-892-1638 | 2010-07-209 | 206 | DIBBS |
| MILS16032 | 2009-10-299 | 8 | US |
| 5930-00-892-1638 | 2009-01-05 | 120 | DIBBS |
| 5930-00-892-1638 | 2008-12-336 | 133 | DIBBS |
| 5930-00-892-1638 | 2008-11-316 | 210 | DIBBS |
| 5930-00-892-1638 | 2008-10-301 | 42 | DIBBS |
| 5930-00-892-1638 | 2007-08-242 | 66 | DIBBS |
| 5930-00-892-1638 | 2007-08-219 | 176 | DIBBS |
| 5930-00-892-1638 | 2007-01-23 | 163 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-892-1638
Related Products | NSN 5930-00-892-1638
Technical Data | NSN 5930-00-892-1638
| Characteristic | Specifications |
|---|---|
| AC VOLTAGE RATING | 115.000 VOLTS NOMINAL |
| FREQUENCY RATING | 60.000 HERTZ NOMINAL |
| PHASE | SINGLE |
| DC VOLTAGE RATING | 115.000 VOLTS NOMINAL |
| INTERNAL BATTERY ACCOMMODATION | NOT INCLUDED |
| CURRENT RATING AT MAXIMUM RATED VOLTAGE | 50.0 MILLIAMPERES NOMINAL LOAD |
| CONTACT ARRANGEMENT | SPST,NORMALLY OPEN |

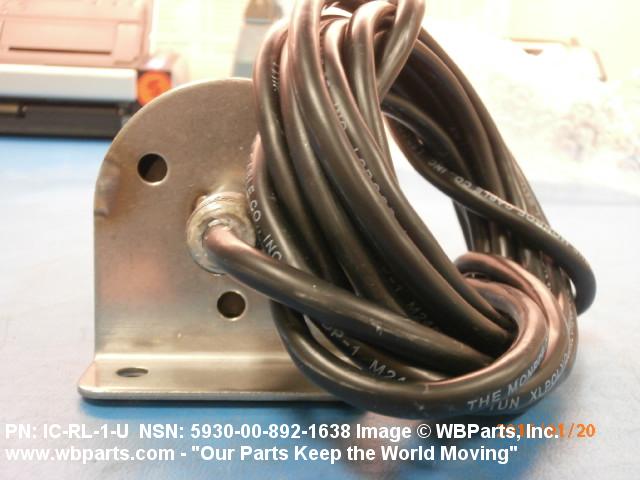

| ELECTRICAL CONNECTION TYPE | CABLE |
| POWER CABLE LENGTH | 120.000 INCHES NOMINAL |
| RELAY | NOT INCLUDED |
| LIQUID TYPE FOR WHICH DESIGNED | SEA WATER,FUEL AND HYDRAULIC OR LUBRICATION OILS |
| OPERATING TEMP RATING | 0.0 DEG FAHRENHEIT MINIMUM AND 150.0 DEG FAHRENHEIT MAXIMUM |

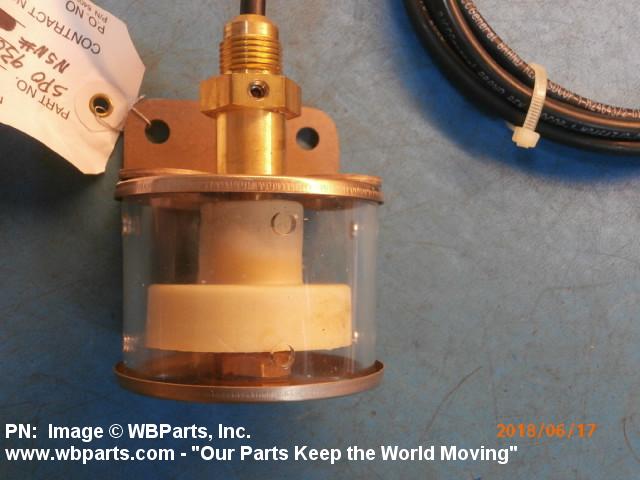

| ACTUATION METHOD | BUOYANCY |
| FLOAT QUANTITY | 1 |
| FLOAT EFFECTIVE TRAVEL | 0.250 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |
| MOUNTING POSITION | VERTICAL |
| MOUNTING METHOD | BRACKET |

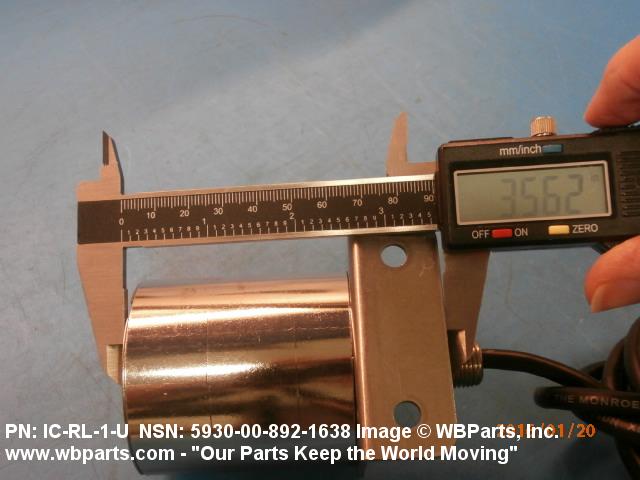

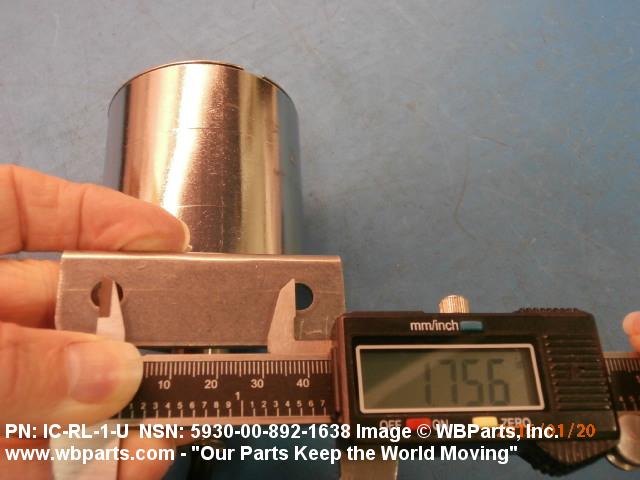

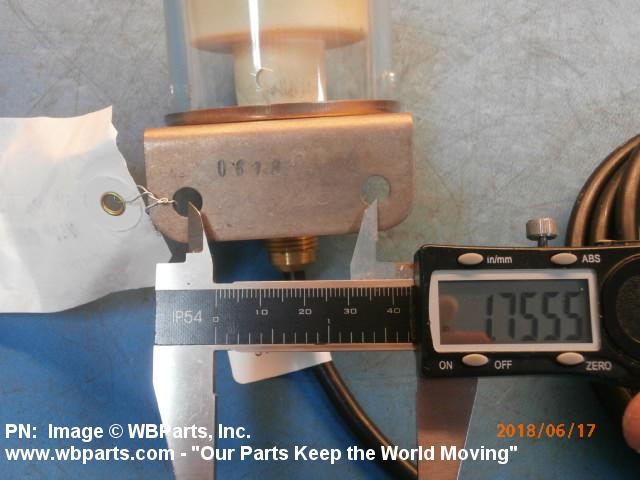

| MOUNTING DIMENSIONS | MTD BY TWO 9/16 IN. DIA HOLES EQUALLY SPACED 1.750 IN. C TO C |
| OVERALL LENGTH | 3.312 INCHES NOMINAL |

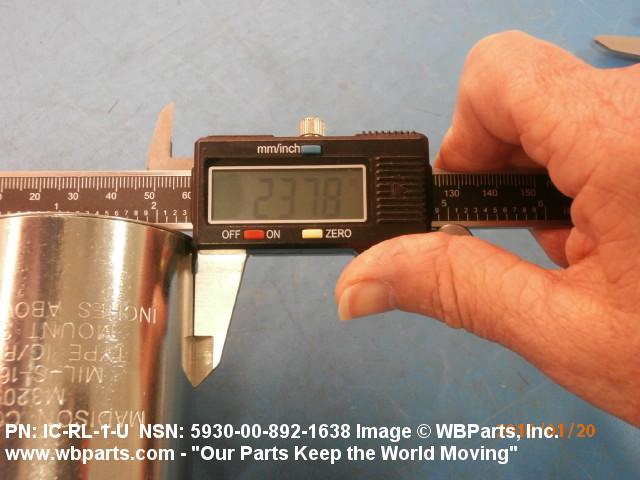

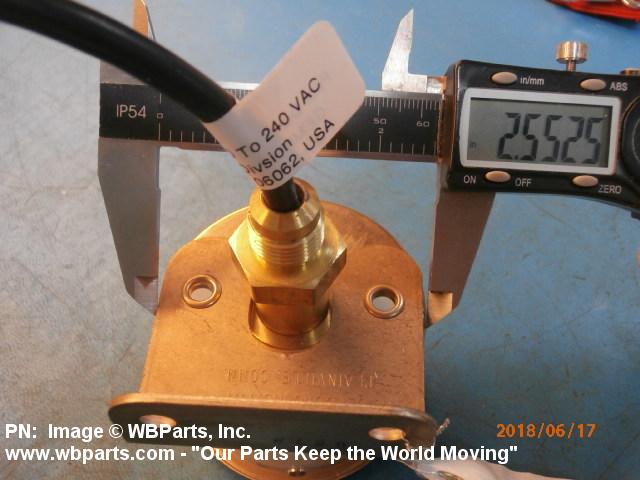

| OVERALL DIAMETER | 2.562 INCHES NOMINAL |
| TANK INSERTION LENGTH | 2.500 INCHES MAXIMUM |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| NONDEFINITIVE SPEC/STD DATA | IC/RL-1-U TYPE |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | AN/SRN-25(V) NAVIGATION RADIO SET; STREAM (STD. TENSIONED REPLENISHMENT AT SEA METHOD); CVN 68 CLASS REACTOR FILL AUXILIARY SYSTEM; ELEVATORS, CARGO/WEAPONS; FORRESTAL CLASS CV; NIMITZ CLASS CVN; VIRGINIA CLASS CGN (41); TICONDEROGA CLASS CG (47); SPRUANCE CLASS DD (963); KIDD CLASS DDG |
| III FSC APPLICATION DATA | SHIPBOARD ALARM SYSTEM |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | IC/RL-1-U |
| MANUFACTURERS CODE | 81349 |

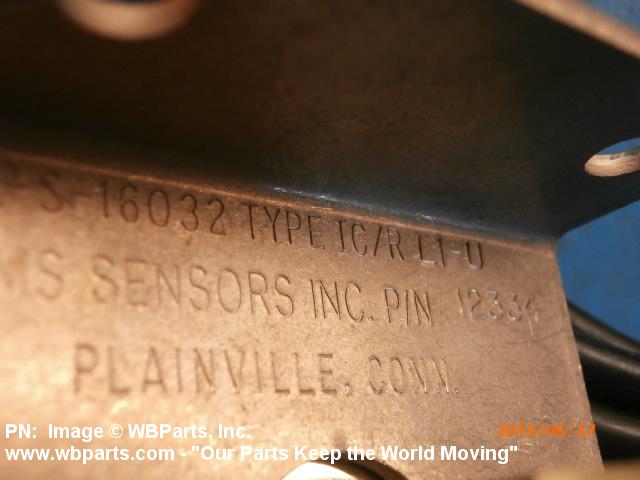

| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-16032 |
Restrictions/Controls & Freight Information | NSN 5930-00-892-1638
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-892-1638
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
