NSN 5930-00-906-3477 MS252018, MS25201-8, MS274072

Product Details | TOGGLE SWITCH

5930-00-906-3477 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.

Part Alternates: MS252018, MS25201-8, MS274072, MS27407-2, MILDTL3950, MIL-DTL-3950, MILS3950, MIL-S-3950, 43589268, 4358926-8, 8860K8, 5930-00-906-3477, 00-906-3477, 5930009063477, 009063477

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	22 JUN 1966	00-906-3477	00184 ( SWITCH, TOGGLE )

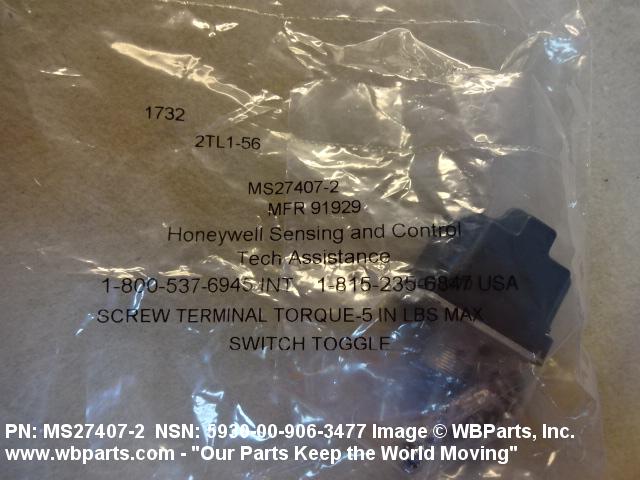

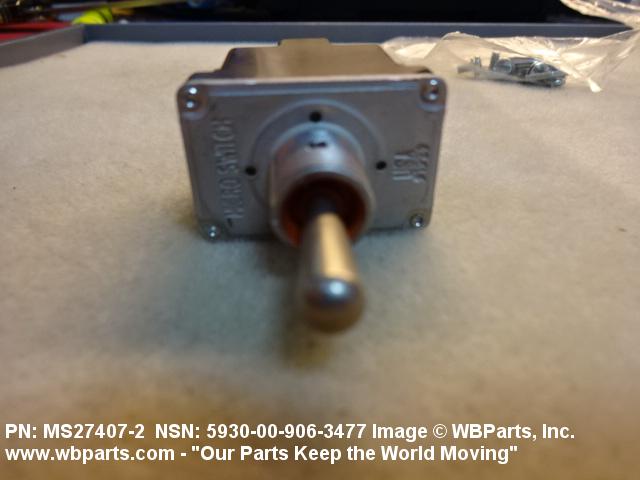

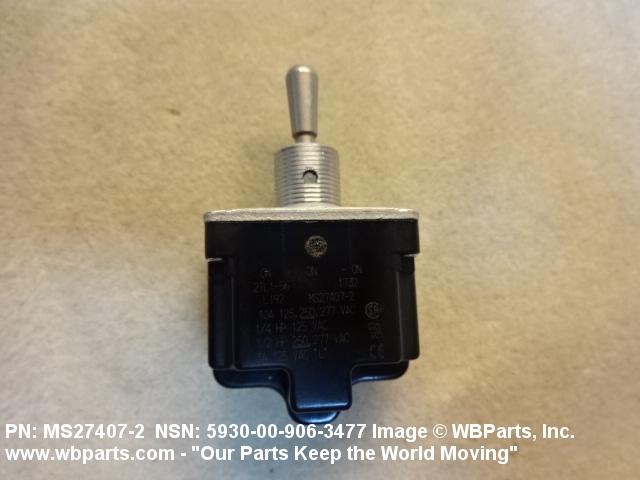

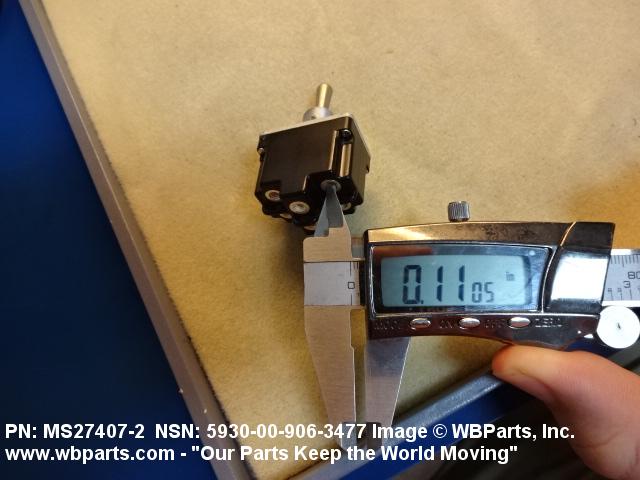

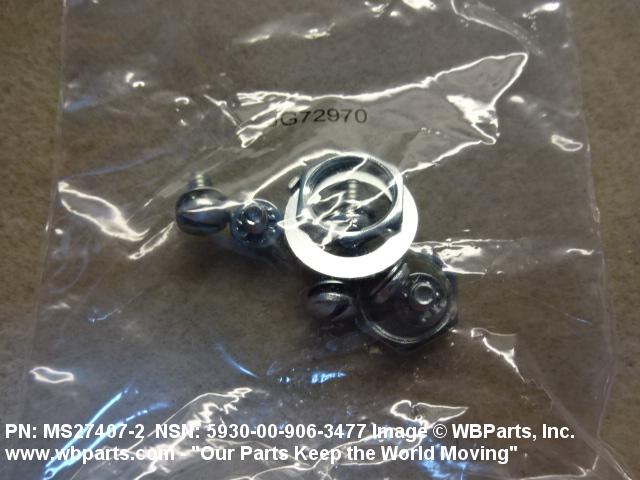

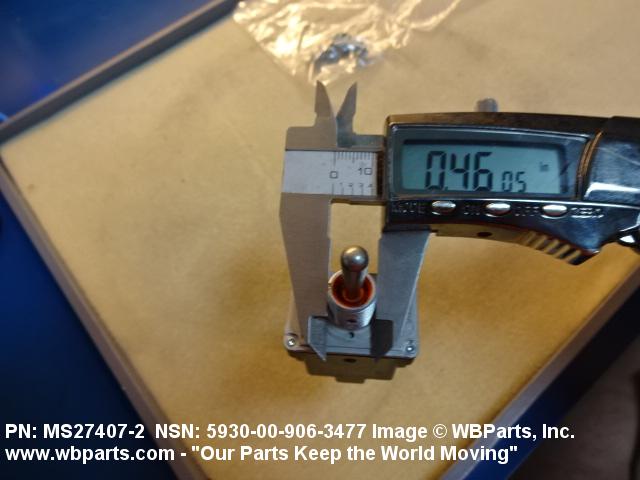

Drawings & Photos | NSN 5930-00-906-3477

Part Number	Request Date	QTY	Origin
5930-00-906-3477	2025-09-261	359	DIBBS
5930-00-906-3477	2025-05-142	198	DIBBS
5930-00-906-3477	2023-09-271	188	DIBBS
5930-00-906-3477	2022-10-287	1	US
5930-00-906-3477	2022-05-131	1	United States
5930-00-906-3477	2019-11-330	1	US
5930-00-906-3477	2019-06-169	418	DIBBS
MS274072	2017-09-268	1	United States
5930-00-906-3477	2017-08-243	649	DIBBS
5930-00-906-3477	2017-03-72	331	DIBBS
5930-00-906-3477	2016-06-166	1	US
5930-00-906-3477	2016-03-63	341	DIBBS
5930-00-906-3477	2015-12-340	127	DIBBS
5930-00-906-3477	2015-10-291	69	DIBBS
5930-00-906-3477	2015-09-271	50	DIBBS
MILS3950	2014-02-56	4	Canada
5930-00-906-3477	2014-01-07	95	IL
MILS3950	2013-01-11	48	US
5930-00-906-3477	2012-07-208	202	DIBBS
5930-00-906-3477	2012-06-160	123	DIBBS
5930-00-906-3477	2012-05-125	147	DIBBS
5930-00-906-3477	2012-02-40	161	DIBBS
5930-00-906-3477	2011-09-244	275	DIBBS
5930-00-906-3477	2011-06-166	73	DIBBS
8860K8	2011-03-80	2	KW
MS274072	2010-12-364	1	US
5930-00-906-3477	2010-07-183	218	DIBBS
5930-00-906-3477	2010-05-146	108	DIBBS
MS274072	2010-03-61	15	us
5930-00-906-3477	2009-11-323	56	DIBBS
5930-00-906-3477	2009-09-245	114	DIBBS
5930-00-906-3477	2009-08-238	224	DIBBS
5930-00-906-3477	2009-06-152	258	DIBBS
5930-00-906-3477	2008-06-176	1361	DIBBS
5930-00-906-3477	2007-07-207	766	DIBBS
5930-00-906-3477	2007-05-144	256	DIBBS
MS274072	2006-09-251	5	United States

Cross Reference | NSN 5930-00-906-3477

Part Number	Cage Code	Manufacturer
4358926-8	6N299	AGCO CORP PARTS OPN
8860K8	81640	EATON CORPORATION DBA FLUID POWER DIV
MIL-DTL-3950	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-S-3950	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS25201-8	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27407-2	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5930-00-906-3477

Compare

Related Products | NSN 5930-00-906-3477

5930-00-906-3605, 5930-00-906-3714, 5930-00-906-3715, 5930-00-906-3875, 5930-00-906-3946

Technical Data | NSN 5930-00-906-3477

Characteristic	Specifications
NONPILE-UP CONTACT ARRANGEMENT	2 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT
MAXIMUM VOLTAGE RATING IN VOLTS	115.0 AC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	2.000 AMPERES RESISTIVE AC AND 1.000 AMPERES INDUCTIVE AC AND 500.0 MILLIAMPERES LAMP AC
BODY STYLE	5P BUSHING MOUNT
BUSHING LENGTH	0.470 INCHES NOMINAL

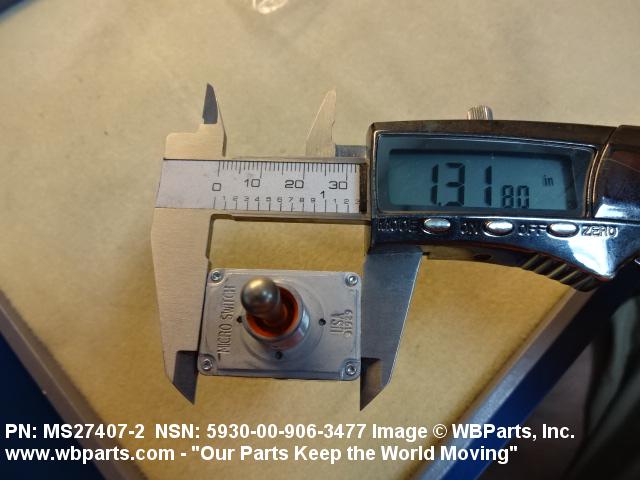

BODY LENGTH	1.340 INCHES MAXIMUM

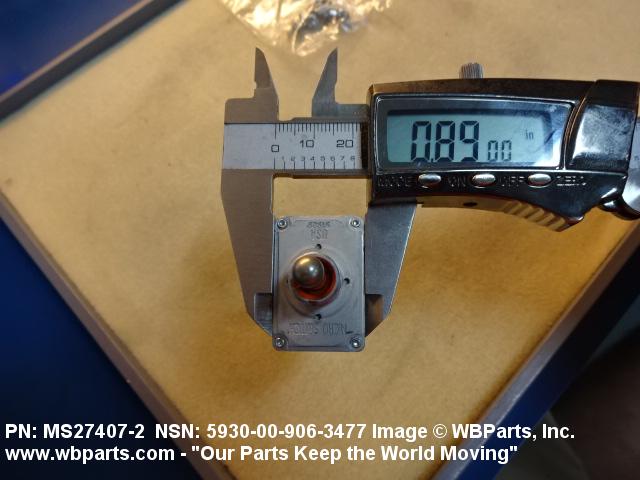

BODY WIDTH	0.910 INCHES MAXIMUM
MOUNTING SURFACE TO TERMINAL END DISTANCE	0.370 INCHES MAXIMUM
OVERALL LENGTH	1.340 INCHES MAXIMUM
OVERALL WIDTH	0.910 INCHES MAXIMUM
OVERALL HEIGHT	2.530 INCHES NOMINAL
ACTUATOR STYLE	27 ROUND

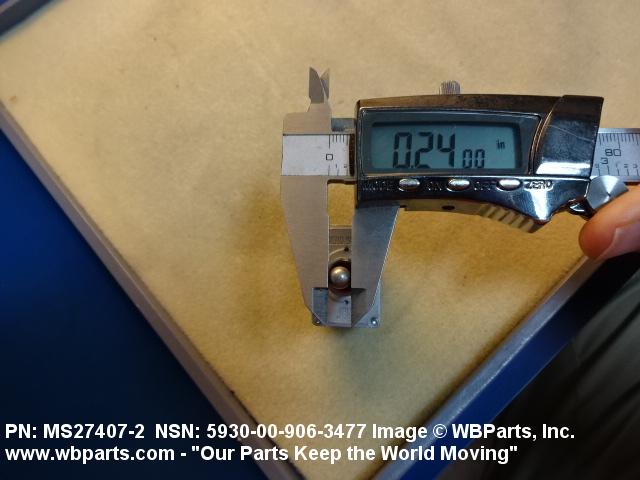

ACTUATOR DIAMETER	0.240 INCHES NOMINAL
ACTUATOR HEIGHT	0.687 INCHES MINIMUM AND 0.693 INCHES MAXIMUM
ACTUATOR POSITION-ACTION RELATIONSHIP	UP POSITION MAINTAINED AND DOWN POSITION MOMENTARY AND CENTER POSITION MAINTAINED

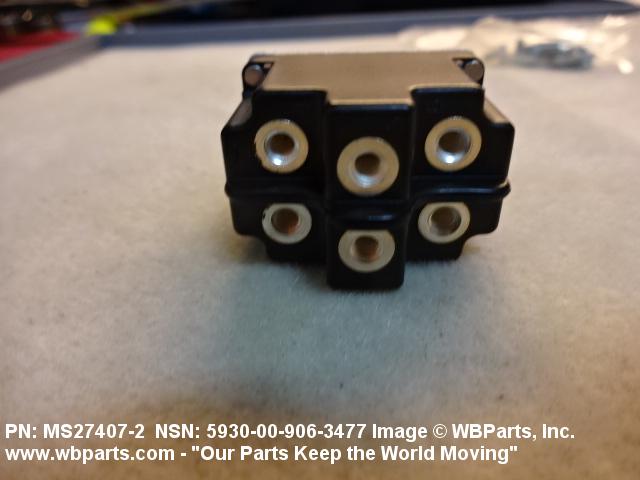

TERMINAL TYPE AND QUANTITY	6 SCREW
INCLOSURE TYPE	FULLY INCLOSED
MOUNTING METHOD	THREADED BUSHING
THREAD SERIES DESIGNATOR	UNS
NOMINAL THREAD SIZE	0.469 INCHES
THREAD CLASS	2A
THREAD QUANTITY PER INCH	32
FEATURES PROVIDED	ACTUATOR SEAL
TEST DATA DOCUMENT	81349-MIL-S-3950 SPECIFICATION
SPECIFICATION/STANDARD DATA	96906-MS27407 GOVERNMENT STANDARD
III CASE MATERIAL	PLASTIC
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-DTL-3950
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS27407-2

Restrictions/Controls & Freight Information | NSN 5930-00-906-3477

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	CT	U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5930-00-906-3477

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	4	Critical for State and Local Laws. Those parts and components that are required for conformance to state law or local ordinances, and which do not fit the definition of Code 5 or 6 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
