NSN 5930-00-913-3641 MS90310221, MS90310-221, ASC1532741

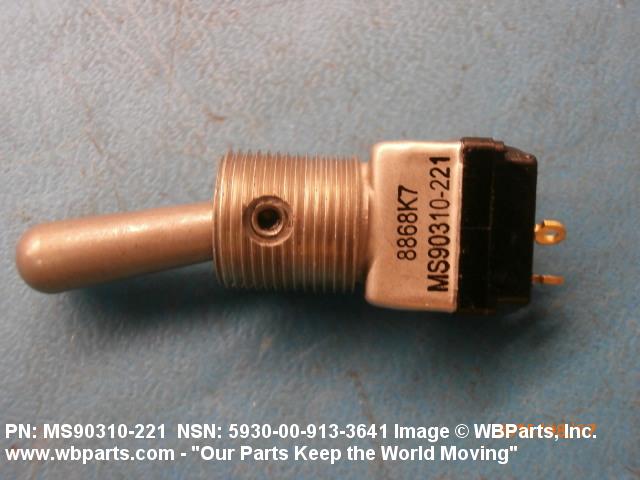

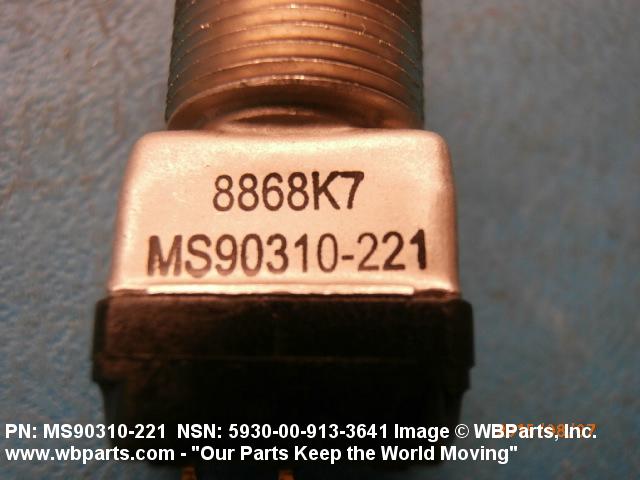

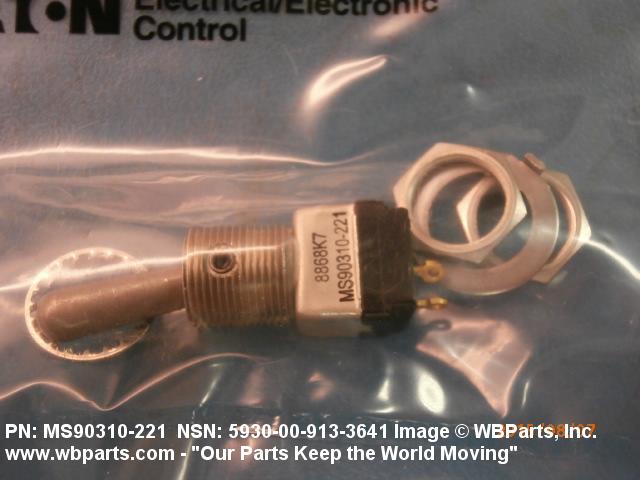

Product Details | TOGGLE SWITCH

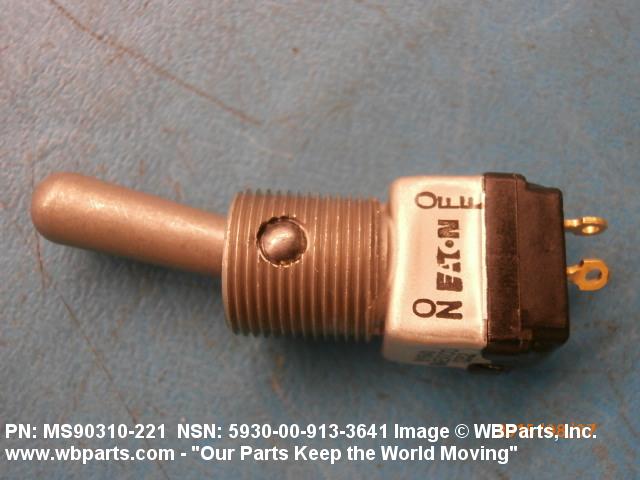

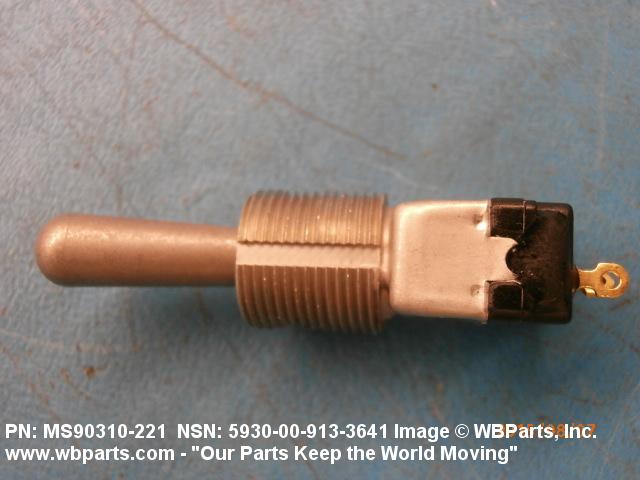

5930-00-913-3641 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: MS90310221, MS90310-221, ASC1532741, SMC5863782, SM-C-586378-2 , MILDTL8834, MIL-DTL-8834, MILS8834, 025B380075, 025B3800-75 , 228M0228P015, 3509892, 350989-2 , 8868K7, 5930-00-913-3641, 00-913-3641, 5930009133641, 009133641
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-913-3641 | 00184 ( SWITCH, TOGGLE ) |

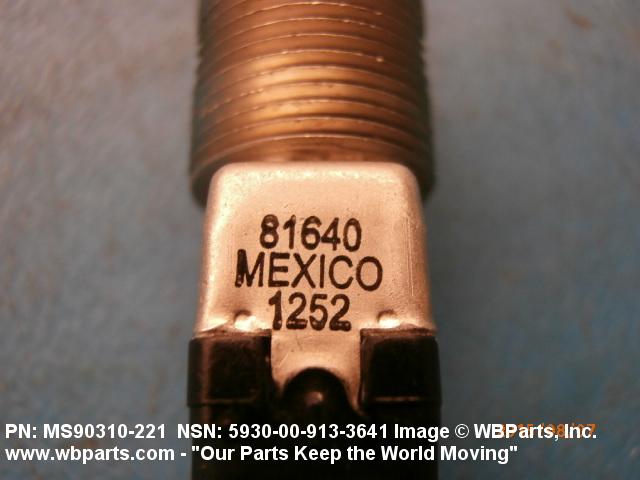

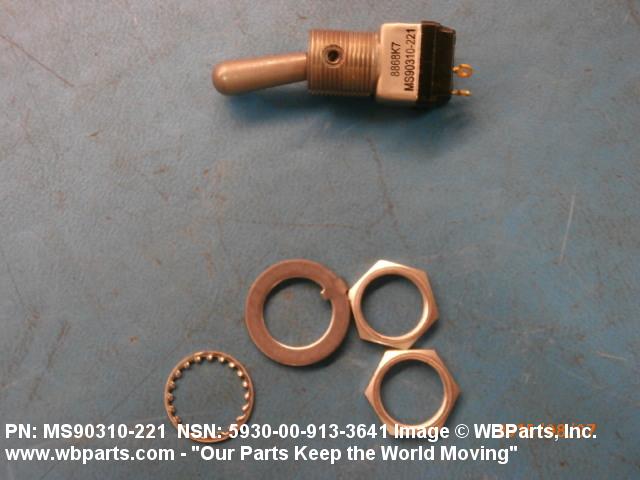

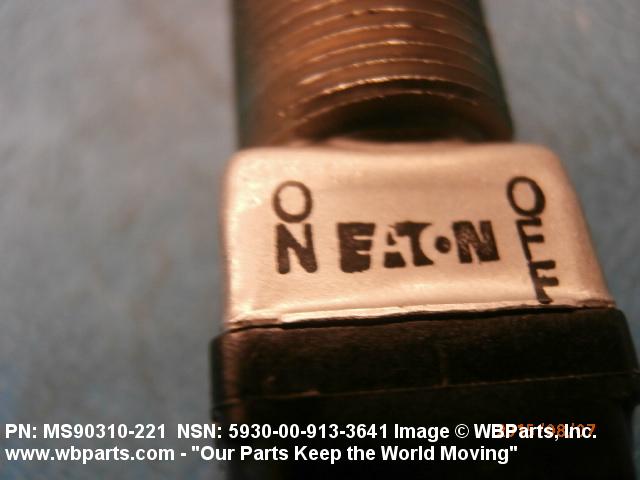

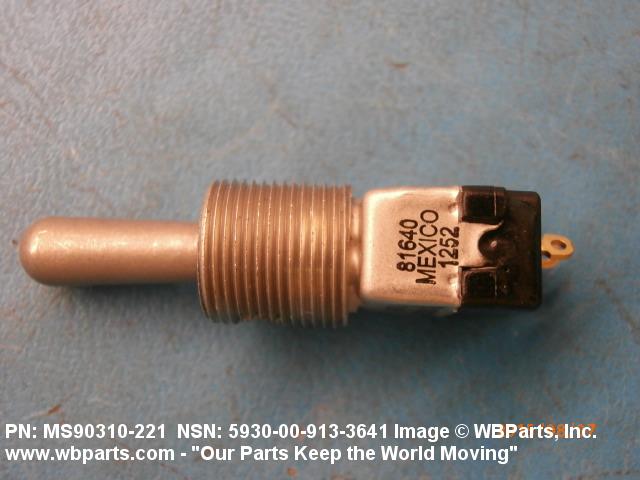

Drawings & Photos | NSN 5930-00-913-3641
Demand History | NSN 5930-00-913-3641
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS90310221 | 2023-05-149 | 2 | Germany |
| MS90310221 | 2021-08-224 | 2 | IN |
| 5930-00-913-3641 | 2018-08-238 | 223 | DIBBS |
| 5930-00-913-3641 | 2018-05-137 | 164 | DIBBS |
| 5930-00-913-3641 | 2017-08-240 | 5 | Germany |
| 5930-00-913-3641 | 2017-08-228 | 5 | Germany |
| MILDTL8834 | 2017-03-81 | 3 | United States |
| 5930-00-913-3641 | 2015-09-250 | 1 | SG |
| MS90310221 | 2015-07-205 | 2 | Germany |
| 5930-00-913-3641 | 2015-07-196 | 551 | DIBBS |
| 8868K7 | 2012-11-310 | 3 | |
| 5930-00-913-3641 | 2012-09-254 | 94 | DIBBS |
| 5930-00-913-3641 | 2012-09-254 | 234 | DIBBS |
| 5930-00-913-3641 | 2012-09-254 | 277 | DIBBS |
| 5930-00-913-3641 | 2012-08-244 | 234 | DIBBS |
| 5930-00-913-3641 | 2012-07-207 | 277 | DIBBS |
| 8868K7 | 2012-07-194 | 10 | Australia |
| MILS8834 | 2012-07-192 | 10 | Australia |
| 5930-00-913-3641 | 2012-05-137 | 94 | DIBBS |
| MS90310-221 | 2011-09-269 | 50 | Hong Kong |
| 5930-00-913-3641 | 2010-04-111 | 210 | Taiwan |
| 5930-00-913-3641 | 2008-11-323 | 2 | United States |
Cross Reference | NSN 5930-00-913-3641
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 228M0228P015 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 5930009133641 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 8868K7 | 60418 | VERTEX INDUSTRIES INC TORBAL DIV |
| ASC1532741 | Z4779 | ASC PTY LTD |
| MIL-DTL-8834 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILS8834 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS90310-221 | 81640 | EATON CORPORATION DBA FLUID POWER DIV |
| MS90310-221 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-913-3641
Related Products | NSN 5930-00-913-3641
Technical Data | NSN 5930-00-913-3641

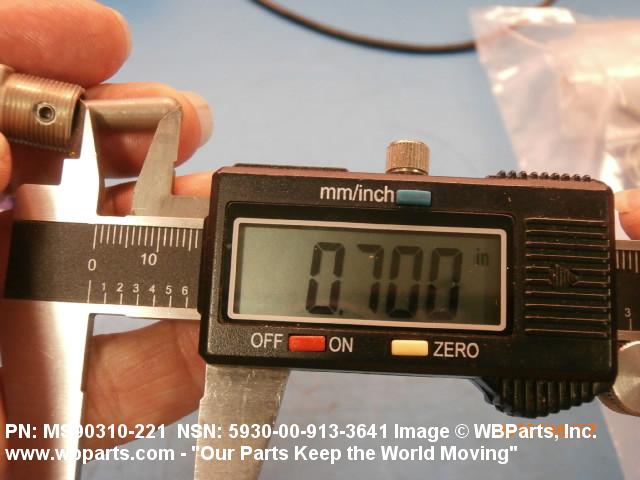

| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 5.000 AMPERES RESISTIVE DC AND 1.000 AMPERES INDUCTIVE DC AND 2.000 AMPERES RESISTIVE AC AND 1.000 AMPERES INDUCTIVE AC |
| BODY STYLE | 7P BUSHING MOUNT |
| BUSHING LENGTH | 0.469 INCHES NOMINAL |

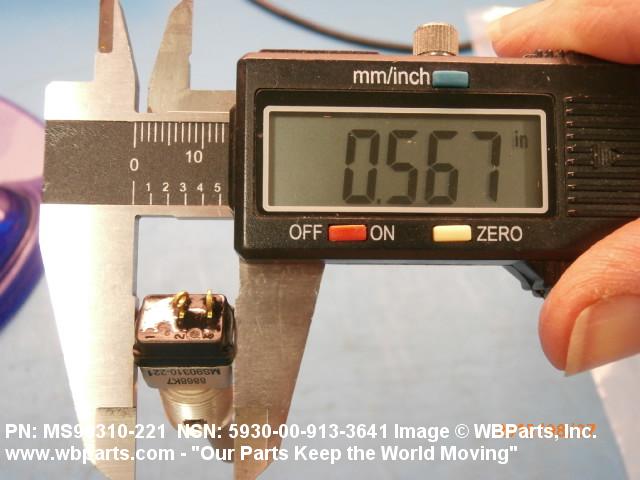

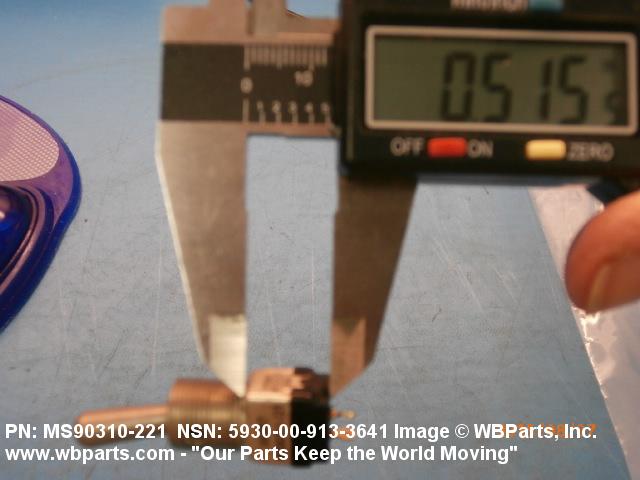

| BODY LENGTH | 0.572 INCHES MAXIMUM |

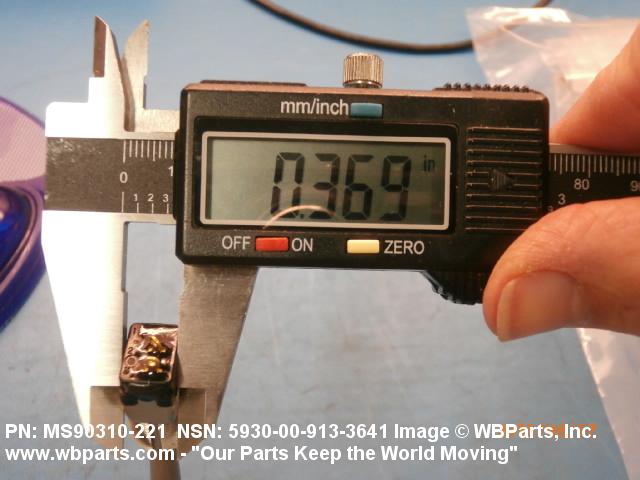

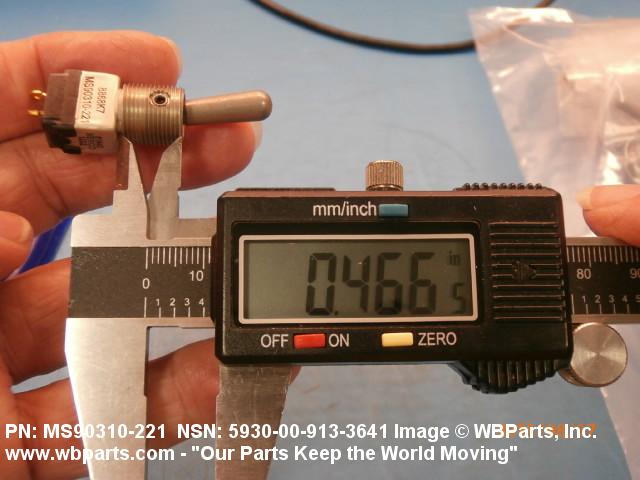

| BODY WIDTH | 0.364 INCHES MAXIMUM |
| BODY HEIGHT | 0.572 INCHES MAXIMUM |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 0.706 INCHES MAXIMUM |
| OVERALL LENGTH | 0.572 INCHES MAXIMUM |
| OVERALL WIDTH | 0.469 INCHES NOMINAL |

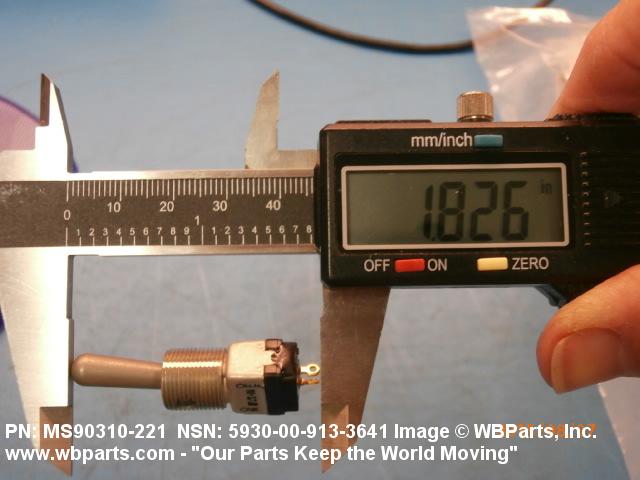

| OVERALL HEIGHT | 1.862 INCHES NOMINAL |
| ACTUATOR STYLE | 25 ROUND |

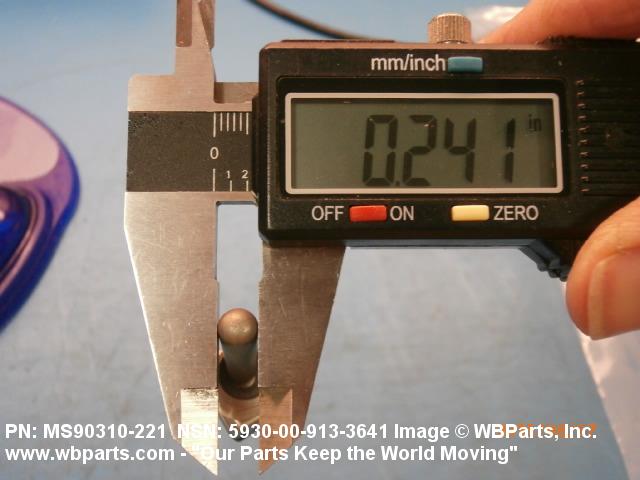

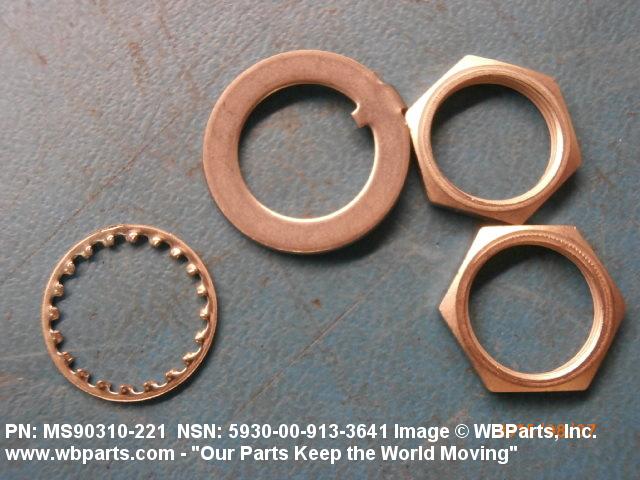

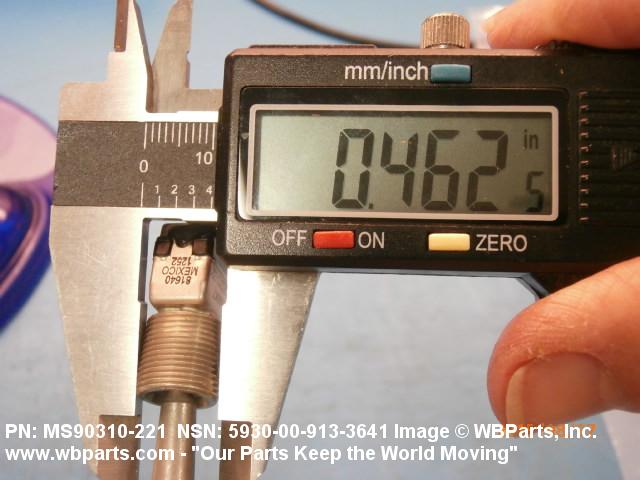

| ACTUATOR DIAMETER | 0.240 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.687 INCHES NOMINAL |
| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MAINTAINED AND DOWN POSITION MAINTAINED |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| INCLOSURE TYPE | FULLY INCLOSED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | DRIPTIGHT |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 0.469 INCHES |
| THREAD CLASS | 2B |

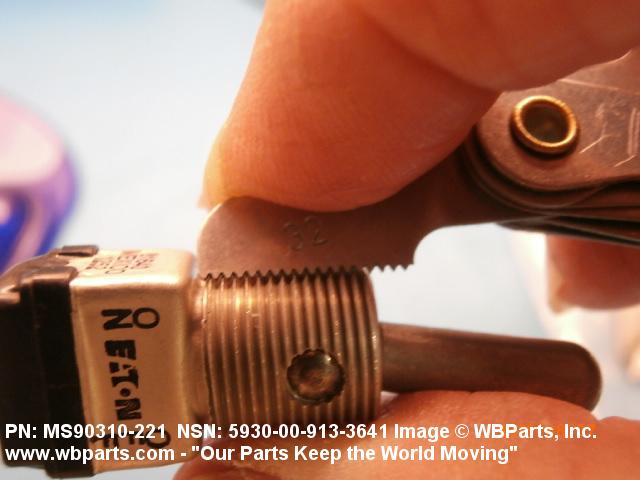

| THREAD QUANTITY PER INCH | 32 |
| FEATURES PROVIDED | ACTUATOR SEAL |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | TERMINAL SURFACES GOLD |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-DTL-8834 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS90310-221 |
