NSN 5930-00-926-2988 E2300DEGF, E2-300DEGF, WRM11300
Product Details | THERMOSTATIC SWITCH
5930-00-926-2988 A switch that is actuated by changes in ambient temperature. Excludes CIRCUIT BREAKER; CONTROL, TEMPERATURE (as modified); FUSE (as modified); PROTECTOR, THERMAL-OVERLOAD, ELECTRICAL MOTOR; RELAY, THERMAL; and THERMOSTAT, FLOW CONTROL. See also CONTROL, TEMPERATURE (as modified) and REGULATOR, TEMPERATURE (as modified).
Part Alternates: E2300DEGF, E2-300DEGF, WRM11300, WRM11-300, 1734316300, 17343-16-300, 69529715, 695297-15, 5930-00-926-2988, 00-926-2988, 5930009262988, 009262988
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 MAY 1966 | 00-926-2988 | 00451 ( SWITCH, THERMOSTATIC ) |

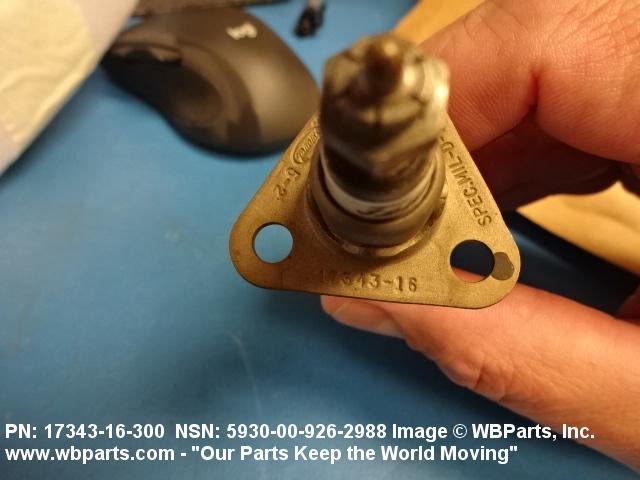

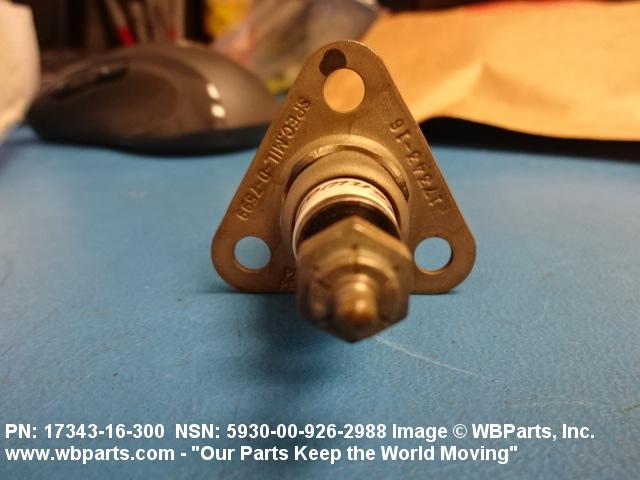

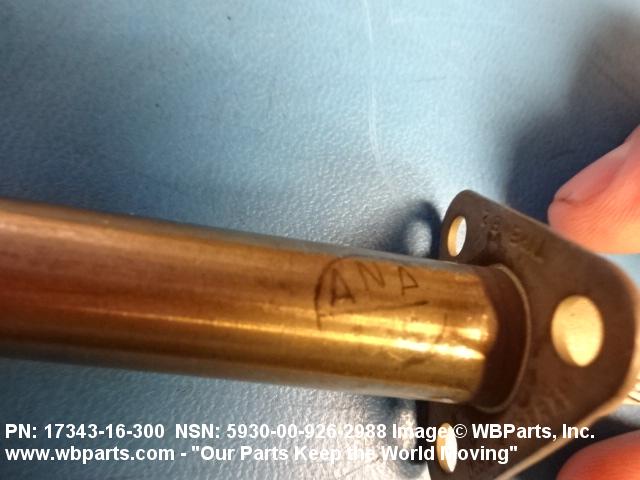

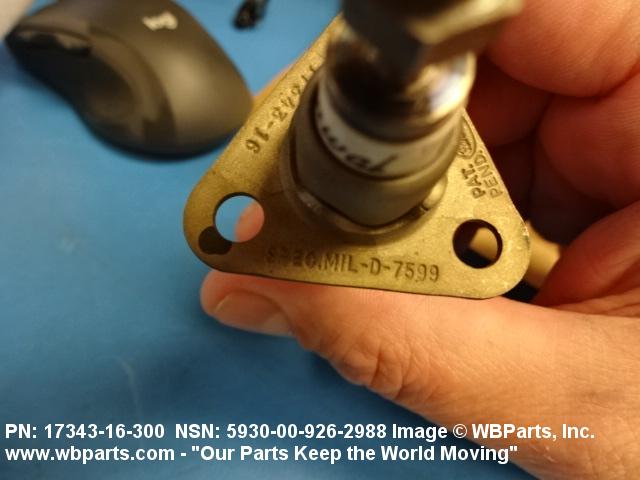

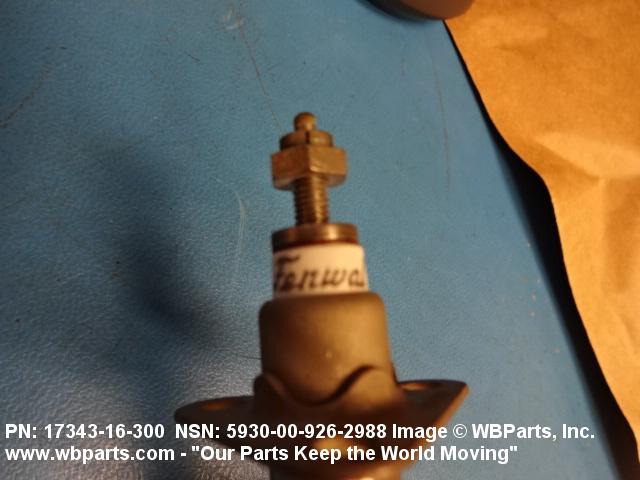

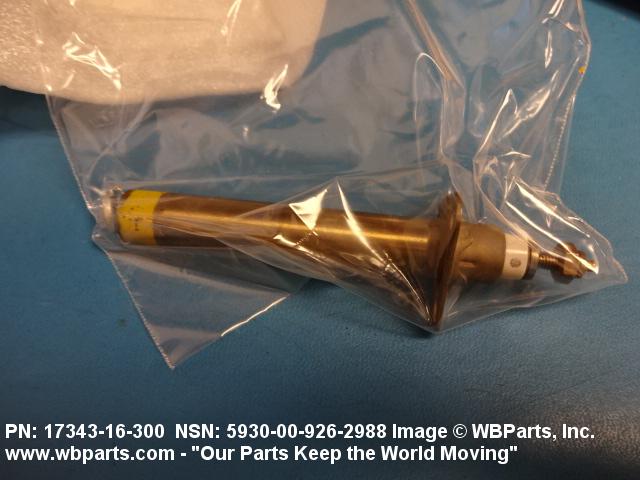

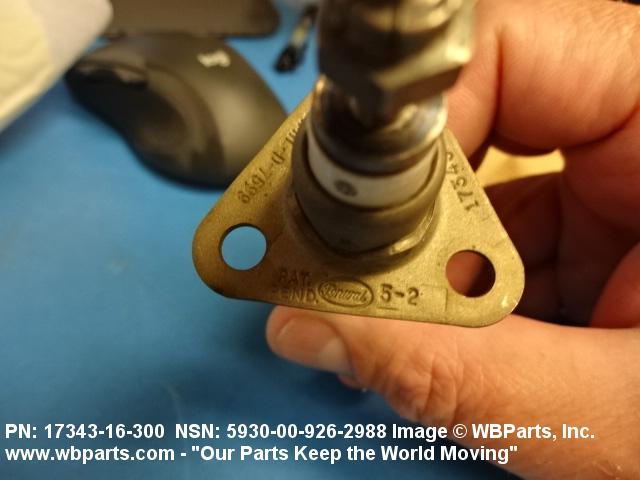

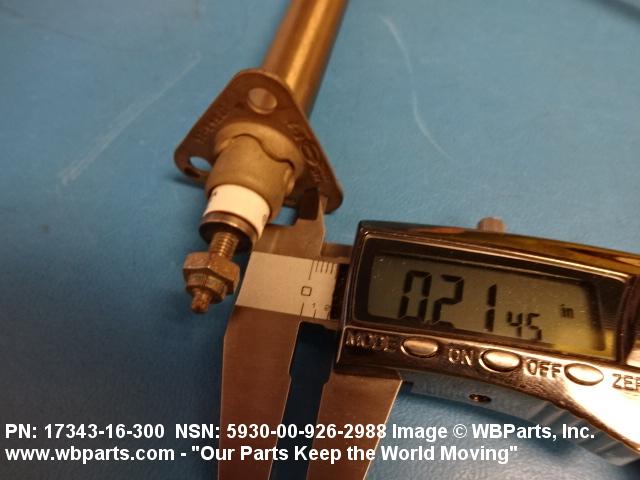

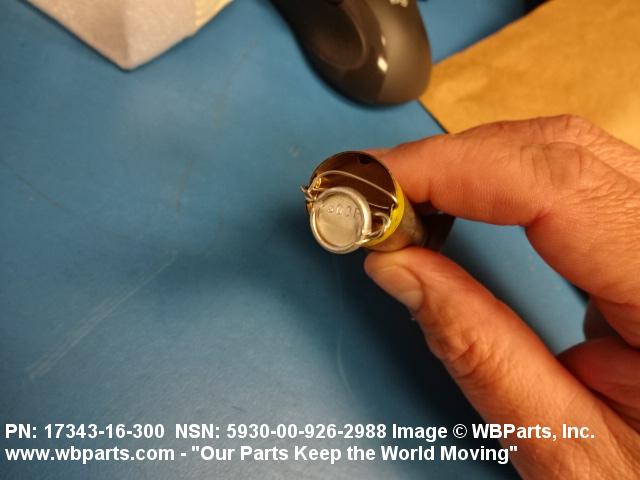

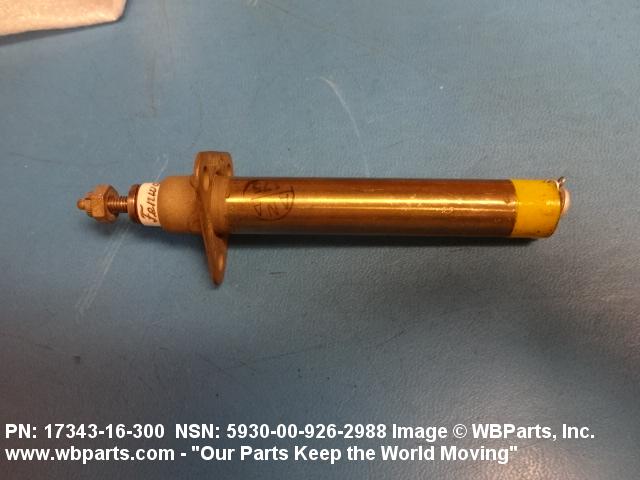

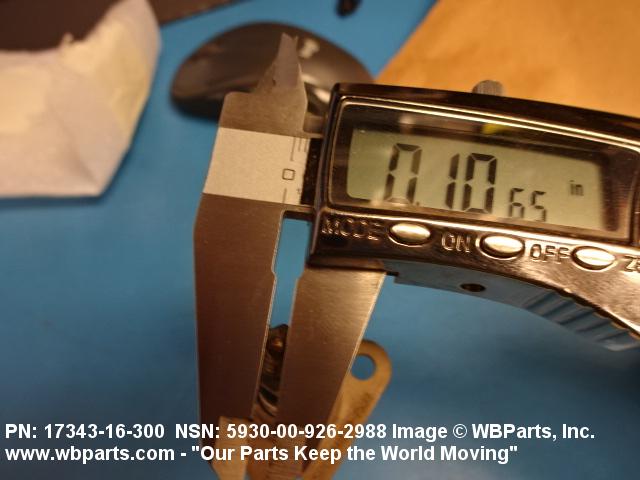

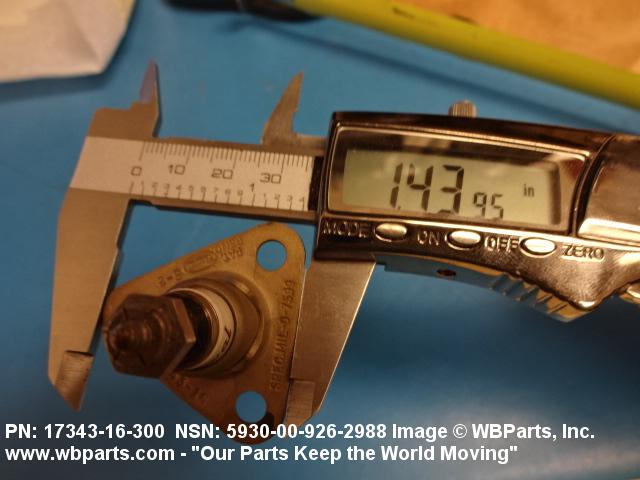

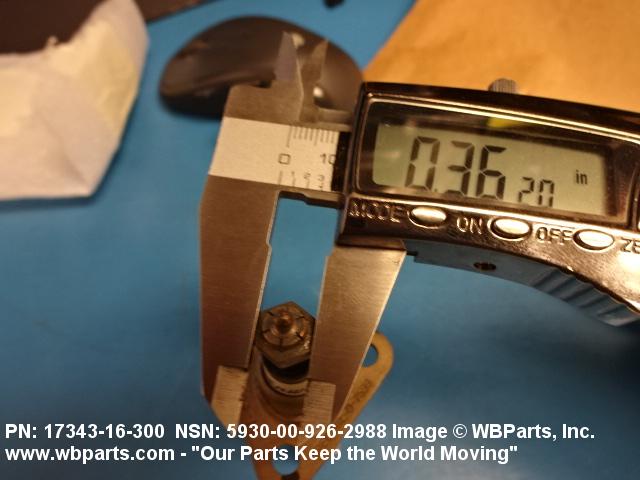

Drawings & Photos | NSN 5930-00-926-2988
Demand History | NSN 5930-00-926-2988
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-926-2988 | 2025-10-299 | 16 | Malaysia |
| 5930-00-926-2988 | 2025-04-112 | 2 | US |
| 1734316300 | 2021-12-347 | 5 | Sri Lanka |
| 5930-00-926-2988 | 2020-09-267 | 1 | United States |
| 5930-00-926-2988 | 2020-09-267 | 5 | United States |
| 1734316300 | 2020-09-259 | 6 | Malaysia |
| 1734316300 | 2020-09-255 | 6 | MY |
| 1734316300 | 2020-09-255 | 6 | Malaysia |
| 1734316300 | 2020-09-254 | 6 | Malaysia |
| 5930-00-926-2988 | 2020-02-58 | 144 | United States |
| 5930-00-926-2988 | 2019-02-38 | 144 | MANUAL |
| 17343-16-300 | 2018-02-45 | 10 | AE |
| 17343-16-300 | 2018-02-43 | 1 | United Arab Emirates |
| 5930-00-926-2988 | 2009-02-54 | 24 | Malaysia |
| 5930-00-926-2988 | 2009-02-54 | 24 | Malaysia |
| 5930-00-926-2988 | 2009-02-54 | 24 | Malaysia |
| 5930-00-926-2988 | 2009-02-49 | 24 | Philippines |
Cross Reference | NSN 5930-00-926-2988
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 17343-16-300 | 73168 | KIDDE TECHNOLOGIES INC DBA FENWAL SAFETY SYSTEMS |
| 695297-15 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| E2-300DEGF | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| WRM11-300 | 98926 | BOEING COMMERCIAL AIRPLANE CO BOEING CO PORTLAND |
| WRM11-300 | 98927 | ELECTRONIC SPECIALTY CORP RELAY DIV |
| WRM11-300 | C7407 | IV-ELECTRONIC KLAUS VESPERMANN KG |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-926-2988
Related Products | NSN 5930-00-926-2988
Technical Data | NSN 5930-00-926-2988
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 67 CYLINDRICAL W/FLANGE |

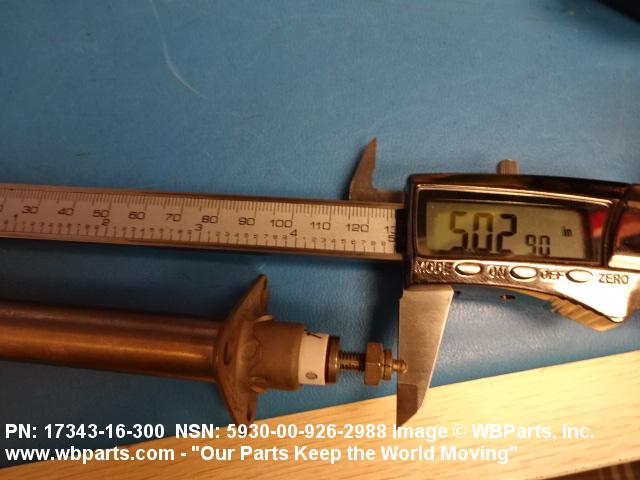

| OVERALL LENGTH | 5.125 INCHES MAXIMUM |

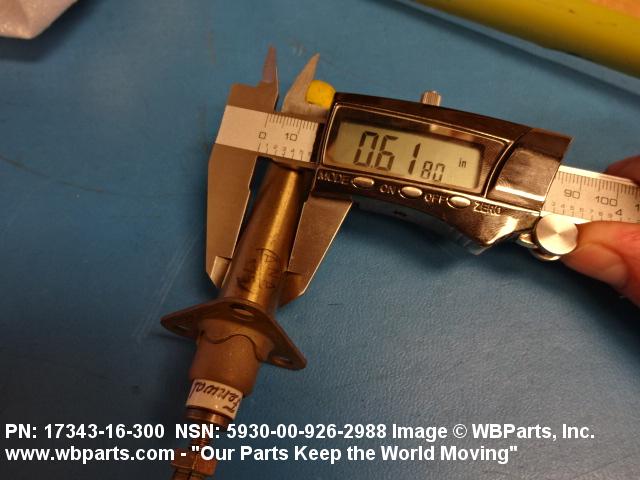

| BODY DIAMETER | 0.625 INCHES MAXIMUM |

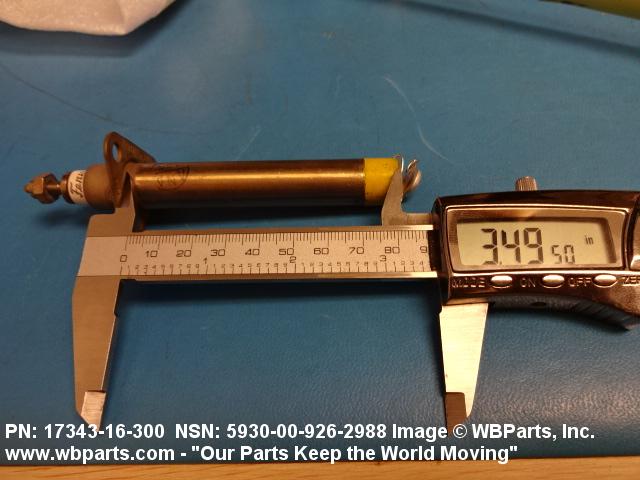

| BODY LENGTH | 3.550 INCHES MAXIMUM |

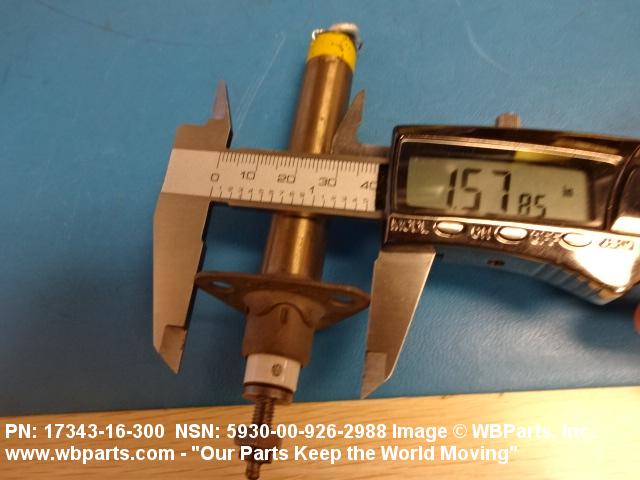

| OVERALL DIAMETER | 1.560 INCHES NOMINAL |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | DEACTUATION POINT ADJUSTABLE, PRESET AND ACTUATION POINT ADJUSTABLE, PRESET |
| CONTACT ADJUSTMENT RANGE | 300.00 TO 750.00 ACTUATION POINT DEGREES FAHRENHEIT AND 300.00 TO 750.00 DEACTUATION POINT DEGREES FAHRENHEIT |
| CONTACT ADJUSTMENT TYPE | EXTERNAL DEACTUATION POINT SCREW AND EXTERNAL ACTUATION POINT SCREW |
| CONTACT STIMULUS RATING | 300.00 ACTUATION POINT NOMINAL DEGREES FAHRENHEIT AND 299.90 DEACTUATION POINT NOMINAL DEGREES FAHRENHEIT |
| CONTACT VOLTAGE RATING IN VOLTS | 28.0 DC AT SEA LEVEL SINGLE VOLTAGE |
| CONTACT LOAD CURRENT RATING | 3.0 AMPERES RESISTIVE LOAD SINGLE VOLTAGE |
| OPERATING TEMP RATING | -65.0 DEG FAHRENHEIT MINIMUM AND 1500.0 DEG FAHRENHEIT MAXIMUM |
| MEDIA FOR WHICH DESIGNED | GAS OR LIQUID |
| TEMP SENSING ELEMENT TYPE | INTERNAL SENSOR |
| TERMINAL TYPE | THREADED STUD |
| MOUNTING METHOD | FLANGE AND UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.221 INCHES NOMINAL |
| MOUNTING FACILITY PATTERN | THREE POSITION CIRCULAR |
| MOUNTING FACILITY CIRCLE RADIUS | 0.625 INCHES NOMINAL |
| FEATURES PROVIDED | TAMPER PROOF CAP |
Restrictions/Controls & Freight Information | NSN 5930-00-926-2988
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-926-2988
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
