NSN 5930-00-931-0516 MS90310271, MS90310-271, M90310271

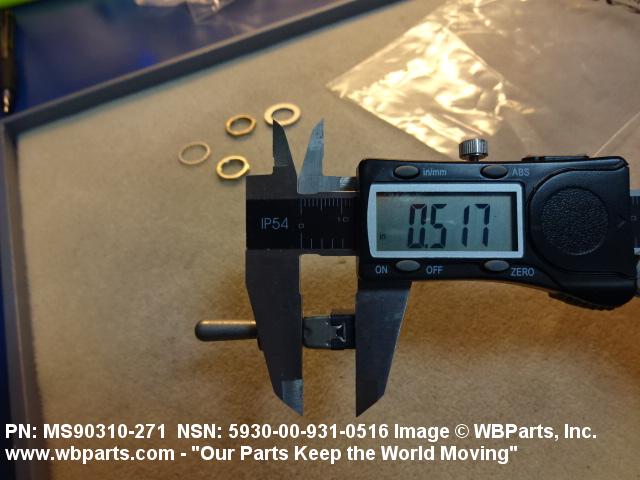

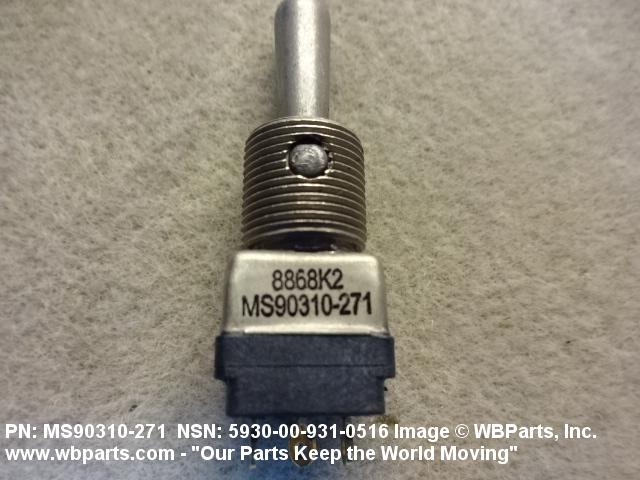

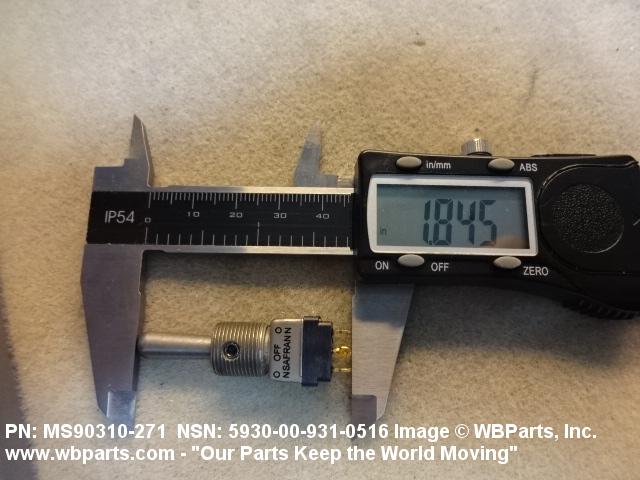

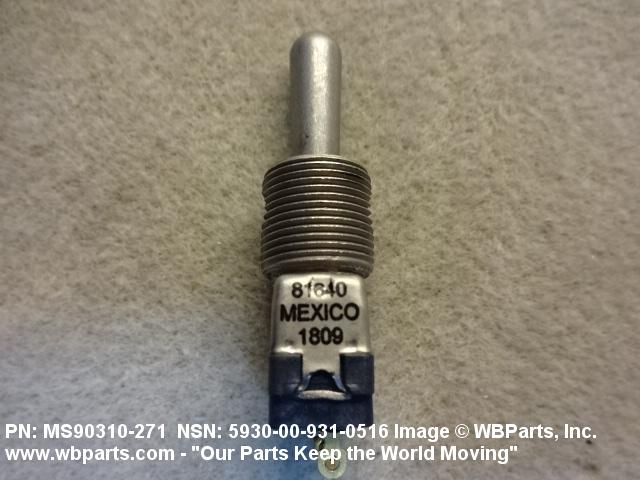

Product Details | TOGGLE SWITCH

5930-00-931-0516 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.

Part Alternates: MS90310271, MS90310-271, M90310271, M90310-271, MILDTL8834, MIL-DTL-8834, MILS8834, MIL-S-8834, W41262K6100B6, W41262-K6100-B6, 0700358271, 07-00358-271, 2665361000, 266-5361-000, 6L.4612.42600-152882, 6L461242600152882, 8120851271, 812085-1271, 9132C30062, 9132C3006-2, 9352065, 935206-5, 5930-00-931-0516, 00-931-0516, 5930009310516, 009310516

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	16 SEP 1966	00-931-0516	00184 ( SWITCH, TOGGLE )

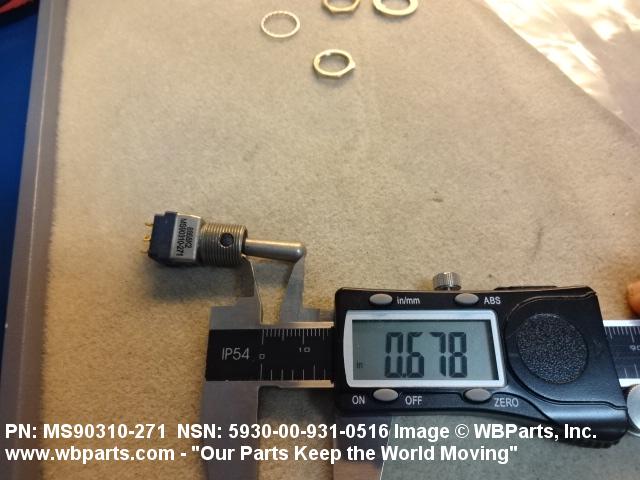

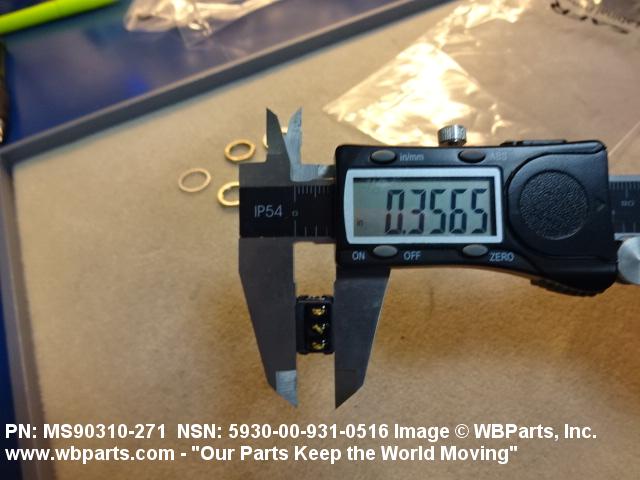

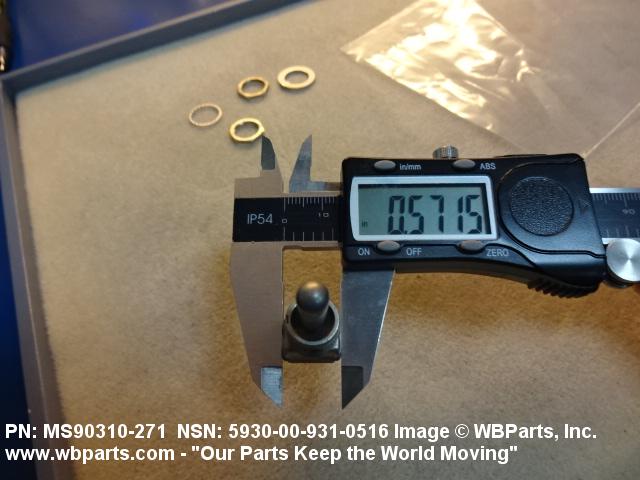

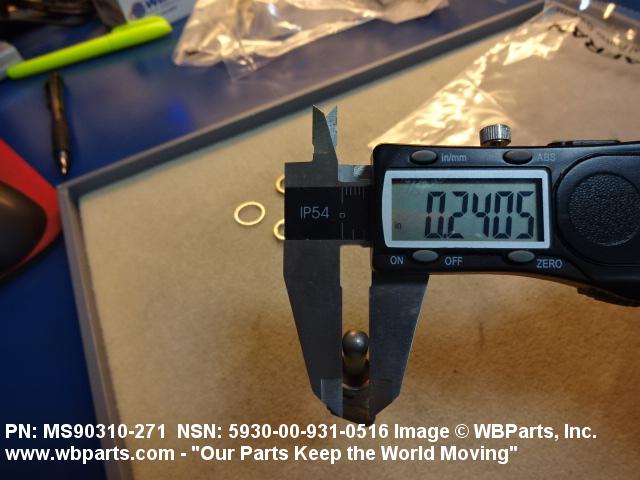

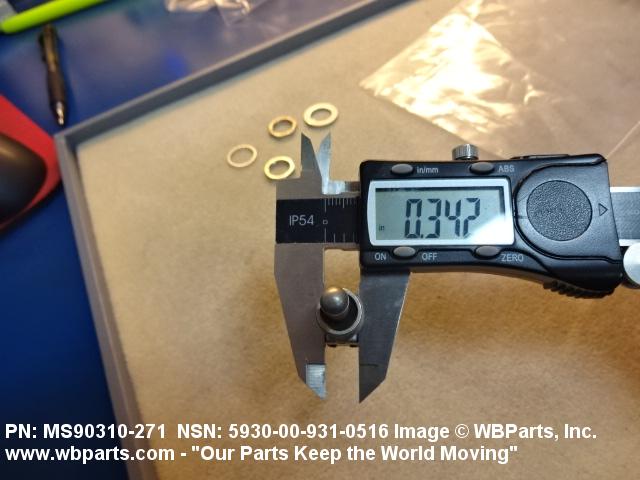

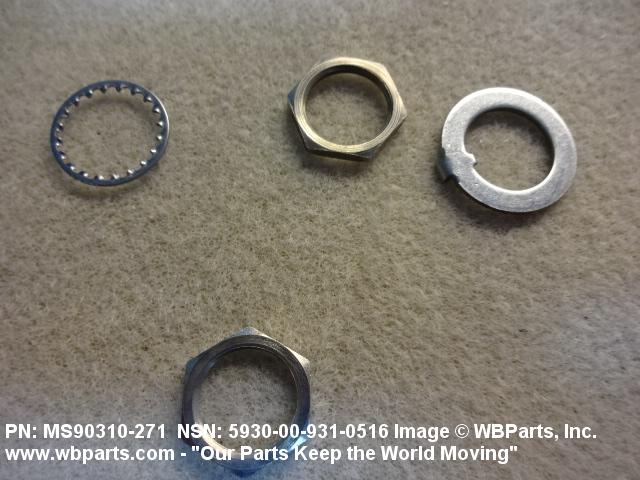

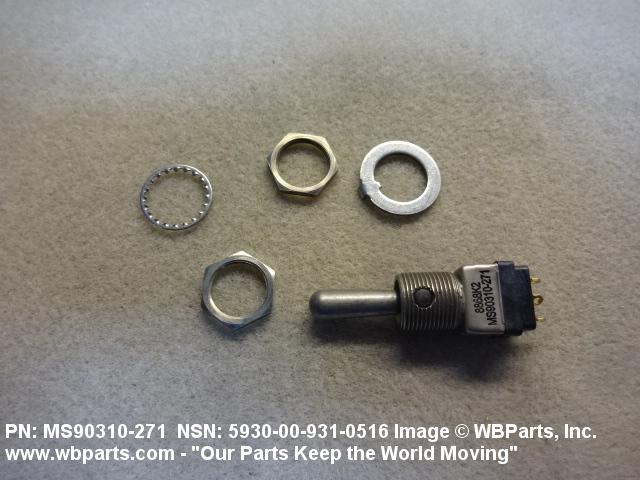

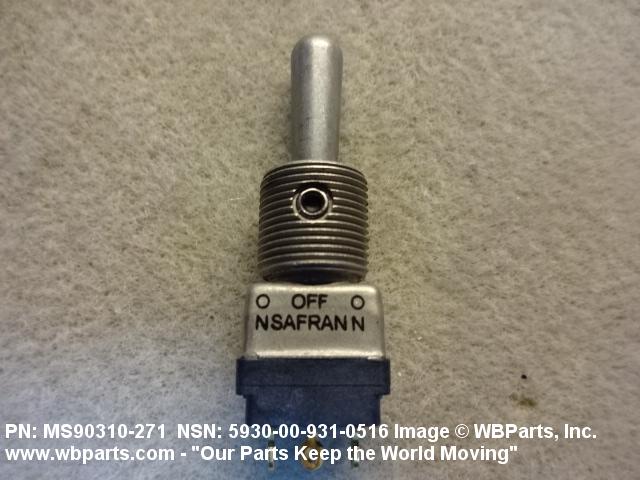

Drawings & Photos | NSN 5930-00-931-0516

Part Number	Request Date	QTY	Origin
5930-00-931-0516	2024-07-191	483	DIBBS
5930-00-931-0516	2024-06-179	483	DIBBS
5930-00-931-0516	2021-01-27	5	US
5930-00-931-0516	2018-03-88	15	us
MILDTL8834	2017-03-81	3	United States
5930-00-931-0516	2014-05-139	6	CL
5930-00-931-0516	2014-01-20	6	Chile
5930-00-931-0516	2013-03-69	10	DIBBS
MS90310271	2012-08-244	20	US
MILS8834	2012-07-192	10	Australia
MS90310271	2012-04-111	50	United States
5930-00-931-0516	2012-04-94	285	DIBBS
MS90310271	2011-01-02	10	KR
M90310271	2010-12-347	2	us
5930-00-931-0516	2010-03-60	434	DIBBS
5930-00-931-0516	2009-10-293	268	DIBBS
MS90310271	2009-04-98	1	US
MS90310271	2008-02-38	30	US
5930-00-931-0516	2008-02-36	722	DIBBS
5930-00-931-0516	2007-12-346	324	DIBBS
5930-00-931-0516	2007-11-310	835	DIBBS

Cross Reference | NSN 5930-00-931-0516

Part Number	Cage Code	Manufacturer
07-00358-271	K0268	RAYTHEON SYSTEMS LTD
266-5361-000	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
6L.4612.42600-152882	D0327	SELEX COMMUNICATIONS GMBH
812085-1271	65597	THALES DEFENSE & SECURITY, INC.
9132C3006-2	87557	LOCKHEED CORP LOCKHEED ELECTRONICS CO INC
935206-5	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
935206-5	81640	EATON CORPORATION DBA FLUID POWER DIV
M90310-271	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-DTL-8834	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-S-8834	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS90310-271	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
W41262-K6100-B6	C0426	AIRBUS DEFENCE AND SPACE GMBHELECTRONICS
