NSN 5930-00-933-6815 A9835, SMB544238, SM-B-544238
Product Details | PUSH SWITCH
5930-00-933-6815 A switch that is externally actuated by a device such as a push rod or button, which requires pushing for each actuation. The action may be momentary, with mechanical return. The actuating device may or may not be an integral part of the switch. The item may include provisions for mounting indicating lamp(s) or light emitting diode(s) in the actuator. Includes items consisting of individually separable switches that are physically interlocked, that have a common actuator, or are electrically connected. Excludes LIGHT-SWITCH; LIGHT-SWITCH ASSEMBLY; SWITCH, BEAM SELECTING, HEADLIGHT; SWITCH, FOOT; SWITCH, INTERLOCK; SWITCH, PRESSURE; SWITCH, PUSH-PULL; SWITCH, SENSITIVE and SWITCH ASSEMBLY. For devices which start, stop, reverse, select and/or regulate the speed of a motor, see STARTER, MOTOR and CONTROLLER, MOTOR.
Part Alternates: A9835, SMB544238, SM-B-544238, 72560132, 82933, 5930-00-933-6815, 00-933-6815, 5930009336815, 009336815
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 21 SEP 1966 | 00-933-6815 | 00406 ( SWITCH, PUSH ) |

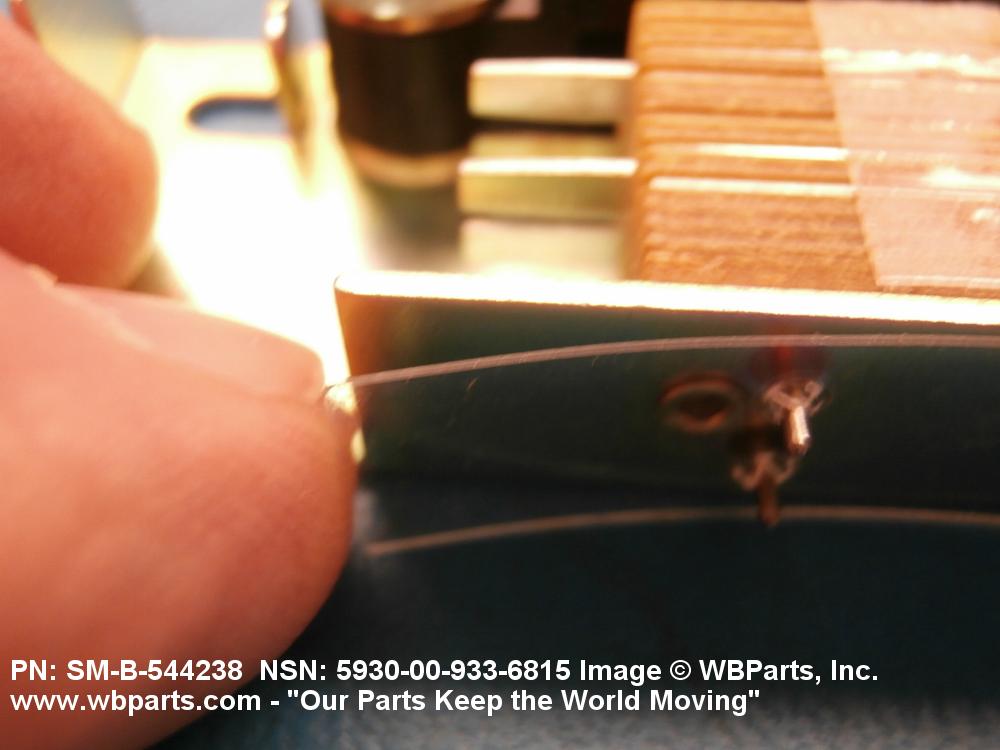

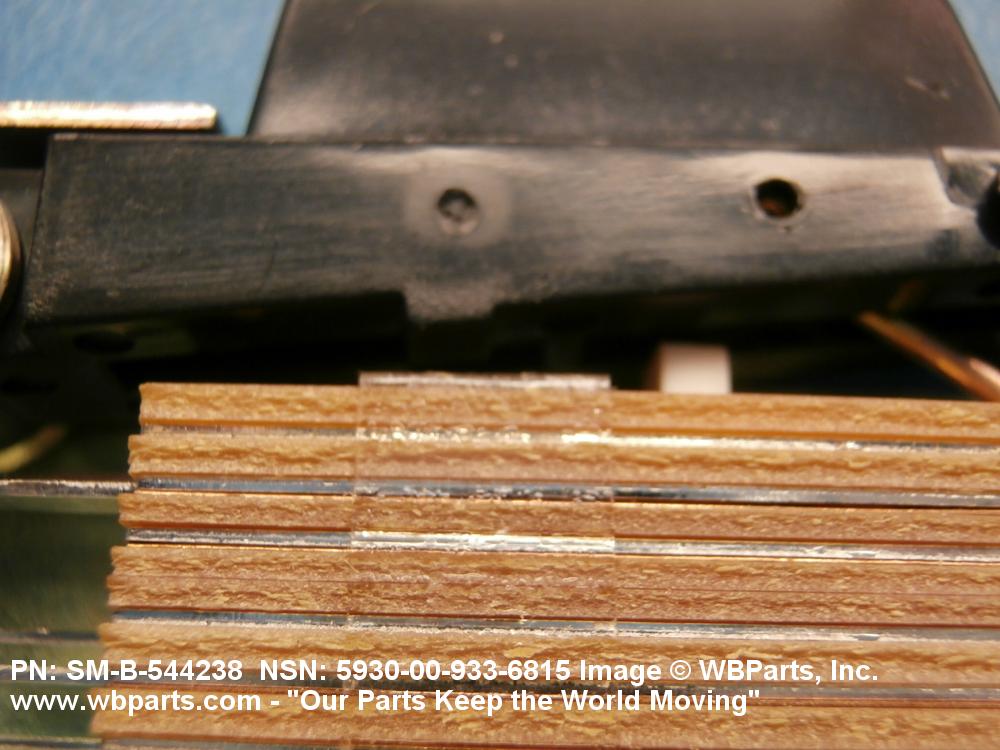

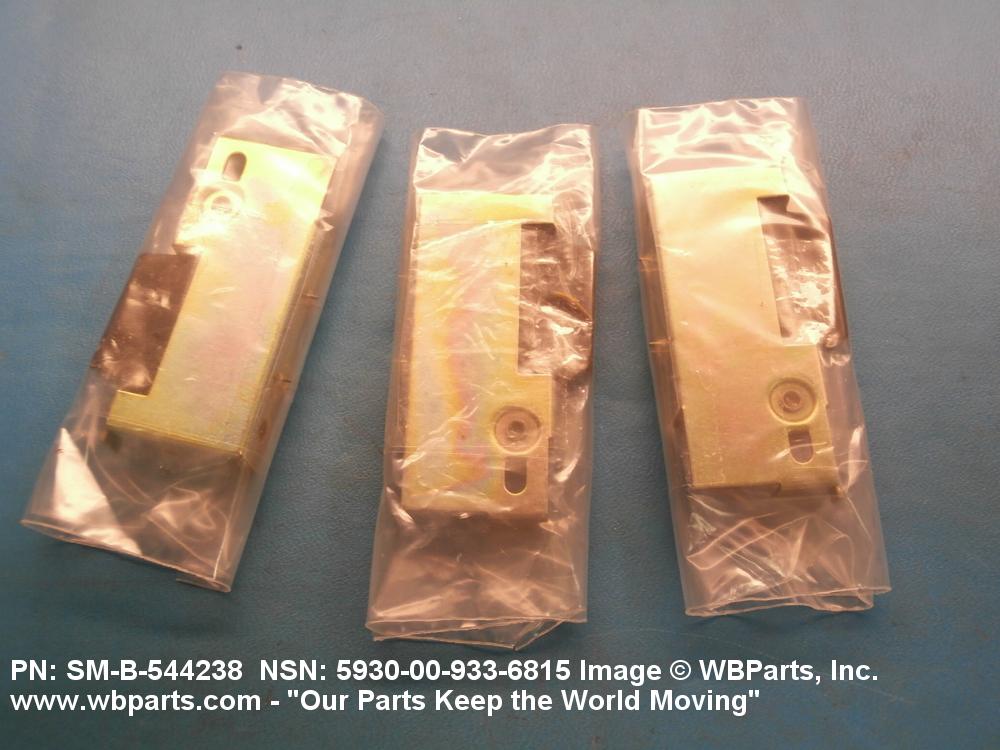

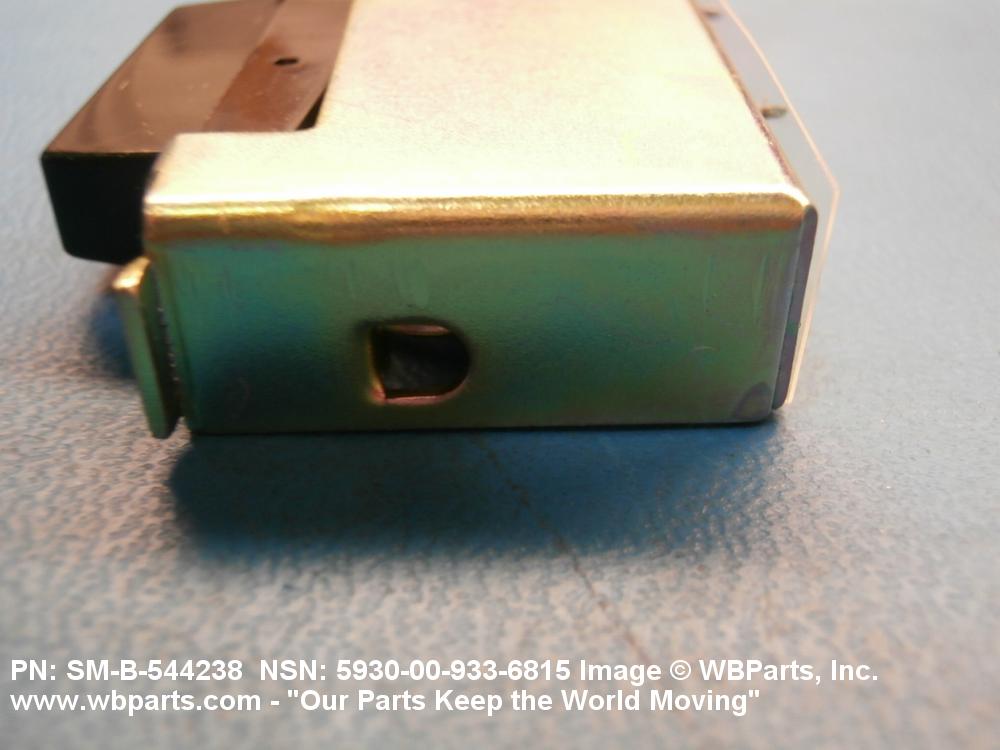

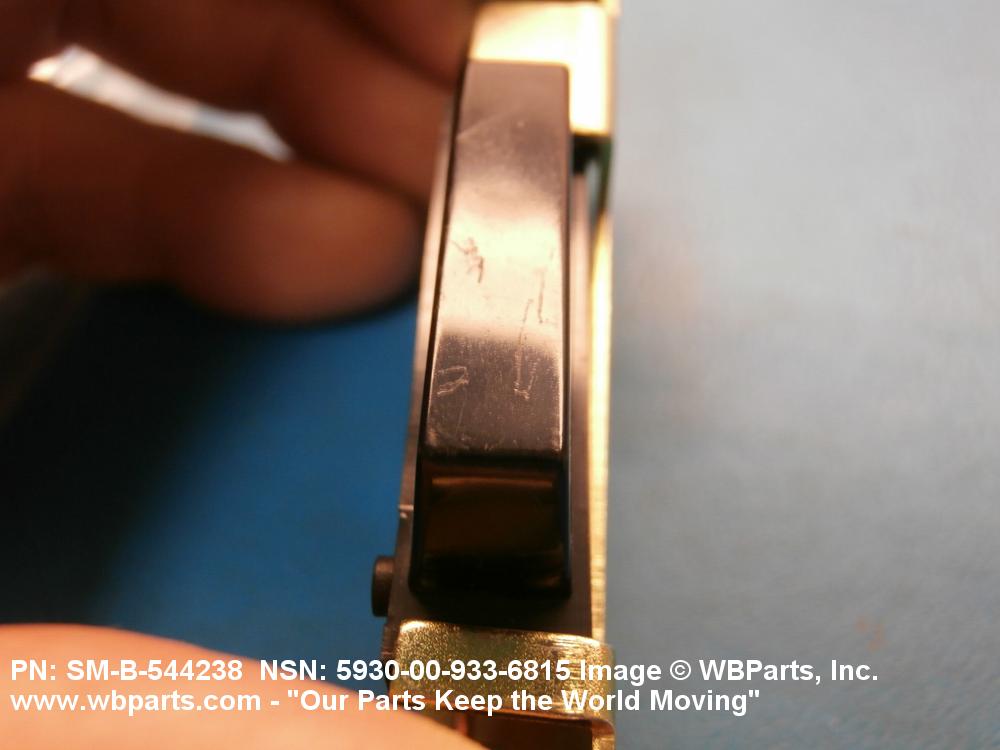

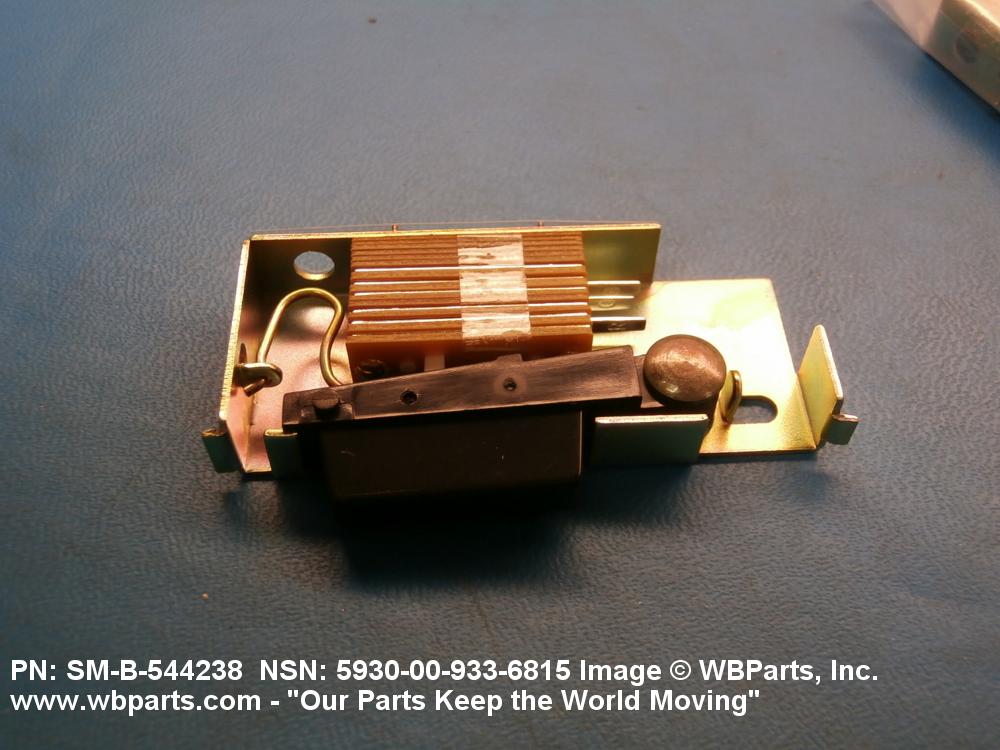

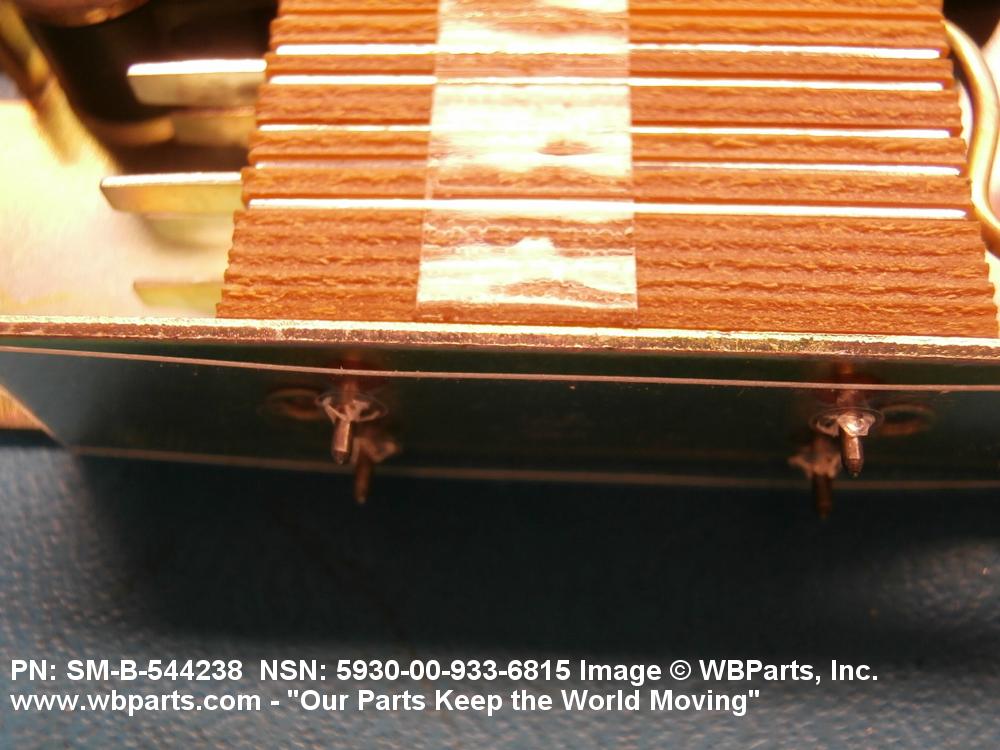

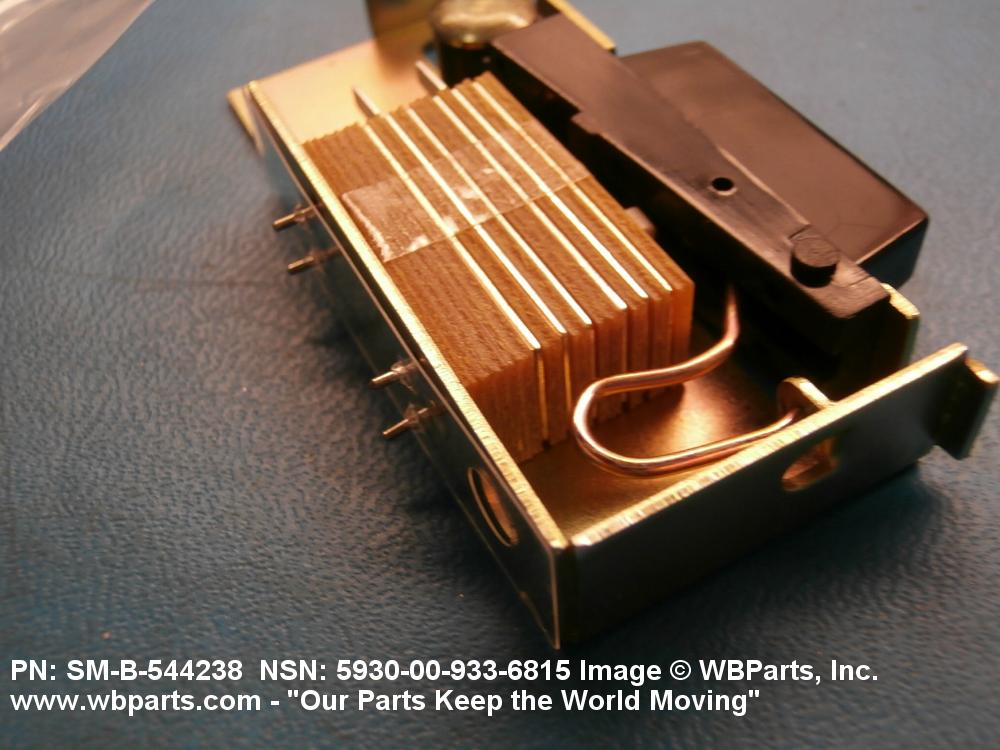

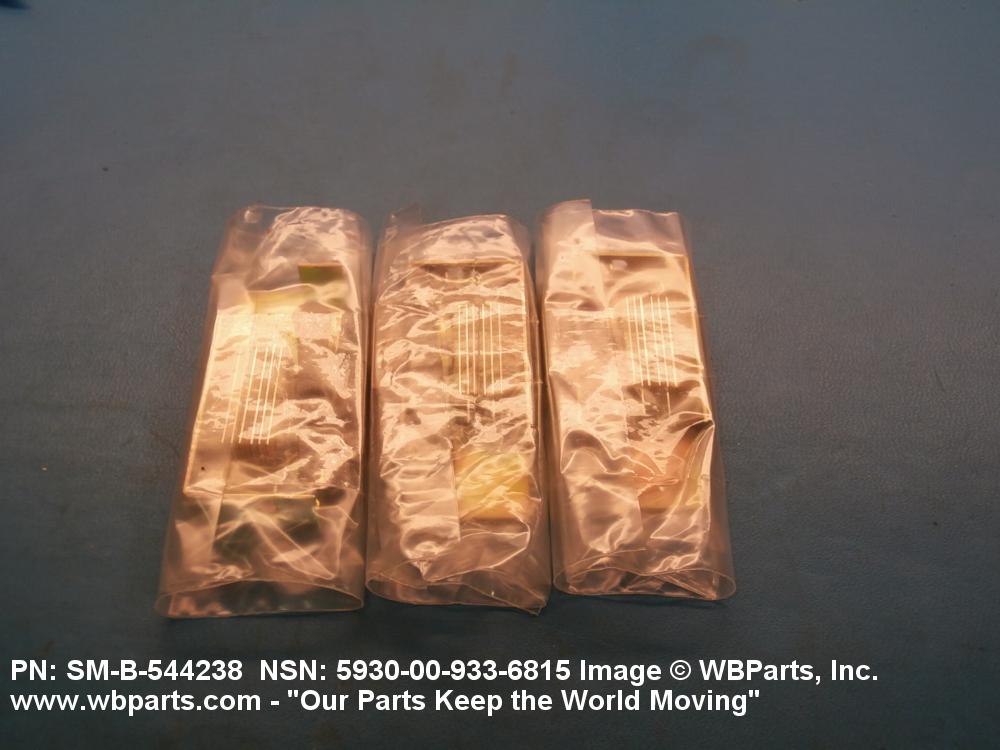

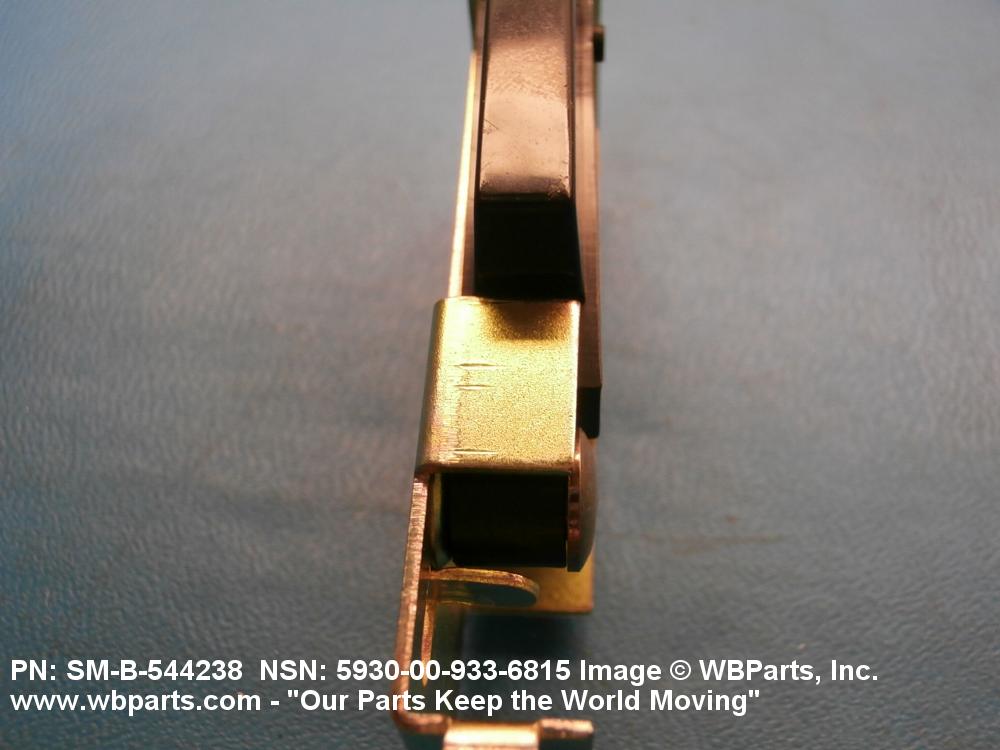

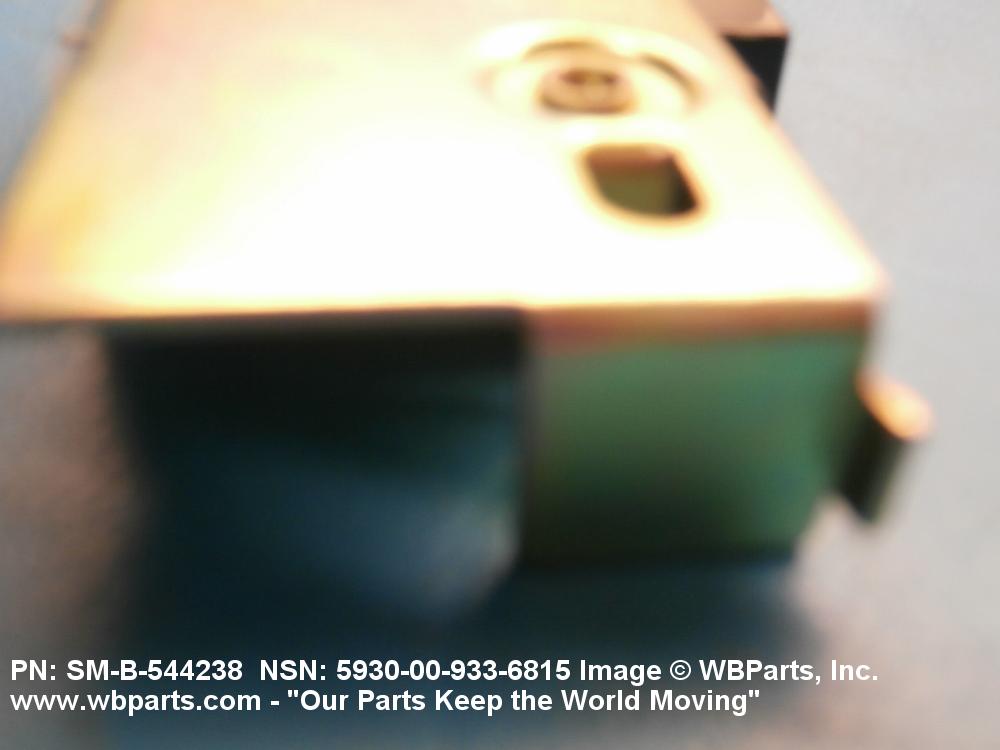

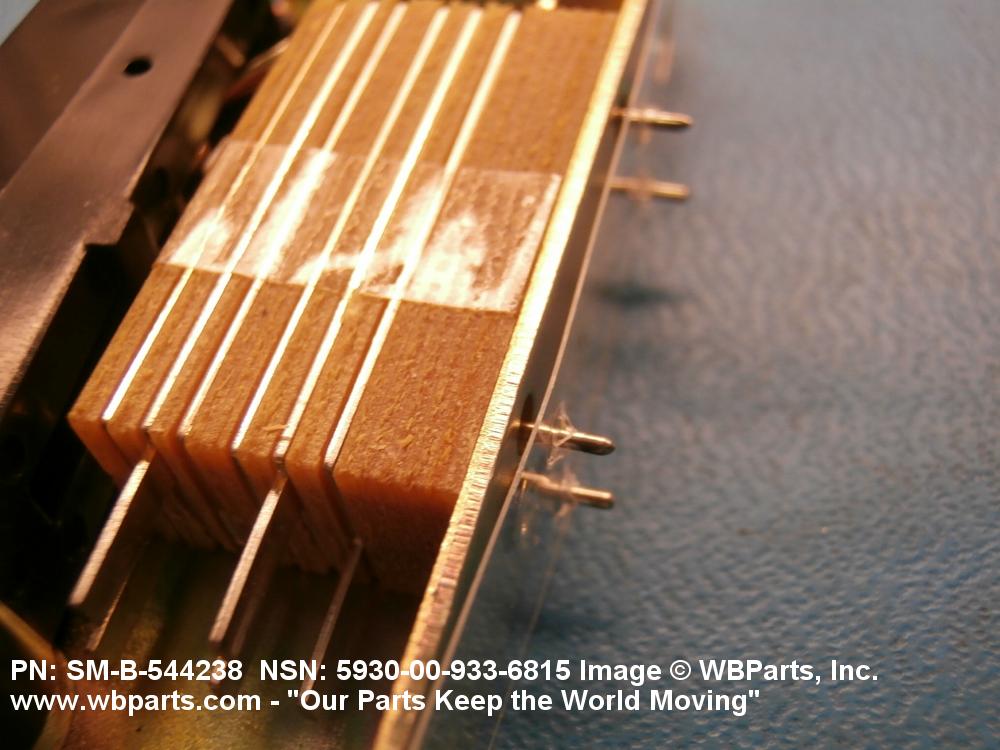

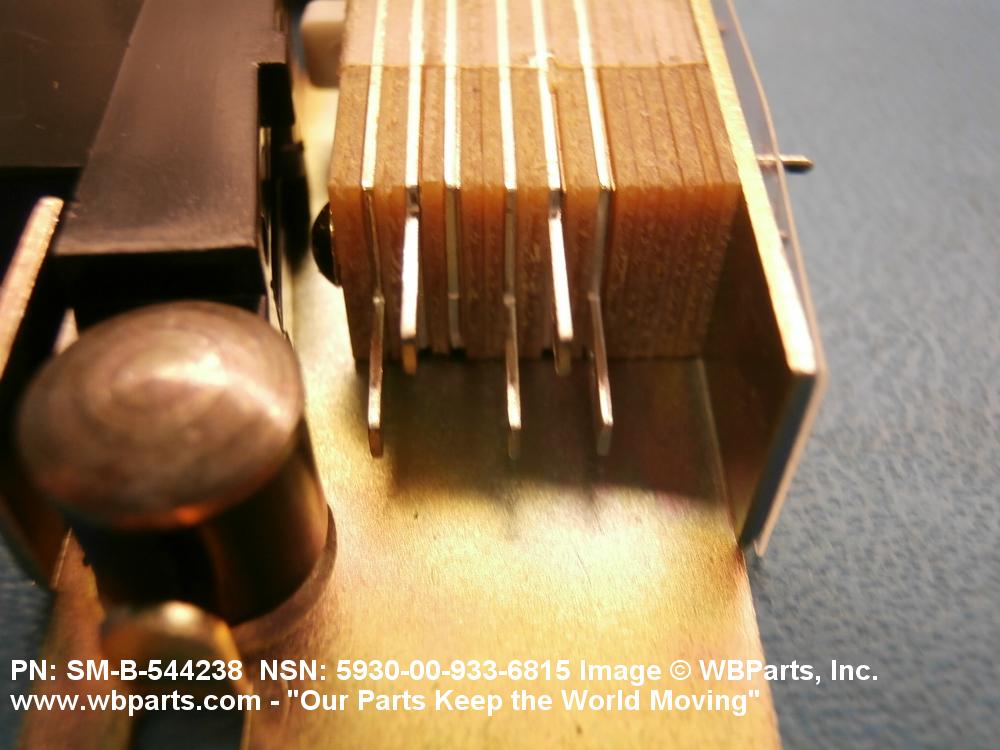

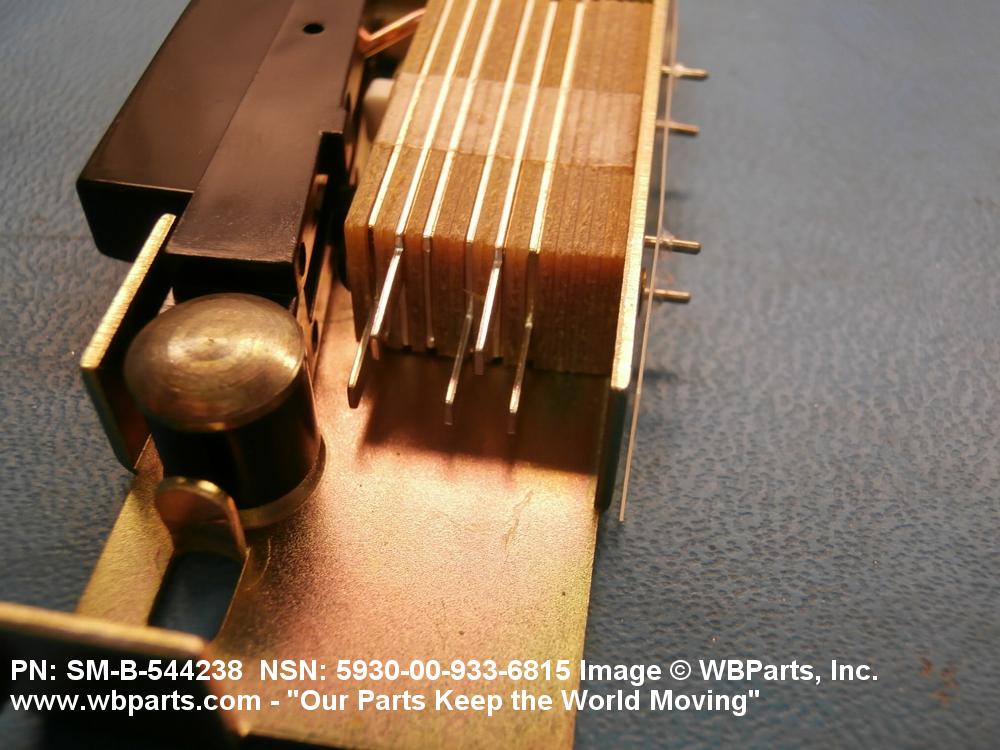

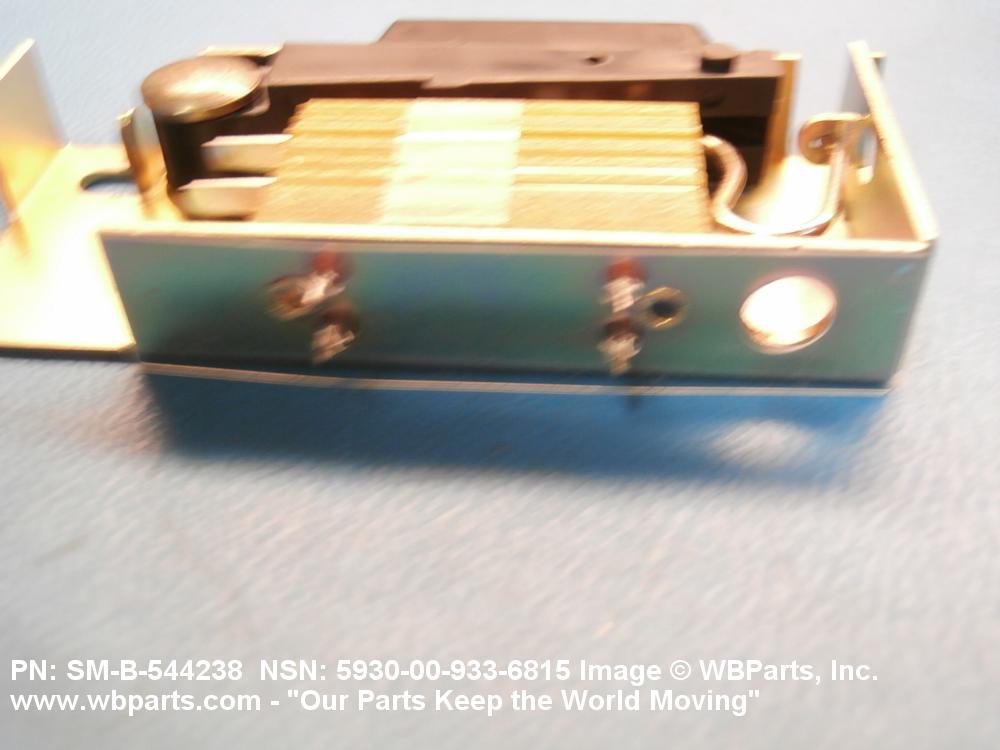

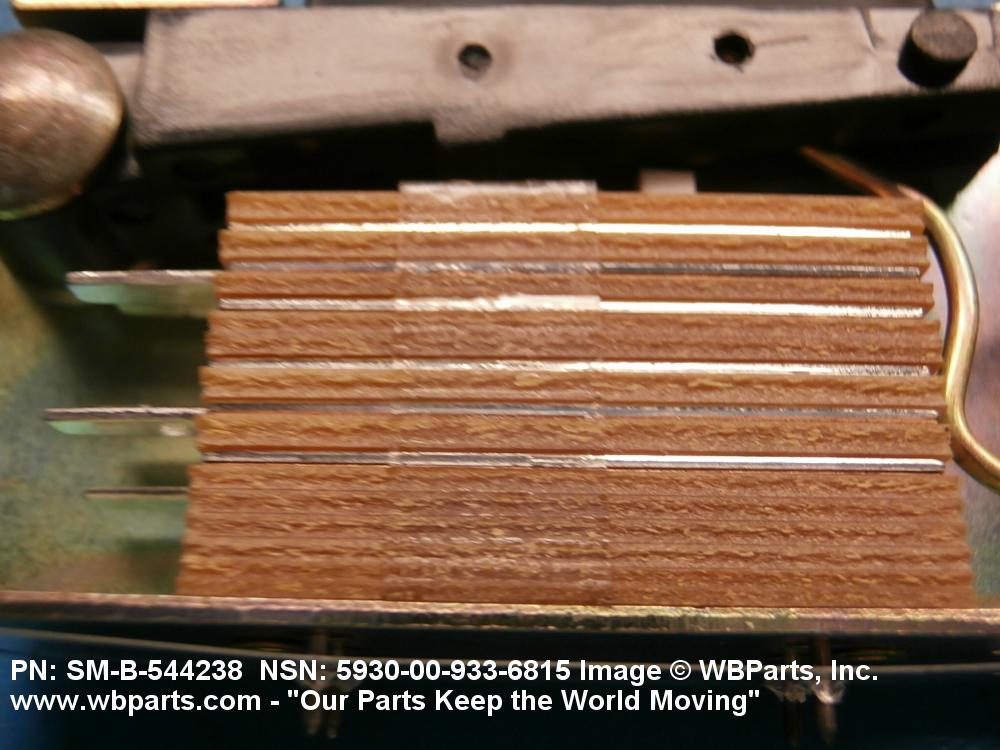

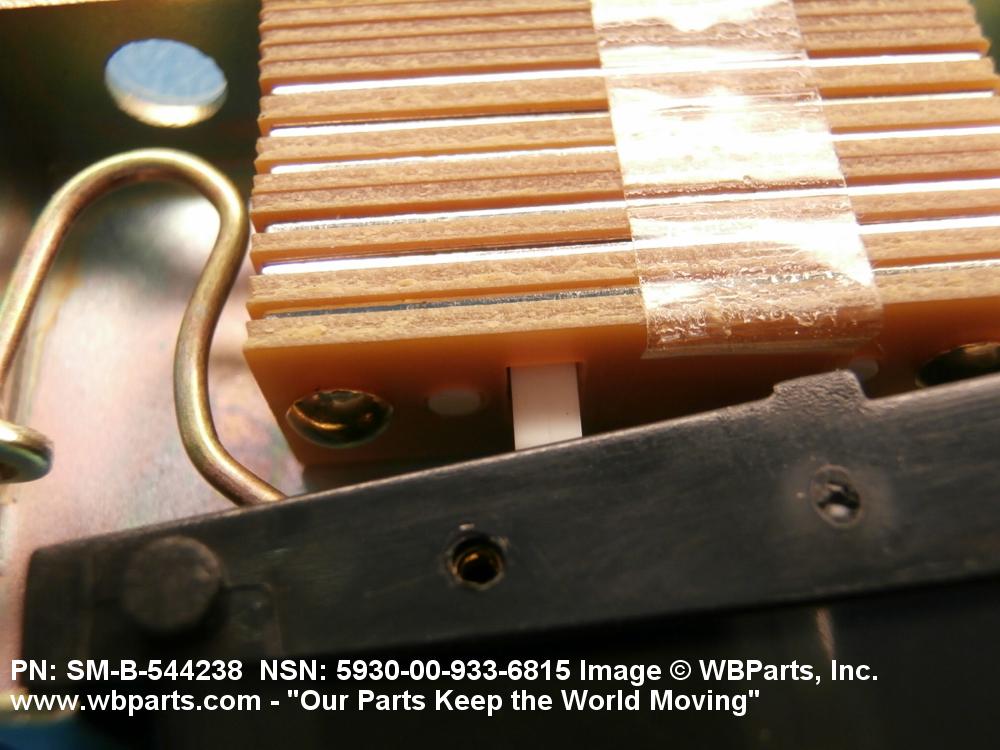

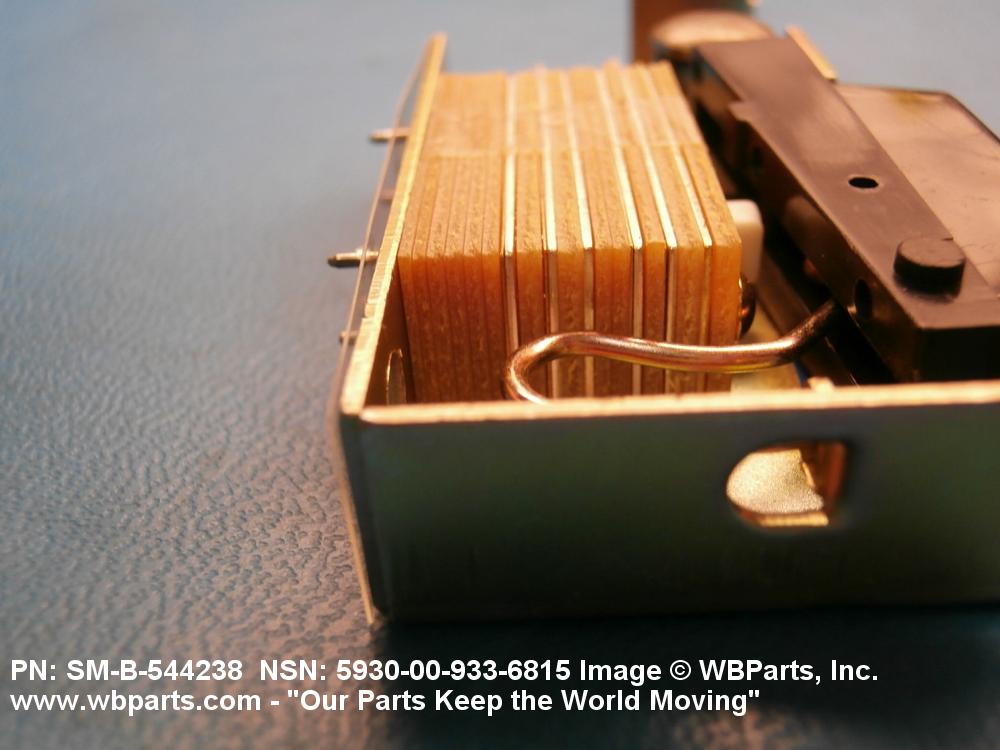

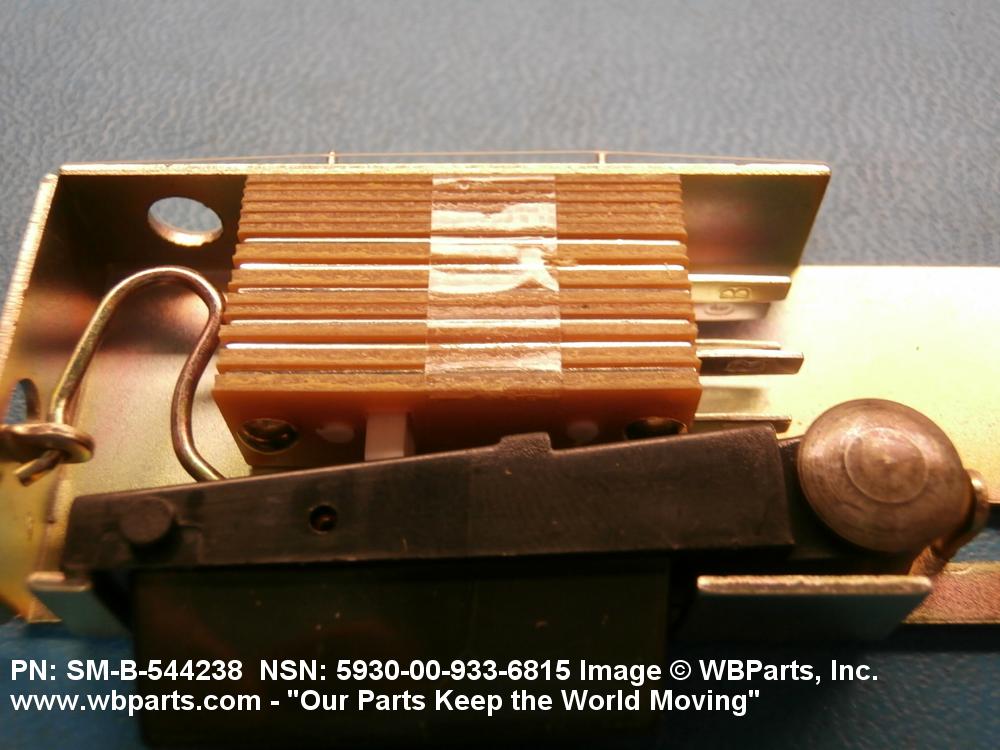

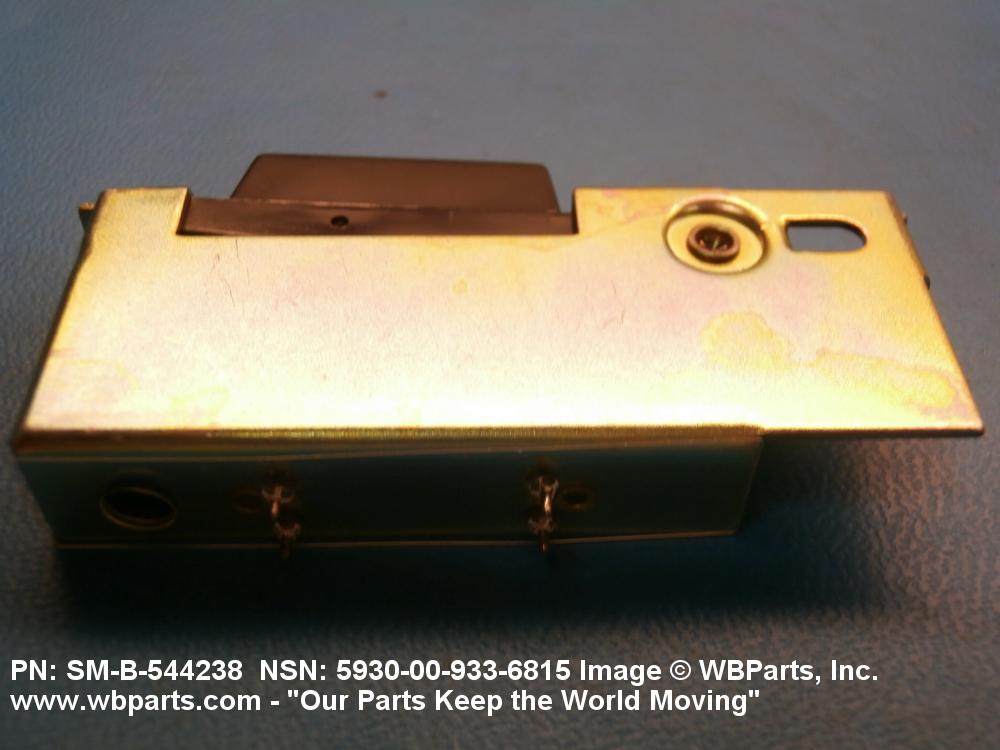

Drawings & Photos | NSN 5930-00-933-6815
Demand History | NSN 5930-00-933-6815
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-933-6815 | 2025-06-181 | 598 | DIBBS |
| 5930-00-933-6815 | 2025-06-170 | 598 | DIBBS |
| 5930-00-933-6815 | 2024-12-348 | 79 | Taiwan |
| 5930-00-933-6815 | 2024-12-347 | 67 | DIBBS |
| 5930-00-933-6815 | 2024-11-312 | 65 | DIBBS |
| 5930-00-933-6815 | 2024-09-261 | 189 | DIBBS |
| 5930-00-933-6815 | 2024-05-149 | 138 | DIBBS |
| 5930-00-933-6815 | 2024-04-116 | 110 | DIBBS |
| 5930-00-933-6815 | 2024-04-113 | 25 | DIBBS |
| 5930-00-933-6815 | 2024-04-101 | 14 | DIBBS |
| 5930-00-933-6815 | 2024-03-81 | 992 | DIBBS |
| 5930-00-933-6815 | 2024-01-04 | 1 | DIBBS |
| 5930-00-933-6815 | 2023-10-282 | 14 | DIBBS |
| 5930-00-933-6815 | 2023-10-282 | 992 | DIBBS |
| 5930-00-933-6815 | 2023-10-282 | 110 | DIBBS |
| 5930-00-933-6815 | 2023-06-171 | 14 | DIBBS |
| 5930-00-933-6815 | 2023-03-81 | 37 | Taiwan |
| 5930-00-933-6815 | 2022-10-286 | 992 | DIBBS |
| 5930-00-933-6815 | 2022-03-88 | 793 | DIBBS |
| 5930-00-933-6815 | 2022-03-88 | 110 | DIBBS |
| 5930-00-933-6815 | 2021-04-98 | 44 | Taiwan |
| A9835 | 2021-02-40 | 793 | DIBBS |
| SMB544238 | 2021-02-40 | 793 | DIBBS |
| SM-B-544238 | 2021-02-40 | 793 | DIBBS |
| 5930-00-933-6815 | 2020-02-34 | 1000 | us |
| 5930-00-933-6815 | 2019-12-361 | 63 | Taiwan |
| 5930-00-933-6815 | 2019-10-298 | 63 | Taiwan |
| 5930-00-933-6815 | 2018-06-163 | 50 | Taiwan |
| 5930-00-933-6815 | 2017-06-177 | 282 | DIBBS |
| 5930-00-933-6815 | 2015-09-271 | 337 | DIBBS |
| SMB544238 | 2014-09-265 | 80 | US |
| 5930-00-933-6815 | 2014-05-126 | 67 | DIBBS |
| 5930-00-933-6815 | 2014-02-50 | 71 | DIBBS |
| 5930-00-933-6815 | 2013-12-336 | 210 | DIBBS |
| 5930-00-933-6815 | 2013-05-122 | 863 | DIBBS |
| 5930-00-933-6815 | 2013-04-107 | 863 | DIBBS |
| 5930-00-933-6815 | 2012-11-331 | 30 | Sweden |
| 5930-00-933-6815 | 2012-11-327 | 30 | Sweden |
| 5930-00-933-6815 | 2008-04-96 | 100 | US |
| 5930-00-933-6815 | 2008-03-87 | 2051 | DIBBS |
| SMB544238 | 2006-10-279 | 165 | DE |
Cross Reference | NSN 5930-00-933-6815
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5930009336815 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 72560132 | S0522 | TADIRAN LTD |
| 82933 | 81134 | BOSCH SECURITY SYSTEMS, INC DBA USE CAGE CODE 25734 FOR |
| A9835 | 05584 | AUTODYNE MANUFACTURING CO., INC. |
| SM-B-544238 | 16575 | SONETRONICS INC DBA SONETRONICS |
| SMB544238 | 10389 | ITW SWITCHES DIV OF ILLINOIS TOOL WORKS INC |
| SMB544238 | 18062 | BE CU MANUFACTURING CO INC |
| SMB544238 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-933-6815
Related Products | NSN 5930-00-933-6815
Technical Data | NSN 5930-00-933-6815
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 2 POLE, SINGLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 24.0 AC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 500.000 MILLIAMPERES RESISTIVE AC |
| BODY STYLE | 30K PANEL MOUNT |
| BODY LENGTH | 1.125 INCHES NOMINAL |
| BODY WIDTH | 0.410 INCHES NOMINAL |
| BODY HEIGHT | 0.660 INCHES MAXIMUM |
| OVERALL LENGTH | 2.921 INCHES MAXIMUM |
| OVERALL WIDTH | 0.438 INCHES NOMINAL |
| OVERALL HEIGHT | 1.796 INCHES MAXIMUM |
| ACTUATOR STYLE | 14 RECTANGULAR |
| ACTUATOR LENGTH | 1.219 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.360 INCHES NOMINAL |
| ACTUATOR WIDTH | 0.250 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 4 QUICK DISCONNECT, MALE |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | PANEL |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | TICRONDEROGA CLASS CG (47), POWHATAN CLASS T-ATF 166, NIMITZ CLASS CVN, KIDD CLASS CGN (41), VIRGINIA CLASS CGN (41), SPRUANCE CLASS DD (963), FORRESTAL CLASS CV, DEEP SUBMERGENCE SYSTEMS PROGRAMS (DSSP), RADIO SET (AN/MRC-110), RADIO SET, AN/GRC-160. |
| III CUBIC MEASURE | 2.298 CUBIC INCHES |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
Restrictions/Controls & Freight Information | NSN 5930-00-933-6815
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | M | 85 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | CL | U.S. Army Communications-Electronics Fort Monmouth, NJ 07703-5006 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-933-6815
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
