NSN 5930-00-958-2954 1106P110, 7G29, 00-958-2954
Product Details | PRESSURE SWITCH
5930-00-958-2954 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.
Part Alternates: 1106P110, 7G29, 5930-00-958-2954, 00-958-2954, 5930009582954, 009582954
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-958-2954 | 00206 ( SWITCH, PRESSURE ) |

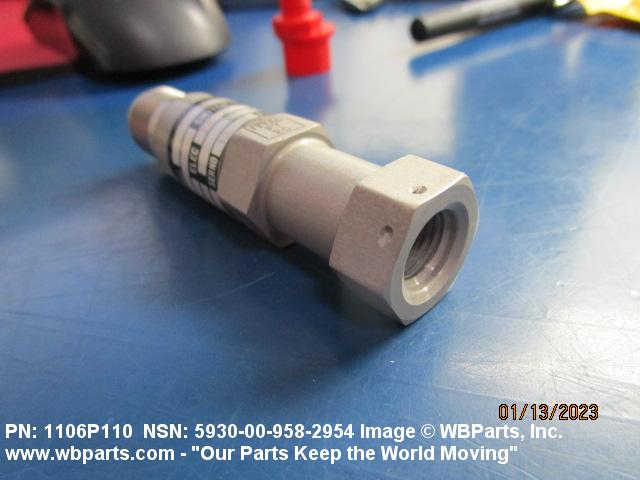

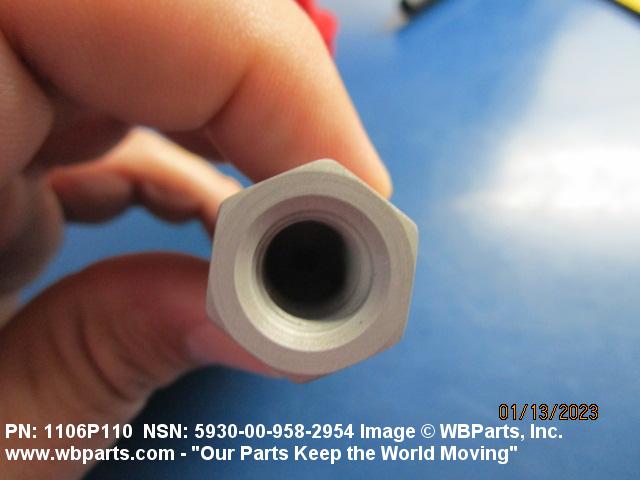

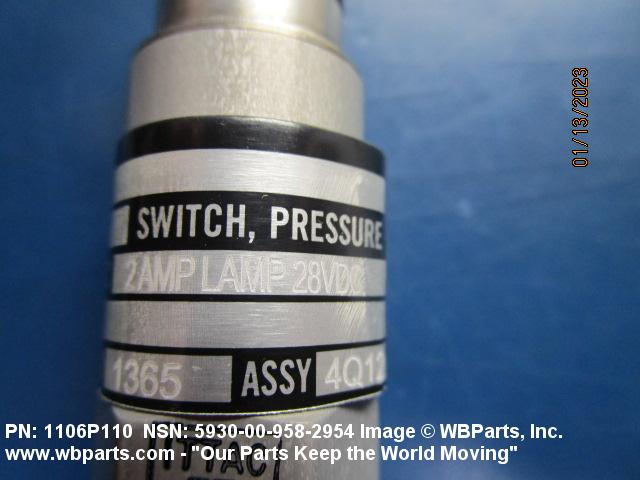

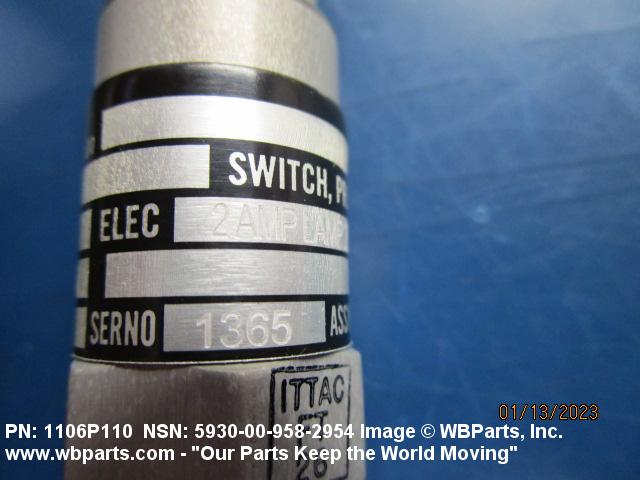

Drawings & Photos | NSN 5930-00-958-2954
Demand History | NSN 5930-00-958-2954
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-958-2954 | 2024-03-82 | 2 | UK |
| 5930-00-958-2954 | 2022-11-305 | 10 | Turkey |
| 5930-00-958-2954 | 2020-08-222 | 4 | India |
| 5930-00-958-2954 | 2020-06-177 | 15 | India |
| 5930-00-958-2954 | 2019-06-154 | 1 | US |
| 5930-00-958-2954 | 2019-06-153 | 3 | IN |
| 5930-00-958-2954 | 2019-05-147 | 4 | India |
| 5930-00-958-2954 | 2019-05-137 | 4 | IN |
| 5930-00-958-2954 | 2019-05-121 | 4 | India |
| 5930-00-958-2954 | 2019-01-09 | 1 | IN |
| 5930-00-958-2954 | 2018-12-347 | 15 | DIBBS |
| 5930-00-958-2954 | 2018-11-334 | 6 | India |
| 5930-00-958-2954 | 2017-05-130 | 10 | DIBBS |
| 5930-00-958-2954 | 2017-02-44 | 5 | DIBBS |
| 5930-00-958-2954 | 2016-11-321 | 4 | DIBBS |
| 5930-00-958-2954 | 2016-11-306 | 10 | DIBBS |
| 5930-00-958-2954 | 2016-05-133 | 10 | DIBBS |
| 5930-00-958-2954 | 2016-02-41 | 5 | DIBBS |
| 5930-00-958-2954 | 2015-10-295 | 5 | DIBBS |
| 5930-00-958-2954 | 2015-05-128 | 4 | IN |
| 5930-00-958-2954 | 2015-04-113 | 1 | Turkey |
| 5930-00-958-2954 | 2015-01-27 | 6 | DIBBS |
| 5930-00-958-2954 | 2014-11-321 | 2 | DIBBS |
| 5930-00-958-2954 | 2014-08-238 | 5 | IN |
| 5930-00-958-2954 | 2014-04-93 | 4 | DIBBS |
| 5930-00-958-2954 | 2013-09-272 | 2 | DIBBS |
| 5930-00-958-2954 | 2013-05-142 | 10 | DIBBS |
| 5930-00-958-2954 | 2013-03-74 | 10 | DIBBS |
| 5930-00-958-2954 | 2013-01-12 | 3 | DIBBS |
| 5930-00-958-2954 | 2012-09-247 | 1 | DIBBS |
| 5930-00-958-2954 | 2012-07-200 | 4 | DIBBS |
| 7G29 | 2012-04-115 | 7 | IN |
| 5930-00-958-2954 | 2012-02-58 | 7 | DIBBS |
| 5930-00-958-2954 | 2011-08-217 | 1 | DIBBS |
| 5930-00-958-2954 | 2011-05-130 | 2 | DIBBS |
| 5930-00-958-2954 | 2011-04-98 | 6 | DIBBS |
| 5930-00-958-2954 | 2011-02-49 | 3 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-958-2954
Related Products | NSN 5930-00-958-2954
Technical Data | NSN 5930-00-958-2954
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 4 CYLINDRICAL |

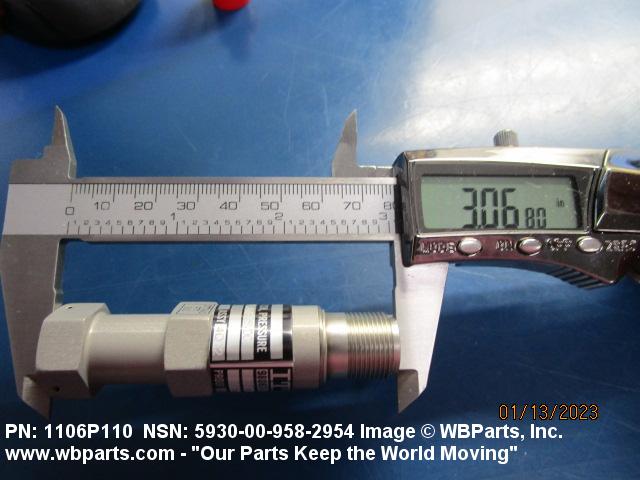

| OVERALL LENGTH | 3.400 INCHES MAXIMUM |

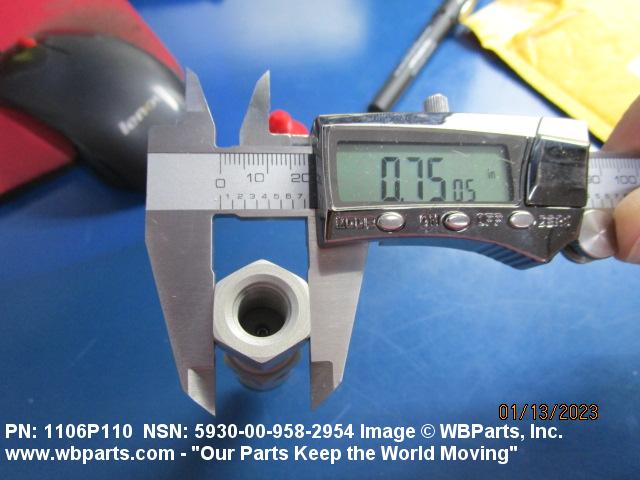

| WIDTH ACROSS FLATS | 0.750 INCHES NOMINAL |
| PRESSURE SWITCH TYPE | GAGE |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | ACTUATION POINT NOT ADJUSTABLE AND DEACTUATION POINT NOT ADJUSTABLE |

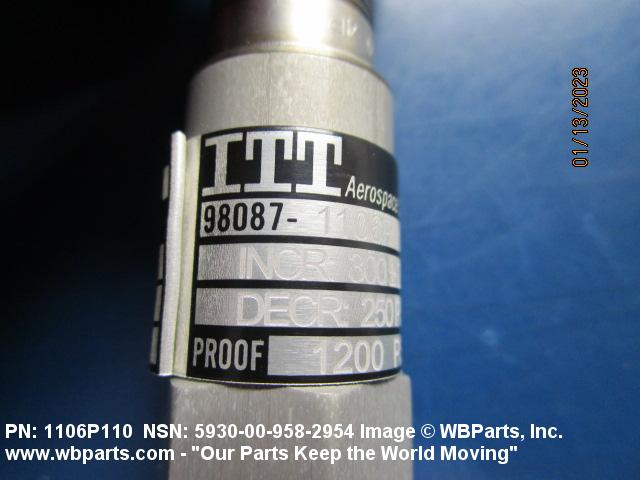

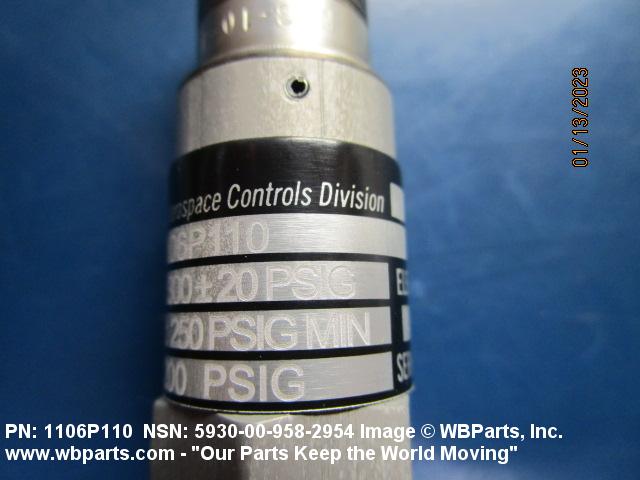

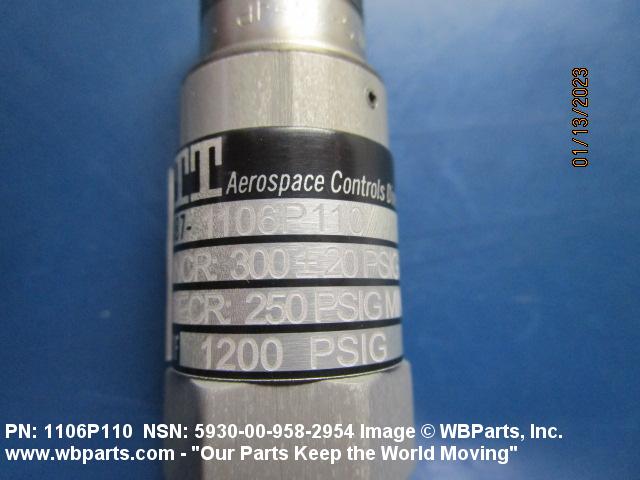

| CONTACT STIMULUS RATING | 300.00 ACTUATION POINT NOMINAL POUNDS PER SQUARE INCH GAGE AND 250.00 DEACTUATION POINT NOMINAL POUNDS PER SQUARE INCH GAGE AND 50.00 DIFFERENTIAL POINT NOMINAL POUNDS PER SQUARE INCH GAGE |
| CONTACT VOLTAGE RATING IN VOLTS | 28.0 DC AT SEA LEVEL SINGLE VOLTAGE |
| CONTACT LOAD CURRENT RATING | 2.0 AMPERES LAMP LOAD SINGLE VOLTAGE |
| OPERATING TEMP RATING | -65.0 DEG FAHRENHEIT MINIMUM AND 160.0 DEG FAHRENHEIT MAXIMUM |
| MEDIA FOR WHICH DESIGNED | GAS OR LIQUID |
| PROOF PRESSURE | 1200.00 POUNDS PER SQUARE INCH GAGE |
| PRESSURE CONNECTOR TYPE | PLAIN, THREADED INTERNAL SINGLE CONNECTION |
| INSIDE DIAMETER | 0.438 INCHES NOMINAL SINGLE CONNECTION |

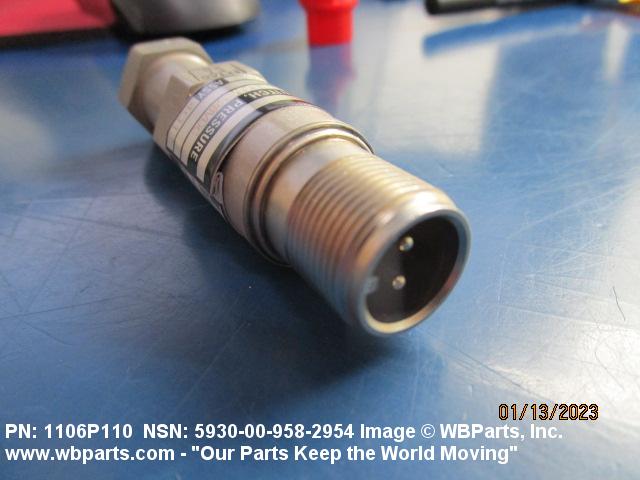

| TERMINAL TYPE | CONNECTOR, RECEPTACLE |
| MOUNTING METHOD | INLET CONNECTION |
| THREAD SERIES DESIGNATOR | UNF SINGLE PRESSURE CONNECTION |
| NOMINAL THREAD SIZE | 0.438 INCHES SINGLE PRESSURE CONNECTION |
| THREAD CLASS | 3B SINGLE PRESSURE CONNECTION |
| III SENSING ELEMENT BURST PRESSURE | 2000.00 POUNDS PER SQUARE INCH GAGE |
| MANUFACTURERS CODE | 09049 |
| DESIGN CONTROL REFERENCE | 7G29 |
Restrictions/Controls & Freight Information | NSN 5930-00-958-2954
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
