NSN 5930-01-008-0765 AS471B1, 01-008-0765, 010080765
Product Details | MERCURY SWITCH
5930-01-008-0765 A switch in which a mercury pool is used to bridge fixed contacts when their inclosing sealed capsule is tilted. Do not use if switch has an actuator, such as lever, push button, toggle, and the like. See SWITCH (as modified). For items in which a contact may be moved into a mercury pool by a magnetic field, see SWITCH, REED.
Part Alternates: AS471B1, 5930-01-008-0765, 01-008-0765, 5930010080765, 010080765
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 AUG 1975 | 01-008-0765 | 00159 ( SWITCH, MERCURY ) |
Drawings & Photos | NSN 5930-01-008-0765
Cross Reference | NSN 5930-01-008-0765
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS471B1 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-008-0765
Technical Data | NSN 5930-01-008-0765
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 245.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 45.000 AMPERES RESISTIVE DC |

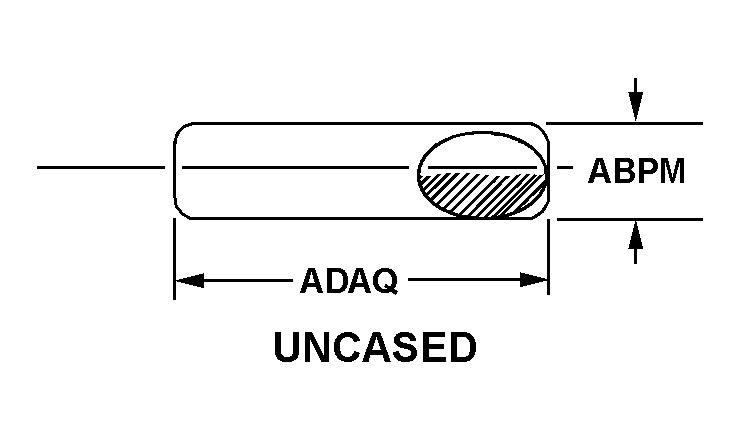

| BODY STYLE | 2J UNCASED |
| BODY DIAMETER | 0.688 INCHES NOMINAL |
| BODY LENGTH | 2.750 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
Restrictions/Controls & Freight Information | NSN 5930-01-008-0765
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
