NSN 5930-01-008-6930 A31127, A3-1127, 01-008-6930
Product Details | TOGGLE SWITCH
5930-01-008-6930 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: A31127, A3-1127, 5930-01-008-6930, 01-008-6930, 5930010086930, 010086930
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01-008-6930 | 00184 ( SWITCH, TOGGLE ) |

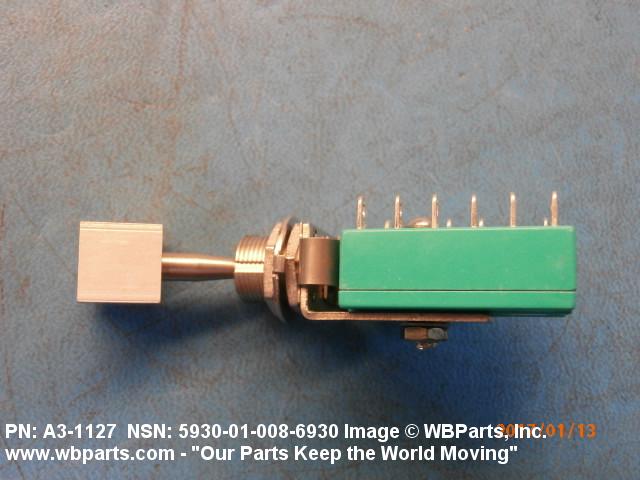

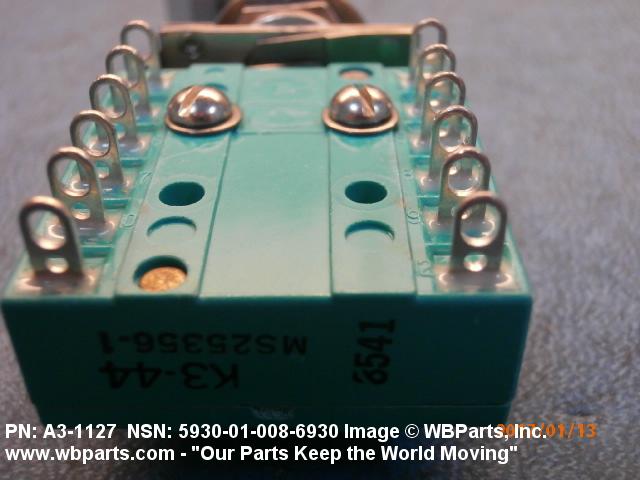

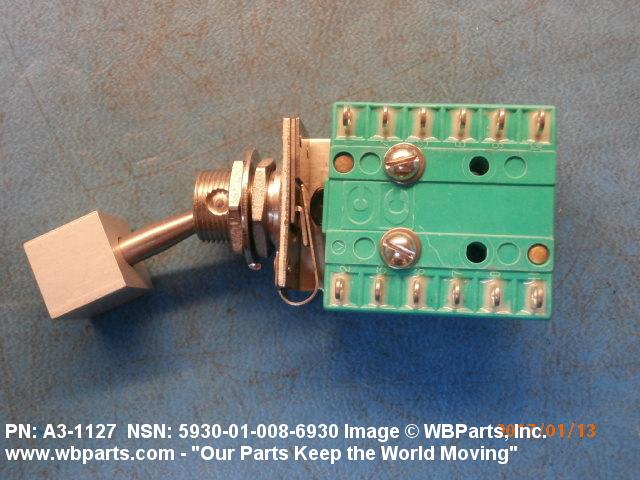

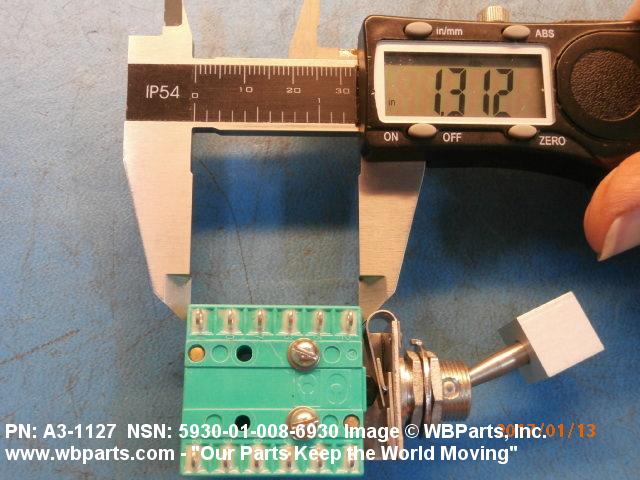

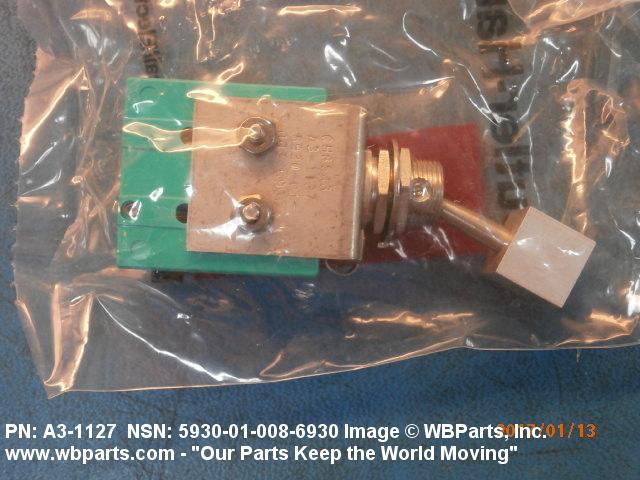

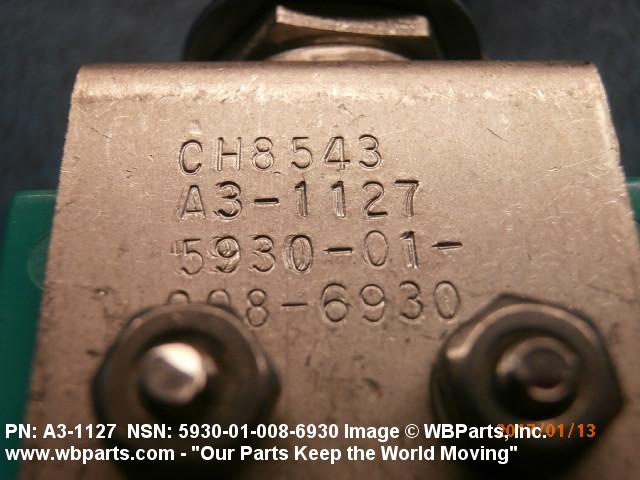

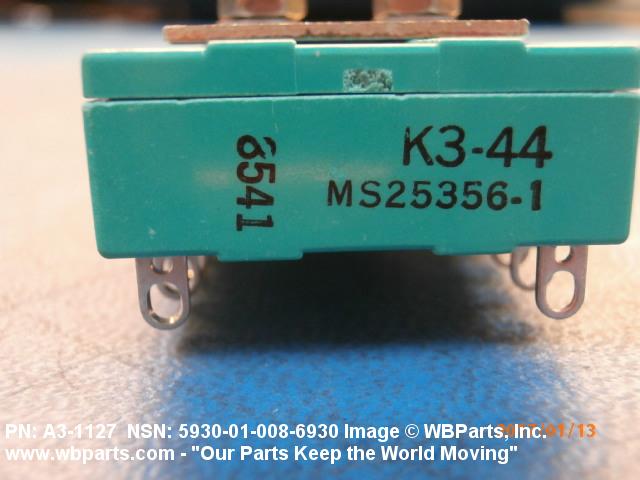

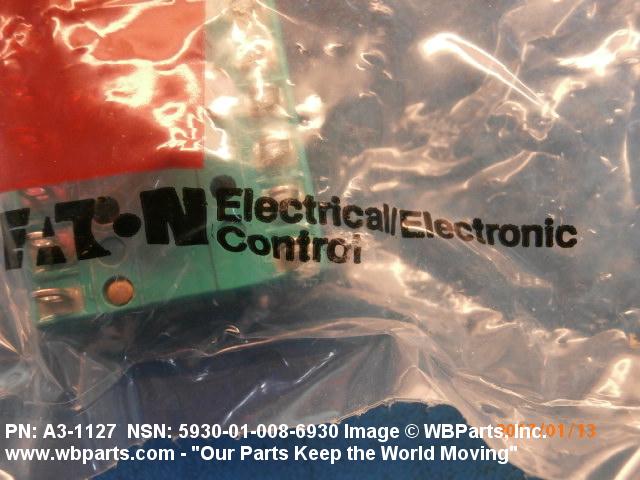

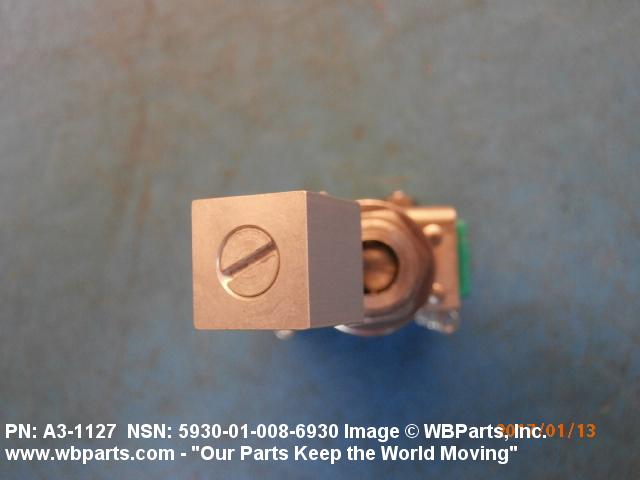

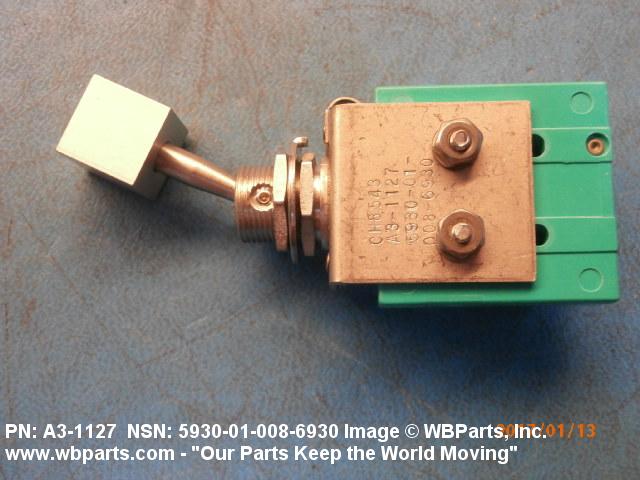

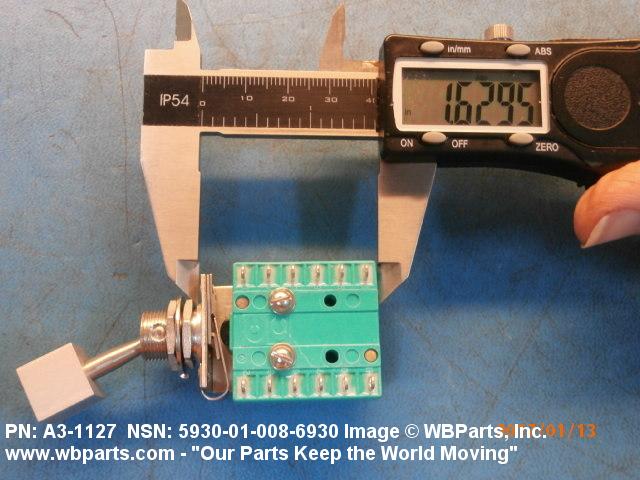

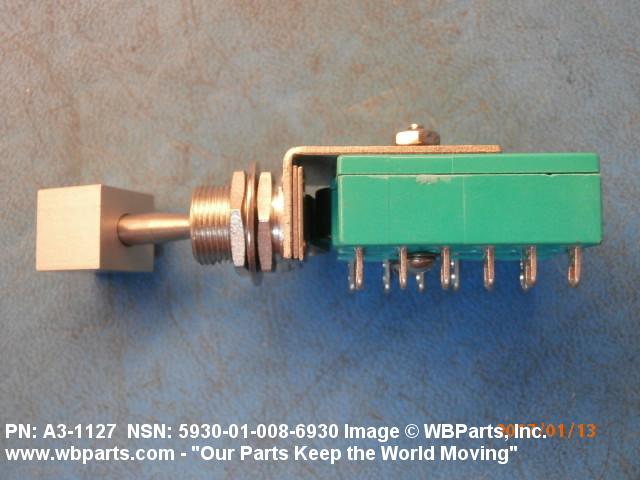

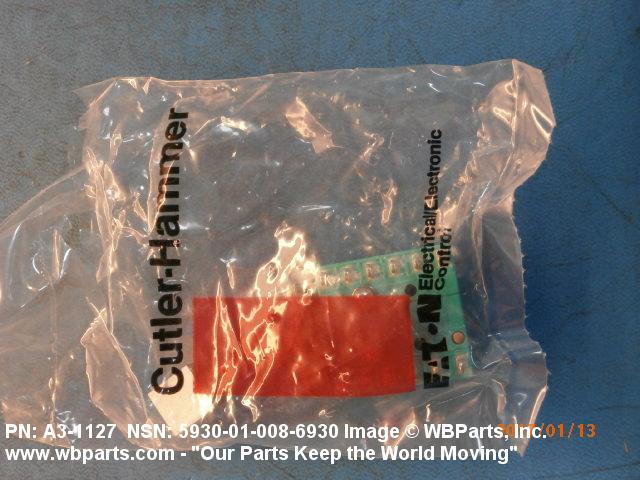

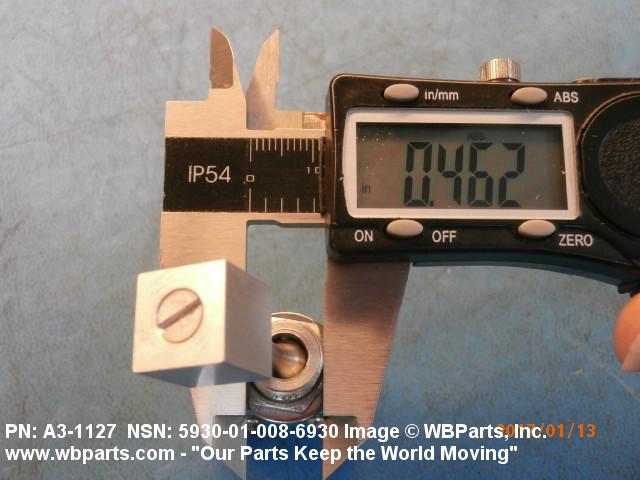

Drawings & Photos | NSN 5930-01-008-6930
Demand History | NSN 5930-01-008-6930
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-008-6930 | 2022-05-137 | 2 | United States |
| 5930-01-008-6930 | 2022-05-122 | 1 | UK |
| 5930-01-008-6930 | 2020-07-211 | 1 | United States |
| 5930-01-008-6930 | 2019-01-03 | 1 | US |
| 5930-01-008-6930 | 2018-08-219 | 1 | United States |
| 5930-01-008-6930 | 2017-04-116 | 2 | United States |
| 5930-01-008-6930 | 2016-12-362 | 1 | United States |
| 5930-01-008-6930 | 2010-11-326 | 1 | United States |
| A31127 | 2010-11-322 | 1 | United States |
| A31127 | 2010-10-286 | 1 | United States |
| A31127 | 2010-08-231 | 1 | US |
| 5930-01-008-6930 | 2010-01-18 | 3 | United States |
| 5930-01-008-6930 | 2009-12-364 | 14 | DIBBS |
| 5930-01-008-6930 | 2009-11-306 | 23 | DIBBS |
| 5930-01-008-6930 | 2009-10-292 | 11 | DIBBS |
| 5930-01-008-6930 | 2009-03-78 | 9 | DIBBS |
| 5930-01-008-6930 | 2009-02-33 | 11 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-008-6930
Technical Data | NSN 5930-01-008-6930
| Characteristic | Specifications |
|---|---|
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC |
| BODY STYLE | 5P BUSHING MOUNT |
| BUSHING LENGTH | 0.500 INCHES NOMINAL |

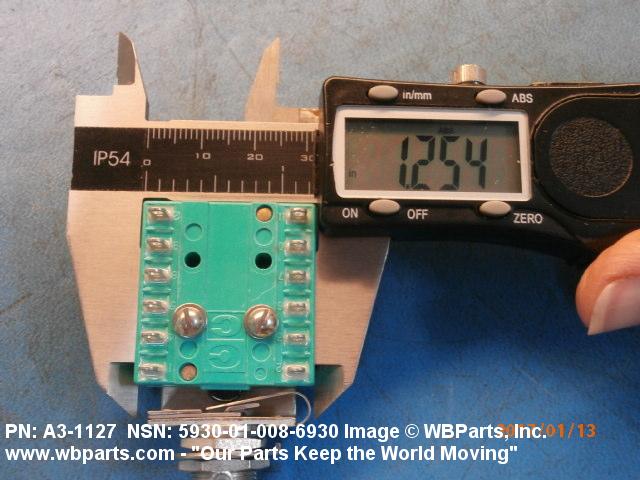

| BODY LENGTH | 1.250 INCHES NOMINAL |

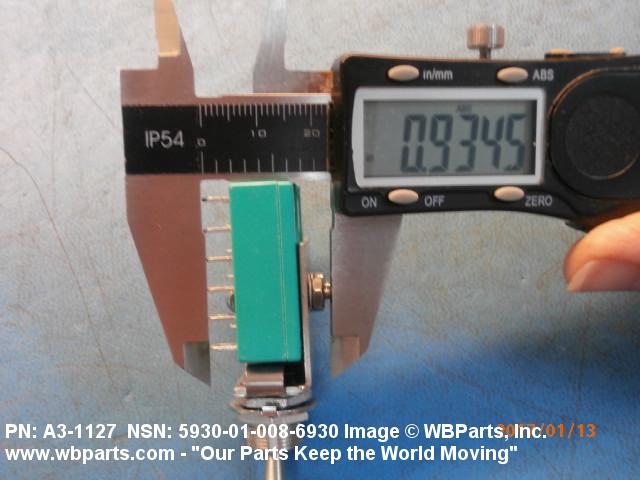

| BODY WIDTH | 0.940 INCHES NOMINAL |
| BODY HEIGHT | 1.662 INCHES NOMINAL |
| SWITCH ACTUATOR QUANTITY | 1 |
| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MAINTAINED AND DOWN POSITION MAINTAINED |
| ACTUATOR POSITION-LOCKING RELATIONSHIP | UP POSITION NO LOCKING ACTION |
| TERMINAL TYPE AND QUANTITY | 6 TURRET |
| INCLOSURE TYPE | FULLY INCLOSED |
| THREAD SERIES DESIGNATOR | UNM |
| NOMINAL THREAD SIZE | 15.000 INCHES |
| THREAD QUANTITY PER INCH | 32 |
Restrictions/Controls & Freight Information | NSN 5930-01-008-6930
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
