NSN 5930-01-025-0347 CR127A6, 01-025-0347, 010250347
Product Details | PRESSURE SWITCH
5930-01-025-0347 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.
Part Alternates: CR127A6, 5930-01-025-0347, 01-025-0347, 5930010250347, 010250347
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01-025-0347 | 00206 ( SWITCH, PRESSURE ) |

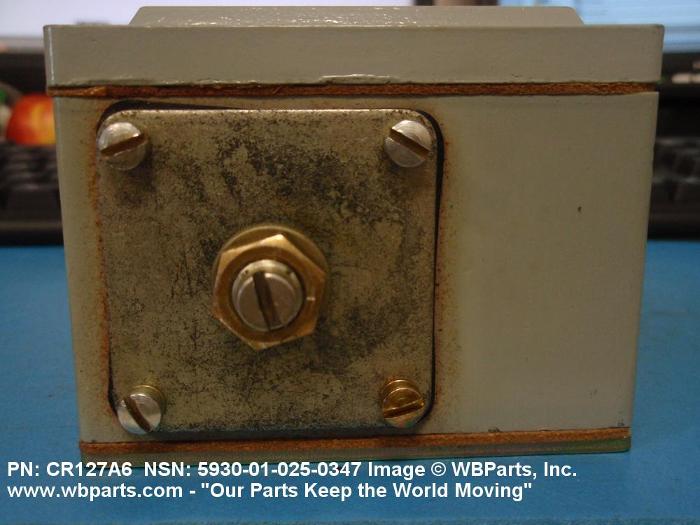

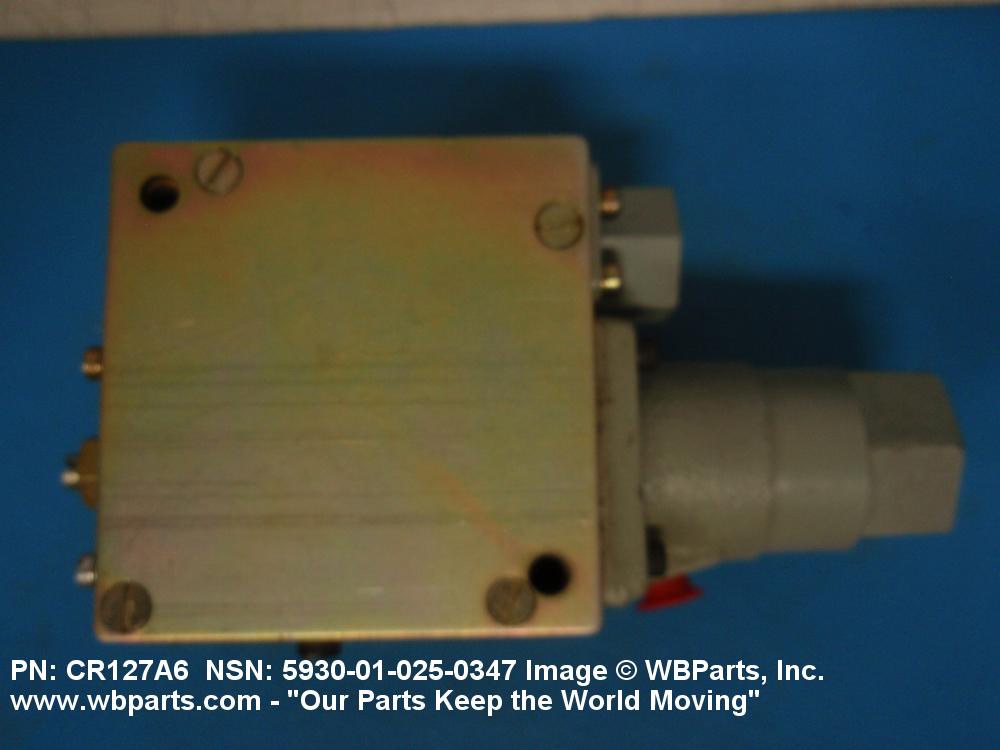

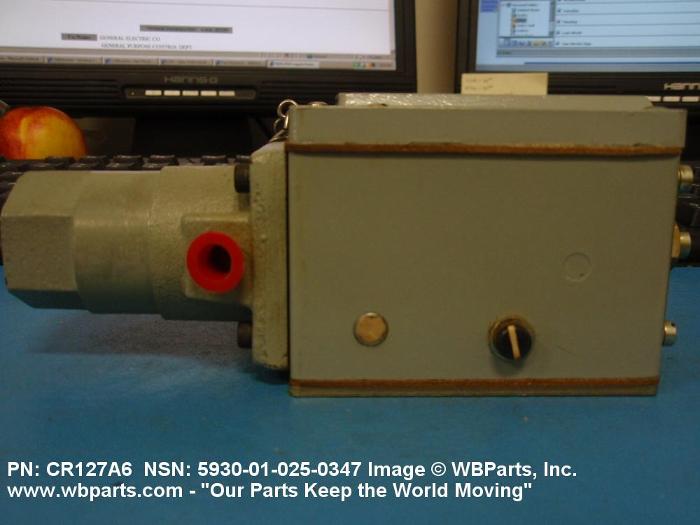

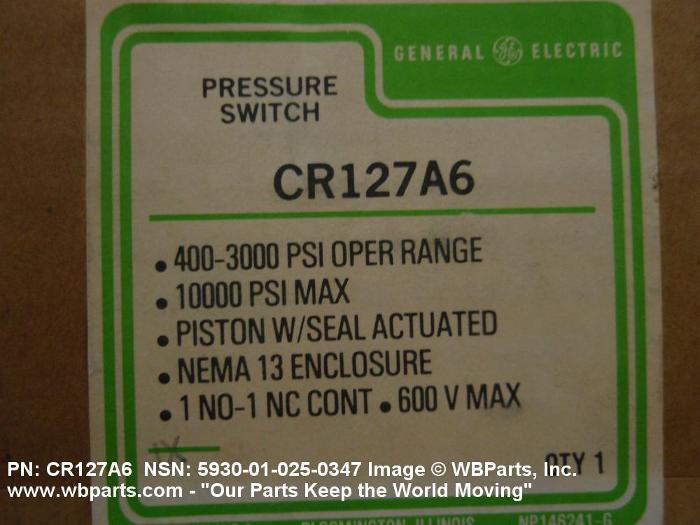

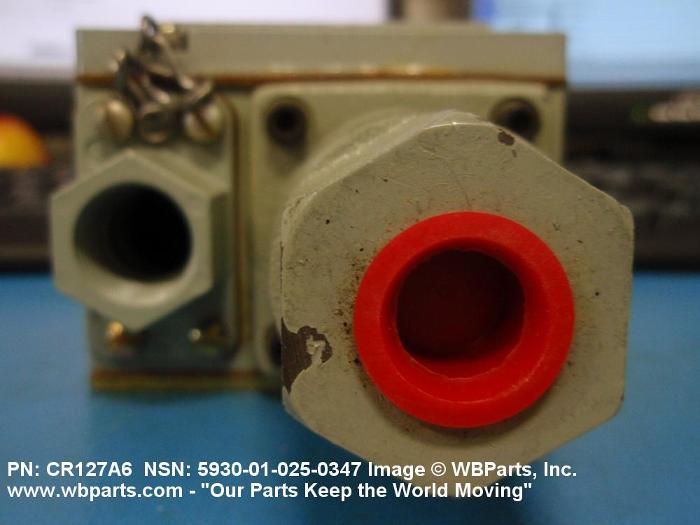

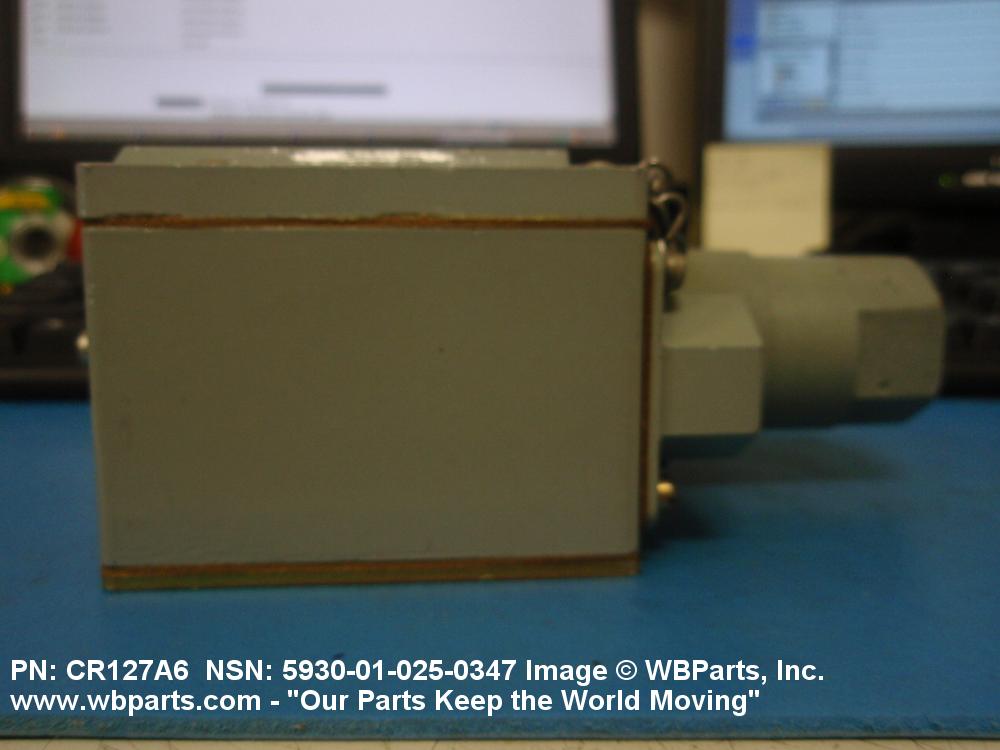

Drawings & Photos | NSN 5930-01-025-0347
Demand History | NSN 5930-01-025-0347
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-025-0347 | 2022-02-58 | 2 | US |
| 5930-01-025-0347 | 2014-07-195 | 4 | CA |
| CR127A6 | 2014-03-66 | 1 | US |
| 5930-01-025-0347 | 2011-05-123 | 2 | DIBBS |
| 5930-01-025-0347 | 2011-04-104 | 10 | US |
| 5930-01-025-0347 | 2011-02-45 | 1 | United States |
| 5930-01-025-0347 | 2010-12-349 | 2 | DIBBS |
| CR127A6 | 2010-03-63 | 5 | Canada |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-025-0347
Technical Data | NSN 5930-01-025-0347
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 35 RECTANGULAR |
| OVERALL LENGTH | 3.500 INCHES NOMINAL |
| OVERALL HEIGHT | 6.969 INCHES NOMINAL |
| OVERALL WIDTH | 2.813 INCHES NOMINAL |
| BODY HEIGHT | 3.438 INCHES NOMINAL |
| PRESSURE SWITCH TYPE | DIFFERENTIAL |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | DEACTUATION POINT ADJUSTABLE AND ACTUATION POINT ADJUSTABLE |

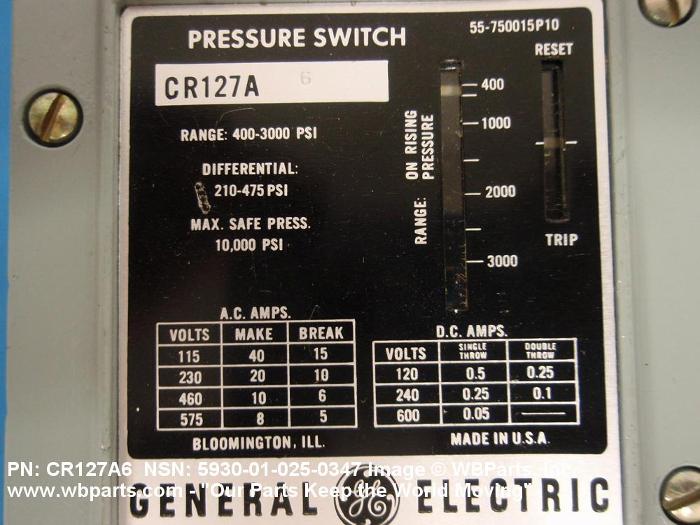

| CONTACT ADJUSTMENT RANGE | 400.00 TO 3000.00 ACTUATION POINT POUNDS PER SQUARE INCH AND 400.00 TO 3000.00 DEACTUATION POINT POUNDS PER SQUARE INCH |
| CONTACT ADJUSTMENT TYPE | EXTERNAL DEACTUATION POINT SCREW AND EXTERNAL ACTUATION POINT SCREW |
| CONTACT STIMULUS RATING | 210.00 DIFFERENTIAL POINT MINIMUM POUNDS PER SQUARE INCH AND 475.00 DIFFERENTIAL POINT MAXIMUM POUNDS PER SQUARE INCH |
| CONTACT VOLTAGE RATING IN VOLTS | 575.0 AC AT SEA LEVEL FIRST VOLTAGE 460.0 AC AT SEA LEVEL SECOND VOLTAGE 230.0 AC AT SEA LEVEL THIRD VOLTAGE 115.0 AC AT SEA LEVEL FOURTH VOLTAGE 240.0 DC AT SEA LEVEL FIFTH VOLTAGE 120.0 DC AT SEA LEVEL SIXTH VOLTAGE |
| CONTACT LOAD CURRENT RATING | 5.0 AMPERES RESISTIVE LOAD FIRST VOLTAGE 6.0 AMPERES RESISTIVE LOAD SECOND VOLTAGE 10.0 AMPERES RESISTIVE LOAD THIRD VOLTAGE 15.0 AMPERES RESISTIVE LOAD FOURTH VOLTAGE 100.0 MILLIAMPERES RESISTIVE LOAD FIFTH VOLTAGE 250.0 MILLIAMPERES RESISTIVE LOAD SIXTH VOLTAGE |
| MEDIA FOR WHICH DESIGNED | LIQUID |
| PROOF PRESSURE | 10000.00 POUNDS PER SQUARE INCH |
| MOUNTING METHOD | UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.281 INCHES NOMINAL |
| MOUNTING FACILITY PATTERN | TWO POSITION DIAGONAL |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 2.719 INCHES NOMINAL |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 2.719 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5930-01-025-0347
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
