NSN 5930-01-033-5363 OE4SBHS5K, 0E4S13HS5K, 01-033-5363
Product Details | PRESSURE SWITCH
5930-01-033-5363 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.
Part Alternates: OE4SBHS5K, 0E4S13HS5K, 5930-01-033-5363, 01-033-5363, 5930010335363, 010335363
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 07 JAN 1977 | 01-033-5363 | 00206 ( SWITCH, PRESSURE ) |

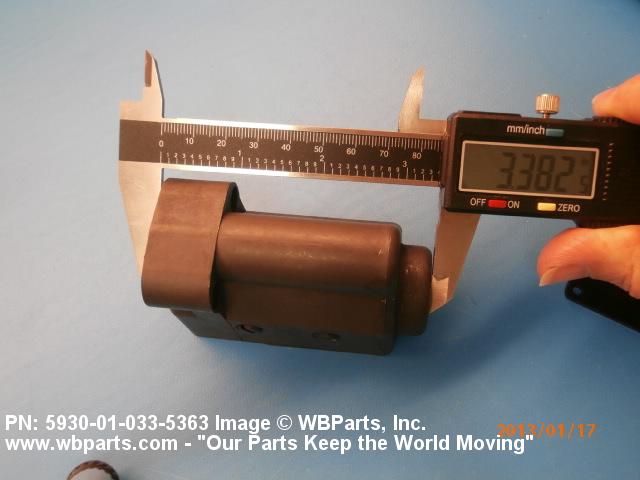

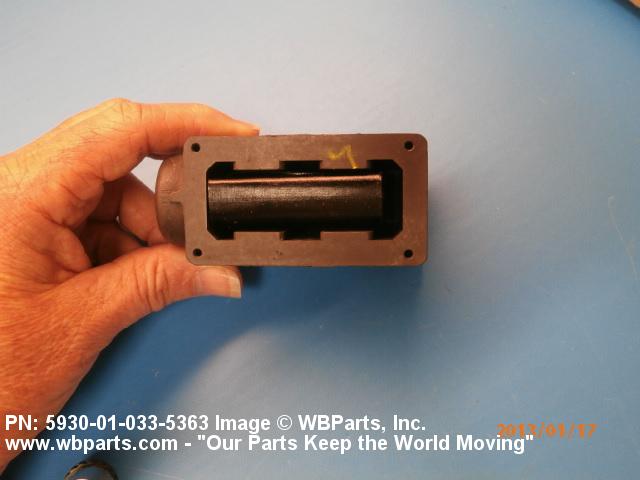

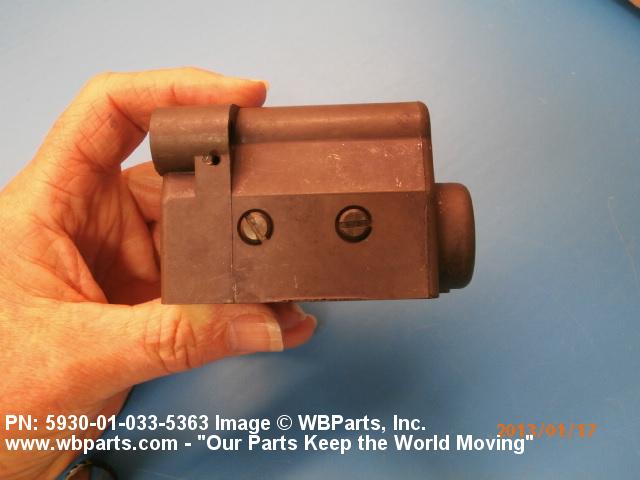

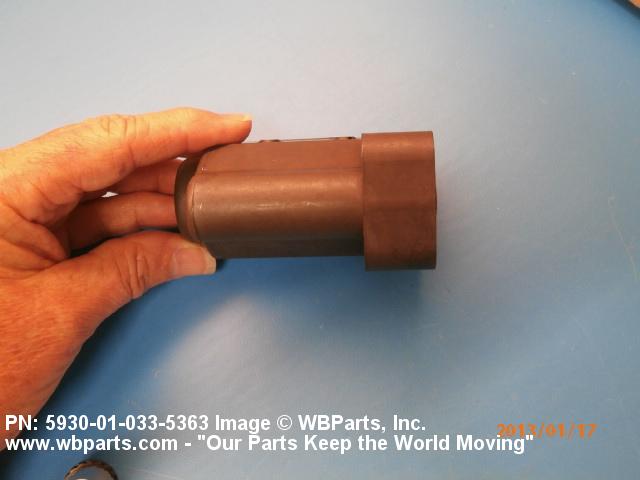

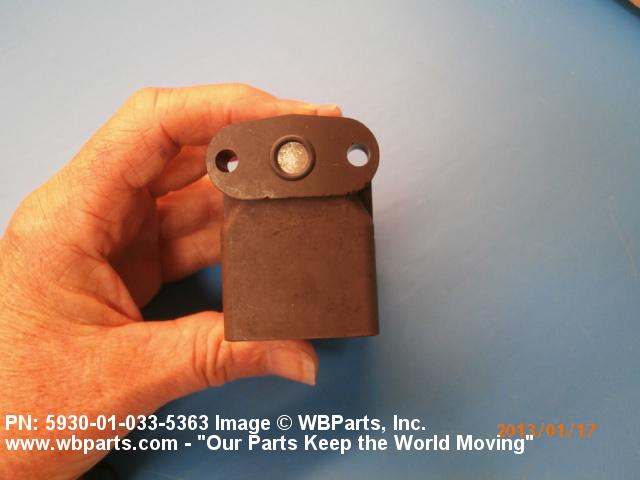

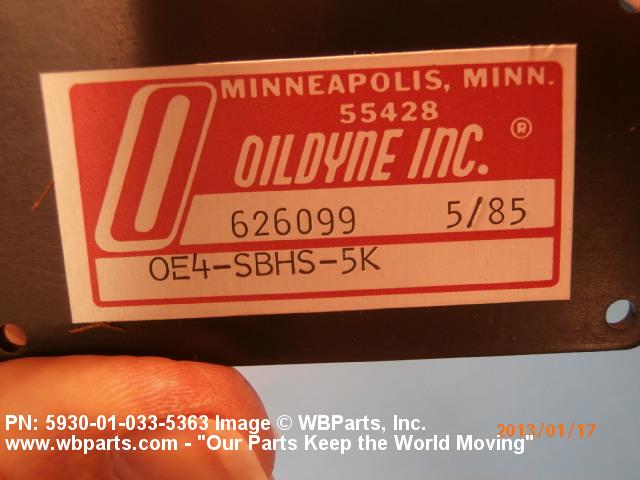

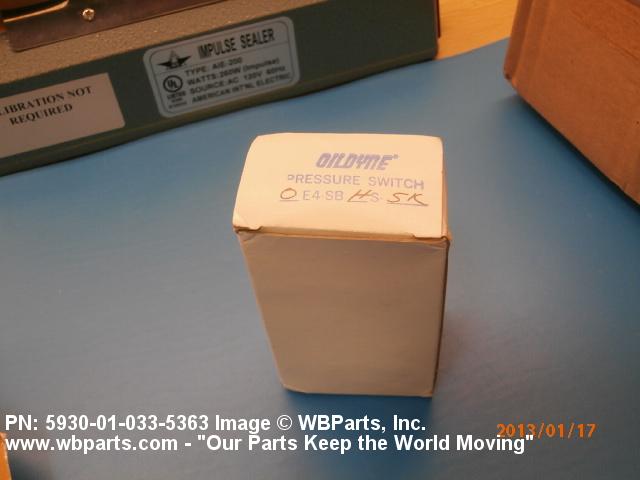

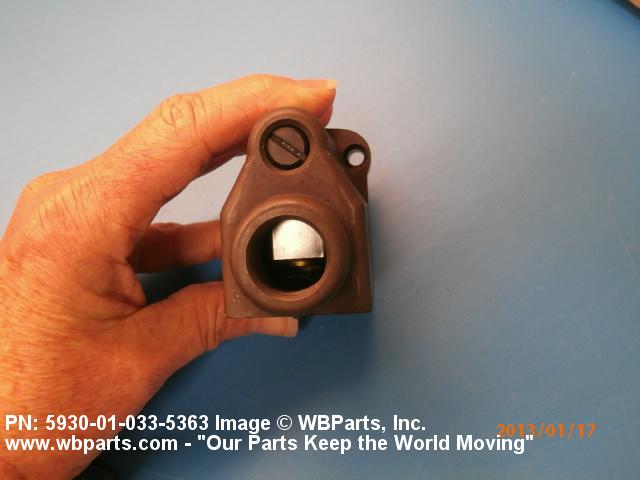

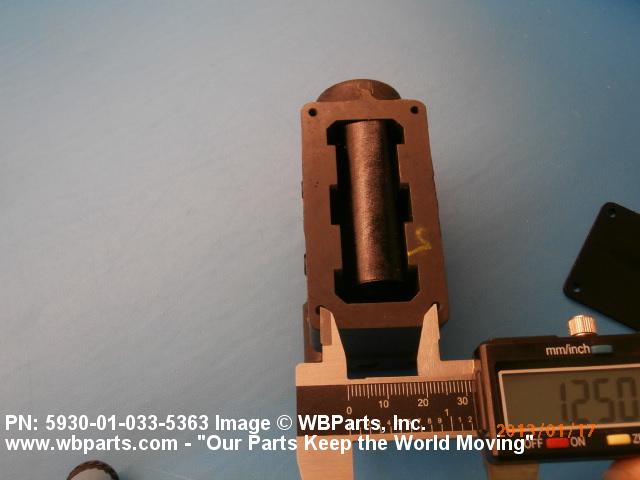

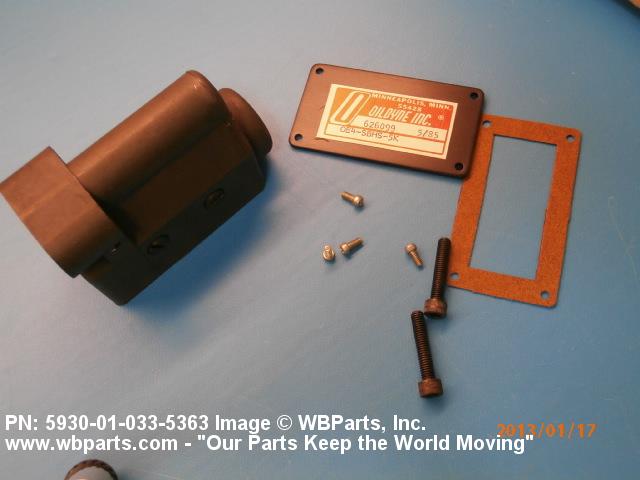

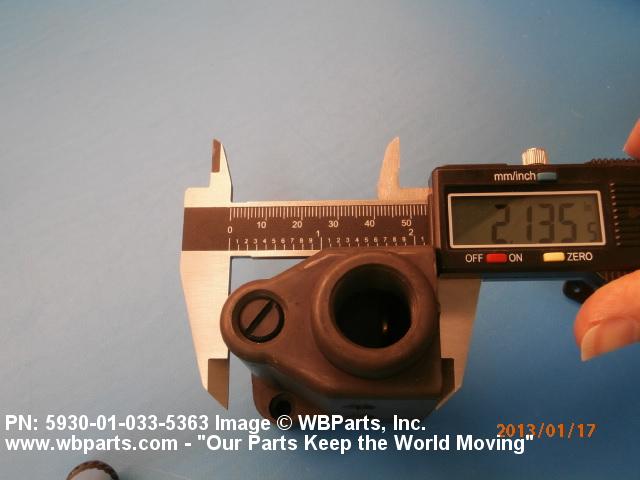

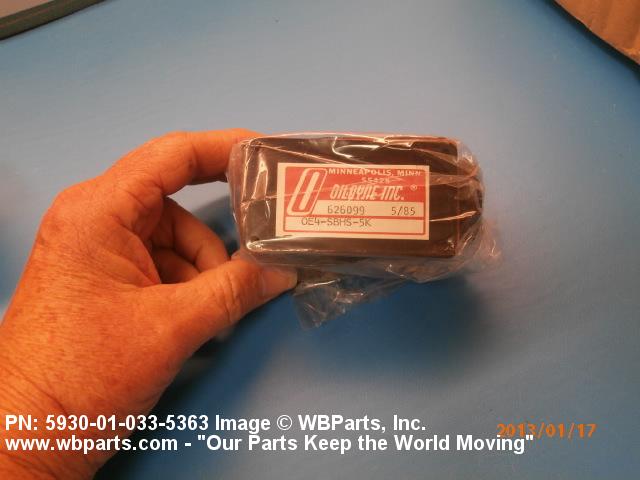

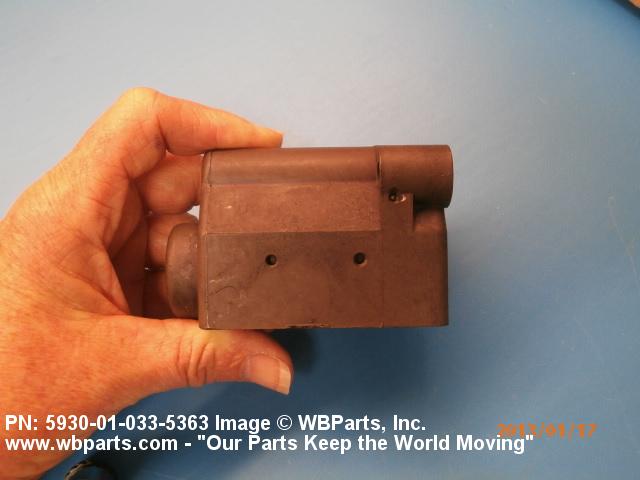

Drawings & Photos | NSN 5930-01-033-5363
Demand History | NSN 5930-01-033-5363
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| OE4SBHS5K | 2020-10-275 | 1 | DIBBS |
| 5930-01-033-5363 | 2014-05-128 | 2 | DIBBS |
| 5930-01-033-5363 | 2013-01-10 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-033-5363
Related Products | NSN 5930-01-033-5363
Technical Data | NSN 5930-01-033-5363
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 1.656 INCHES NOMINAL |
| OVERALL HEIGHT | 3.344 INCHES NOMINAL |
| OVERALL WIDTH | 2.438 INCHES NOMINAL |
| PRESSURE SWITCH TYPE | GAGE |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | DEACTUATION POINT ADJUSTABLE AND ACTUATION POINT ADJUSTABLE |
| CONTACT ADJUSTMENT RANGE | 1000.00 TO 20000.00 ACTUATION POINT POUNDS PER SQUARE INCH AND 925.00 TO 1750.00 DEACTUATION POINT POUNDS PER SQUARE INCH |
| CONTACT ADJUSTMENT TYPE | EXTERNAL DEACTUATION POINT SCREW AND EXTERNAL ACTUATION POINT SCREW |
| CONTACT VOLTAGE RATING IN VOLTS | 460.0 AC AT SEA LEVEL FIRST VOLTAGE 125.0 DC AT SEA LEVEL SECOND VOLTAGE |
| CONTACT LOAD CURRENT RATING | 15.0 AMPERES RESISTIVE LOAD FIRST VOLTAGE 500.0 MILLIAMPERES RESISTIVE LOAD SECOND VOLTAGE |
| MEDIA FOR WHICH DESIGNED | LIQUID |
| PRESSURE CONNECTOR TYPE | PLAIN, UNTHREADED INTERNAL SINGLE CONNECTION |
| INSIDE DIAMETER | 0.250 INCHES NOMINAL SINGLE CONNECTION |
| TERMINAL TYPE | SCREW |
| MOUNTING METHOD | SURFACE |
| MOUNTING FACILITY PATTERN | TWO POSITION IN-LINE |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.250 INCHES NOMINAL |
| FEATURES PROVIDED | ELECTRICAL BOX CONNECTOR |
Restrictions/Controls & Freight Information | NSN 5930-01-033-5363
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-033-5363
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
