NSN 5930-01-045-8144 7109SYZQ, 01-045-8144, 010458144
Product Details | TOGGLE SWITCH
5930-01-045-8144 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: 7109SYZQ, 5930-01-045-8144, 01-045-8144, 5930010458144, 010458144
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01-045-8144 | 00184 ( SWITCH, TOGGLE ) |

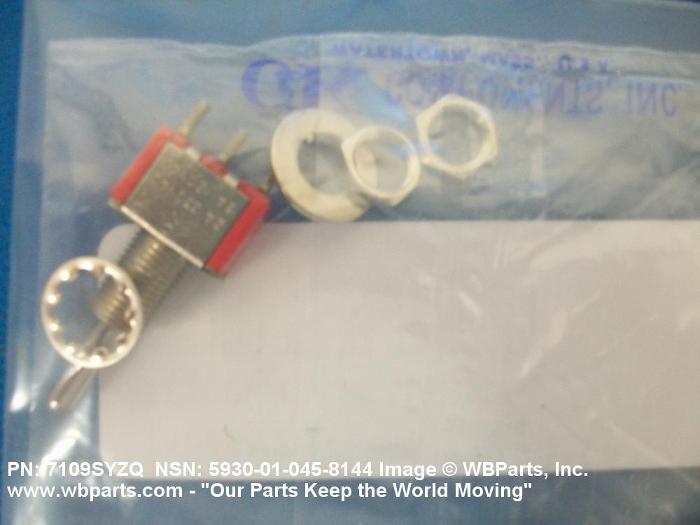

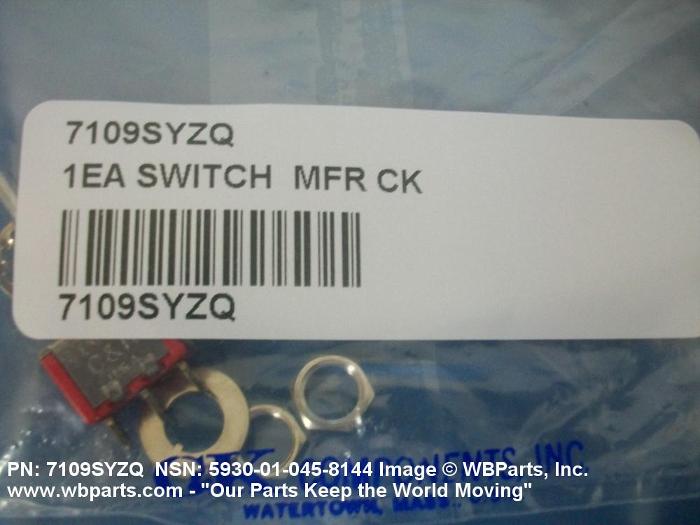

Drawings & Photos | NSN 5930-01-045-8144
Cross Reference | NSN 5930-01-045-8144
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 266-5321-030 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 7109SYZ | 09353 | C AND K COMPONENTS INC |
| 7109SYZQ | 09353 | C AND K COMPONENTS INC |
| M83731/7-341 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M83731/9-341 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-S-83731/7 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-S-83731/9 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| S00320F | 34764 | SCIENTIFIC RADIO SYSTEMS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-045-8144
Technical Data | NSN 5930-01-045-8144
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY, TWO POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC AND 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 5.000 AMPERES RESISTIVE DC AND 2.000 AMPERES RESISTIVE AC |
| BODY STYLE | 6P BUSHING MOUNT |
| BUSHING LENGTH | 0.350 INCHES NOMINAL |
| BODY LENGTH | 0.500 INCHES NOMINAL |
| BODY WIDTH | 0.270 INCHES NOMINAL |
| BODY HEIGHT | 0.350 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 0.505 INCHES NOMINAL |
| ACTUATOR STYLE | 27 ROUND |
| ACTUATOR DIAMETER | 0.115 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.410 INCHES NOMINAL |
| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MAINTAINED AND DOWN POSITION MOMENTARY AND CENTER POSITION MAINTAINED |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| INCLOSURE TYPE | FULLY INCLOSED |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| III CASE MATERIAL | METAL |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | TERMINAL SURFACES SILVER |
Restrictions/Controls & Freight Information | NSN 5930-01-045-8144
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
