NSN 5930-01-067-3586 SA-1997/U, SA1997U, 2881001
Product Details | SWITCH BOX
5930-01-067-3586 An enclosure which includes, mounts, and protects one or more electrical switches. It is designed to have a cover which completely encloses the switch(es) and its (their) actuator(s). The cover may or may not be included. May also include mounting hardware, lock(s), conduit fittings, and terminal board(s) used specifically for terminating the switch(es). For boxes containing combinations of different electrical devices, such as switches, jacks, fuseholders, connectors, circuit breakers, terminal boards, and the like, see DISTRIBUTION BOX. For boxes designed to mount but which do not include switches, see JUNCTION BOX. Excludes CONTROL (2) (as modified); PANEL, POWER DISTRIBUTION; SWITCH, BOX; and SWITCH ASSEMBLY.
Part Alternates: SA-1997/U, SA1997U, 2881001, 288-1001, 5930-01-067-3586, 01-067-3586, 5930010673586, 010673586
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 28 OCT 1978 | 01-067-3586 | 15362 ( SWITCH BOX ) |

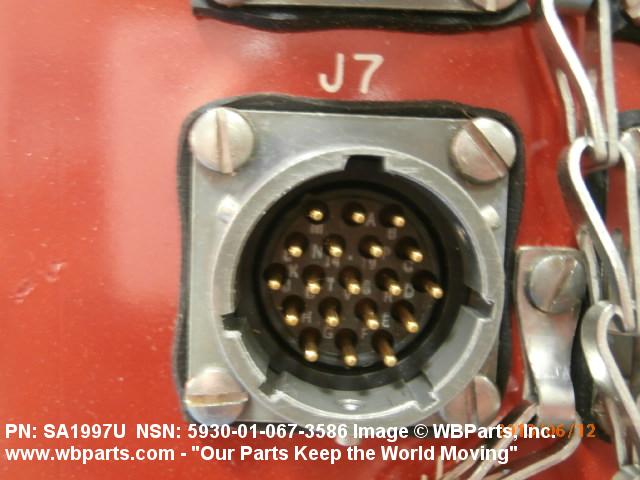

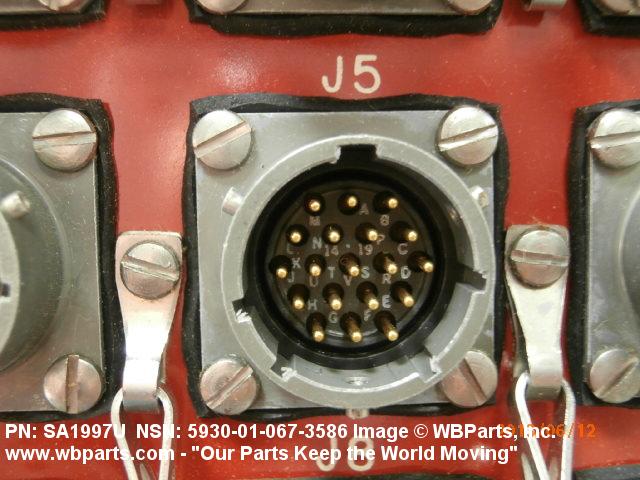

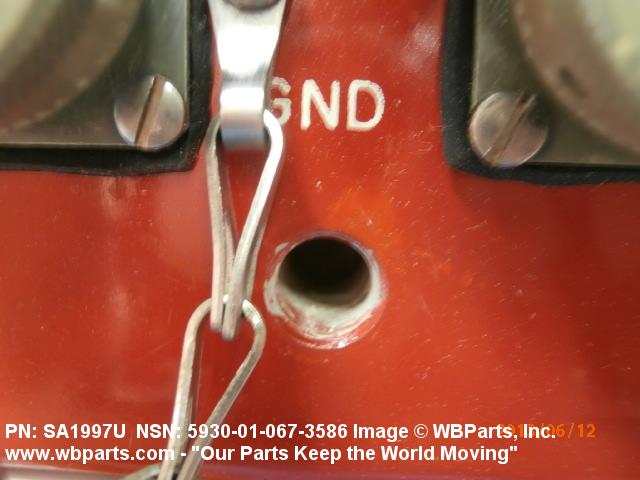

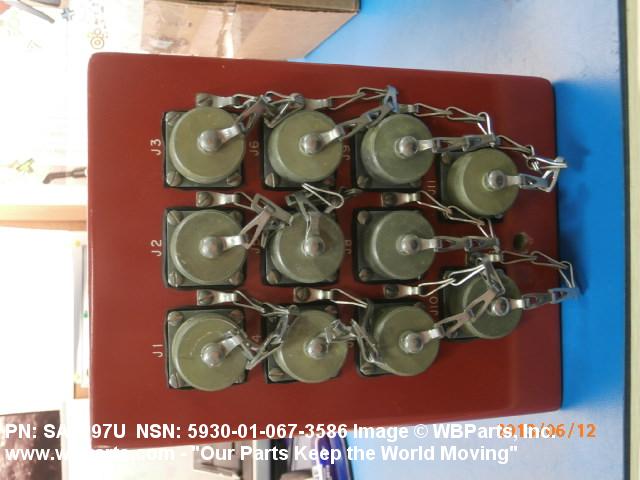

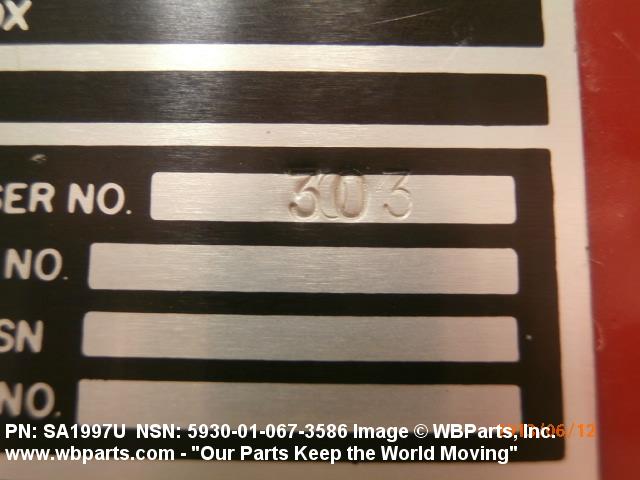

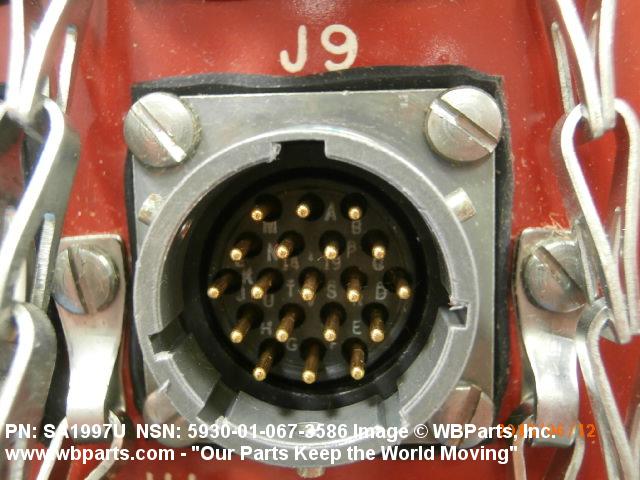

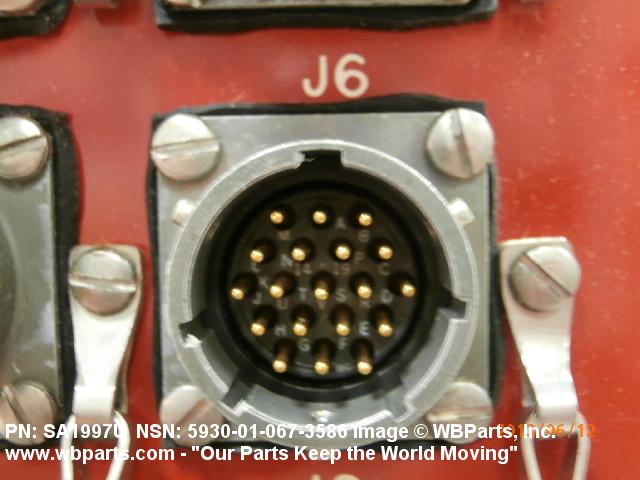

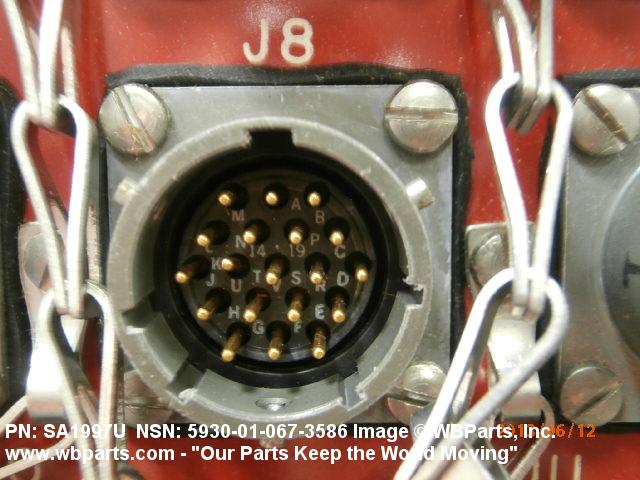

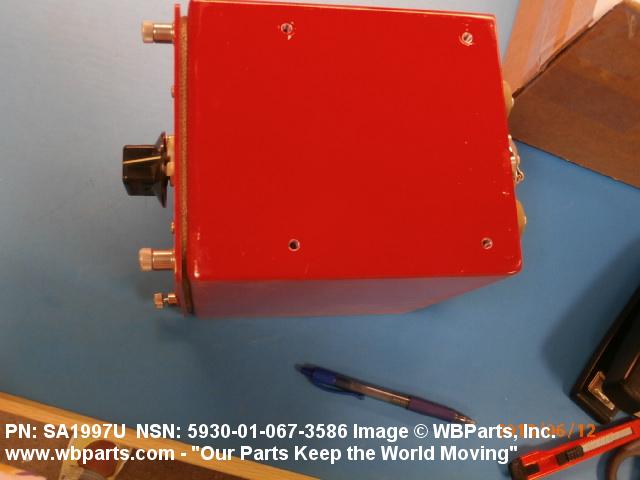

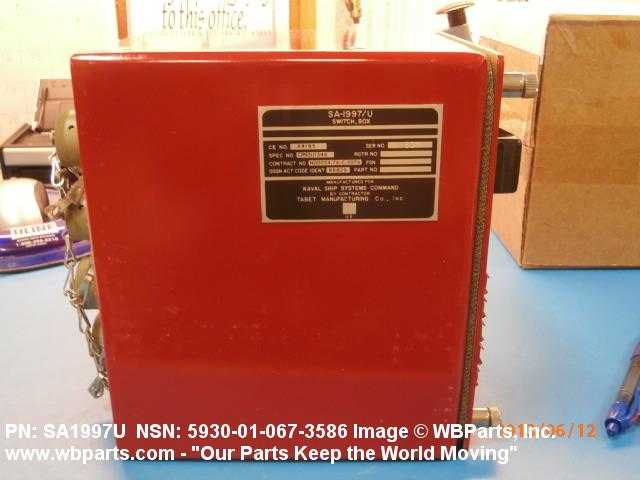

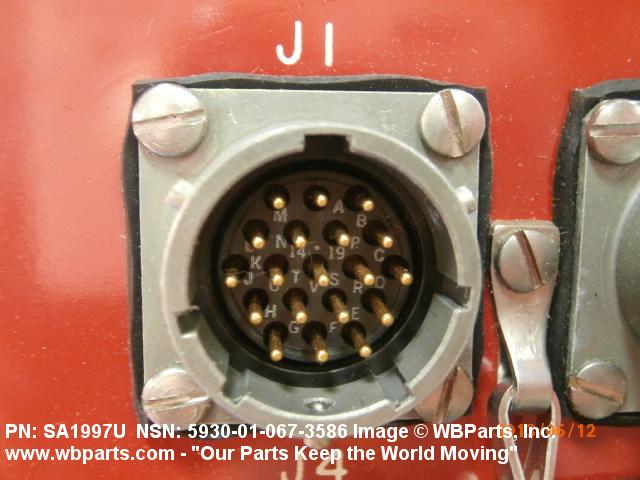

Drawings & Photos | NSN 5930-01-067-3586
Demand History | NSN 5930-01-067-3586
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-067-3586 | 2012-02-52 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-067-3586
Technical Data | NSN 5930-01-067-3586
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 6A RECTANGULAR, SURFACE MOUNTING |
| OVERALL DEPTH | 9.500 INCHES NOMINAL |
| OVERALL HEIGHT | 8.000 INCHES NOMINAL |
| OVERALL WIDTH | 6.000 INCHES NOMINAL |
| MATERIAL | ALUMINUM |

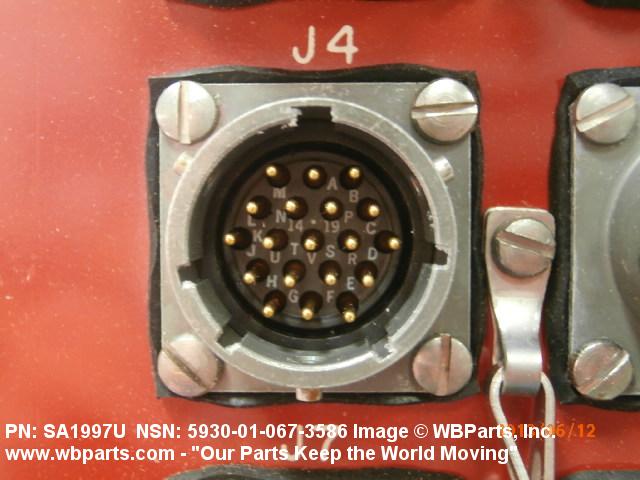

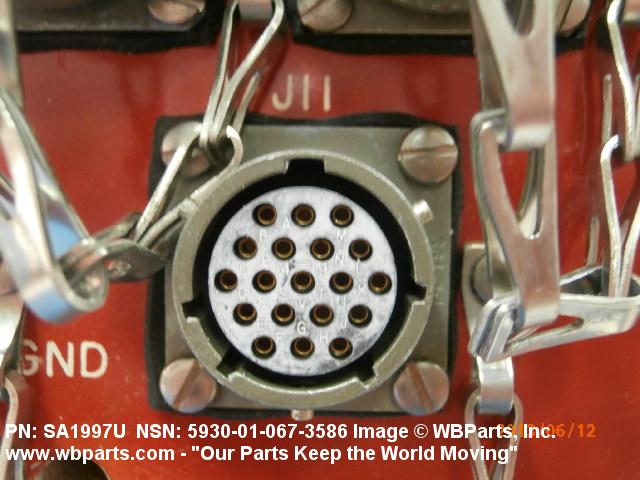

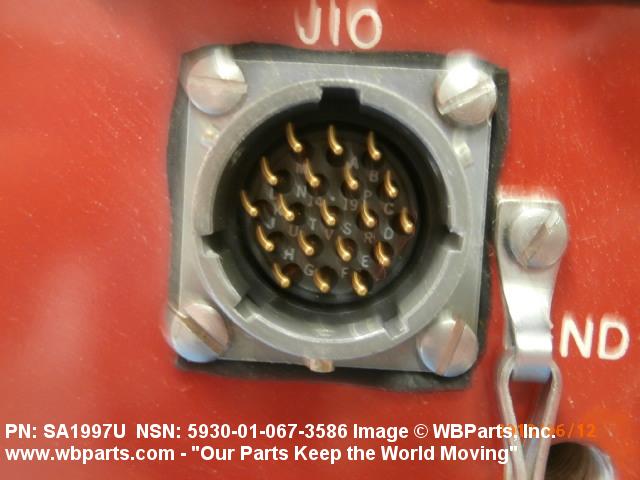

| ENTRANCE TYPE AND QUANTITY | 1 ELECTRICAL CONNECTOR |
| MOUNTING METHOD | THREADED HOLE |
| STANDARD MOUNTING PATTERN DESIGNATOR | 7C 4 POINT-RECTANGULAR |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 4.625 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 4.000 INCHES NOMINAL |
| MOUNTING FACILITY THREAD SIZE | 0.190-32 UNF |
| SWITCH TYPE AND QUANTITY | 1 ROTARY |

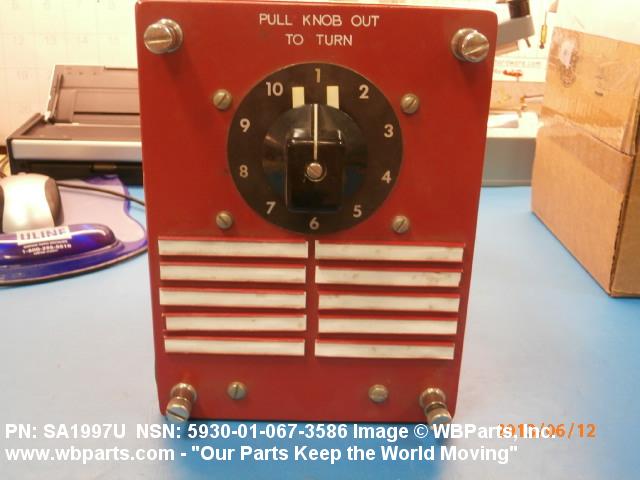

| SPECIAL FEATURES | CONTROL KNOB LOCKS SWITCH |
| MANUFACTURERS CODE | 80058 |

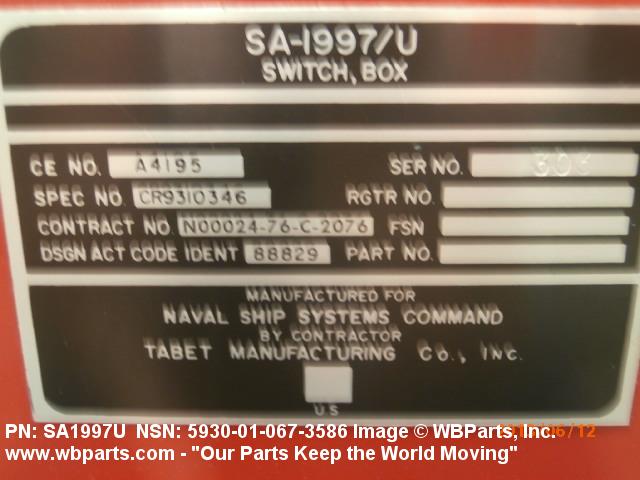

| DESIGN CONTROL REFERENCE | SA-1997/U |
Restrictions/Controls & Freight Information | NSN 5930-01-067-3586
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063160 | SWITCH BOXES/ELEC ENCLOSURES |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-067-3586
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 2Z | Shore (ground) and shipboard electronic equipment Space and Naval Warfare Systems Command |
| Issue Repair, or Requisition | BM | Submit/refer requisitions to NAVSPAWAR (SPAWAR 82) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | B | INVENTORY CONTROL POINT (ICP)-REGULATED (Service/Agency use only.) # Issue, transfer, or shipment is controlled by the ICP. 1. The use or stockage of the item requires release authority based on prior or concurrent justification. 2. Requisitions will be submitted in accordance with Agency/Service requisitioning procedure. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
