NSN 5930-01-079-6607 3BTF333, 3BTF3-33, 53604910
Product Details | THERMOSTATIC SWITCH
5930-01-079-6607 A switch that is actuated by changes in ambient temperature. Excludes CIRCUIT BREAKER; CONTROL, TEMPERATURE (as modified); FUSE (as modified); PROTECTOR, THERMAL-OVERLOAD, ELECTRICAL MOTOR; RELAY, THERMAL; and THERMOSTAT, FLOW CONTROL. See also CONTROL, TEMPERATURE (as modified) and REGULATOR, TEMPERATURE (as modified).
Part Alternates: 3BTF333, 3BTF3-33, 53604910, 536049-10, 5930-01-079-6607, 01-079-6607, 5930010796607, 010796607
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 10 JUL 1979 | 01-079-6607 | 00451 ( SWITCH, THERMOSTATIC ) |

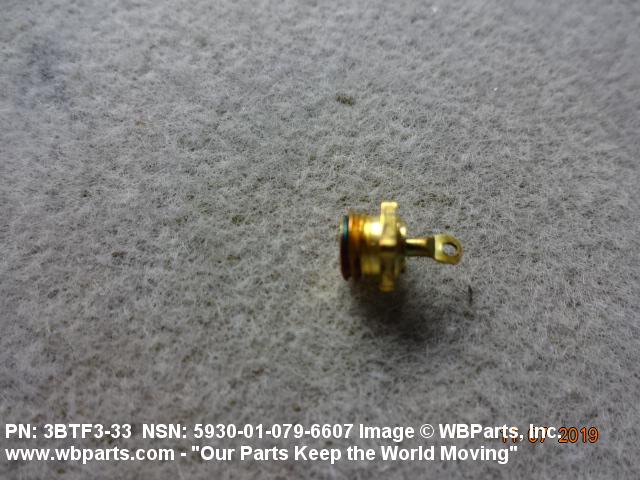

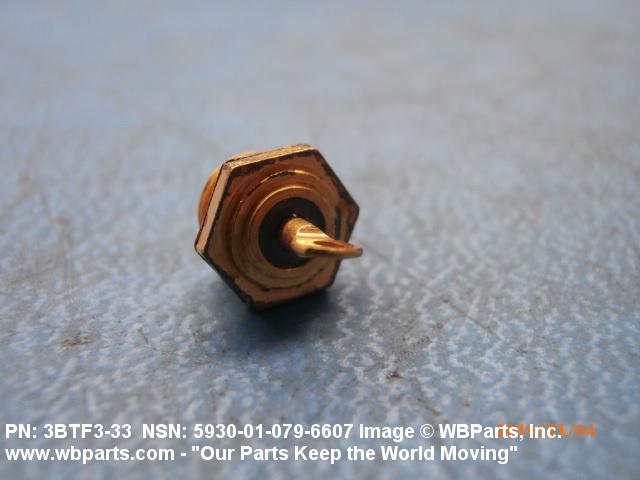

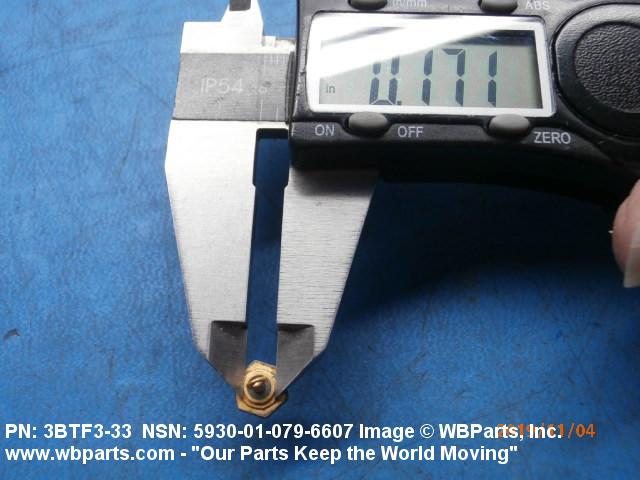

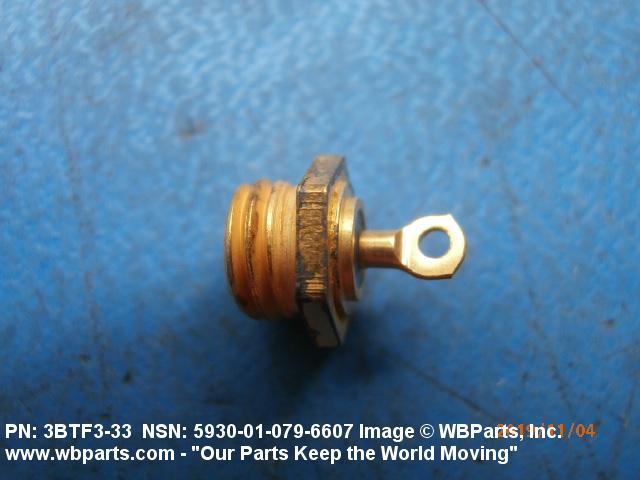

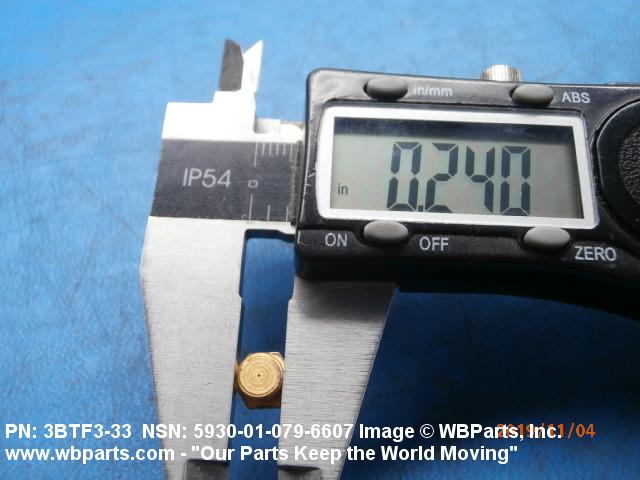

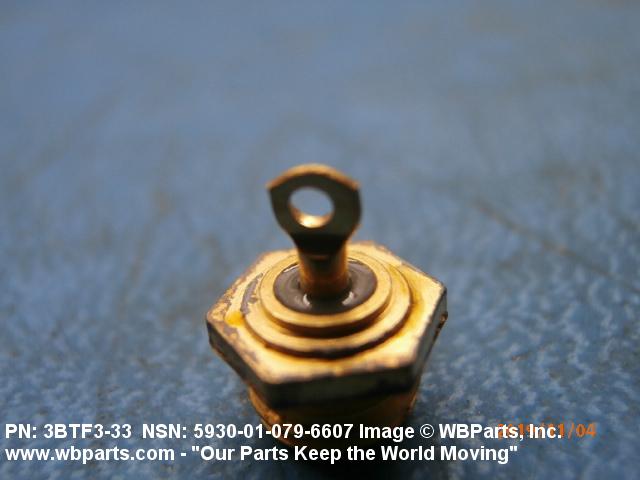

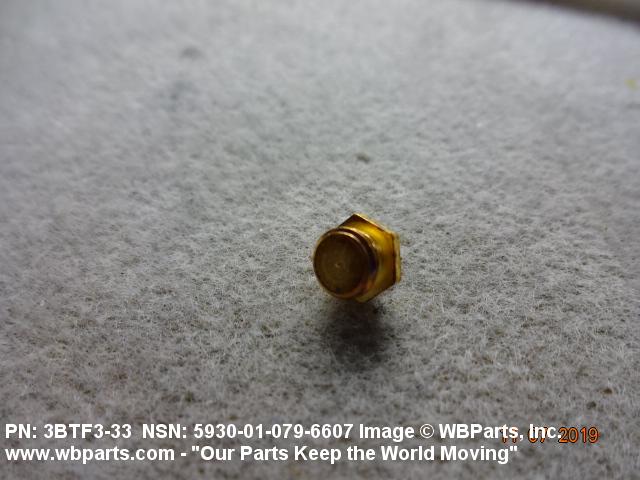

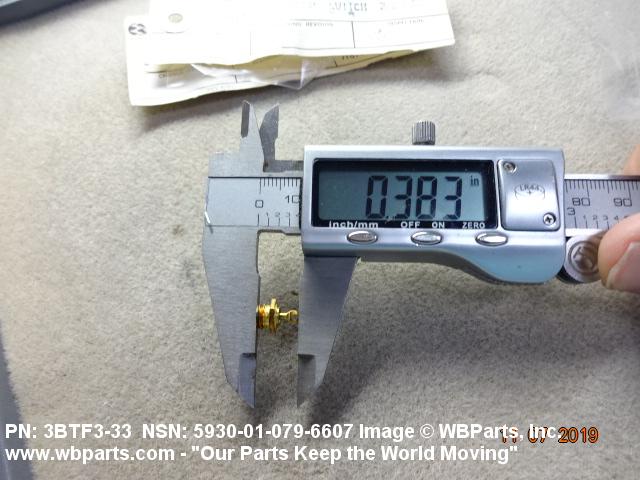

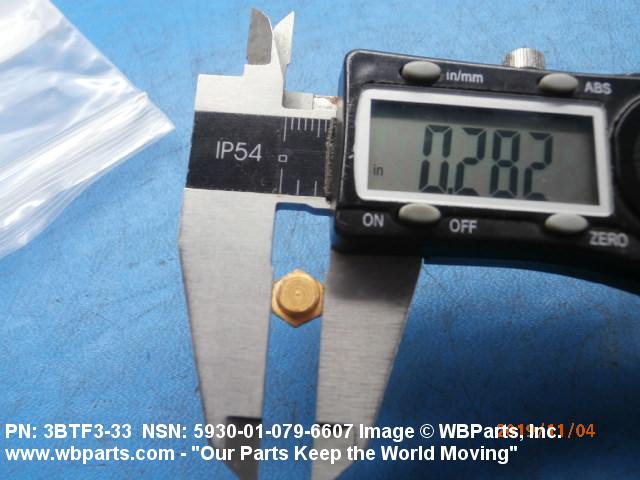

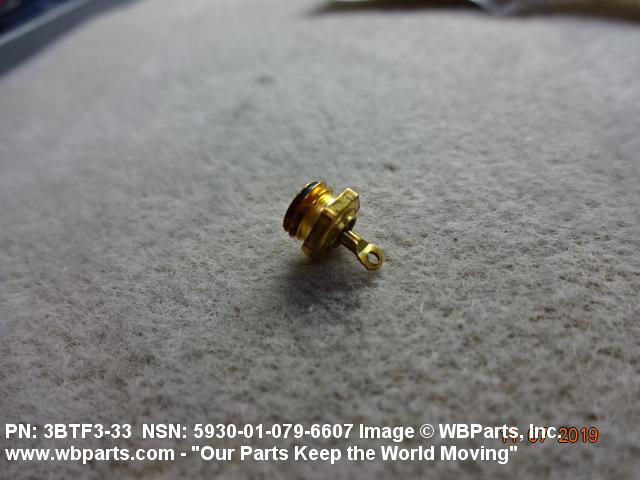

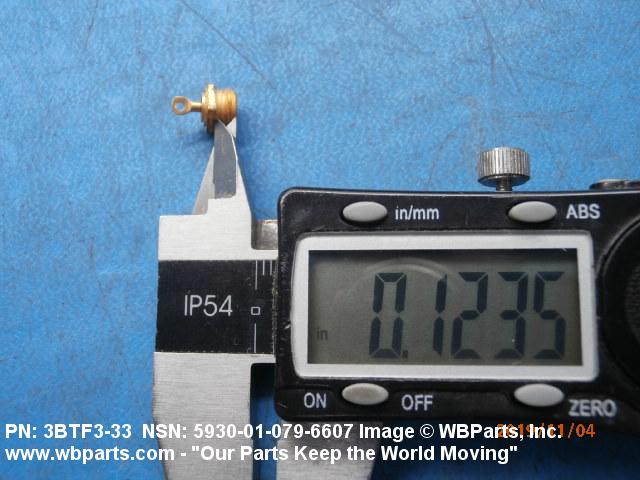

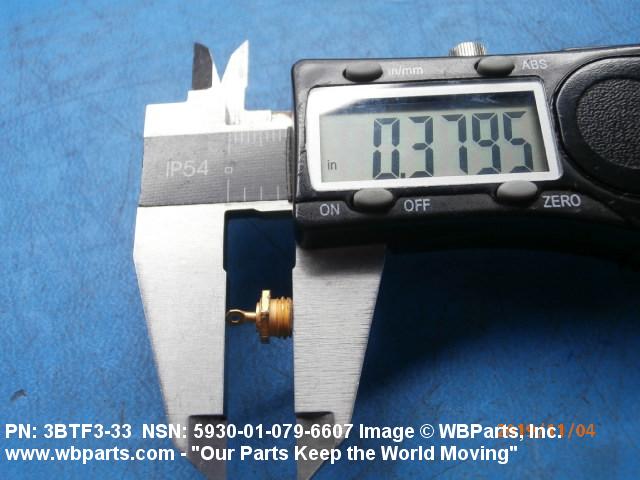

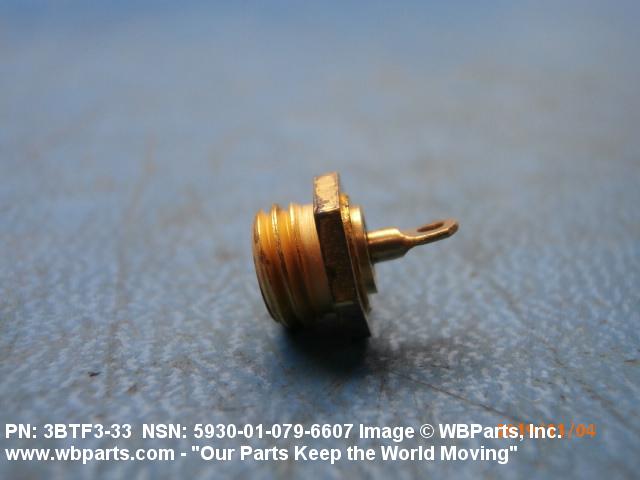

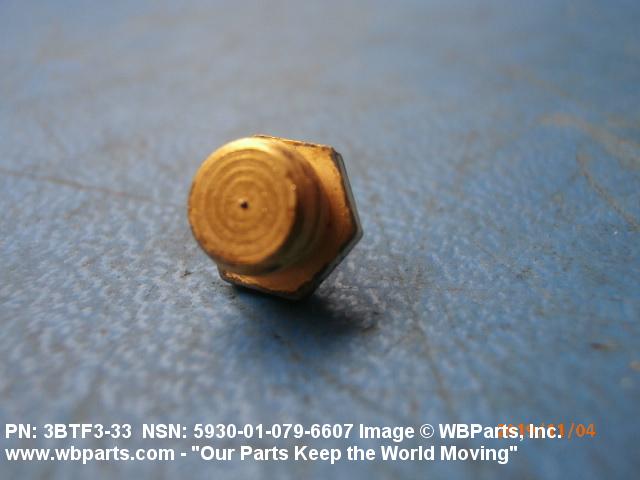

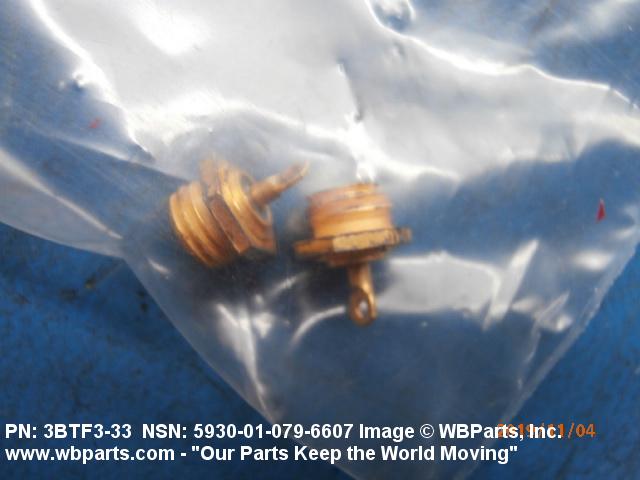

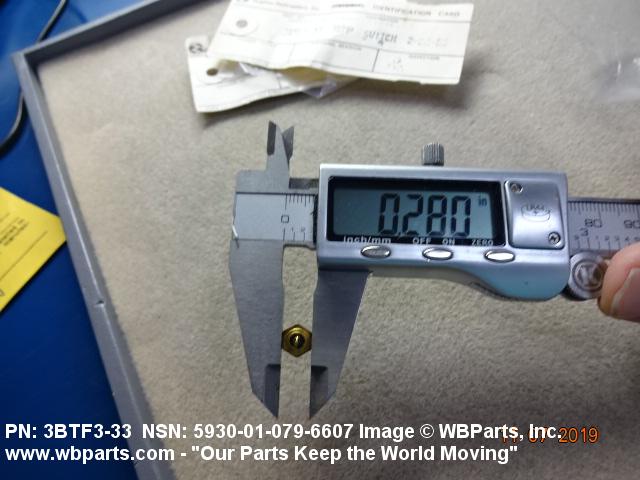

Drawings & Photos | NSN 5930-01-079-6607
Demand History | NSN 5930-01-079-6607
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-079-6607 | 2022-04-100 | 20 | KR |
| 5930-01-079-6607 | 2020-05-146 | 20 | Sweden |
| 5930-01-079-6607 | 2019-09-267 | 5 | Taiwan |
| 5930-01-079-6607 | 2017-03-65 | 20 | Sweden |
| 3BTF3-33 | 2012-12-347 | 71 | US |
| 5930-01-079-6607 | 2012-12-347 | 71 | MANUAL |
| 3BTF333 | 2006-05-125 | 5 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-079-6607
Technical Data | NSN 5930-01-079-6607
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 0.375 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.156 INCHES NOMINAL |
| BODY LENGTH | 0.281 INCHES NOMINAL |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION |
| CONTACT ADJUSTABILITY | ACTUATION POINT NOT ADJUSTABLE |
| TERMINAL TYPE | TAB, SOLDER LUG |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNC SINGLE THREADED BUSHING |
| NOMINAL THREAD SIZE | 0.250 INCHES SINGLE THREADED BUSHING |
| THREAD CLASS | 3A SINGLE THREADED BUSHING |
| THREAD QUANTITY PER INCH | 20 SINGLE THREADED BUSHING |
| THREAD LENGTH | 0.125 INCHES NOMINAL SINGLE THREADED BUSHING |
Restrictions/Controls & Freight Information | NSN 5930-01-079-6607
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5930-01-079-6607
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9T | Navy-owned stocks of Federal Aviation Administration Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | G69 | Department of Transportation Federal Aviation Administration ATTN: COE AML-030 TSF BLDG 215 PO BOX 25082 Oklahoma City, OK 73125-0082 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
