NSN 5930-01-082-3797 SMA8036891, SM-A-803689-1, 2SE73203C28G
Product Details | FLOW SWITCH
5930-01-082-3797 A switch which is specifically designed to operate by the influence of a gaseous, liquid, or solid media velocity on its actuator.
Part Alternates: SMA8036891, SM-A-803689-1, 2SE73203C28G, 2SE73-203C28G, 2SE73-203C28G..930, 2SE73203C28G930, 7221221, 722122-1, 5930-01-082-3797, 01-082-3797, 5930010823797, 010823797
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 SEP 1979 | 01-082-3797 | 36841 ( SWITCH, FLOW ) |

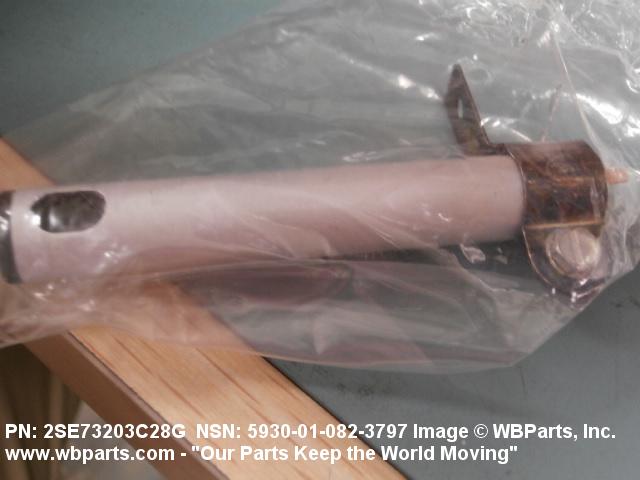

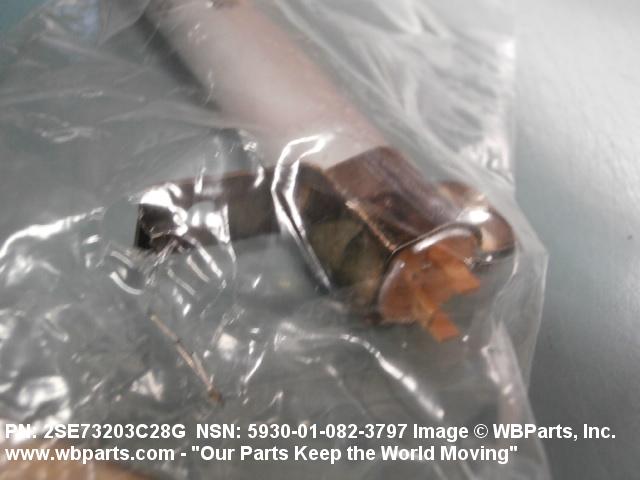

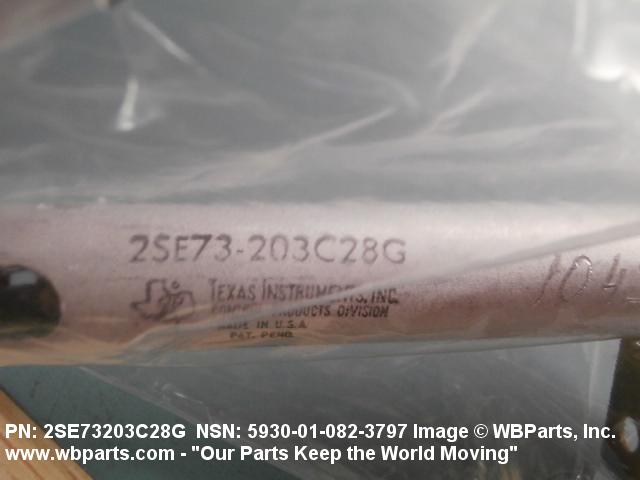

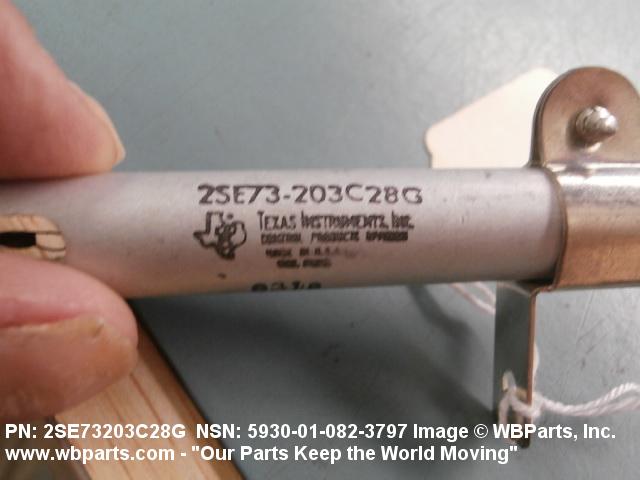

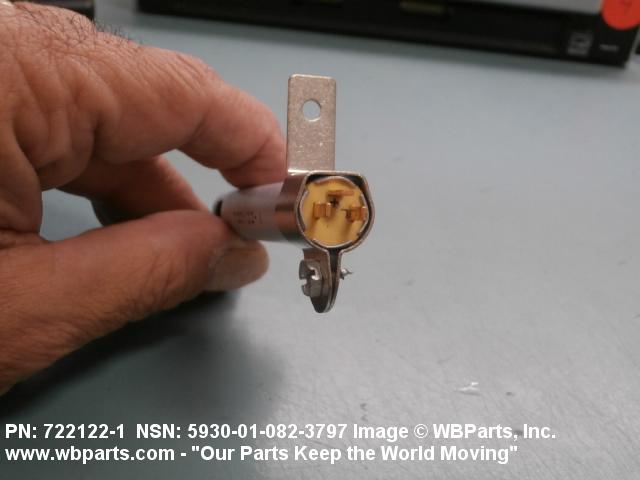

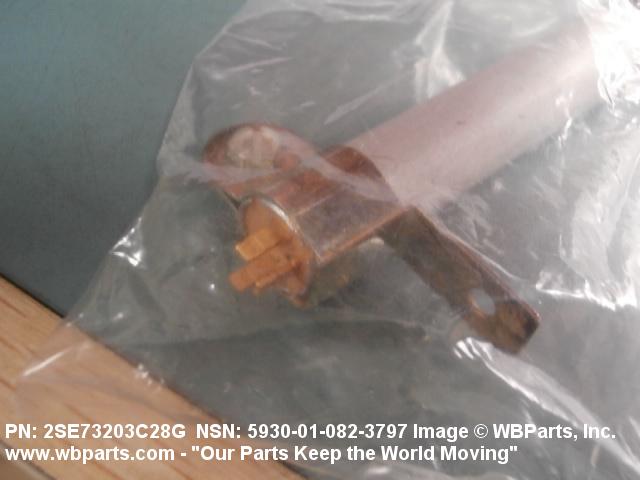

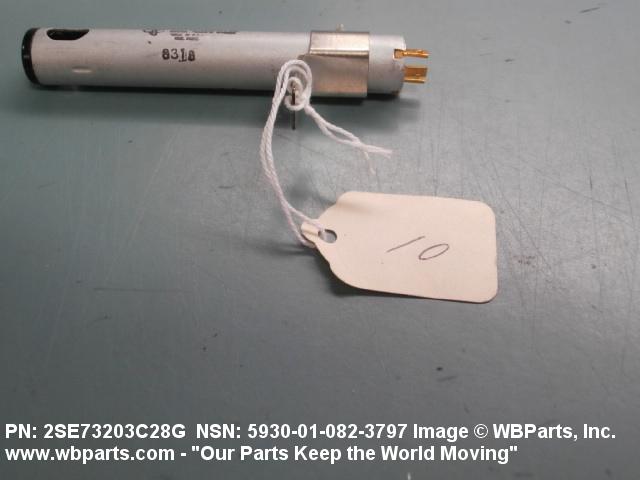

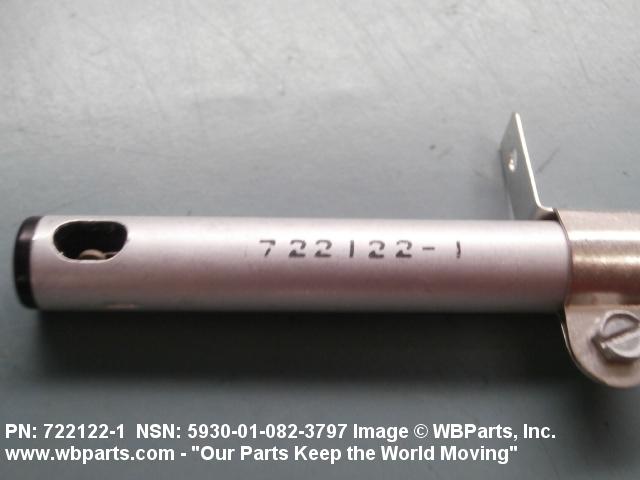

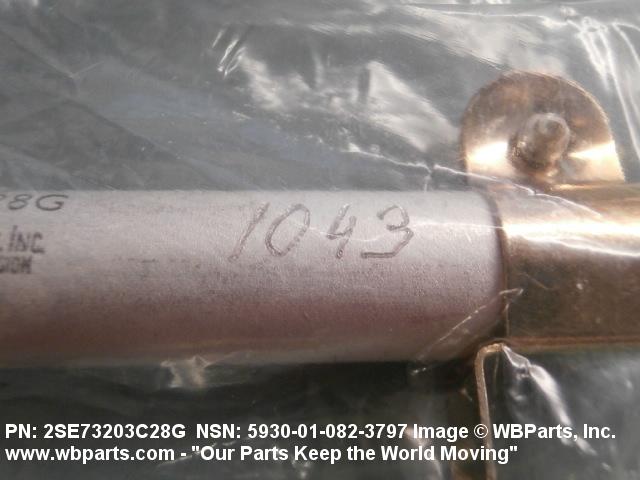

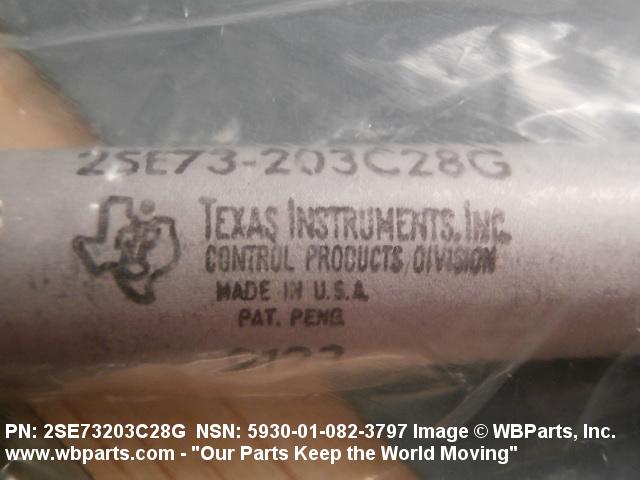

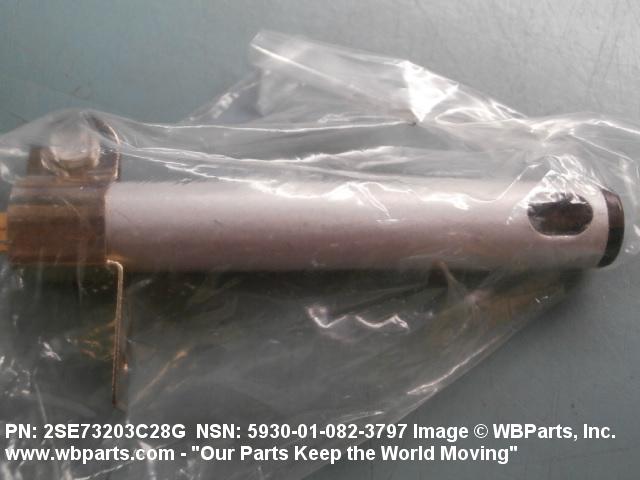

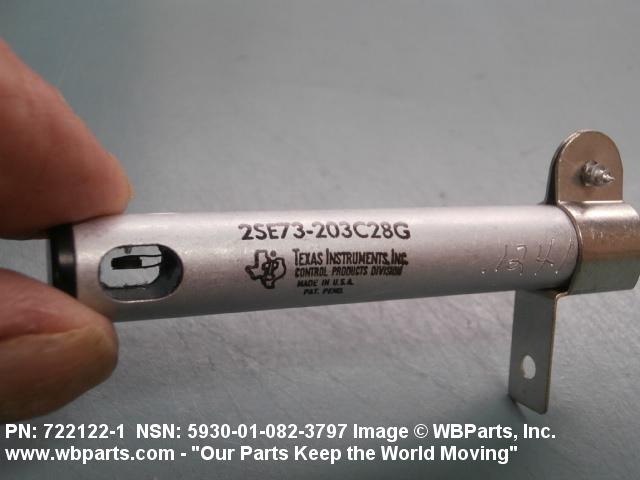

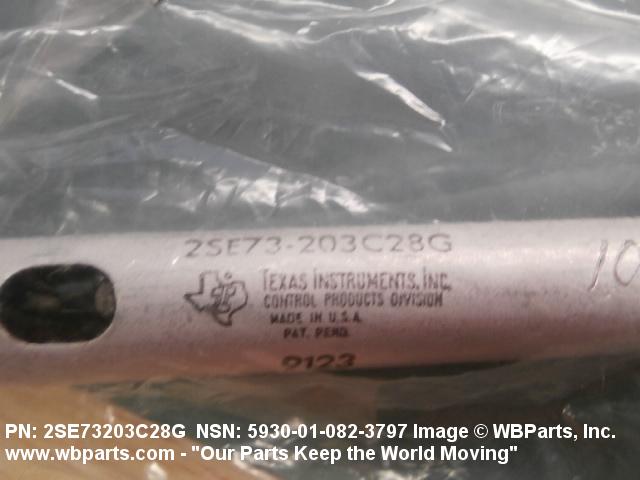

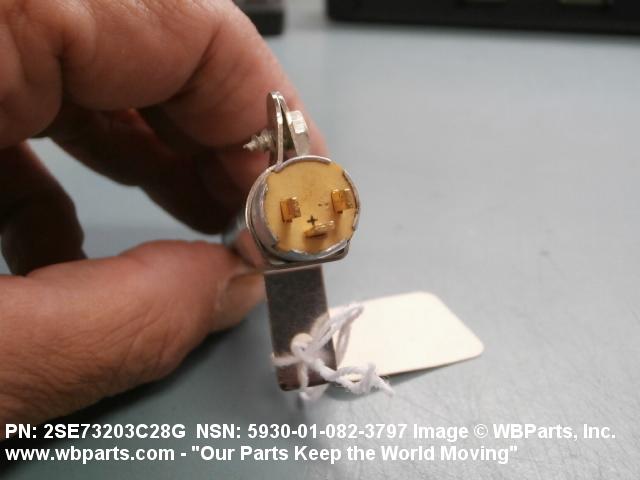

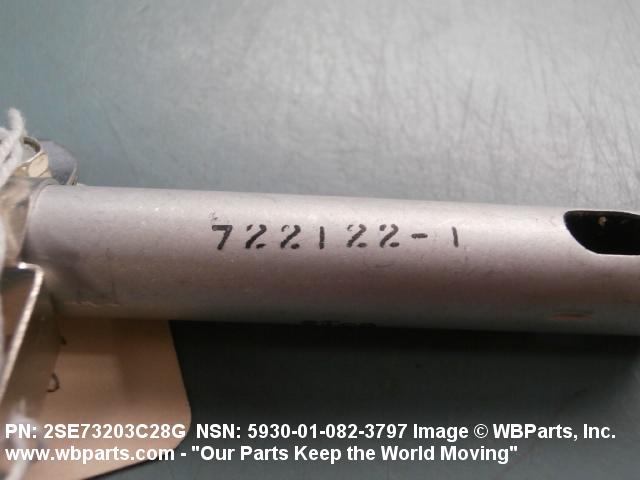

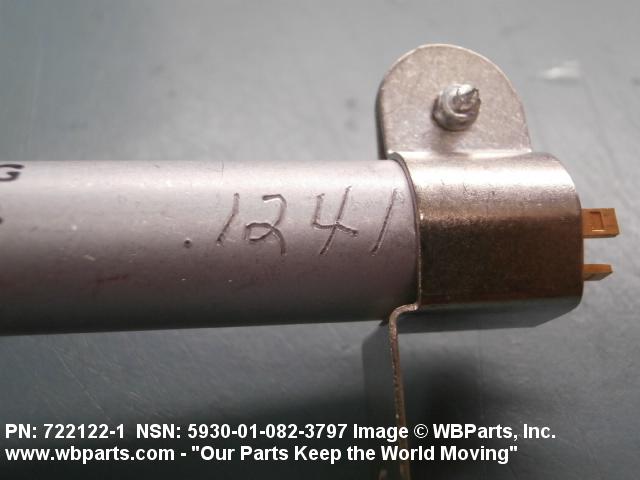

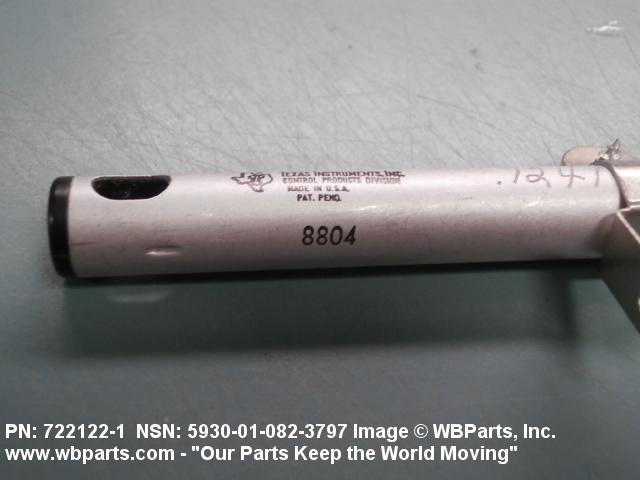

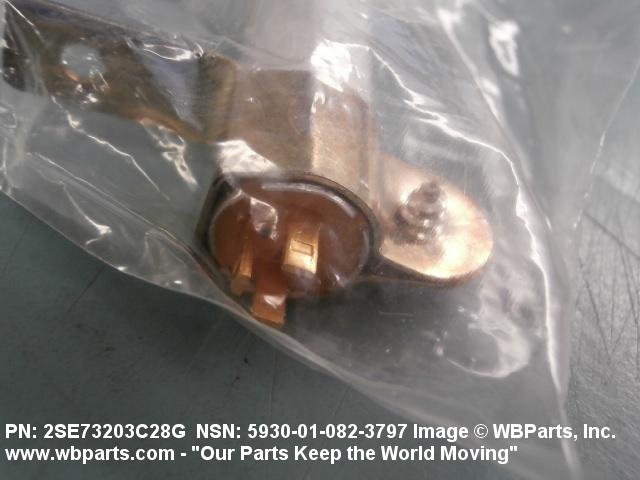

Drawings & Photos | NSN 5930-01-082-3797
Demand History | NSN 5930-01-082-3797
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-082-3797 | 2025-01-02 | 3 | Pakistan |
| 5930-01-082-3797 | 2024-08-222 | 6 | United States |
| 5930-01-082-3797 | 2021-10-274 | 1 | us |
| 5930-01-082-3797 | 2021-10-274 | 2 | us |
| 5930-01-082-3797 | 2017-03-75 | 219 | DIBBS |
| 5930-01-082-3797 | 2017-01-26 | 59 | DIBBS |
| 5930-01-082-3797 | 2017-01-08 | 32 | DIBBS |
| 5930-01-082-3797 | 2016-05-144 | 21 | DIBBS |
| 5930-01-082-3797 | 2016-05-132 | 21 | DIBBS |
| 5930-01-082-3797 | 2016-02-48 | 23 | DIBBS |
| 5930-01-082-3797 | 2016-02-35 | 23 | DIBBS |
| 5930-01-082-3797 | 2015-08-230 | 24 | DIBBS |
| 5930-01-082-3797 | 2015-08-216 | 24 | DIBBS |
| 2SE73203C28G | 2013-09-262 | 5 | Jordan |
| 5930-01-082-3797 | 2013-09-262 | 5 | Jordan |
| 5930-01-082-3797 | 2013-09-259 | 5 | JO |
| 5930-01-082-3797 | 2012-04-108 | 25 | US |
| 7221221 | 2010-11-330 | 117 | US |
| SMA8036891 | 2010-11-329 | 117 | CA |
| 5930-01-082-3797 | 2010-11-328 | 117 | DIBBS |
| 5930-01-082-3797 | 2010-07-211 | 103 | DIBBS |
| 5930-01-082-3797 | 2010-07-193 | 142 | DIBBS |
| 5930-01-082-3797 | 2010-04-97 | 2 | US |
| 5930-01-082-3797 | 2009-11-314 | 128 | DIBBS |
| 5930-01-082-3797 | 2009-10-300 | 126 | DIBBS |
| 5930-01-082-3797 | 2009-08-217 | 26 | DIBBS |
| 5930-01-082-3797 | 2009-07-211 | 26 | DIBBS |
| 5930-01-082-3797 | 2009-04-111 | 19 | DIBBS |
| 5930-01-082-3797 | 2009-02-58 | 56 | DIBBS |
| 5930-01-082-3797 | 2009-01-30 | 80 | DIBBS |
| 5930-01-082-3797 | 2008-12-344 | 61 | DIBBS |
| 2SE73203C28G930 | 2008-11-318 | 117 | us |
| 5930-01-082-3797 | 2008-11-316 | 117 | DIBBS |
| 5930-01-082-3797 | 2008-10-283 | 48 | DIBBS |
| 5930-01-082-3797 | 2008-05-122 | 116 | DIBBS |
| 5930-01-082-3797 | 2008-02-60 | 61 | DIBBS |
| 5930-01-082-3797 | 2007-04-99 | 54 | DIBBS |
| 5930-01-082-3797 | 2007-02-58 | 174 | DIBBS |
| 5930-01-082-3797 | 2007-01-26 | 185 | DIBBS |
| 5930-01-082-3797 | 2007-01-26 | 141 | DIBBS |
| 5930-01-082-3797 | 2007-01-26 | 45 | DIBBS |
Cross Reference | NSN 5930-01-082-3797
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-082-3797
Related Products | NSN 5930-01-082-3797
Technical Data | NSN 5930-01-082-3797
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 2 CYLINDRICAL W/FLANGE |
| OVERALL LENGTH | 3.356 INCHES MINIMUM AND 3.464 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY CLOSED, MOMENTARY ACTION |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | ACTUATION POINT NOT ADJUSTABLE AND DEACTUATION POINT NOT ADJUSTABLE |
| CONTACT VOLTAGE RATING IN VOLTS | 28.0 DC AT SEA LEVEL SINGLE VOLTAGE |
| CONTACT LOAD CURRENT RATING | 400.0 MILLIAMPERES RESISTIVE LOAD SINGLE VOLTAGE |
| OPERATING TEMP RATING | -50.0 DEG FAHRENHEIT MINIMUM AND 160.0 DEG FAHRENHEIT MAXIMUM |
| MEDIA FOR WHICH DESIGNED | GAS |
| TERMINAL TYPE | TAB, SOLDER LUG |
| MOUNTING METHOD | BRACKET AND UNTHREADED HOLE |
| III HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | HUMIDITY RESISTANT AND VIBRATION RESISTANT |
Restrictions/Controls & Freight Information | NSN 5930-01-082-3797
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | CL | U.S. Army Communications-Electronics Fort Monmouth, NJ 07703-5006 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-082-3797
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
