NSN 5930-01-087-0317 S2511, S251-1 , 13AT277T2

Product Details | TOGGLE SWITCH

5930-01-087-0317 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.

Part Alternates: S2511, S251-1 , 13AT277T2, 13AT9T2, 13AT9-T2, 37318301, 373183-01, 5930-01-087-0317, 01-087-0317, 5930010870317, 010870317

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	10 DEC 1979	01-087-0317	00184 ( SWITCH, TOGGLE )

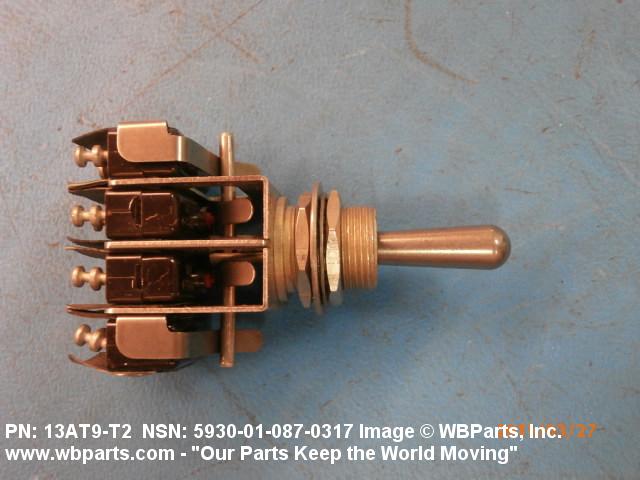

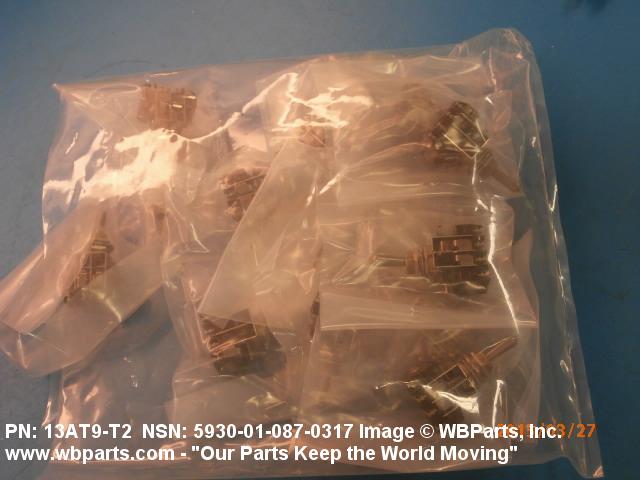

Drawings & Photos | NSN 5930-01-087-0317

Part Number	Request Date	QTY	Origin
13AT9T2	2024-07-212	10	US
13AT9-T2	2024-07-194	1	DIBBS
S251-1	2024-07-194	1	DIBBS
13AT9-T2	2024-06-182	1	DIBBS
S251-1	2024-06-182	1	DIBBS
5930-01-087-0317	2019-02-51	3	Turkey
5930-01-087-0317	2015-03-72	15	United States
13AT9T2	2015-02-58	15	US
5930-01-087-0317	2014-12-343	8	DIBBS
5930-01-087-0317	2014-05-147	2	DIBBS
5930-01-087-0317	2014-05-133	2	DIBBS
5930-01-087-0317	2014-01-16	2	DIBBS
5930-01-087-0317	2009-12-356	102	DIBBS
5930-01-087-0317	2009-10-297	1	DIBBS
5930-01-087-0317	2009-04-104	1	DIBBS
5930-01-087-0317	2009-04-104	2	DIBBS
5930-01-087-0317	2009-04-104	5	DIBBS
5930-01-087-0317	2009-03-75	1	DIBBS
5930-01-087-0317	2009-03-75	2	DIBBS
5930-01-087-0317	2009-03-75	5	DIBBS

Cross Reference | NSN 5930-01-087-0317

Part Number	Cage Code	Manufacturer
13AT277T2	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
13AT9-T2	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
373183-01	3B150	RAYTHEON TECHNICAL SERVICES COMPANY LLC
373183-01	49956	RAYTHEON COMPANY DBA RAYTHEON
S251-1	1PQF4	L-3 COMMUNICATIONS CORPORATION DBA LINK SIMULATION & TRAINING
S251-1	36378	RAYTHEON TECHNICAL SERVICES COMPANY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5930-01-087-0317

Compare

Related Products | NSN 5930-01-087-0317

5930-01-087-0318, 5930-01-087-0546, 5930-01-087-0670, 5930-01-087-0803, 5930-01-087-0881

Technical Data | NSN 5930-01-087-0317

Characteristic	Specifications
NONPILE-UP CONTACT ARRANGEMENT	4 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT
MAXIMUM VOLTAGE RATING IN VOLTS	250.0 AC AND 30.0 DC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	5.000 AMPERES RESISTIVE DC AND 3.000 AMPERES INDUCTIVE DC AND 5.000 AMPERES RESISTIVE AC
BODY STYLE	1P BUSHING MOUNT
BODY DIAMETER	0.840 INCHES NOMINAL
BUSHING LENGTH	0.470 INCHES NOMINAL

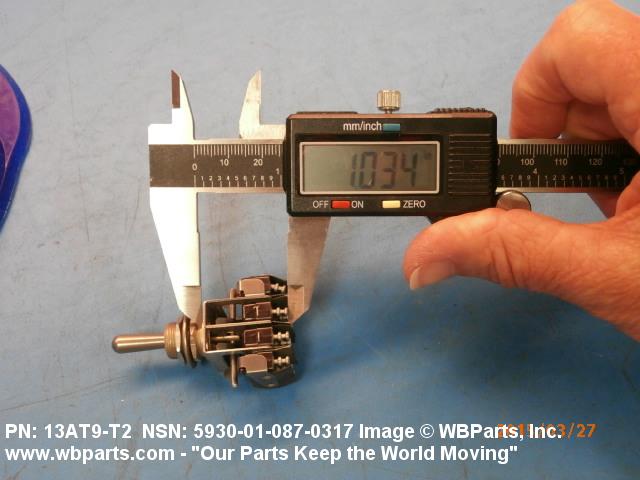

BODY LENGTH	1.043 INCHES NOMINAL
ACTUATOR STYLE	27 ROUND
ACTUATOR DIAMETER	0.240 INCHES NOMINAL
ACTUATOR HEIGHT	0.690 INCHES NOMINAL
ACTUATOR POSITION-ACTION RELATIONSHIP	LEFT POSITION MAINTAINED AND RIGHT POSITION MAINTAINED AND CENTER POSITION MAINTAINED
TERMINAL TYPE AND QUANTITY	12 TURRET
INCLOSURE TYPE	FULLY INCLOSED
THREAD SERIES DESIGNATOR	UNS
NOMINAL THREAD SIZE	0.469 INCHES
THREAD QUANTITY PER INCH	32

Restrictions/Controls & Freight Information | NSN 5930-01-087-0317

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5930-01-087-0317

Navy

Category	Code	Description
Cognizance Codes	9N	Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Y	TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
