Product Details | THERMOSTATIC SWITCH
5930-01-098-0753 A switch that is actuated by changes in ambient temperature. Excludes CIRCUIT BREAKER; CONTROL, TEMPERATURE (as modified); FUSE (as modified); PROTECTOR, THERMAL-OVERLOAD, ELECTRICAL MOTOR; RELAY, THERMAL; and THERMOSTAT, FLOW CONTROL. See also CONTROL, TEMPERATURE (as modified) and REGULATOR, TEMPERATURE (as modified).
Part Alternates: 11449123-1, 21546-2-56-1, 21546-2-56-1..54-1, 215462561541, 5930-01-098-0753, 01-098-0753, 5930010980753, 114491231, 215462561, 010980753
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 JUL 1980 | 01-098-0753 | 00451 ( SWITCH, THERMOSTATIC ) |

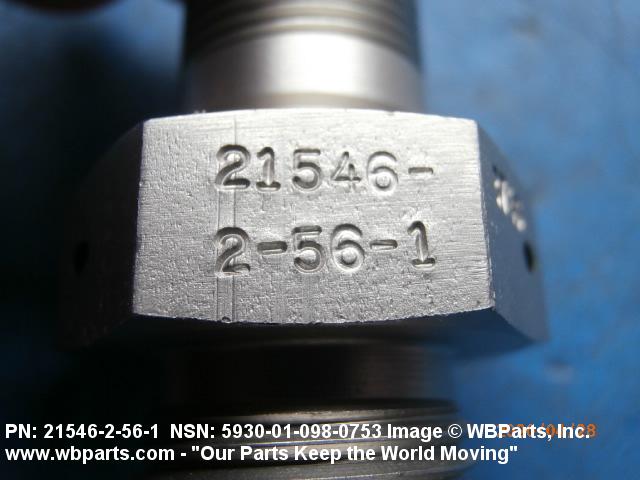

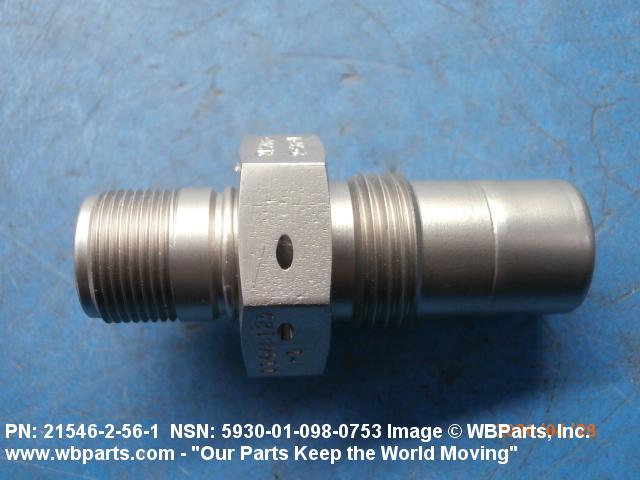

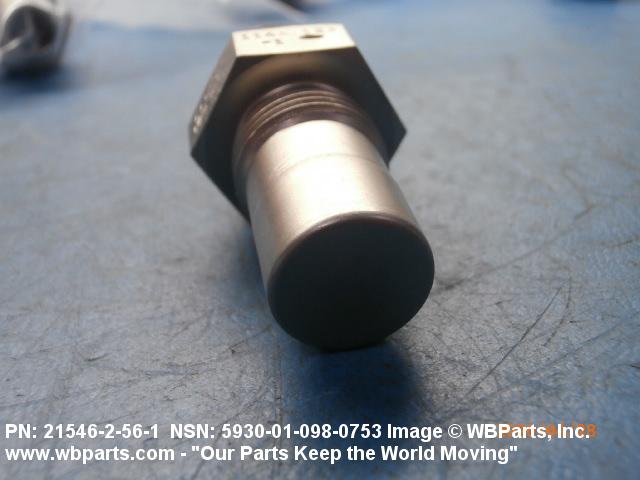

Drawings & Photos | NSN 5930-01-098-0753

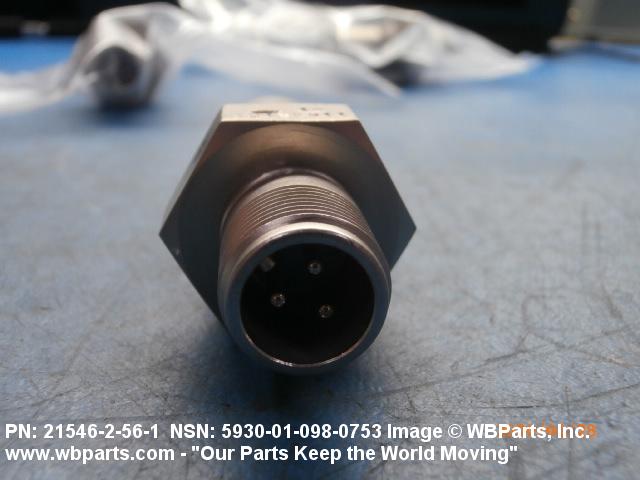

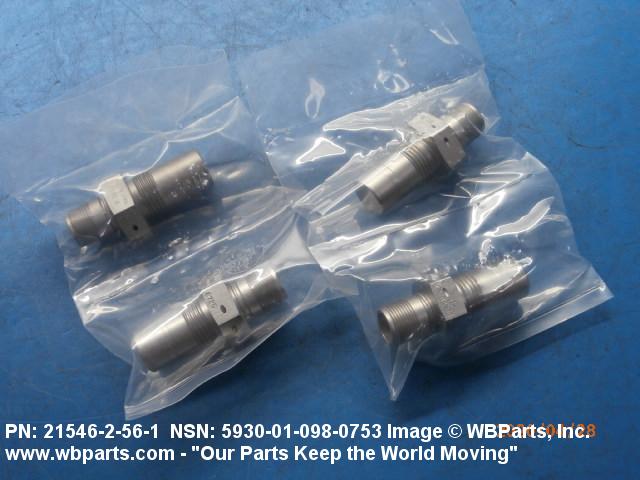

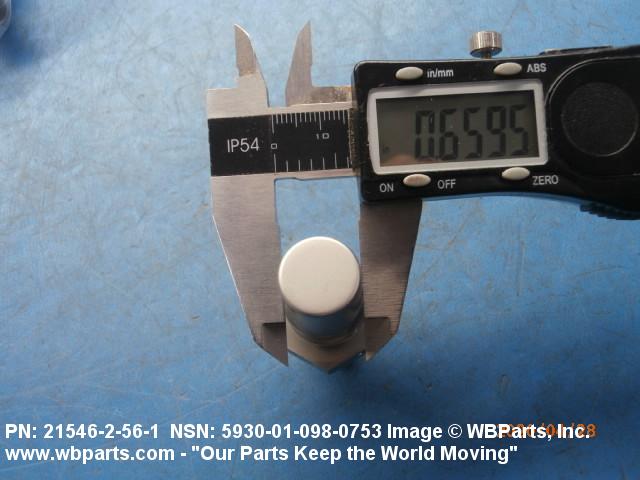

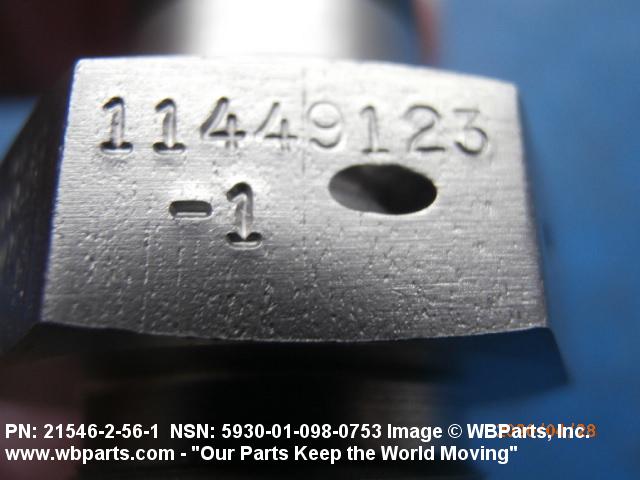

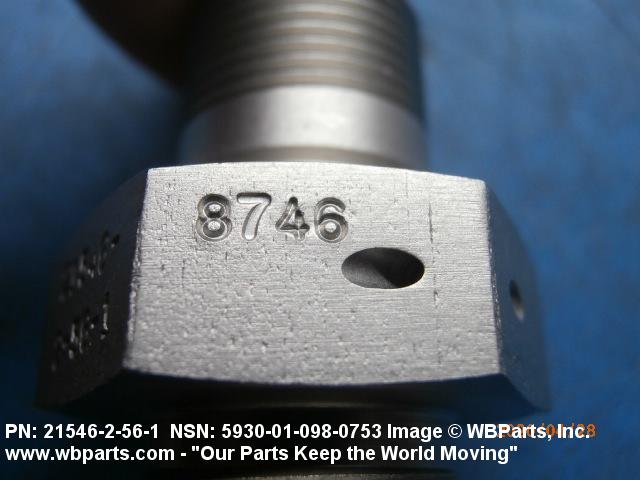

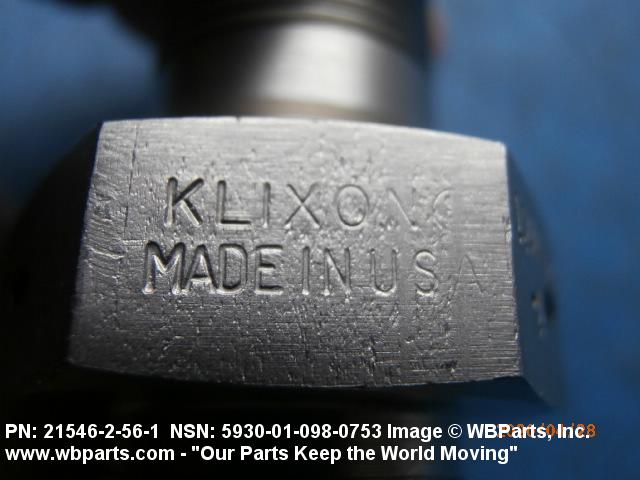

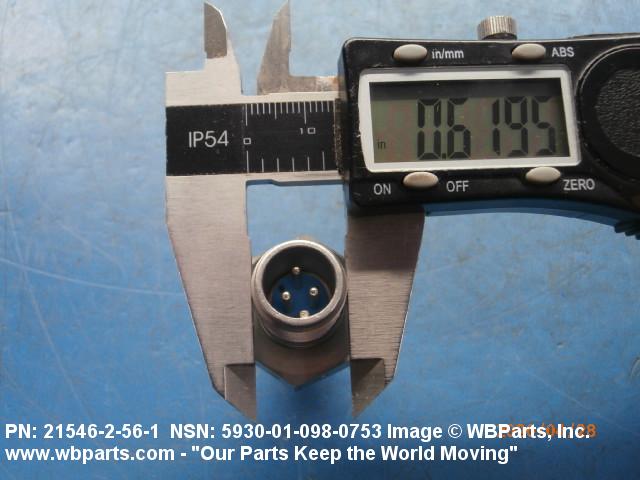

Demand History | NSN 5930-01-098-0753
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 21546-2-56-1..54-1 | 2026-01-08 | 21 | DIBBS |
| 21546-2-56-1..54-1 | 2025-08-219 | 23 | DIBBS |
| 114491231 | 2025-02-45 | 35 | us |
| 21546-2-56-1..54-1 | 2025-01-16 | 22 | DIBBS |
| 21546-2-56-1..54-1 | 2023-11-320 | 21 | DIBBS |
| 5930-01-098-0753 | 2023-11-310 | 21 | US |
| 21546-2-56-1..54-1 | 2023-11-309 | 21 | DIBBS |
| 21546-2-56-1..54-1 | 2023-09-262 | 12 | DIBBS |
| 21546-2-56-1..54-1 | 2023-08-215 | 9 | DIBBS |
| 21546-2-56-1..54-1 | 2023-03-68 | 5 | DIBBS |
| 21546-2-56-1..54-1 | 2023-01-09 | 4 | DIBBS |
| 21546-2-56-1..54-1 | 2022-12-363 | 4 | DIBBS |
| 21546-2-56-1..54-1 | 2022-11-331 | 12 | DIBBS |
| 21546-2-56-1..54-1 | 2022-07-188 | 10 | DIBBS |
| 21546-2-56-1..54-1 | 2022-01-25 | 6 | DIBBS |
| 21546-2-56-1..54-1 | 2021-12-350 | 4 | DIBBS |
| 21546-2-56-1..54-1 | 2021-05-123 | 8 | DIBBS |
| 21546-2-56-1..54-1 | 2021-04-108 | 8 | DIBBS |
| 21546-2-56-1..54-1 | 2020-11-314 | 14 | DIBBS |
| 21546-2-56-1..54-1 | 2020-10-282 | 9 | DIBBS |
| 5930-01-098-0753 | 2020-09-246 | 1 | United States |
| 21546-2-56-1..54-1 | 2020-06-160 | 11 | DIBBS |
| 5930-01-098-0753 | 2020-06-156 | 2 | United States |
| 21546-2-56-1..54-1 | 2020-05-149 | 11 | DIBBS |
| 5930-01-098-0753 | 2020-04-109 | 5 | United States |
| 21546-2-56-1..54-1 | 2019-01-22 | 36 | DIBBS |
| 5930-01-098-0753 | 2017-01-11 | 36 | DIBBS |
| 5930-01-098-0753 | 2015-10-278 | 52 | DIBBS |
| 5930-01-098-0753 | 2015-08-230 | 39 | TR |
| 5930-01-098-0753 | 2015-08-225 | 39 | DIBBS |
| 5930-01-098-0753 | 2014-12-355 | 28 | DIBBS |
| 5930-01-098-0753 | 2014-03-79 | 33 | DIBBS |
| 5930-01-098-0753 | 2014-02-43 | 1 | DIBBS |
| 5930-01-098-0753 | 2013-07-190 | 18 | DIBBS |
| 5930-01-098-0753 | 2013-02-40 | 20 | DIBBS |
| 5930-01-098-0753 | 2012-11-334 | 6 | DIBBS |
| 5930-01-098-0753 | 2012-03-90 | 17 | DIBBS |
| 5930-01-098-0753 | 2011-10-289 | 0 | DIBBS |
| 5930-01-098-0753 | 2011-09-273 | 12 | DIBBS |
| 5930-01-098-0753 | 2011-02-38 | 11 | DIBBS |
| 5930-01-098-0753 | 2010-09-244 | 17 | DIBBS |
| 5930-01-098-0753 | 2010-07-197 | 18 | DIBBS |
| 5930-01-098-0753 | 2010-05-140 | 8 | DIBBS |
| 5930-01-098-0753 | 2010-04-111 | 8 | DIBBS |
| 5930-01-098-0753 | 2010-04-111 | 11 | DIBBS |
| 5930-01-098-0753 | 2010-04-111 | 12 | DIBBS |
| 5930-01-098-0753 | 2010-04-95 | 10 | DIBBS |
| 5930-01-098-0753 | 2010-03-81 | 11 | DIBBS |
| 5930-01-098-0753 | 2010-03-74 | 11 | United States |
| 5930-01-098-0753 | 2010-03-70 | 11 | US |
| 5930-01-098-0753 | 2010-02-36 | 8 | DIBBS |
| 5930-01-098-0753 | 2009-12-356 | 12 | DIBBS |
| 5930-01-098-0753 | 2009-07-208 | 6 | DIBBS |
| 5930-01-098-0753 | 2009-07-182 | 7 | DIBBS |
| 5930-01-098-0753 | 2009-03-75 | 10 | DIBBS |
| 5930-01-098-0753 | 2008-05-123 | 6 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-098-0753
Related Products | NSN 5930-01-098-0753
Technical Data | NSN 5930-01-098-0753
| Characteristic | Specifications |
|---|---|

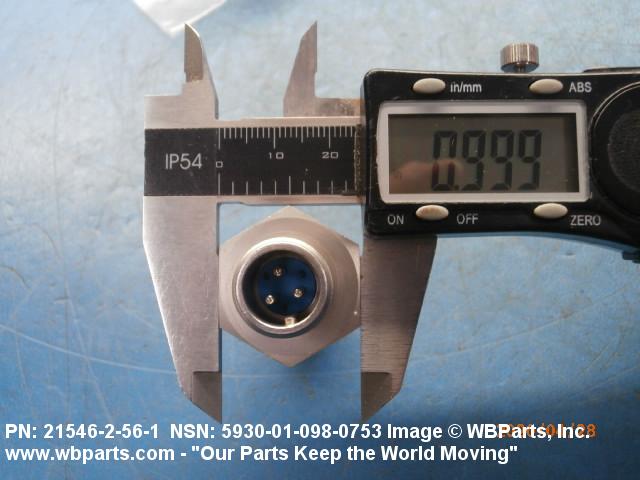

| STYLE DESIGNATOR | 53 CYLINDRICAL W/FLANGE |

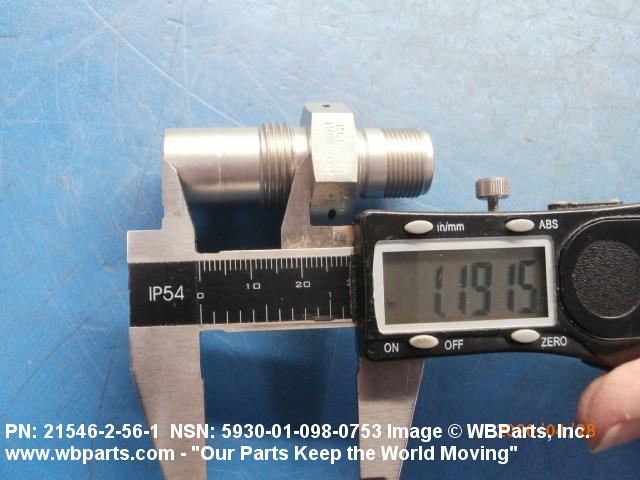

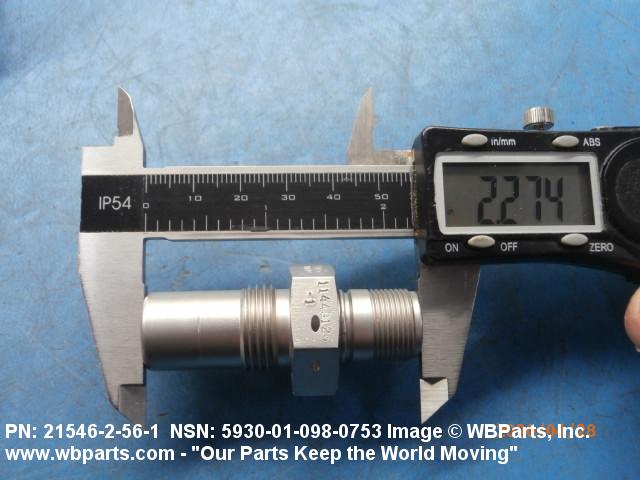

| OVERALL LENGTH | 2.595 INCHES MAXIMUM |
