NSN 5930-01-102-2161 11449123-6, 21546-2-70-1, 01-102-2161
Product Details | THERMOSTATIC SWITCH
5930-01-102-2161 A switch that is actuated by changes in ambient temperature. Excludes CIRCUIT BREAKER; CONTROL, TEMPERATURE (as modified); FUSE (as modified); PROTECTOR, THERMAL-OVERLOAD, ELECTRICAL MOTOR; RELAY, THERMAL; and THERMOSTAT, FLOW CONTROL. See also CONTROL, TEMPERATURE (as modified) and REGULATOR, TEMPERATURE (as modified).
Part Alternates: 11449123-6, 21546-2-70-1, 5930-01-102-2161, 01-102-2161, 5930011022161, 011022161, 114491236, 215462701
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 OCT 1980 | 01-102-2161 | 00451 ( SWITCH, THERMOSTATIC ) |

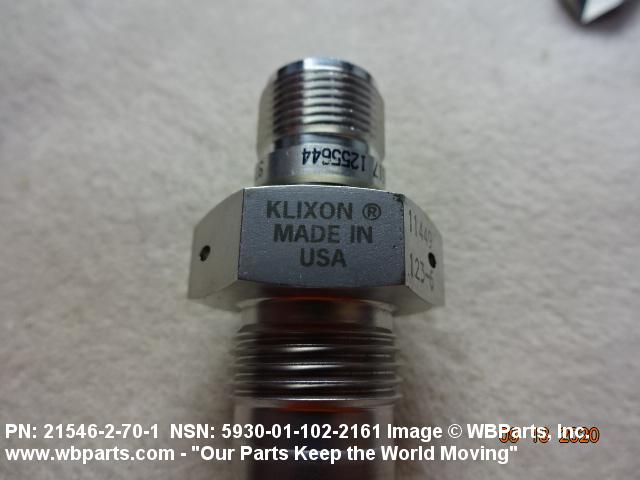

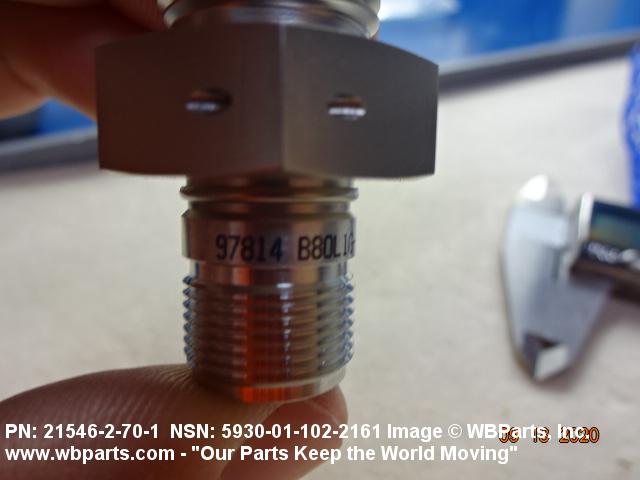

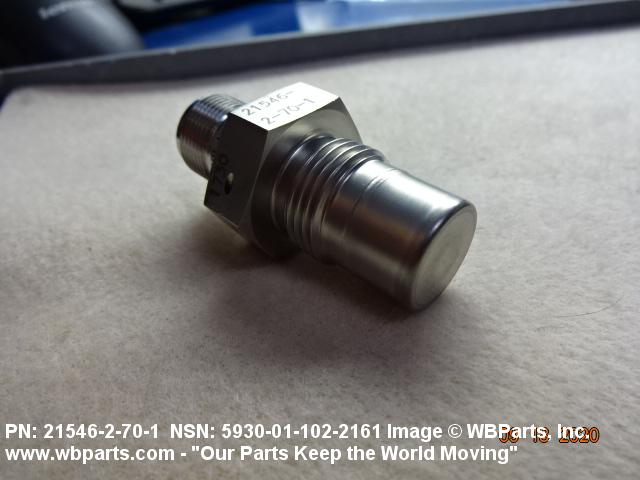

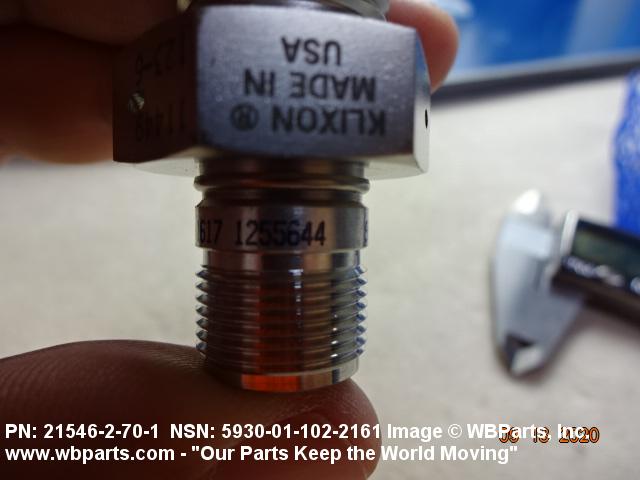

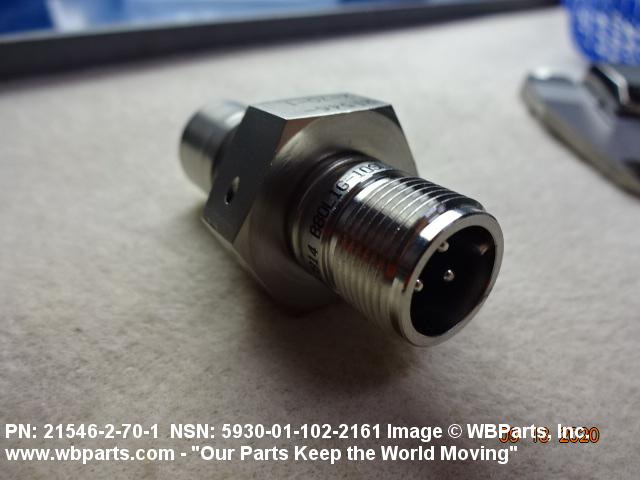

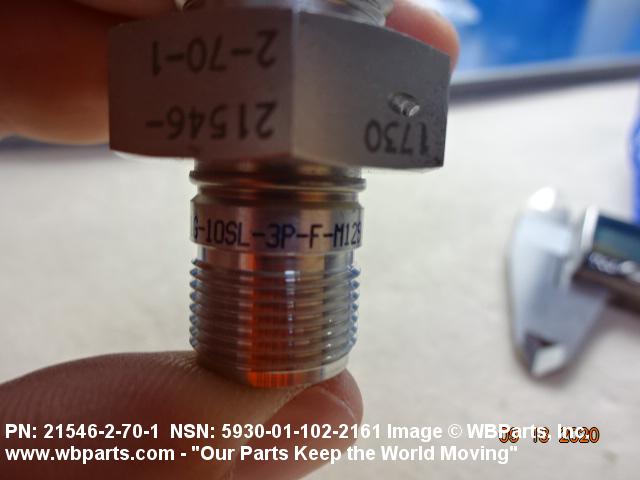

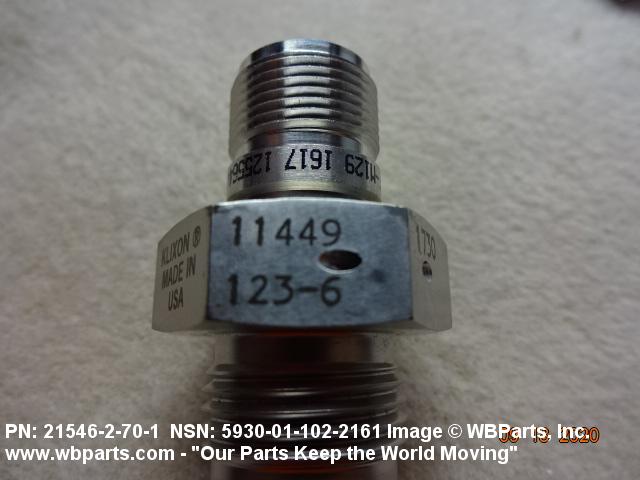

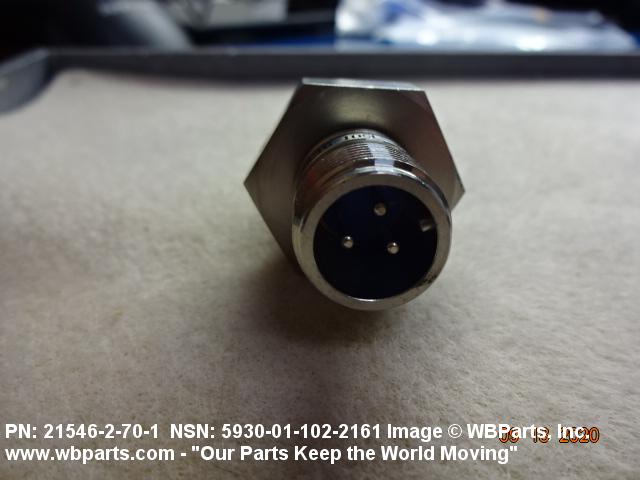

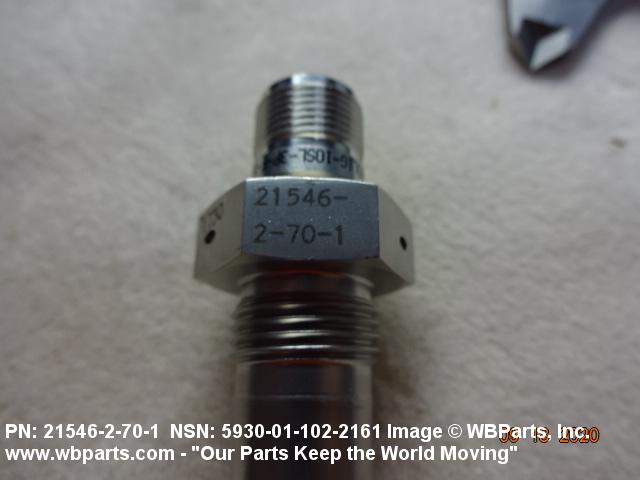

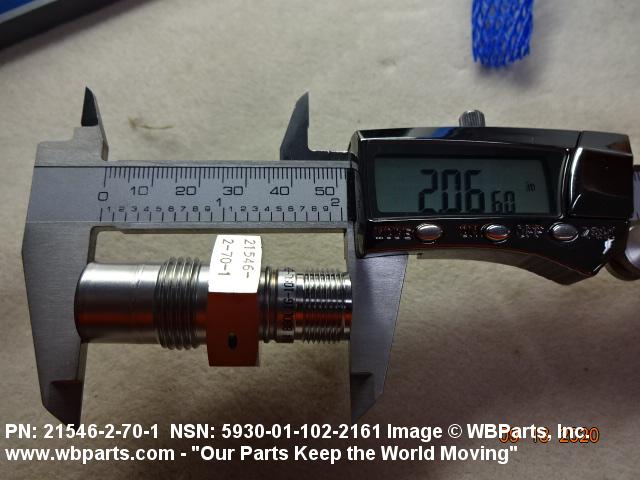

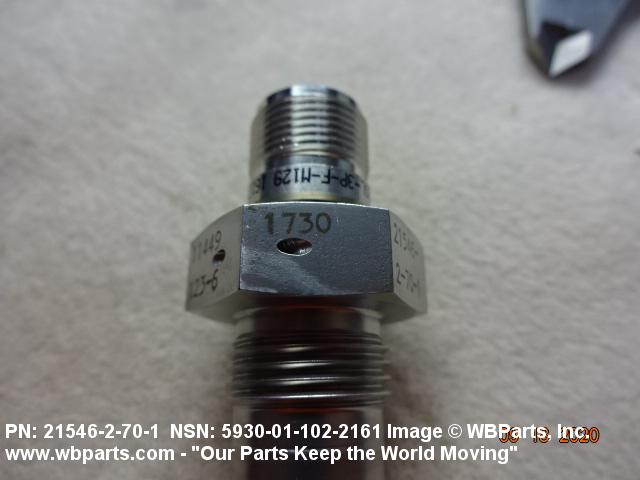

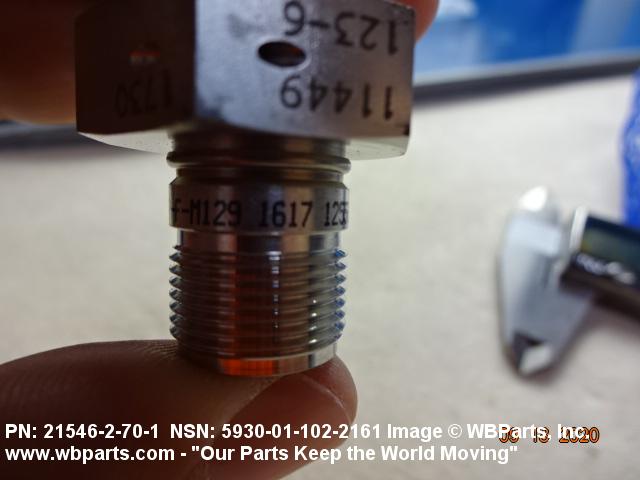

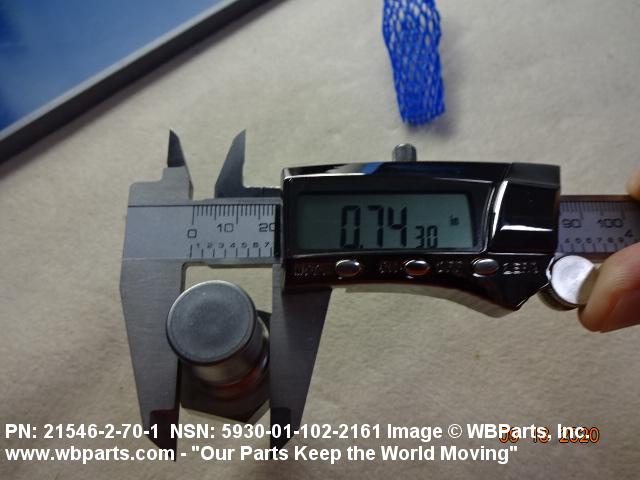

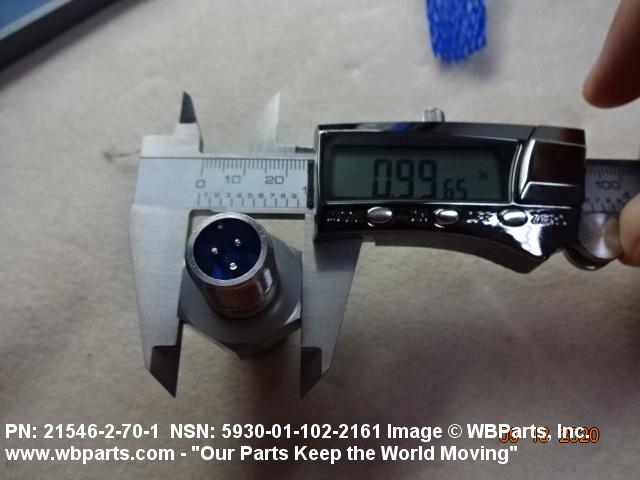

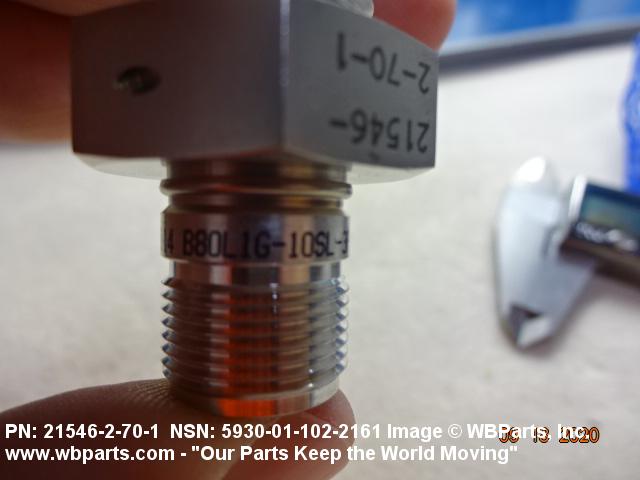

Drawings & Photos | NSN 5930-01-102-2161
Demand History | NSN 5930-01-102-2161
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 21546-2-70-1 | 2025-08-219 | 35 | DIBBS |
| 21546-2-70-1 | 2025-04-100 | 27 | DIBBS |
| 21546-2-70-1 | 2025-04-92 | 7 | DIBBS |
| 21546-2-70-1 | 2024-06-178 | 7 | DIBBS |
| 5930-01-102-2161 | 2023-07-209 | 5 | DIBBS |
| 5930-01-102-2161 | 2023-06-180 | 13 | DIBBS |
| 5930-01-102-2161 | 2023-05-151 | 34 | DIBBS |
| 5930-01-102-2161 | 2023-04-118 | 3 | DIBBS |
| 11449123-6 | 2023-01-04 | 10 | DIBBS |
| 21546-2-70-1 | 2023-01-04 | 10 | DIBBS |
| 11449123-6 | 2022-10-290 | 27 | DIBBS |
| 21546-2-70-1 | 2022-10-290 | 27 | DIBBS |
| 11449123-6 | 2022-10-279 | 27 | DIBBS |
| 21546-2-70-1 | 2022-10-279 | 27 | DIBBS |
| 11449123-6 | 2022-05-144 | 17 | DIBBS |
| 21546-2-70-1 | 2022-05-144 | 17 | DIBBS |
| 11449123-6 | 2022-05-129 | 17 | DIBBS |
| 21546-2-70-1 | 2022-05-129 | 17 | DIBBS |
| 5930-01-102-2161 | 2020-10-303 | 3 | United States |
| 5930-01-102-2161 | 2020-09-246 | 2 | United States |
| 21546-2-70-1 | 2020-03-72 | 9 | DIBBS |
| 21546-2-70-1 | 2019-12-337 | 17 | DIBBS |
| 5930-01-102-2161 | 2019-11-323 | 14 | United States |
| 21546-2-70-1 | 2019-10-283 | 10 | DIBBS |
| 21546-2-70-1 | 2019-07-206 | 22 | DIBBS |
| 21546-2-70-1 | 2019-03-87 | 31 | DIBBS |
| 5930-01-102-2161 | 2018-11-305 | 19 | DIBBS |
| 5930-01-102-2161 | 2018-05-151 | 21 | DIBBS |
| 5930-01-102-2161 | 2017-12-356 | 39 | DIBBS |
| 5930-01-102-2161 | 2017-12-344 | 39 | DIBBS |
| 5930-01-102-2161 | 2016-02-59 | 68 | DIBBS |
| 5930-01-102-2161 | 2015-08-221 | 57 | DIBBS |
| 5930-01-102-2161 | 2013-11-309 | 51 | DIBBS |
| 5930-01-102-2161 | 2013-10-294 | 51 | DIBBS |
| 5930-01-102-2161 | 2013-08-213 | 130 | DIBBS |
| 5930-01-102-2161 | 2013-07-198 | 130 | DIBBS |
| 5930-01-102-2161 | 2012-03-89 | 100 | DIBBS |
| 5930-01-102-2161 | 2011-12-339 | 49 | DIBBS |
| 5930-01-102-2161 | 2011-09-244 | 26 | DIBBS |
| 5930-01-102-2161 | 2010-11-316 | 23 | DIBBS |
| 5930-01-102-2161 | 2010-11-316 | 24 | DIBBS |
| 5930-01-102-2161 | 2010-11-316 | 61 | DIBBS |
| 5930-01-102-2161 | 2010-10-300 | 81 | DIBBS |
| 5930-01-102-2161 | 2010-10-298 | 5 | United States |
| 5930-01-102-2161 | 2010-09-266 | 27 | DIBBS |
| 5930-01-102-2161 | 2010-09-266 | 52 | DIBBS |
| 5930-01-102-2161 | 2010-08-242 | 61 | DIBBS |
| 5930-01-102-2161 | 2010-08-228 | 23 | DIBBS |
| 5930-01-102-2161 | 2010-07-204 | 27 | DIBBS |
| 5930-01-102-2161 | 2010-06-179 | 24 | DIBBS |
| 5930-01-102-2161 | 2010-05-139 | 38 | DIBBS |
| 5930-01-102-2161 | 2010-03-71 | 3 | DIBBS |
| 5930-01-102-2161 | 2010-02-36 | 9 | DIBBS |
| 5930-01-102-2161 | 2009-12-356 | 52 | DIBBS |
| 5930-01-102-2161 | 2009-07-203 | 13 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-102-2161
Related Products | NSN 5930-01-102-2161
Technical Data | NSN 5930-01-102-2161
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 53 CYLINDRICAL W/FLANGE |
| OVERALL LENGTH | 2.595 INCHES MAXIMUM |

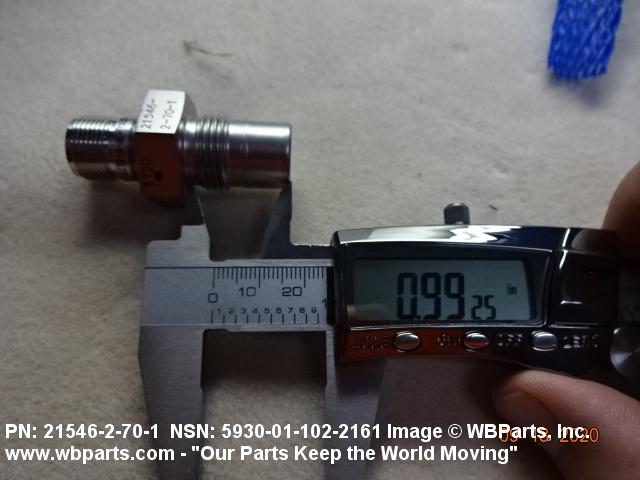

| WIDTH ACROSS FLATS | 1.000 INCHES NOMINAL |
| BODY DIAMETER | 0.665 INCHES MAXIMUM |
| BODY LENGTH | 1.500 INCHES MAXIMUM |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION |
| CONTACT ACTION STIMULUS | DECREASE |
| CONTACT ADJUSTABILITY | DEACTUATION POINT NOT ADJUSTABLE AND ACTUATION POINT NOT ADJUSTABLE |
| CONTACT STIMULUS RATING | 151.00 ACTUATION POINT NOMINAL DEGREES FAHRENHEIT AND 149.00 DEACTUATION POINT MINIMUM DEGREES FAHRENHEIT AND 156.00 DEACTUATION POINT MAXIMUM DEGREES FAHRENHEIT AND 2.00 DIFFERENTIAL POINT MINIMUM DEGREES FAHRENHEIT AND 5.00 DIFFERENTIAL POINT MAXIMUM DEGREES FAHRENHEIT |
| CONTACT VOLTAGE RATING IN VOLTS | 300.0 AC AT SEA LEVEL FIRST VOLTAGE 30.0 AC AT SEA LEVEL SECOND VOLTAGE 30.0 DC AT SEA LEVEL THIRD VOLTAGE |
| CONTACT LOAD CURRENT RATING | 100.0 MILLIAMPERES RESISTIVE LOAD FIRST VOLTAGE 500.0 MILLIAMPERES RESISTIVE LOAD SECOND VOLTAGE 500.0 MILLIAMPERES RESISTIVE LOAD THIRD VOLTAGE |
| OPERATING TEMP RATING | -50.0 DEG FAHRENHEIT MINIMUM AND 160.0 DEG FAHRENHEIT MAXIMUM |
| MEDIA FOR WHICH DESIGNED | LIQUID |
| TEMP SENSING ELEMENT TYPE | BULB |
| TERMINAL TYPE | CONNECTOR, RECEPTACLE |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNF SINGLE THREADED BUSHING |
| NOMINAL THREAD SIZE | 0.750 INCHES SINGLE THREADED BUSHING |
| THREAD CLASS | 2A SINGLE THREADED BUSHING |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | WEATHERPROOF |
| III END ITEM IDENTIFICATION | 1430010876330 18876 |
| III UNPACKAGED UNIT WEIGHT | 12.000 POUNDS |
Restrictions/Controls & Freight Information | NSN 5930-01-102-2161
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-102-2161
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
