NSN 5930-01-112-9261 MODEL405, 593001GL25642, 308682
Product Details | THERMOSTATIC SWITCH
5930-01-112-9261 A switch that is actuated by changes in ambient temperature. Excludes CIRCUIT BREAKER; CONTROL, TEMPERATURE (as modified); FUSE (as modified); PROTECTOR, THERMAL-OVERLOAD, ELECTRICAL MOTOR; RELAY, THERMAL; and THERMOSTAT, FLOW CONTROL. See also CONTROL, TEMPERATURE (as modified) and REGULATOR, TEMPERATURE (as modified).
Part Alternates: MODEL405, 593001GL25642, 308682, 5930-01-GL2-5642, 5930-01-112-9261, 01-112-9261, 5930011129261, 011129261
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 MAY 1981 | 01-112-9261 | 00451 ( SWITCH, THERMOSTATIC ) |
Drawings & Photos | NSN 5930-01-112-9261
Demand History | NSN 5930-01-112-9261
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 308682 | 2009-01-28 | 40 | Malaysia |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-112-9261
Technical Data | NSN 5930-01-112-9261
| Characteristic | Specifications |
|---|---|

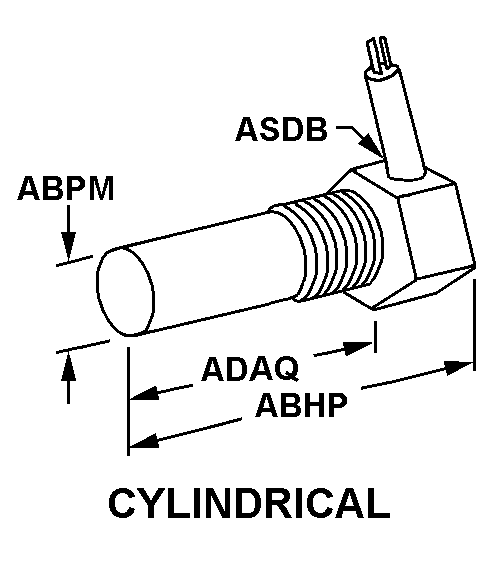

| STYLE DESIGNATOR | 52 CYLINDRICAL |
| OVERALL LENGTH | 6.250 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 1.312 INCHES NOMINAL |
| BODY DIAMETER | 0.625 INCHES NOMINAL |
| BODY LENGTH | 3.875 INCHES NOMINAL |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | ACTUATION POINT ADJUSTABLE |
| CONTACT ADJUSTMENT RANGE | 35.00 TO 105.00 DEACTUATION POINT DEGREES CELSIUS |
| CONTACT ADJUSTMENT TYPE | EXTERNAL ACTUATION POINT KNOB WITH SCALE |
| CONTACT VOLTAGE RATING IN VOLTS | 250.0 AC AT SEA LEVEL SINGLE VOLTAGE |
| FREQUENCY IN HERTZ | 60.0 SINGLE VOLTAGE |
| CONTACT LOAD CURRENT RATING | 5.0 AMPERES RESISTIVE LOAD SINGLE VOLTAGE |
| MEDIA FOR WHICH DESIGNED | GAS OR LIQUID |
| TEMP SENSING ELEMENT TYPE | INTERNAL SENSOR |
| TERMINAL TYPE | WIRE LEAD |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNF SINGLE THREADED BUSHING |
| NOMINAL THREAD SIZE | 0.875 INCHES SINGLE THREADED BUSHING |
| THREAD CLASS | 1A SINGLE THREADED BUSHING |
| THREAD QUANTITY PER INCH | 14 SINGLE THREADED BUSHING |
| THREAD LENGTH | 0.375 INCHES NOMINAL SINGLE THREADED BUSHING |
| FEATURES PROVIDED | CALIBRATED SCALE AND INTEGRAL DIAL |
Restrictions/Controls & Freight Information | NSN 5930-01-112-9261
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
