NSN 5930-01-113-2319 SB600000350, 701222, 71152
Product Details | PRESSURE SWITCH
5930-01-113-2319 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.
Part Alternates: SB600000350, 701222, 71152, 7115-2, 2589901, 5930-01-113-2319, 01-113-2319, 5930011132319, 011132319
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 19 MAY 1981 | 01-113-2319 | 00206 ( SWITCH, PRESSURE ) |

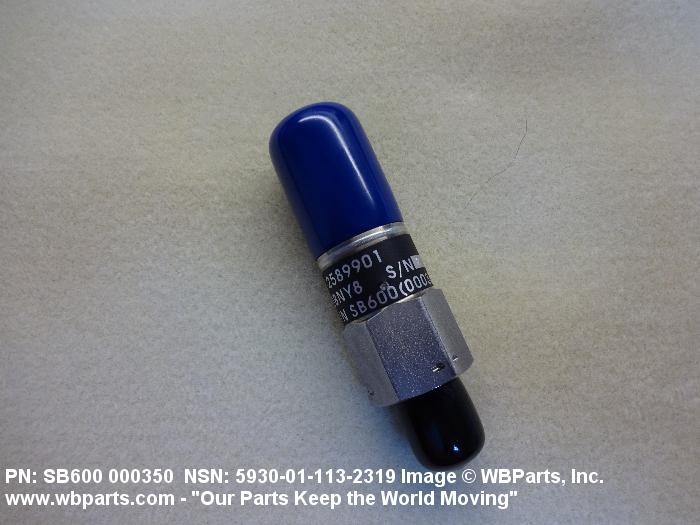

Drawings & Photos | NSN 5930-01-113-2319
Demand History | NSN 5930-01-113-2319
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2589901 | 2025-07-188 | 38 | DIBBS |
| 701222 | 2025-07-188 | 38 | DIBBS |
| 7115-2 | 2025-07-188 | 38 | DIBBS |
| SB600(000350) | 2025-07-188 | 38 | DIBBS |
| 2589901 | 2025-06-177 | 38 | DIBBS |
| 701222 | 2025-06-177 | 38 | DIBBS |
| 7115-2 | 2025-06-177 | 38 | DIBBS |
| SB600(000350) | 2025-06-177 | 38 | DIBBS |
| 5930-01-113-2319 | 2024-04-100 | 1 | United States |
| 2589901 | 2022-11-317 | 11 | DIBBS |
| 701222 | 2022-11-317 | 11 | DIBBS |
| 7115-2 | 2022-11-317 | 11 | DIBBS |
| SB600(000350) | 2022-11-317 | 11 | DIBBS |
| 2589901 | 2022-10-300 | 10 | DIBBS |
| 701222 | 2022-10-300 | 10 | DIBBS |
| 7115-2 | 2022-10-300 | 10 | DIBBS |
| SB600(000350) | 2022-10-300 | 10 | DIBBS |
| 2589901 | 2022-08-223 | 20 | DIBBS |
| 701222 | 2022-08-223 | 20 | DIBBS |
| 7115-2 | 2022-08-223 | 20 | DIBBS |
| SB600(000350) | 2022-08-223 | 20 | DIBBS |
| 2589901 | 2022-04-118 | 13 | DIBBS |
| 701222 | 2022-04-118 | 13 | DIBBS |
| 7115-2 | 2022-04-118 | 13 | DIBBS |
| SB600(000350) | 2022-04-118 | 13 | DIBBS |
| 2589901 | 2022-01-02 | 18 | DIBBS |
| 701222 | 2022-01-02 | 18 | DIBBS |
| 7115-2 | 2022-01-02 | 18 | DIBBS |
| SB600(000350) | 2022-01-02 | 18 | DIBBS |
| 5930-01-113-2319 | 2020-05-148 | 40 | KR |
| 2589901 | 2020-02-34 | 38 | DIBBS |
| 701222 | 2020-02-34 | 38 | DIBBS |
| 7115-2 | 2020-02-34 | 38 | DIBBS |
| SB600(000350) | 2020-02-34 | 38 | DIBBS |
| 5930-01-113-2319 | 2018-01-04 | 12 | DE |
| 5930-01-113-2319 | 2017-12-358 | 12 | KR |
| 5930-01-113-2319 | 2017-06-167 | 7 | KR |
| 5930-01-113-2319 | 2017-05-128 | 10 | Indonesia |
| 5930-01-113-2319 | 2017-04-118 | 10 | Indonesia |
| 5930-01-113-2319 | 2017-03-68 | 1 | US |
| 5930-01-113-2319 | 2016-05-126 | 131 | DIBBS |
| 5930-01-113-2319 | 2016-04-115 | 131 | DIBBS |
| 5930-01-113-2319 | 2016-03-67 | 91 | DIBBS |
| 5930-01-113-2319 | 2016-01-20 | 58 | DIBBS |
| 5930-01-113-2319 | 2015-05-151 | 57 | DIBBS |
| 5930-01-113-2319 | 2015-01-01 | 51 | DIBBS |
| 5930-01-113-2319 | 2014-07-194 | 49 | DIBBS |
| 5930-01-113-2319 | 2014-01-28 | 35 | DIBBS |
| 5930011132319 | 2013-09-255 | 65 | US |
| 5930-01-113-2319 | 2013-09-253 | 35 | DIBBS |
| 5930-01-113-2319 | 2013-03-70 | 46 | DIBBS |
| 5930-01-113-2319 | 2012-09-263 | 17 | DIBBS |
| 5930-01-113-2319 | 2012-05-137 | 17 | DIBBS |
| 5930-01-113-2319 | 2012-03-90 | 17 | DIBBS |
| 5930-01-113-2319 | 2011-12-339 | 15 | DIBBS |
| 5930-01-113-2319 | 2011-10-298 | 13 | DIBBS |
| 5930-01-113-2319 | 2011-09-249 | 8 | DIBBS |
| 5930-01-113-2319 | 2011-07-211 | 24 | DIBBS |
| 5930-01-113-2319 | 2011-06-174 | 11 | DIBBS |
| 5930-01-113-2319 | 2011-05-131 | 24 | DIBBS |
| 5930-01-113-2319 | 2007-05-128 | 105 | DIBBS |
| 5930-01-113-2319 | 2007-05-127 | 105 | DIBBS |
| 5930-01-113-2319 | 2007-04-117 | 105 | DIBBS |
| 5930-01-113-2319 | 2007-04-103 | 24 | DIBBS |
| 5930-01-113-2319 | 2006-06-174 | 5 | DIBBS |
| 5930-01-113-2319 | 2006-05-145 | 31 | DIBBS |
Cross Reference | NSN 5930-01-113-2319
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2589901 | 04454 | SENSOR SYSTEMS, L.L.C. |
| 2589901 | 24038 | SIGMA-NETICS, INC. |
| 2589901 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 2589901 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 2589901 | A9271 | GORIZIANE GROUP SPA |
| 701222 | 24038 | SIGMA-NETICS, INC. |
| 7115-2 | 98505 | HYDRA-ELECTRIC COMPANY |
| SB600(000350) | 0BNY8 | AVIONIX CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-113-2319
Related Products | NSN 5930-01-113-2319
Technical Data | NSN 5930-01-113-2319
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 41 CYLINDRICAL |
| OVERALL LENGTH | 2.500 INCHES NOMINAL |

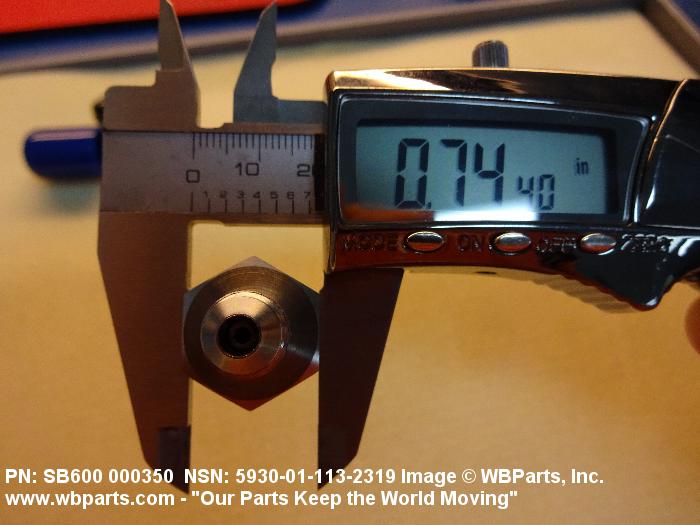

| WIDTH ACROSS FLATS | 0.750 INCHES NOMINAL |

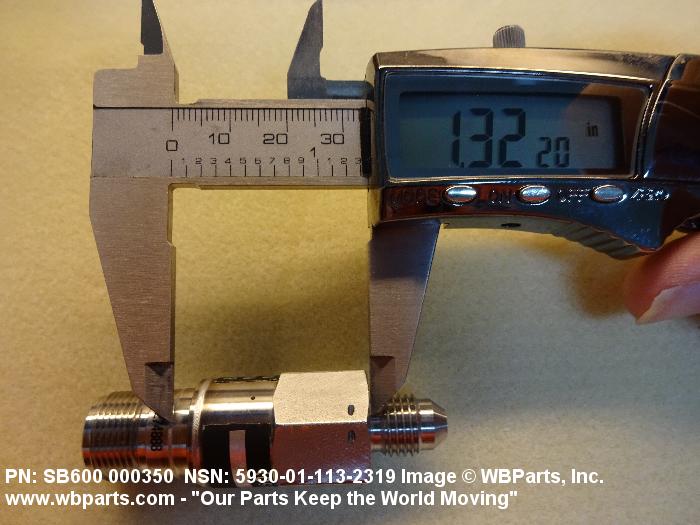

| BODY LENGTH | 1.325 INCHES NOMINAL |

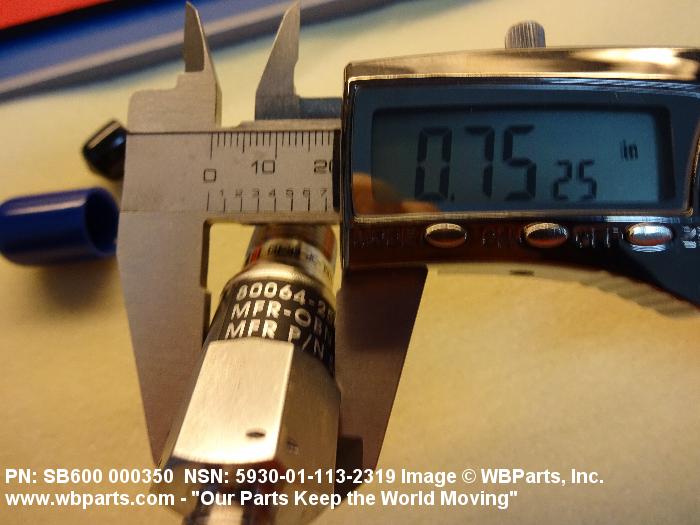

| OVERALL DIAMETER | 0.750 INCHES NOMINAL |
| PRESSURE SWITCH TYPE | GAGE |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | ACTUATION POINT NOT ADJUSTABLE AND DEACTUATION POINT NOT ADJUSTABLE |
| CONTACT STIMULUS RATING | 33.00 ACTUATION POINT MINIMUM POUNDS PER SQUARE INCH GAGE AND 40.00 ACTUATION POINT MAXIMUM POUNDS PER SQUARE INCH GAGE AND 3.00 DEACTUATION POINT MINIMUM POUNDS PER SQUARE INCH GAGE AND 40.00 DEACTUATION POINT MAXIMUM POUNDS PER SQUARE INCH GAGE |
| CONTACT VOLTAGE RATING IN VOLTS | 28.0 DC AT SEA LEVEL SINGLE VOLTAGE |
| CONTACT LOAD CURRENT RATING | 1.0 AMPERES RESISTIVE LOAD SINGLE VOLTAGE |
| OPERATING TEMP RATING | -65.0 DEG FAHRENHEIT MINIMUM AND 300.0 DEG FAHRENHEIT MAXIMUM |
| MEDIA FOR WHICH DESIGNED | GAS |
| PRESSURE CONNECTOR TYPE | FLARED, THREADED EXTERNAL SINGLE CONNECTION |
| OUTSIDE DIAMETER | 0.438 INCHES NOMINAL SINGLE CONNECTION |
| TERMINAL TYPE | CONNECTOR, RECEPTACLE |
| MOUNTING METHOD | LINE |
| THREAD SERIES DESIGNATOR | UNF SINGLE PRESSURE CONNECTION |
| NOMINAL THREAD SIZE | 0.438 INCHES SINGLE PRESSURE CONNECTION |
| THREAD CLASS | 3A SINGLE PRESSURE CONNECTION |

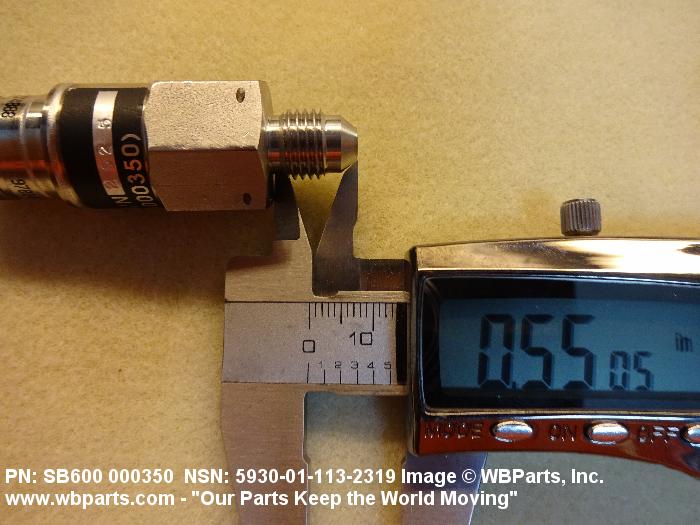

| THREAD LENGTH | 0.550 INCHES NOMINAL SINGLE PRESSURE CONNECTION |
| III HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | WATERPROOF AND CORROSION RESISTANT AND FUNGUS RESISTANT |
Restrictions/Controls & Freight Information | NSN 5930-01-113-2319
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | PA | Marine Corps Logistics Base Albany, GA 31704-1128 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-113-2319
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | K | Reserved |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
