NSN 5930-01-122-0518 MS7502823, MS75028-23, MS7502923

Product Details | TOGGLE SWITCH

5930-01-122-0518 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.

Part Alternates: MS7502823, MS75028-23, MS7502923, MS75029-23, MS7502929, MS75029-29, MST205D, MST205DPDT, MST205N, MSTE206N, MTA206N, MTA-206N, MTE 206N, MTE206N, M83731/10-231, M83731/10-233, M83731/10-235, M83731/8-231, M8373110231, M8373110233, M8373110235, M837318231, A1798, A-1798, ASC1523879, JMT223, U21SHZQI, MILDTL83731, MIL-DTL-83731, MIL-DTL-83731/10, MILDTL8373110, MILS83731, MIL-S-83731/10, MIL-S-83731/8, MILS8373110, MILS837318, 951036-027, 9517011400, 951-70114-00, TS, 0205333 FIND 8, 0205333FIND8, 05577004A, 05577-004A, 09040003, 09-04-0003, 0N511231, 10057, 102311, 15MST205R, 23462258L, 23462-258L, 25005380, 2665321200, 266-5321-200, 31687041, 3168704-1, 3225384PC2, 34037302076, 34037302-076, 50027, 52424, 55010003, 5501-0003, 5530100006, 553010-0006, 55774A, 5577-4A, 6224303, 7201, 73100211, 745887, 8315505251, 83-1550-5251, 83155052513, 83-1550-5251-3, 855432-001, 8A2011C, 94339410, 5930-01-122-0518, 01-122-0518, 5930011220518, 011220518, 620400600, 951036027, 855432001

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	13 NOV 1981	01-122-0518	00184 ( SWITCH, TOGGLE )

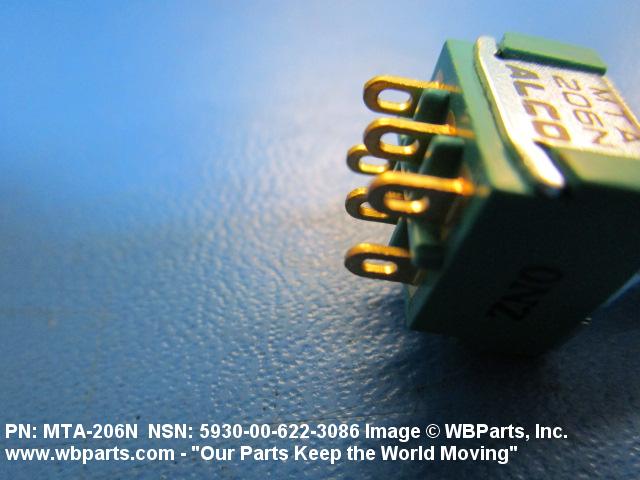

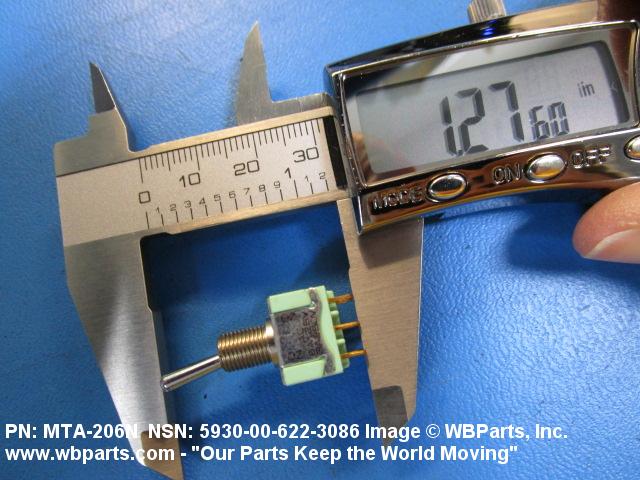

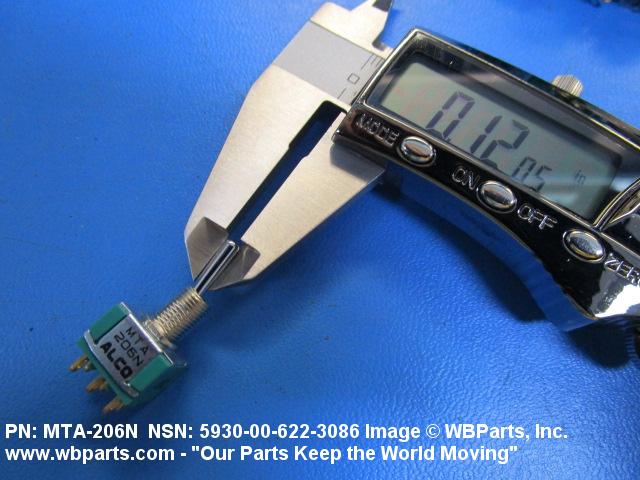

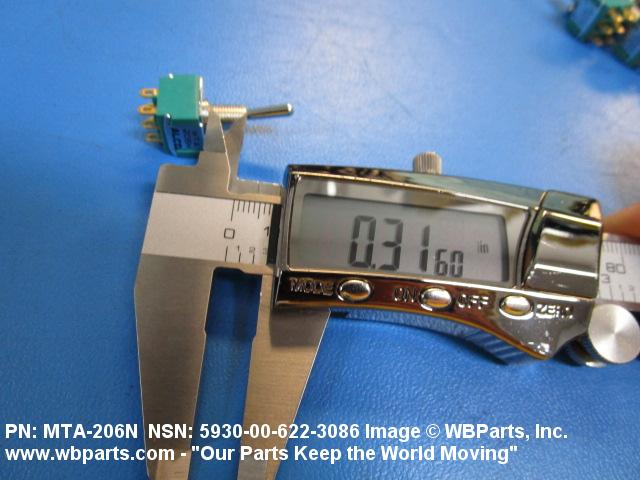

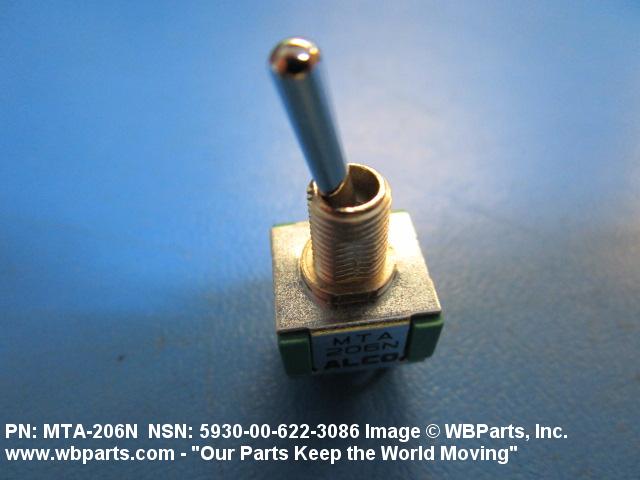

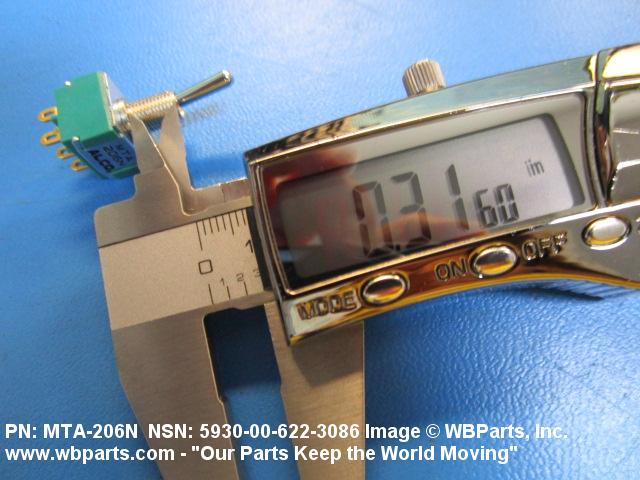

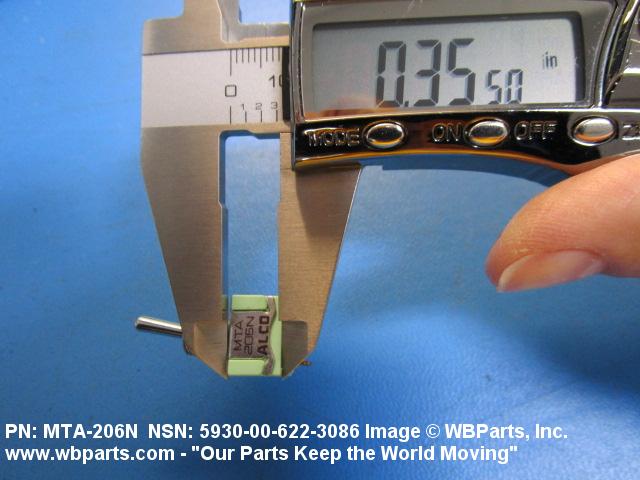

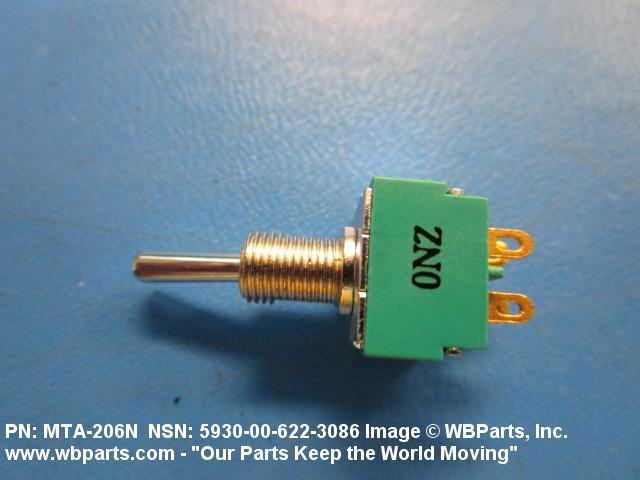

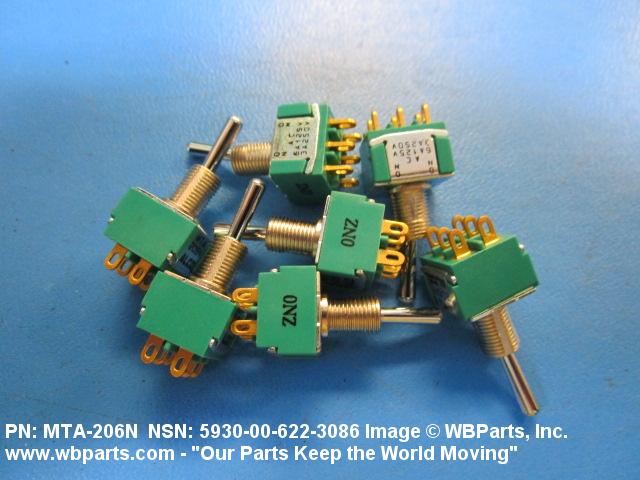

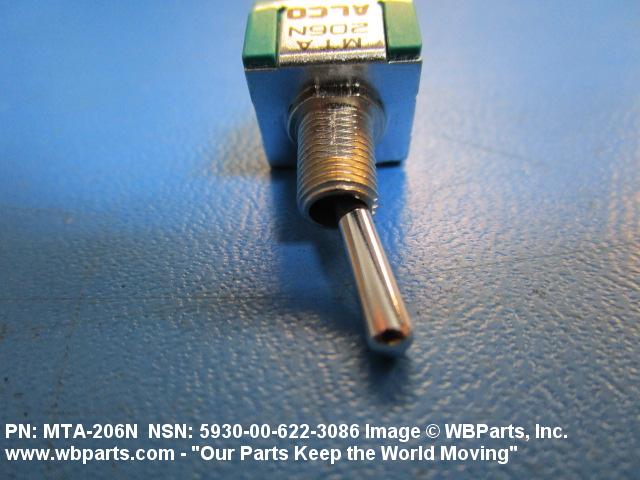

Drawings & Photos | NSN 5930-01-122-0518

Part Number	Request Date	QTY	Origin
5930-01-122-0518	2024-02-51	396	DIBBS
5930-01-122-0518	2024-02-39	396	DIBBS
5930-01-122-0518	2022-10-278	5	US
5930-01-122-0518	2022-04-118	558	DIBBS
MTA206N	2021-08-224	84	United States
5930-01-122-0518	2019-04-101	88	DIBBS
5930-01-122-0518	2018-03-65	560	DIBBS
5930-01-122-0518	2018-01-09	560	DIBBS
5930-01-122-0518	2013-06-170	22	DIBBS
M8373110231	2011-07-192	1860	IN
MS7502923	2010-10-286	300	United States
5930-01-122-0518	2010-07-189	1800	DIBBS
5930-01-122-0518	2007-11-310	1088	DIBBS
5930-01-122-0518	2007-08-222	2600	DIBBS
5930-01-122-0518	2007-08-219	2600	DIBBS

Cross Reference | NSN 5930-01-122-0518

Part Number	Cage Code	Manufacturer
0205333 FIND 8	55910	NAVY UNITED STATES DEPARTMENT OF THE
05577-004A	26344	NEW HAVEN MFG CORP
09-04-0003	23210	KA & G
0N511231	98230	NATIONAL SECURITY AGENCY
10057	58900	GIGA-TRONICS INCORPORATED
102311	52542	SYSTRON-DONNER CORP MICROWAVE/INSTRUMENT DIV
15MST205R	28480	HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP
23462-258L	51190	AEROFLEX WICHITA, INC. DBA IFR SYSTEMS
25005380	16152	DIGITEC CORP
266-5321-200	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
3168704-1	53711	NAVAL SEA SYSTEMS COMMAND
3225384PC2	53711	NAVAL SEA SYSTEMS COMMAND
34037302-076	09128	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
50027	23386	THALES DEFENSE & SECURITY, INC
52424	23386	THALES DEFENSE & SECURITY, INC
5501-0003	55788	CATEL TELECOMMUNICATIONS INC SUB OF DATA-DESIGN LABORATORIES
553010-0006	24627	CASEMENT HARDWARE CO THE
5577-4A	26344	NEW HAVEN MFG CORP
620400600	06819	NORTHERN TELECOM INC NORTHEAST ELECTRONICS DIV
6224303	53711	NAVAL SEA SYSTEMS COMMAND
7201	09353	C AND K COMPONENTS INC
7201	K2852	ROMAC INDUSTRIES LTD
73100211	29641	INTERNATIONAL VIDEO SYSTEMS INC
745887	56232	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
83-1550-5251	12578	MINNESOTA MINING AND MFG CO MINCOM DIV
83-1550-5251	29641	INTERNATIONAL VIDEO SYSTEMS INC
83-1550-5251-3	66346	MINNESOTA MINING AND MFG CO BROADCASTING AND RELATED PRODUCTS
855432-001	06KW9	LUCENT TECHNOLOGIES INC DBA FEDERAL MARKETING GROUP
8A2011C	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
94339410	27963	GENERAL DYNAMICS INFORMATION SYSTEMS INC.
951-70114-00	11650	DYNAIR ELECTRONICS INC
951036-027	88869	EATON CORP ELECTRONIC INSTRUMENTATION DIV
A-1798	27432	VISUAL INFORMATION INSTITUTE INC DBA V I I CRAFT
ASC1523879	Z4779	ASC PTY LTD
JMT223	31356	LEE CO THE J B T DIV
M83731/10-231	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M83731/10-233	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M83731/10-235	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M83731/8-231	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-DTL-83731	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-DTL-83731/10	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-S-83731/10	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-S-83731/8	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILS83731	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS75028-23	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS75029-23	56906	MICRO-TEK CORP
MS75029-23	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS75029-29	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MST205D	00779	TYCO ELECTRONICS CORPORATION
MST205DPDT	00779	TYCO ELECTRONICS CORPORATION
MST205N	28480	HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP
MSTE206N	00779	TYCO ELECTRONICS CORPORATION
MTA-206N	00779	TYCO ELECTRONICS CORPORATION
MTE 206N	00779	TYCO ELECTRONICS CORPORATION
MTE 206N	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
TS	04009	COOPER INDUSTRIES INC COOPER DISTRIBUTION EQUIPMENT DIV
U21SHZQI	09353	C AND K COMPONENTS INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5930-01-122-0518

Compare

Related Products | NSN 5930-01-122-0518

5930-01-122-0702, 5930-01-122-0808, 5930-01-122-0812, 5930-01-122-0813, 5930-01-122-0819

Technical Data | NSN 5930-01-122-0518

Characteristic	Specifications
NONPILE-UP CONTACT ARRANGEMENT	2 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT
MAXIMUM VOLTAGE RATING IN VOLTS	125.0 AC AND 28.0 DC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	5.000 AMPERES RESISTIVE DC AND 2.000 AMPERES INDUCTIVE DC AND 1.000 AMPERES LAMP DC AND 5.000 AMPERES RESISTIVE AC AND 2.000 AMPERES INDUCTIVE AC AND 1.000 AMPERES LAMP AC
BODY STYLE	7P BUSHING MOUNT
BUSHING LENGTH	0.300 INCHES NOMINAL
BODY LENGTH	0.465 INCHES MAXIMUM
BODY WIDTH	0.510 INCHES MAXIMUM
BODY HEIGHT	0.490 INCHES NOMINAL
MOUNTING SURFACE TO TERMINAL END DISTANCE	0.577 INCHES MAXIMUM
ACTUATOR STYLE	25 ROUND
ACTUATOR DIAMETER	0.115 INCHES NOMINAL
ACTUATOR HEIGHT	0.410 INCHES NOMINAL
ACTUATOR POSITION-ACTION RELATIONSHIP	UP POSITION MAINTAINED AND DOWN POSITION MAINTAINED
TERMINAL TYPE AND QUANTITY	6 TAB, SOLDER LUG
INCLOSURE TYPE	FULLY INCLOSED
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION	DUSTPROOF
MOUNTING METHOD	THREADED BUSHING
THREAD SERIES DESIGNATOR	UNS
NOMINAL THREAD SIZE	0.250 INCHES
THREAD QUANTITY PER INCH	40
FEATURES PROVIDED	ACTUATOR SEAL
TEST DATA DOCUMENT	81349-MIL-DTL-83731 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-S-83731/10 GOVERNMENT SPECIFICATION
III CASE MATERIAL	METAL
III OVERALL LENGTH	0.465 INCHES MAXIMUM
III OVERALL WIDTH	0.510 INCHES MAXIMUM
III OVERALL HEIGHT	1.287 INCHES NOMINAL
III END ITEM IDENTIFICATION	4920-01-112-5905
III PRECIOUS MATERIAL	GOLD OR SILVER
III PRECIOUS MATERIAL AND LOCATION	CONTACTS AND TERMINAL SURFACES GOLD OR CONTACTS AND TERMINAL SURFACES SILVER
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-DTL-83731
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M83731/10-231

Restrictions/Controls & Freight Information | NSN 5930-01-122-0518

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5930-01-122-0518

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	T	Other Electronics Equipment
Weapons Systems/End Item or Homogeneous Group	TA	AN/UNH-19/20 (B46 Only)
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Physical Category Code	1	Bin
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
