NSN 5930-01-146-9648 PS27006901, PS270069-01, 133246
Product Details | FLOW SWITCH
5930-01-146-9648 A switch which is specifically designed to operate by the influence of a gaseous, liquid, or solid media velocity on its actuator.
Part Alternates: PS27006901, PS270069-01, 133246, 2SE1101C28M, 2SE1-101C28M, 5930-01-146-9648, 01-146-9648, 5930011469648, 011469648
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 FEB 1983 | 01-146-9648 | 36841 ( SWITCH, FLOW ) |

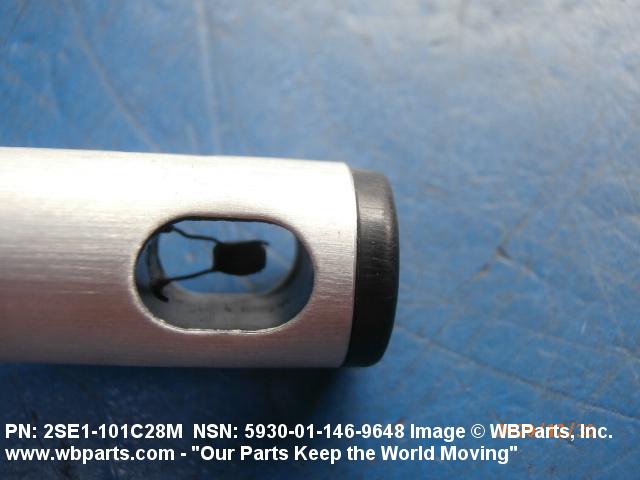

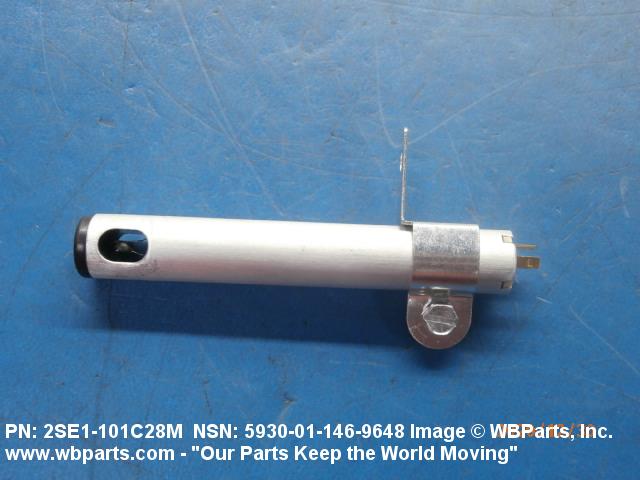

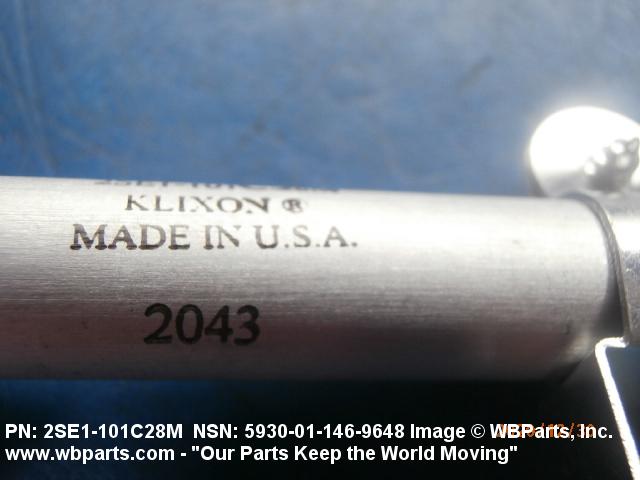

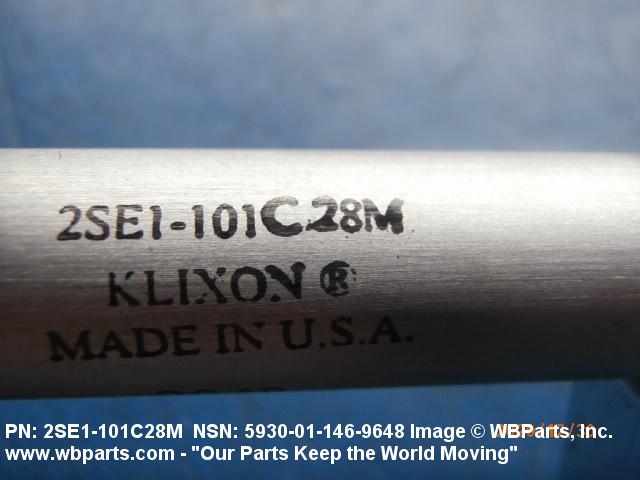

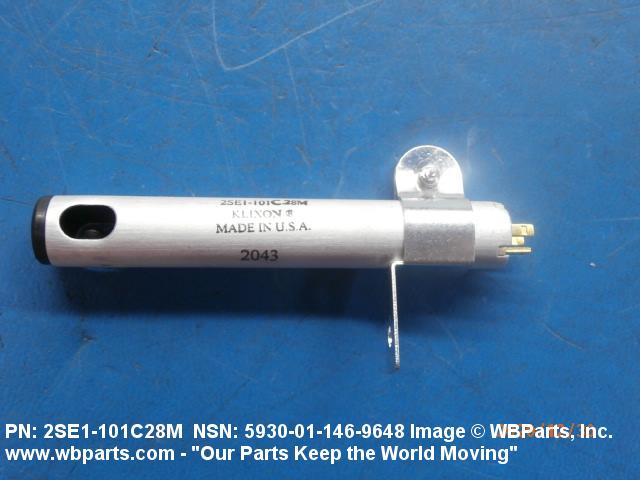

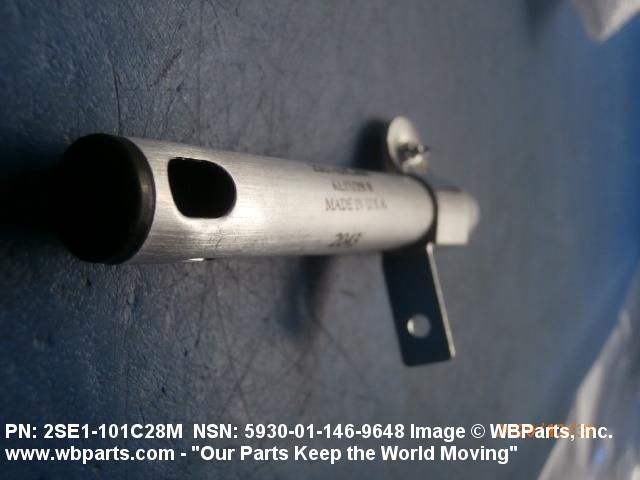

Drawings & Photos | NSN 5930-01-146-9648
Demand History | NSN 5930-01-146-9648
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-146-9648 | 2025-07-196 | 20 | FR |
| 5930-01-146-9648 | 2024-11-332 | 20 | FR |
| 5930-01-146-9648 | 2024-10-289 | 20 | FR |
| 5930-01-146-9648 | 2020-07-211 | 10 | United States |
| 2SE1101C28M | 2019-11-319 | 5 | DE |
| 2SE1101C28M | 2019-11-311 | 1 | Germany |
| 2SE1101C28M | 2019-09-260 | 1 | Germany |
| 2SE1101C28M | 2017-05-135 | 5 | CA |
| 2SE1101C28M | 2010-10-299 | 5 | CN |
| 5930-01-146-9648 | 2010-01-07 | 3 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-146-9648
Technical Data | NSN 5930-01-146-9648
| Characteristic | Specifications |
|---|---|

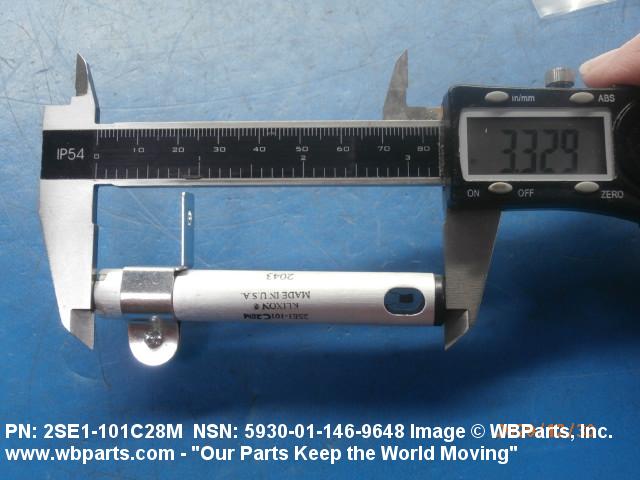

| OVERALL LENGTH | 3.284 INCHES MINIMUM AND 3.346 INCHES MAXIMUM |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY CLOSED, MOMENTARY ACTION |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | ACTUATION POINT ADJUSTABLE, PRESET |
| CONTACT ADJUSTMENT RANGE | 50.00 TO 550.00 ACTUATION POINT FEET PER MINUTE AND 50.00 TO 550.00 DEACTUATION POINT FEET PER MINUTE |
| CONTACT VOLTAGE RATING IN VOLTS | 28.0 DC AT SEA LEVEL SINGLE VOLTAGE |
| CONTACT LOAD CURRENT RATING | 400.0 MILLIAMPERES RESISTIVE LOAD SINGLE VOLTAGE |

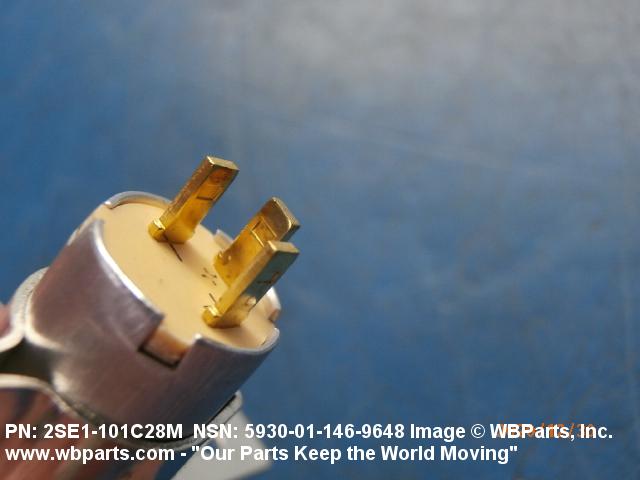

| TERMINAL TYPE | PIN |

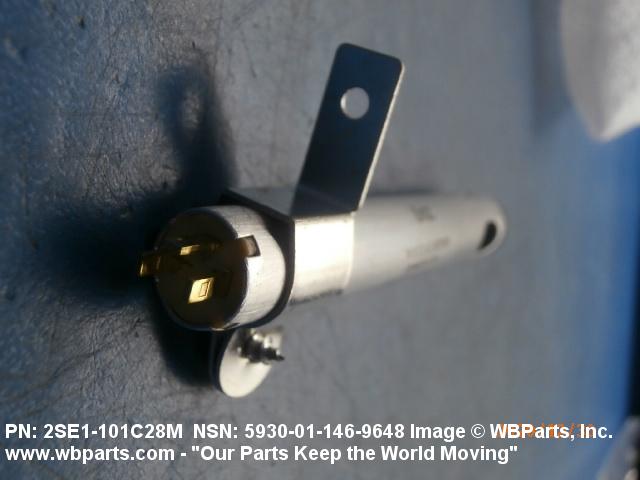

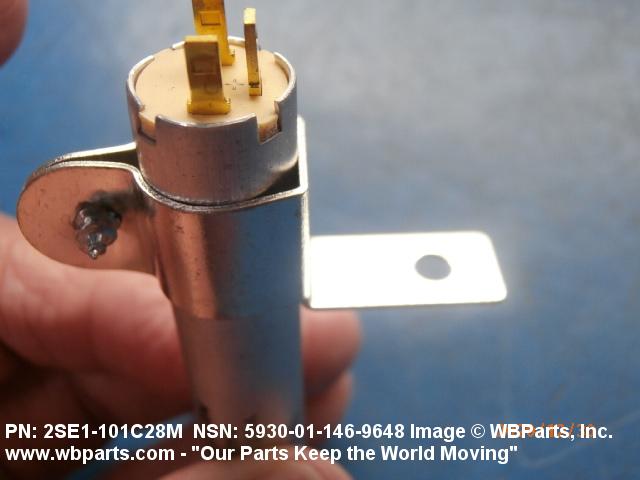

| MOUNTING METHOD | BRACKET |
| MANUFACTURERS CODE | 82647 |
| DESIGN CONTROL REFERENCE | 2SE1-101C28M |
Restrictions/Controls & Freight Information | NSN 5930-01-146-9648
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
