NSN 5930-01-148-6254 10HA49C1F2J14L , 10HA49C1F2J14LRBBRN300R7V13, 6218222
Product Details | PUSH SWITCH
5930-01-148-6254 A switch that is externally actuated by a device such as a push rod or button, which requires pushing for each actuation. The action may be momentary, with mechanical return. The actuating device may or may not be an integral part of the switch. The item may include provisions for mounting indicating lamp(s) or light emitting diode(s) in the actuator. Includes items consisting of individually separable switches that are physically interlocked, that have a common actuator, or are electrically connected. Excludes LIGHT-SWITCH; LIGHT-SWITCH ASSEMBLY; SWITCH, BEAM SELECTING, HEADLIGHT; SWITCH, FOOT; SWITCH, INTERLOCK; SWITCH, PRESSURE; SWITCH, PUSH-PULL; SWITCH, SENSITIVE and SWITCH ASSEMBLY. For devices which start, stop, reverse, select and/or regulate the speed of a motor, see STARTER, MOTOR and CONTROLLER, MOTOR.
Part Alternates: 10HA49C1F2J14L , 10HA49C1F2J14LRBBRN300R7V13, 6218222, 621822-2, 5930-01-148-6254, 01-148-6254, 5930011486254, 011486254
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 08 MAR 1983 | 01-148-6254 | 00406 ( SWITCH, PUSH ) |

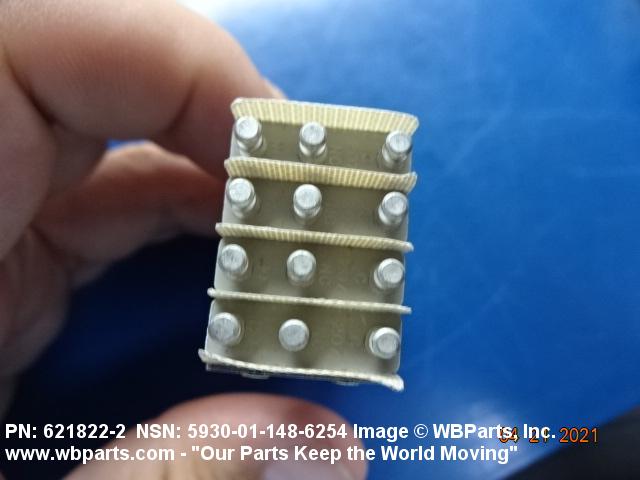

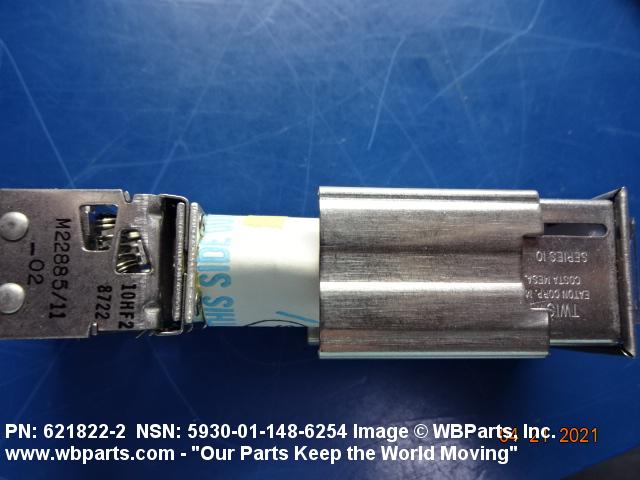

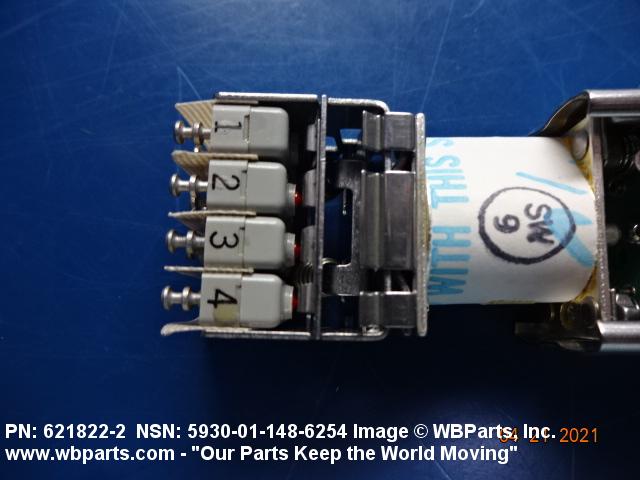

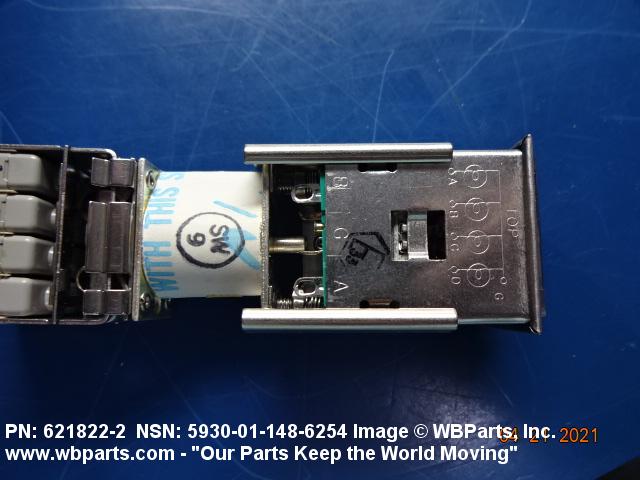

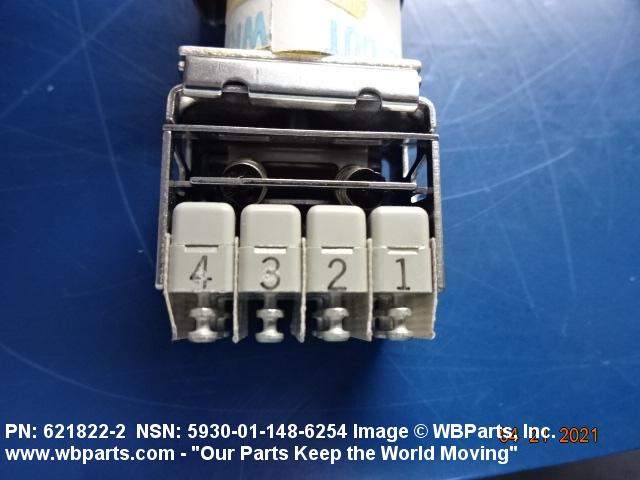

Drawings & Photos | NSN 5930-01-148-6254
Demand History | NSN 5930-01-148-6254
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 10HA49C1F2J14L(RBBR)N300R7,V13 | 2022-08-223 | 16 | DIBBS |
| 10HA49C1F2J14L(RBBR)N300R7,V13 | 2022-07-212 | 16 | DIBBS |
| 5930-01-148-6254 | 2022-02-55 | 8 | DIBBS |
| 5930-01-148-6254 | 2021-10-297 | 7 | DIBBS |
| 5930-01-148-6254 | 2021-05-137 | 24 | DIBBS |
| 5930-01-148-6254 | 2021-05-125 | 1 | United States |
| 5930-01-148-6254 | 2021-04-98 | 1 | United States |
| 10HA49C1F2J14L(RBBR)N300R7,V13 | 2020-10-282 | 22 | DIBBS |
| 10HA49C1F2J14L(RBBR)N300R7,V13 | 2020-09-268 | 3 | DIBBS |
| 10HA49C1F2J14L(RBBR)N300R7,V13 | 2020-08-240 | 7 | DIBBS |
| 10HA49C1F2J14L(RBBR)N300R7,V13 | 2019-02-45 | 26 | DIBBS |
| 5930-01-148-6254 | 2013-11-316 | 16 | DIBBS |
| 5930-01-148-6254 | 2013-07-195 | 26 | DIBBS |
| 5930-01-148-6254 | 2013-04-107 | 12 | DIBBS |
| 5930-01-148-6254 | 2013-01-08 | 11 | DIBBS |
| 5930-01-148-6254 | 2012-08-216 | 2 | CA |
| V13 | 2012-05-123 | 4 | United States |
| V13 | 2012-05-123 | 4 | United States |
| V13 | 2012-05-123 | 4 | United States |
| 5930-01-148-6254 | 2012-04-104 | 6 | DIBBS |
| V13 | 2012-02-33 | 5 | United States |
| 5930-01-148-6254 | 2010-06-152 | 6 | DIBBS |
| 5930-01-148-6254 | 2009-06-156 | 3 | DIBBS |
| 5930-01-148-6254 | 2009-01-23 | 12 | DIBBS |
| 5930-01-148-6254 | 2006-05-122 | 14 | DIBBS |
Cross Reference | NSN 5930-01-148-6254
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10HA49C1F2J14L | 96182 | EATON CORPORATION DBA AEROSPACE & COMMERCIAL DIVISION |
| 10HA49C1F2J14L(RBBR)N300R7,V13 | 96182 | EATON CORPORATION DBA AEROSPACE & COMMERCIAL DIVISION |
| 621822-2 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
| 621822-2 | 96182 | EATON CORPORATION DBA AEROSPACE & COMMERCIAL DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-148-6254
Technical Data | NSN 5930-01-148-6254
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 4 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 5.000 AMPERES RESISTIVE AC AND 5.000 AMPERES INDUCTIVE AC AND 2.400 AMPERES LAMP AC |
| BODY STYLE | 30K PANEL MOUNT |
| ACTUATOR STYLE | 13 RECTANGULAR |
| TERMINAL TYPE AND QUANTITY | 5 TAB, SOLDER LUG AND 12 TURRET |
| INCLOSURE TYPE | FULLY INCLOSED |
Restrictions/Controls & Freight Information | NSN 5930-01-148-6254
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-148-6254
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
