NSN 5930-01-154-2641 50241, 01-154-2641, 011542641
Product Details | SLIDE SWITCH
5930-01-154-2641 A switch designed to be actuated by the sliding of a button, bar, or knob.
Part Alternates: 50241, 5930-01-154-2641, 01-154-2641, 5930011542641, 011542641
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 MAY 1983 | 01-154-2641 | 00400 ( SWITCH, SLIDE ) |
Drawings & Photos | NSN 5930-01-154-2641
Demand History | NSN 5930-01-154-2641
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 50241 | 2023-04-94 | 15 | DIBBS |
| 50241 | 2022-07-188 | 15 | DIBBS |
| 50241 | 2021-10-284 | 15 | DIBBS |
| 50241 | 2021-09-265 | 13 | DIBBS |
| 50241 | 2021-08-243 | 13 | DIBBS |
| 5930-01-154-2641 | 2021-03-75 | 3 | Taiwan |
| 50241 | 2021-01-21 | 15 | DIBBS |
| 50241 | 2021-01-10 | 15 | DIBBS |
| 50241 | 2020-10-294 | 15 | DIBBS |
| 50241 | 2020-06-163 | 14 | DIBBS |
| 5930-01-154-2641 | 2019-08-232 | 2 | Taiwan |
| 5930-01-154-2641 | 2018-08-232 | 7 | DIBBS |
| 5930-01-154-2641 | 2018-08-221 | 7 | DIBBS |
| 5930-01-154-2641 | 2018-04-116 | 8 | DIBBS |
| 5930-01-154-2641 | 2018-02-36 | 8 | DIBBS |
| 5930-01-154-2641 | 2017-09-267 | 7 | DIBBS |
| 5930-01-154-2641 | 2017-08-227 | 3 | AU |
| 5930-01-154-2641 | 2016-12-351 | 1 | US |
| 5930-01-154-2641 | 2016-05-147 | 17 | DIBBS |
| 5930-01-154-2641 | 2015-10-286 | 20 | DIBBS |
| 5930-01-154-2641 | 2015-07-197 | 17 | DIBBS |
| 5930-01-154-2641 | 2015-07-186 | 17 | DIBBS |
| 5930-01-154-2641 | 2014-03-72 | 28 | DIBBS |
| 5930-01-154-2641 | 2014-01-05 | 22 | DIBBS |
| 5930-01-154-2641 | 2013-09-245 | 22 | DIBBS |
| 5930-01-154-2641 | 2013-06-156 | 24 | DIBBS |
| 5930-01-154-2641 | 2013-03-63 | 47 | DIBBS |
| 5930-01-154-2641 | 2013-01-25 | 15 | DIBBS |
| 5930-01-154-2641 | 2011-10-304 | 15 | DIBBS |
| 5930-01-154-2641 | 2011-05-122 | 34 | DIBBS |
| 5930-01-154-2641 | 2009-12-338 | 4 | DIBBS |
| 5930-01-154-2641 | 2009-09-244 | 4 | DIBBS |
| 5930-01-154-2641 | 2008-06-154 | 47 | DIBBS |
| 5930-01-154-2641 | 2008-05-150 | 40 | DIBBS |
| 5930-01-154-2641 | 2008-04-95 | 41 | DIBBS |
| 5930-01-154-2641 | 2008-01-31 | 35 | DIBBS |
| 5930-01-154-2641 | 2008-01-08 | 13 | DIBBS |
| 5930-01-154-2641 | 2007-10-278 | 85 | DIBBS |
| 5930-01-154-2641 | 2007-09-264 | 9 | DIBBS |
| 5930-01-154-2641 | 2007-05-143 | 30 | DIBBS |
| 5930-01-154-2641 | 2007-04-102 | 19 | DIBBS |
Cross Reference | NSN 5930-01-154-2641
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 50241 | 81579 | MASON ELECTRIC COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-154-2641
Related Products | NSN 5930-01-154-2641
Technical Data | NSN 5930-01-154-2641
| Characteristic | Specifications |
|---|---|
| MAXIMUM VOLTAGE RATING IN VOLTS | 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 10.000 AMPERES LAMP DC |

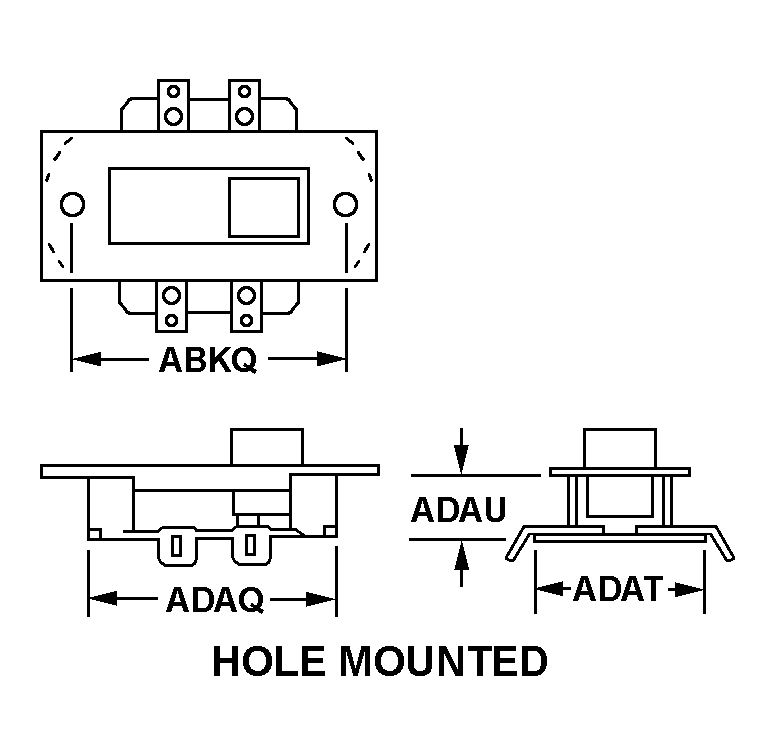

| BODY STYLE | 7N HOLE MOUNTED |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.000 INCHES NOMINAL |
| BODY LENGTH | 1.500 INCHES NOMINAL |
| BODY WIDTH | 0.886 INCHES NOMINAL |
| BODY HEIGHT | 0.875 INCHES NOMINAL |
| SWITCH ACTUATOR QUANTITY | 1 |
| ACTUATOR LENGTH | 0.250 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.125 INCHES NOMINAL |
| ACTUATOR WIDTH | 0.250 INCHES NOMINAL |
| ACTUATOR POSITION-ACTION RELATIONSHIP | CENTER POSITION MOMENTARY |
| TERMINAL TYPE AND QUANTITY | 2 PIN |
| MOUNTING METHOD | UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | P3-C ACFT |
| MANUFACTURERS CODE | 81579 |
| DESIGN CONTROL REFERENCE | 50241 |
Restrictions/Controls & Freight Information | NSN 5930-01-154-2641
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063250 | SWITCHES AIR-BREAK |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-154-2641
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
