NSN 5930-01-156-6884 MLCDT, MLC-DT, 33-451982-3
Product Details | REED SWITCH
5930-01-156-6884 An item actuated by an external magnetic field and having two or more contacts inclosed in a sealed capsule. Do not use if switch has an actuator, such as a lever, push button, toggle, and the like. See SWITCH (as modified). For items provided with an operating coil, use RELAY (as modified). It includes items in which a contact may be moved into a mercury pool by a magnetic field.
Part Alternates: MLCDT, MLC-DT, 33-451982-3, 5930-01-156-6884, 01-156-6884, 5930011566884, 334519823, 011566884
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 JUN 1983 | 01-156-6884 | 28945 ( SWITCH, REED ) |
Drawings & Photos | NSN 5930-01-156-6884
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-156-6884
Related Products | NSN 5930-01-156-6884
Technical Data | NSN 5930-01-156-6884
| Characteristic | Specifications |
|---|---|
| PILE-UP CONTACT FORM ARRANGEMENT | 1C SINGLE POSITION |
| MAXIMUM VOLTAGE RATING IN VOLTS | 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 250.000 MILLIAMPERES RESISTIVE DC |

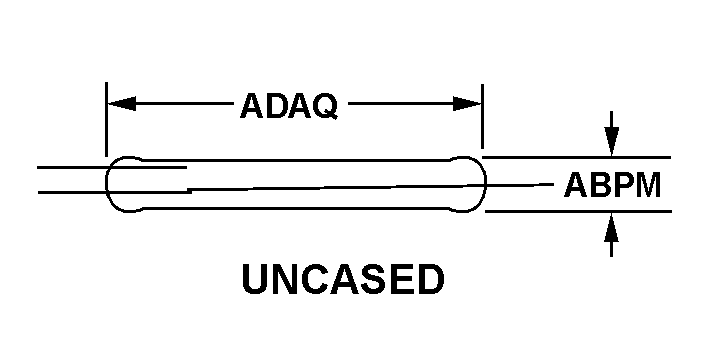

| BODY STYLE | 2L UNCASED |
| BODY DIAMETER | 0.130 INCHES MAXIMUM |
| BODY LENGTH | 0.625 INCHES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 3 WIRE LEAD |
| SWITCH ACTUATING FORCE | 25.0 NEWTONS MINIMUM AND 70.0 NEWTONS MAXIMUM |
| SWITCH RELEASE FORCE | 4.0 NEWTONS MINIMUM |
Restrictions/Controls & Freight Information | NSN 5930-01-156-6884
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | ZN | Netherlands ZO ZP |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
