NSN 5930-01-156-8591 SLS131PC, SLS-131-PC, 01-156-8591
Product Details | SLIDE SWITCH
5930-01-156-8591 A switch designed to be actuated by the sliding of a button, bar, or knob.
Part Alternates: SLS131PC, SLS-131-PC, 5930-01-156-8591, 01-156-8591, 5930011568591, 011568591
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 JUN 1983 | 01-156-8591 | 00400 ( SWITCH, SLIDE ) |
Drawings & Photos | NSN 5930-01-156-8591
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-156-8591
Related Products | NSN 5930-01-156-8591
Technical Data | NSN 5930-01-156-8591
| Characteristic | Specifications |
|---|---|
| MAXIMUM VOLTAGE RATING IN VOLTS | 125.0 AC AND 12.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 250.0 MILLIAMPERES RESISTIVE AC AND 150.0 MILLIAMPERES RESISTIVE DC |
| BODY STYLE | 11N PRINTED CIRCUIT |
| BODY LENGTH | 0.600 INCHES NOMINAL |
| BODY WIDTH | 0.220 INCHES NOMINAL |
| BODY HEIGHT | 0.240 INCHES NOMINAL |

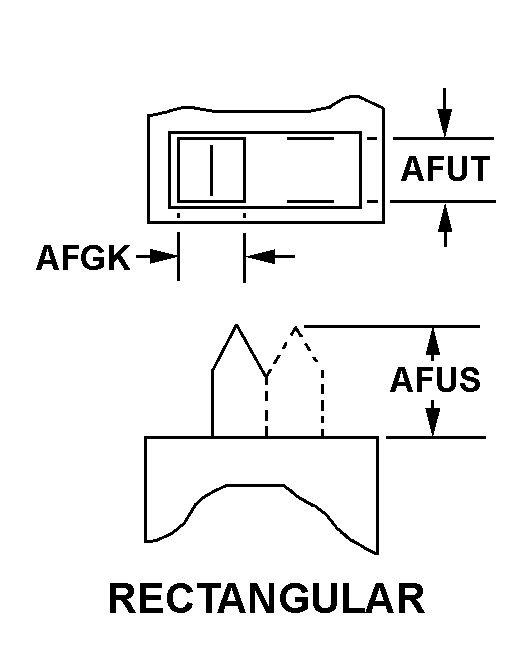

| ACTUATOR STYLE | 21 RECTANGULAR |
| ACTUATOR LENGTH | 0.130 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.200 INCHES NOMINAL |
| ACTUATOR WIDTH | 0.130 INCHES NOMINAL |
| ACTUATOR POSITION-ACTION RELATIONSHIP | LEFT POSITION MAINTAINED AND CENTER POSITION MAINTAINED AND RIGHT POSITION MAINTAINED |
| TERMINAL TYPE AND QUANTITY | 4 PRINTED CIRCUIT |
| MOUNTING METHOD | PRINTED CIRCUIT |
| III OVERALL LENGTH | 0.600 INCHES NOMINAL |
| III OVERALL WIDTH | 0.220 INCHES NOMINAL |
| III OVERALL HEIGHT | 0.570 INCHES NOMINAL |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | TERMINAL AND CONTACT SURFACES SILVER |
Restrictions/Controls & Freight Information | NSN 5930-01-156-8591
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063250 | SWITCHES AIR-BREAK |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-156-8591
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
