NSN 5930-01-193-7364 M24317/8-11, M24317811, MILS24317
Product Details | SWITCH SUBASSEMBLY
5930-01-193-7364 Two or more different types of items having a common mounting or mounted on each other which together forms a portion of a switch but which in itself is not a complete functioning item and cannot be assigned a more definite item name. See also SWITCH SECTION, ROTARY and CONTACT ASSEMBLY, ELECTRICAL.
Part Alternates: M24317/8-11, M24317811, MILS24317, MIL-S-24317, MIL-S-24317/8, MILS243178, E1790044400, E179004-4400, 5930-01-193-7364, 01-193-7364, 5930011937364, 011937364
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 07 NOV 1984 | 01-193-7364 | 00621 ( SWITCH SUBASSEMBLY ) |

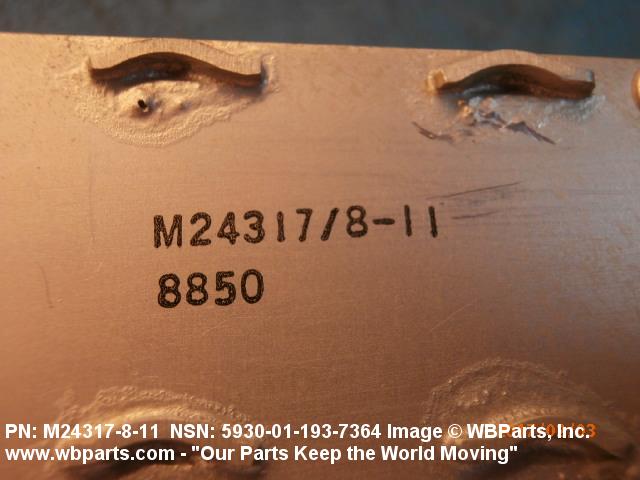

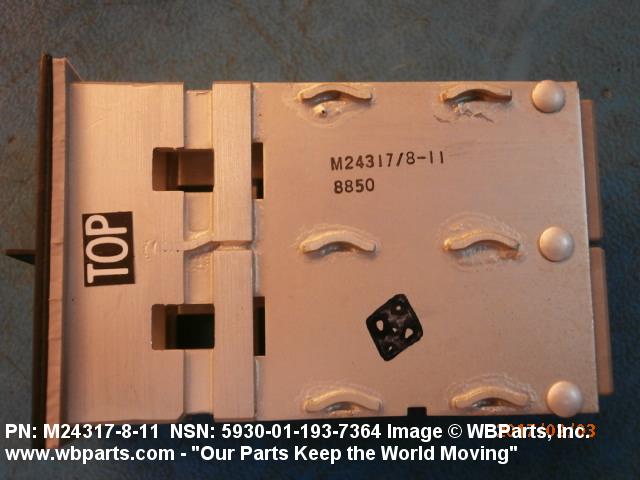

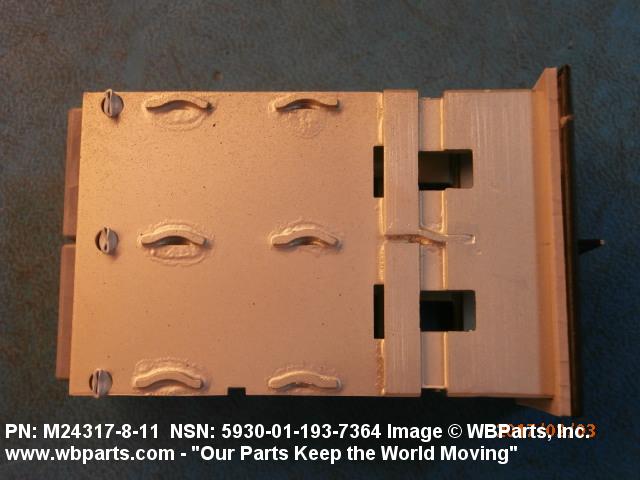

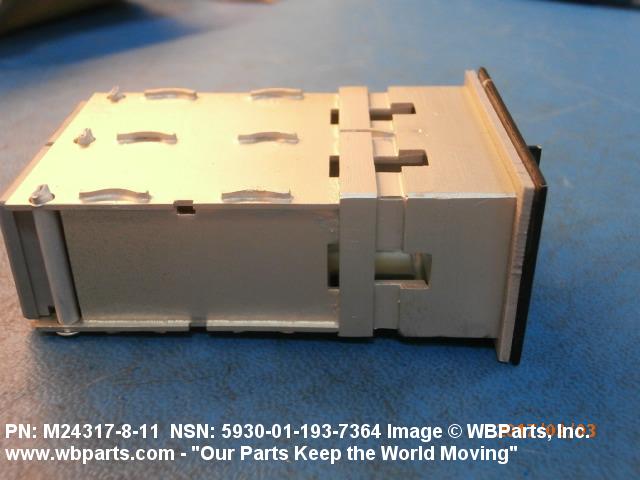

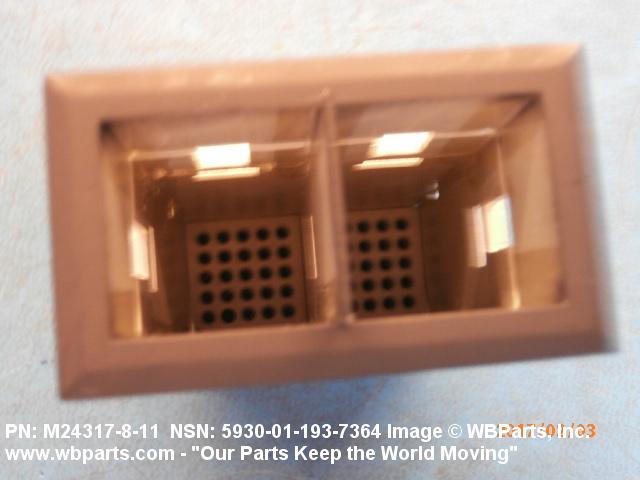

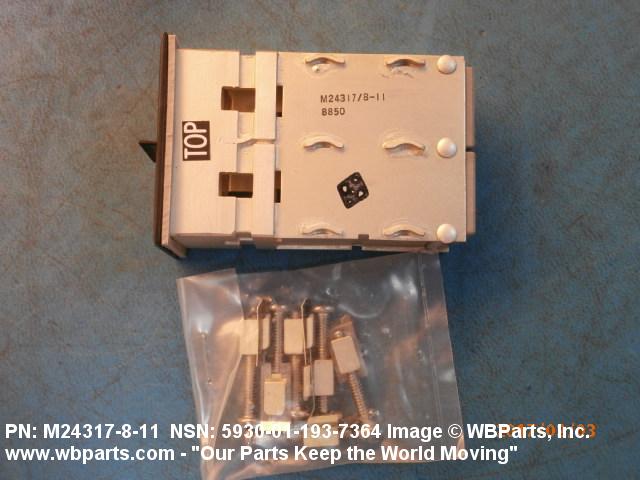

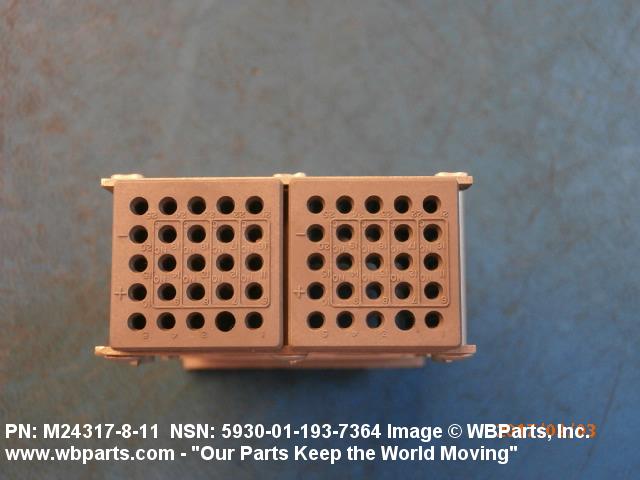

Drawings & Photos | NSN 5930-01-193-7364
Demand History | NSN 5930-01-193-7364
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-193-7364 | 2017-01-18 | 3 | United Kingdom |
Cross Reference | NSN 5930-01-193-7364
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| E179004-4400 | 13030 | LOCKHEED MARTIN SIPPICAN, INC. DBA SIPPICAN USE CAGE CODE 16848 FOR |
| M24317/8-11 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M24317/8-11 | 96182 | EATON CORPORATION DBA AEROSPACE & COMMERCIAL DIVISION |
| MIL-S-24317 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-S-24317/8 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-193-7364
Technical Data | NSN 5930-01-193-7364
| Characteristic | Specifications |
|---|---|

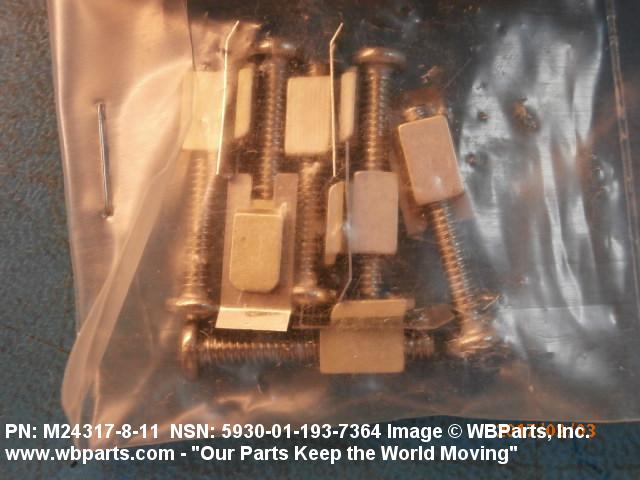

| COMPONENT TYPE AND QUANTITY | 2 HOUSING AND 2 BLOCK AND 6 FASTENER |

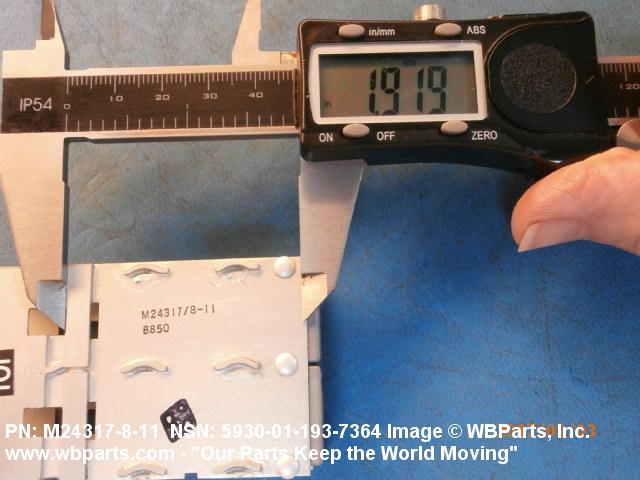

| OVERALL LENGTH | 1.950 INCHES NOMINAL |

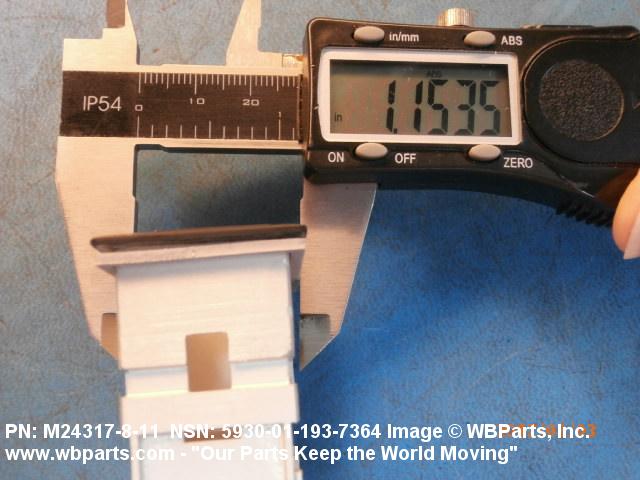

| OVERALL WIDTH | 1.150 INCHES NOMINAL |
| MOUNTING CONFIGURATION | ONE 1.790 IN. BY 0.990 IN. PANEL CUTOUT |
| USAGE DESIGN | MOUNTING RACK |
| TEST DATA DOCUMENT | 81349-MIL-S-24317 SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-24317/8 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M24317/8-11 |
Restrictions/Controls & Freight Information | NSN 5930-01-193-7364
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063250 | SWITCHES AIR-BREAK |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-193-7364
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
