NSN 5930-01-199-2596 PM22258, 9732983, 973-298-3

Product Details | TOGGLE SWITCH

5930-01-199-2596 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.

Part Alternates: PM22258, 9732983, 973-298-3, 12TW3470, 12TW34-70, 5930-01-199-2596, 01-199-2596, 5930011992596, 011992596

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	19 JAN 1985	01-199-2596	00184 ( SWITCH, TOGGLE )

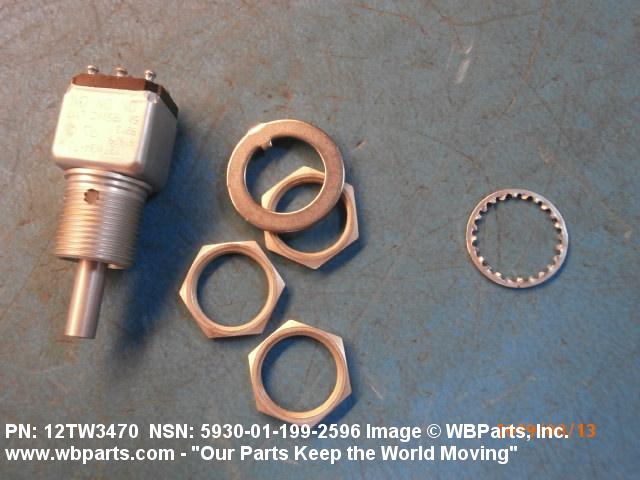

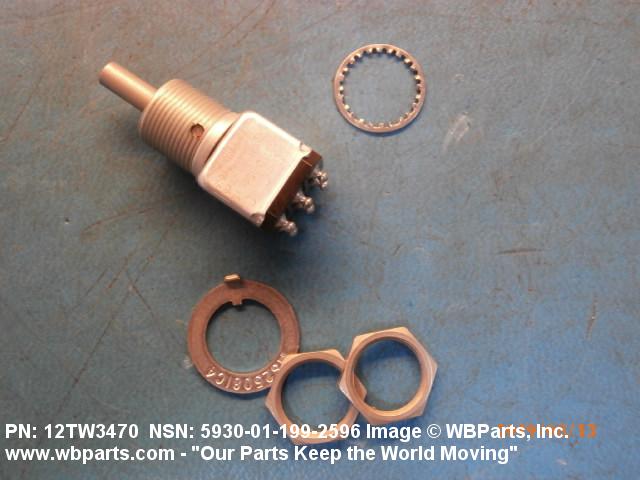

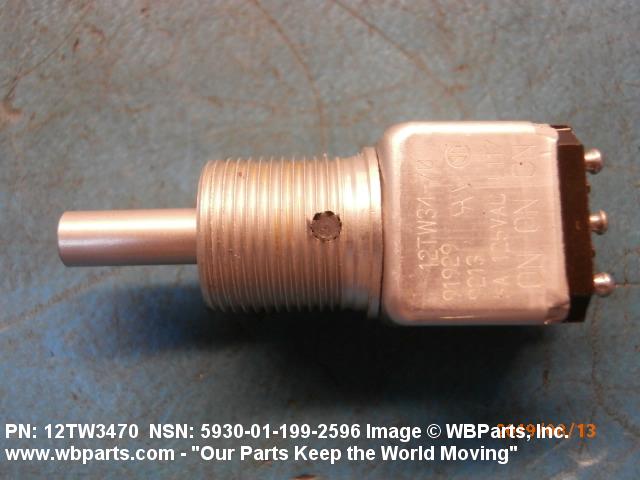

Drawings & Photos | NSN 5930-01-199-2596

Part Number	Request Date	QTY	Origin
12TW34-70	2025-02-49	94	DIBBS
973-298-3	2025-02-49	94	DIBBS
PM22258	2025-02-49	94	DIBBS
12TW34-70	2025-02-37	94	DIBBS
973-298-3	2025-02-37	94	DIBBS
PM22258	2025-02-37	94	DIBBS
5930-01-199-2596	2024-06-156	1	United States
12TW3470	2019-08-218	4	United States
12TW3470	2019-08-218	6	United States
12TW34-70	2019-05-136	34	DIBBS
973-298-3	2019-05-136	34	DIBBS
PM22258	2019-05-136	34	DIBBS
5930-01-199-2596	2018-05-151	114	DIBBS
5930-01-199-2596	2017-03-89	75	DIBBS
5930-01-199-2596	2014-11-331	68	DIBBS
5930-01-199-2596	2013-11-308	67	DIBBS
5930-01-199-2596	2012-05-125	66	DIBBS
5930-01-199-2596	2010-12-340	73	DIBBS
5930-01-199-2596	2010-09-267	24	United States
5930-01-199-2596	2008-08-218	116	DIBBS
5930-01-199-2596	2007-06-157	139	DIBBS

Cross Reference | NSN 5930-01-199-2596

Part Number	Cage Code	Manufacturer
12TW34-70	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
973-298-3	81579	MASON ELECTRIC COMPANY
PM22258	59501	UNISON INDUSTRIES, LLC
PM22258	77820	AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL
PM22258	81579	MASON ELECTRIC COMPANY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5930-01-199-2596

Compare

Related Products | NSN 5930-01-199-2596

5930-01-199-2598, 5930-01-199-2600, 5930-01-199-2602, 5930-01-199-2612, 5930-01-199-2745

Technical Data | NSN 5930-01-199-2596

Characteristic	Specifications
NONPILE-UP CONTACT ARRANGEMENT	2 POLE, DOUBLE THROW, TWO POSITIONS MOMENTARY SINGLE SWITCH UNIT
MAXIMUM VOLTAGE RATING IN VOLTS	125.0 AC AND 30.0 DC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	5.000 AMPERES RESISTIVE DC AND 2.000 AMPERES INDUCTIVE DC AND 5.000 AMPERES RESISTIVE AC
BODY STYLE	4P BUSHING MOUNT

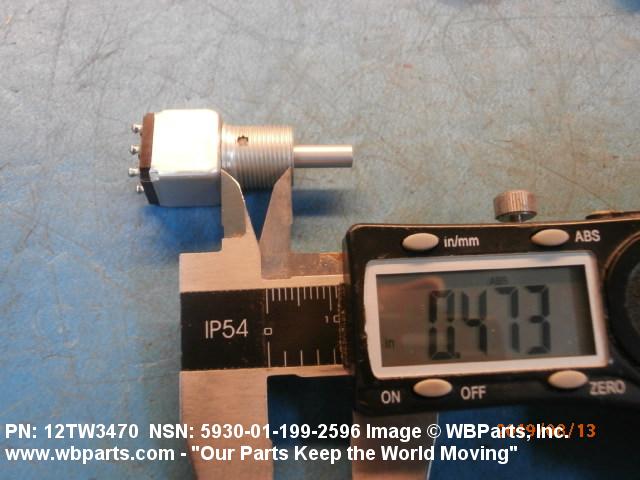

BUSHING LENGTH	0.470 INCHES NOMINAL

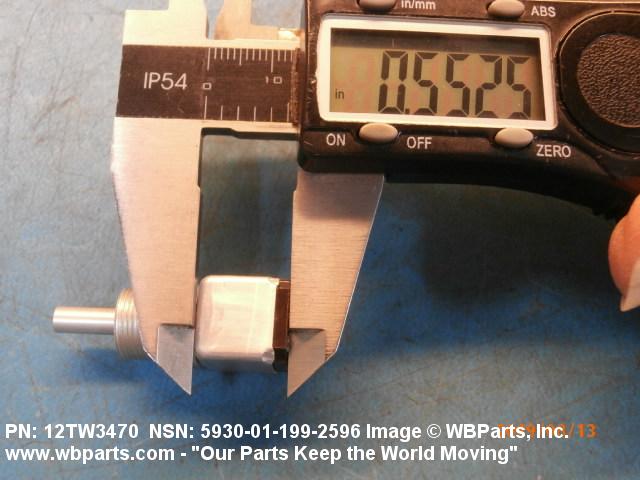

BODY LENGTH	0.575 INCHES MAXIMUM
BODY WIDTH	0.535 INCHES MAXIMUM
MOUNTING SURFACE TO TERMINAL END DISTANCE	0.740 INCHES MAXIMUM

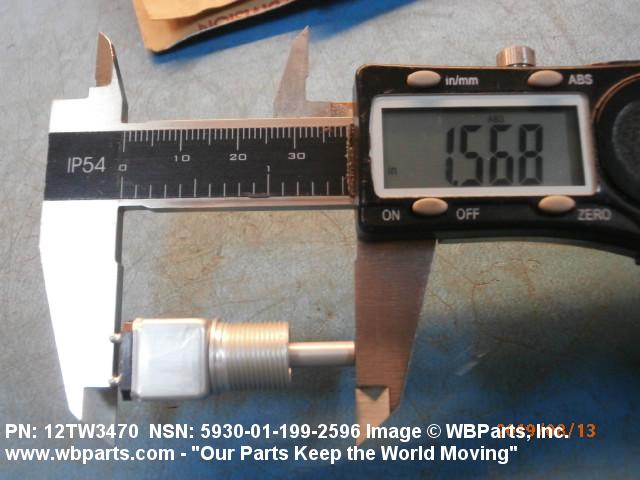

OVERALL HEIGHT	1.630 INCHES NOMINAL

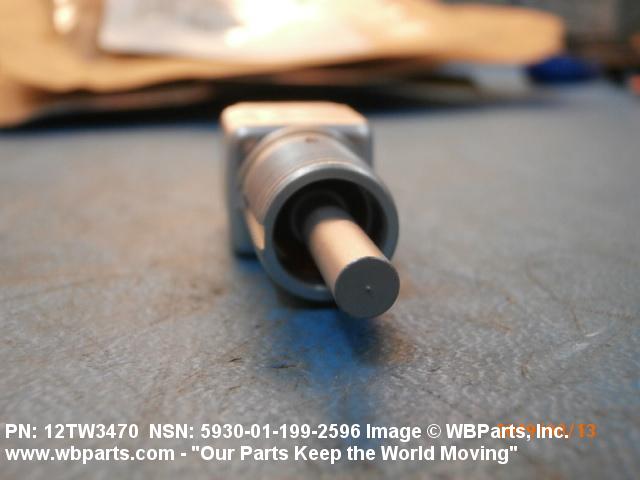

ACTUATOR STYLE	27 ROUND

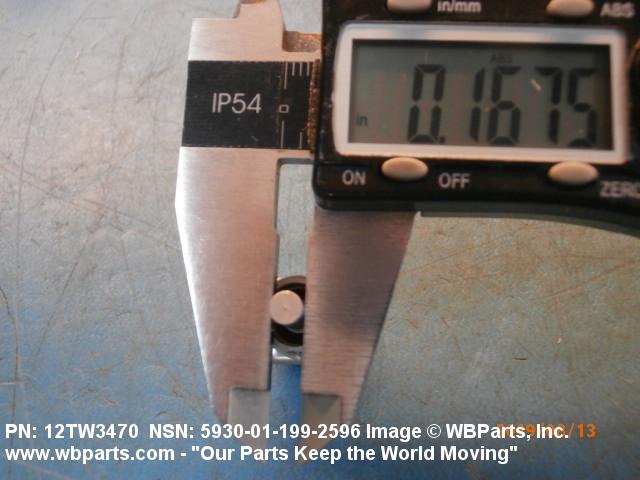

ACTUATOR DIAMETER	0.167 INCHES NOMINAL

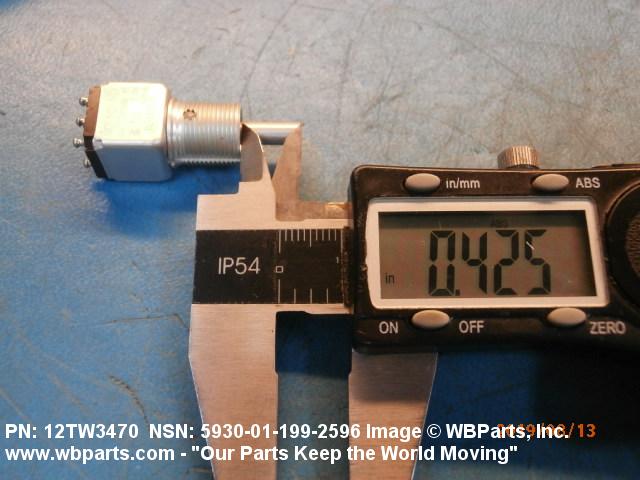

ACTUATOR HEIGHT	0.420 INCHES NOMINAL
ACTUATOR POSITION-ACTION RELATIONSHIP	UP POSITION MOMENTARY AND DOWN POSITION MOMENTARY AND CENTER POSITION MAINTAINED
TERMINAL TYPE AND QUANTITY	6 TURRET
INCLOSURE TYPE	FULLY INCLOSED

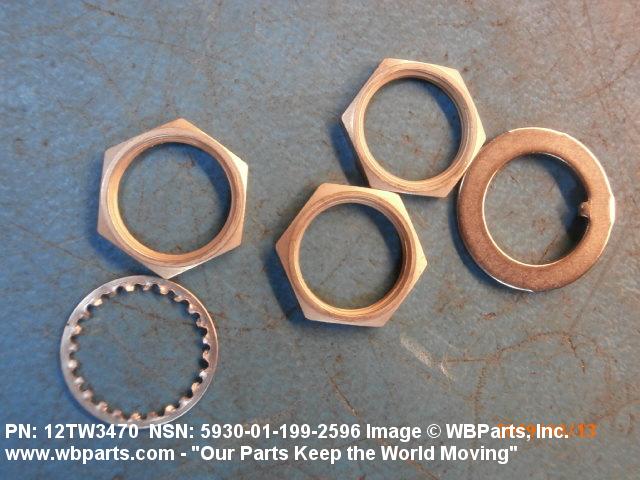

MOUNTING METHOD	THREADED BUSHING
THREAD SERIES DESIGNATOR	UNS

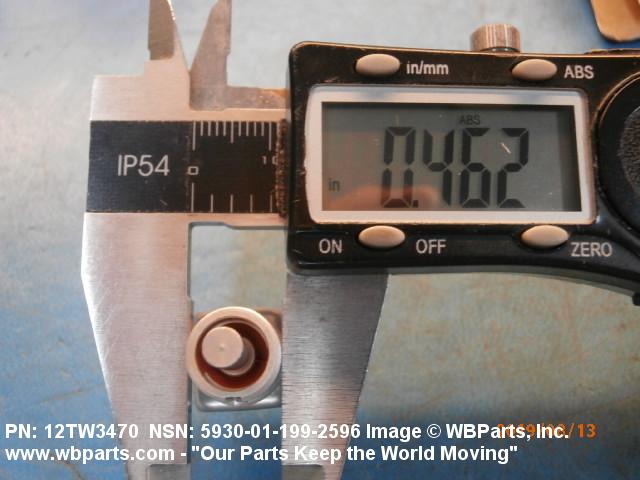

NOMINAL THREAD SIZE	0.469 INCHES

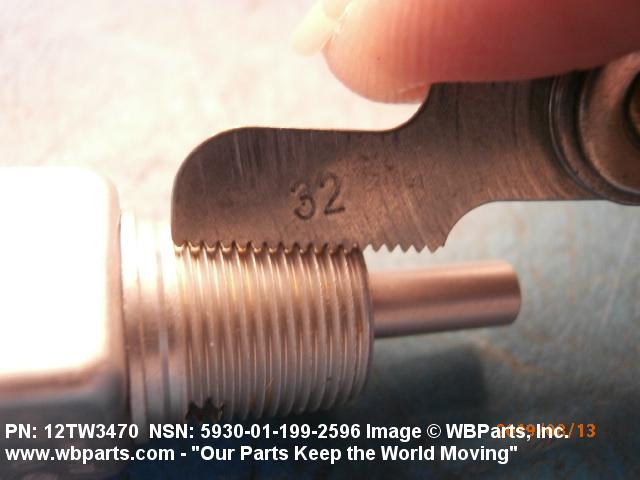

THREAD QUANTITY PER INCH	32
III END ITEM IDENTIFICATION	GRIP ASSEMBLY

Restrictions/Controls & Freight Information | NSN 5930-01-199-2596

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5930-01-199-2596

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
