NSN 5930-01-202-5956 P48284, PS55219 , 0180-45804-1-343
Product Details | PRESSURE SWITCH
5930-01-202-5956 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.
Part Alternates: P48284, PS55219 , 0180-45804-1-343 , 5930-01-202-5956, 01-202-5956, 0180458041343, 5930012025956, 012025956
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 05 MAR 1985 | 01-202-5956 | 00206 ( SWITCH, PRESSURE ) |

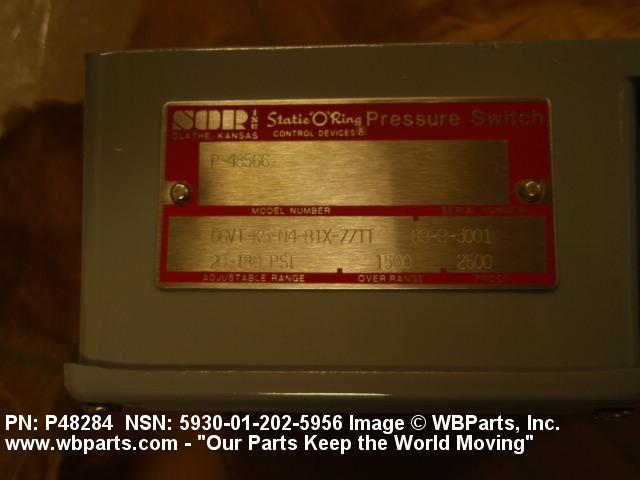

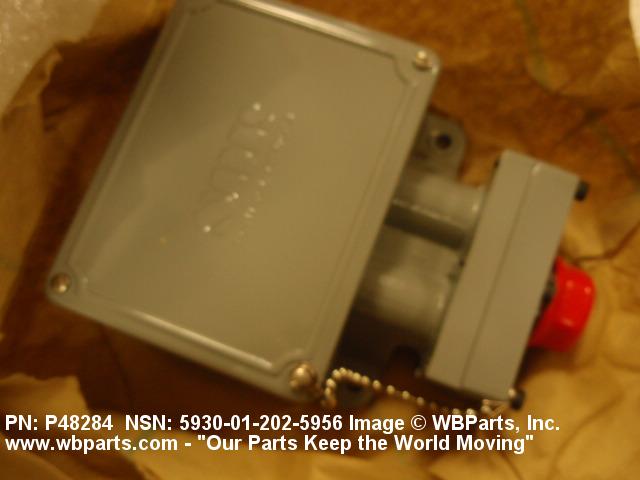

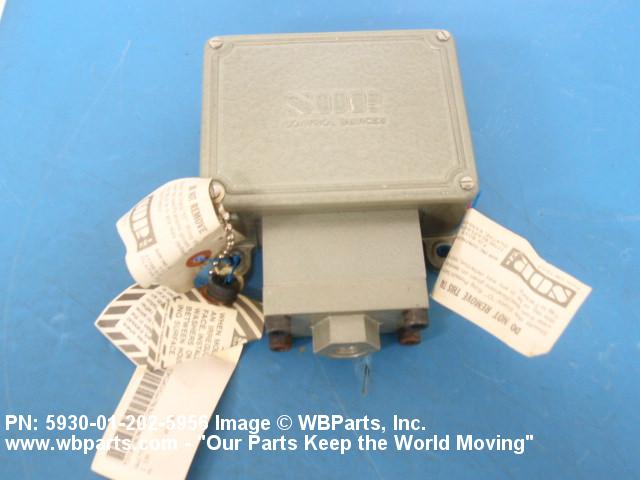

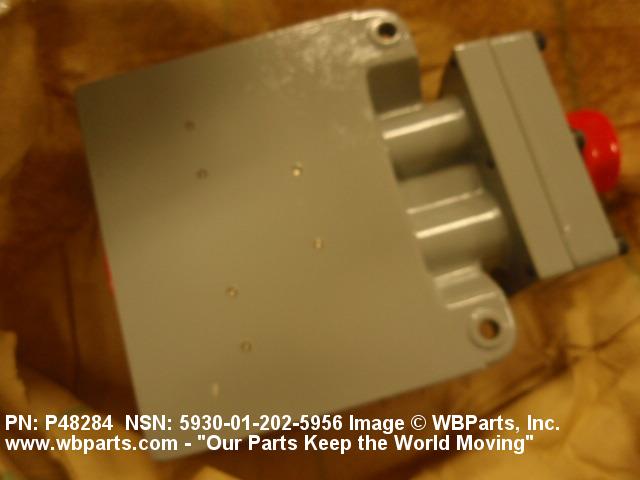

Drawings & Photos | NSN 5930-01-202-5956
Demand History | NSN 5930-01-202-5956
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-202-5956 | 2014-09-246 | 70 | DIBBS |
| 5930-01-202-5956 | 2014-07-208 | 52 | DIBBS |
| 5930-01-202-5956 | 2013-11-308 | 53 | DIBBS |
| 5930-01-202-5956 | 2013-10-293 | 53 | DIBBS |
| 5930-01-202-5956 | 2013-06-157 | 42 | DIBBS |
| 5930-01-202-5956 | 2013-03-66 | 4 | DIBBS |
| 5930-01-202-5956 | 2013-03-66 | 7 | DIBBS |
| 5930-01-202-5956 | 2013-01-09 | 4 | DIBBS |
| 5930-01-202-5956 | 2013-01-07 | 7 | DIBBS |
| 5930-01-202-5956 | 2012-09-260 | 7 | DIBBS |
| 5930-01-202-5956 | 2010-05-123 | 1 | United States |
| 5930-01-202-5956 | 2009-12-349 | 3 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-202-5956
Related Products | NSN 5930-01-202-5956
Technical Data | NSN 5930-01-202-5956
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 35 RECTANGULAR |
| OVERALL LENGTH | 5.470 INCHES NOMINAL |
| OVERALL HEIGHT | 6.730 INCHES NOMINAL |
| OVERALL WIDTH | 2.320 INCHES NOMINAL |
| BODY HEIGHT | 4.480 INCHES NOMINAL |
| PRESSURE SWITCH TYPE | DIFFERENTIAL |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | ACTUATION POINT ADJUSTABLE, PRESET AND DEACTUATION POINT ADJUSTABLE, PRESET |
| CONTACT ADJUSTMENT RANGE | 20.00 TO 180.00 ACTUATION POINT POUNDS PER SQUARE INCH AND 20.00 TO 180.00 DEACTUATION POINT POUNDS PER SQUARE INCH |
| CONTACT STIMULUS RATING | 90.00 ACTUATION POINT NOMINAL POUNDS PER SQUARE INCH AND 89.00 DEACTUATION POINT NOMINAL POUNDS PER SQUARE INCH |
| MEDIA FOR WHICH DESIGNED | GAS OR LIQUID |
| PROOF PRESSURE | 2500.00 POUNDS PER SQUARE INCH |
| PRESSURE CONNECTOR TYPE | PLAIN, THREADED INTERNAL SINGLE CONNECTION |
| INSIDE DIAMETER | 0.375 INCHES NOMINAL SINGLE CONNECTION |
| TERMINAL TYPE | SCREW |
| MOUNTING METHOD | BRACKET AND UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.281 INCHES NOMINAL |
| MOUNTING FACILITY PATTERN | TWO POSITION IN-LINE |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 4.500 INCHES NOMINAL |
| FEATURES PROVIDED | ELECTRICAL ACCESS PORT |
Restrictions/Controls & Freight Information | NSN 5930-01-202-5956
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-202-5956
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
