NSN 5930-01-203-3625 LE45200068005, LE452-0006-8005, 68AT2035

Product Details | TOGGLE SWITCH

5930-01-203-3625 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.

Part Alternates: LE45200068005, LE452-0006-8005, 68AT2035, 68AT203-5, 5930-01-203-3625, 01-203-3625, 5930012033625, 012033625

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	14 MAR 1985	01-203-3625	00184 ( SWITCH, TOGGLE )

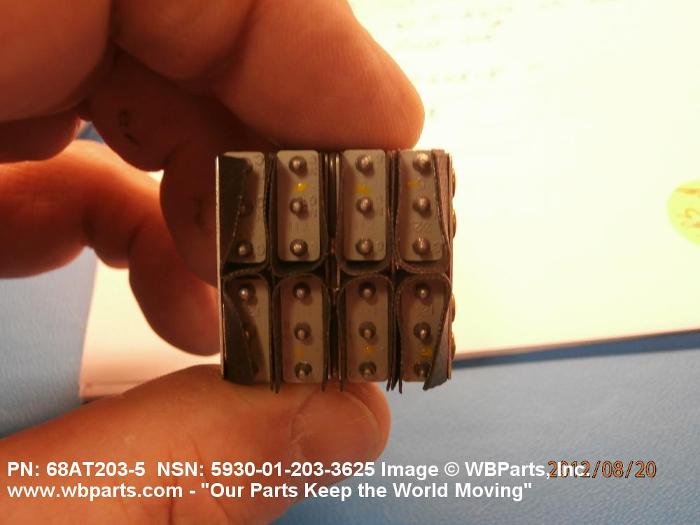

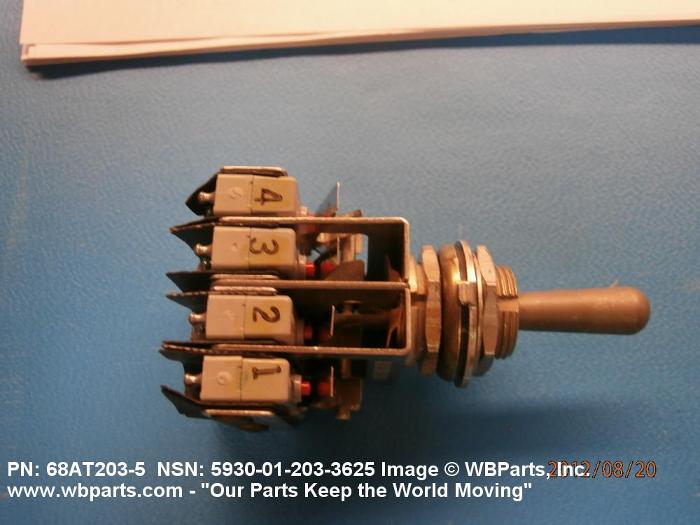

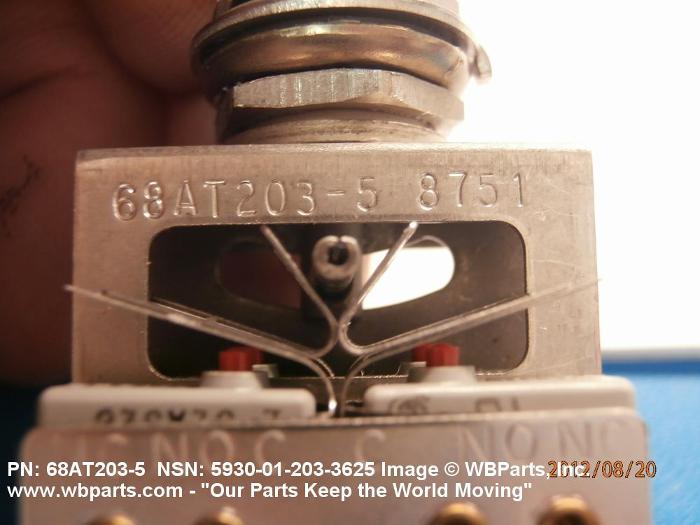

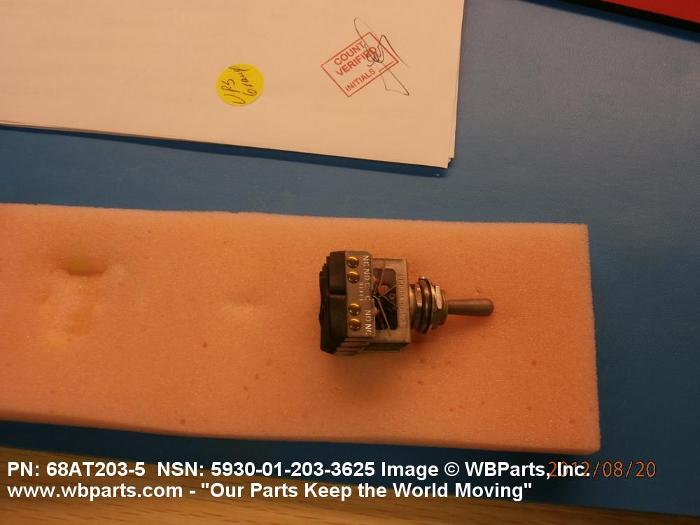

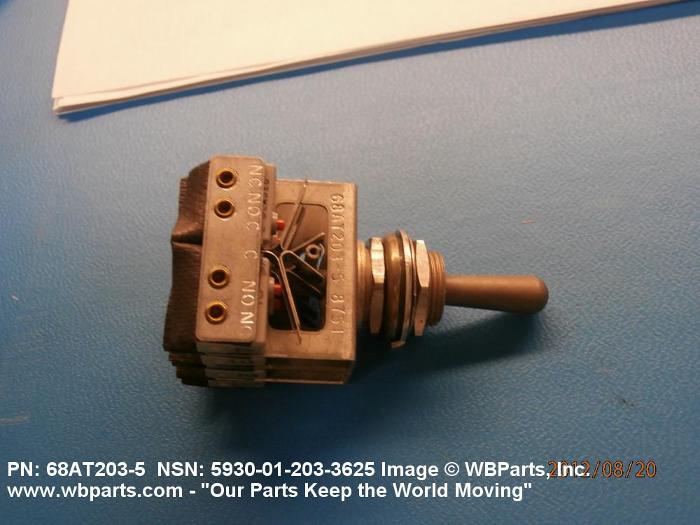

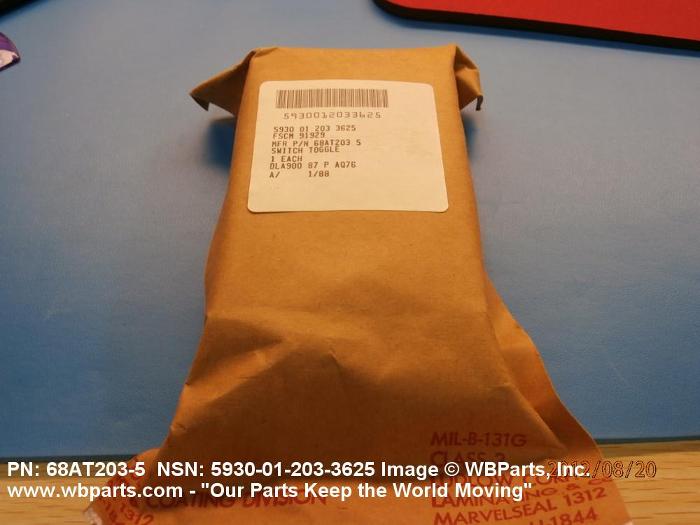

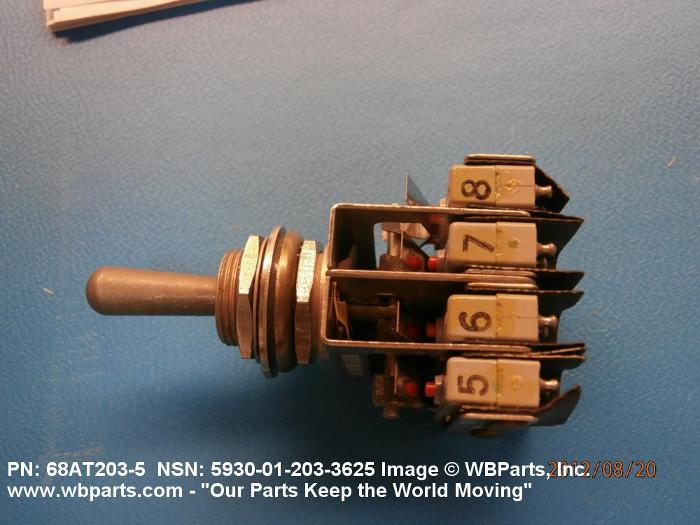

Drawings & Photos | NSN 5930-01-203-3625

Part Number	Request Date	QTY	Origin
68AT203-5	2019-01-31	27	DIBBS
LE452-0006-8005	2019-01-31	27	DIBBS
5930-01-203-3625	2016-11-312	3	DIBBS
5930-01-203-3625	2016-10-297	3	DIBBS
5930-01-203-3625	2013-08-240	18	DIBBS
5930-01-203-3625	2013-02-32	19	DIBBS
5930-01-203-3625	2012-11-309	6	DIBBS
5930-01-203-3625	2012-08-227	5	United States
5930-01-203-3625	2012-06-153	5	DIBBS
5930-01-203-3625	2011-11-306	10	DIBBS
5930-01-203-3625	2011-03-73	3	DIBBS
5930-01-203-3625	2011-01-07	2	DIBBS
5930-01-203-3625	2010-12-357	5	DIBBS
5930-01-203-3625	2008-01-08	3	DIBBS
5930-01-203-3625	2007-12-340	5	DIBBS
5930-01-203-3625	2007-10-292	4	DIBBS
5930-01-203-3625	2007-06-175	1	DIBBS

Cross Reference | NSN 5930-01-203-3625

Part Number	Cage Code	Manufacturer
68AT203-5	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
LE452-0006-8005	43999	BOEING COMPANY, THE DBA BOEING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5930-01-203-3625

Compare

Related Products | NSN 5930-01-203-3625

5930-01-203-3626, 5930-01-203-3627, 5930-01-203-3628, 5930-01-203-3630, 5930-01-203-3641

Technical Data | NSN 5930-01-203-3625

Characteristic	Specifications
NONPILE-UP CONTACT ARRANGEMENT	8 POLE, DOUBLE THROW, ONE POSITION MOMENTARY, TWO POSITIONS MAINTAINED SINGLE SWITCH UNIT
MAXIMUM VOLTAGE RATING IN VOLTS	28.0 DC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	1.000 AMPERES RESISTIVE DC AND 0.500 AMPERES INDUCTIVE DC
BODY STYLE	7P BUSHING MOUNT
BUSHING LENGTH	0.470 INCHES NOMINAL
BODY WIDTH	1.100 INCHES MAXIMUM
MOUNTING SURFACE TO TERMINAL END DISTANCE	1.100 INCHES NOMINAL
OVERALL LENGTH	1.170 INCHES MAXIMUM
OVERALL WIDTH	1.100 INCHES MAXIMUM
OVERALL HEIGHT	2.710 INCHES NOMINAL
ACTUATOR STYLE	22 ROUND
ACTUATOR DIAMETER	0.430 INCHES NOMINAL
ACTUATOR HEIGHT	1.050 INCHES MAXIMUM
ACTUATOR POSITION-ACTION RELATIONSHIP	UP POSITION MAINTAINED AND DOWN POSITION MOMENTARY AND CENTER POSITION MAINTAINED
TERMINAL TYPE AND QUANTITY	24 TURRET
INCLOSURE TYPE	FULLY INCLOSED
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION	CORROSION RESISTANT
MOUNTING METHOD	THREADED BUSHING
THREAD SERIES DESIGNATOR	UNS
NOMINAL THREAD SIZE	0.469 INCHES
THREAD QUANTITY PER INCH	32
FEATURES PROVIDED	ACTUATOR SEAL
SPECIAL FEATURES	WEAPON SYSTEM ESSENTIAL
CRITICALITY CODE JUSTIFICATION	FEAT
III END ITEM IDENTIFICATION	B-1B
III PRECIOUS MATERIAL	GOLD
III PRECIOUS MATERIAL AND LOCATION	CONTACT SURFACES GOLD

Restrictions/Controls & Freight Information | NSN 5930-01-203-3625

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	Y	The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	TH	Defense Supply Center Columbus Columbus, OH 43215
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5930-01-203-3625

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
